1. Side vents
2. Instrument cluster
3. Center vents
4. Electric moon roof switch and/orinterior light
5. Glove box
6. Manual transmission gear shift lever or automatic transmission selector lever
7. Power window switches
8. Power door lock switch
9. Auxiliary box
10. Parking brake lever 11. Hood lock release lever
12. Power rear view mirror control switches
Instrument panel overview

’02MY CELICA U (L/O 0108)
82002 MY CELICA_U (OM20792U)
Your vehicle is supplied with two kinds
of keys.1. Master key—This key works in every lock.
2. Sub key—This key will not work in the back door and glove box.
To protect things locked in the glove box
or luggage compartment when you have
your vehicle parked, leave the sub key
with the attendant.
Since the side doors and back door can
be locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside the
vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend to write down the key
number and keep it in safe place.LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with a power door lock system—
Both side doors and back door lock and
unlock simultaneously with either side
door. In the driver ’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock both side
doors and back door simultaneously.
Keys Side doors—

’02MY CELICA U (L/O 0108)
11 92002 MY CELICA_U (OM20792U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes s 121
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Cup holders 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Tiedown hooks 123
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage cover 123
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Grocery bag hooks 123
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Floor mat 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 9

’02MY CELICA U (L/O 0108)
1212002 MY CELICA_U (OM20792U)
ASHTRAY
To use the ashtray, pull out the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, pull the lid and
pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always close the lid
completely after using.

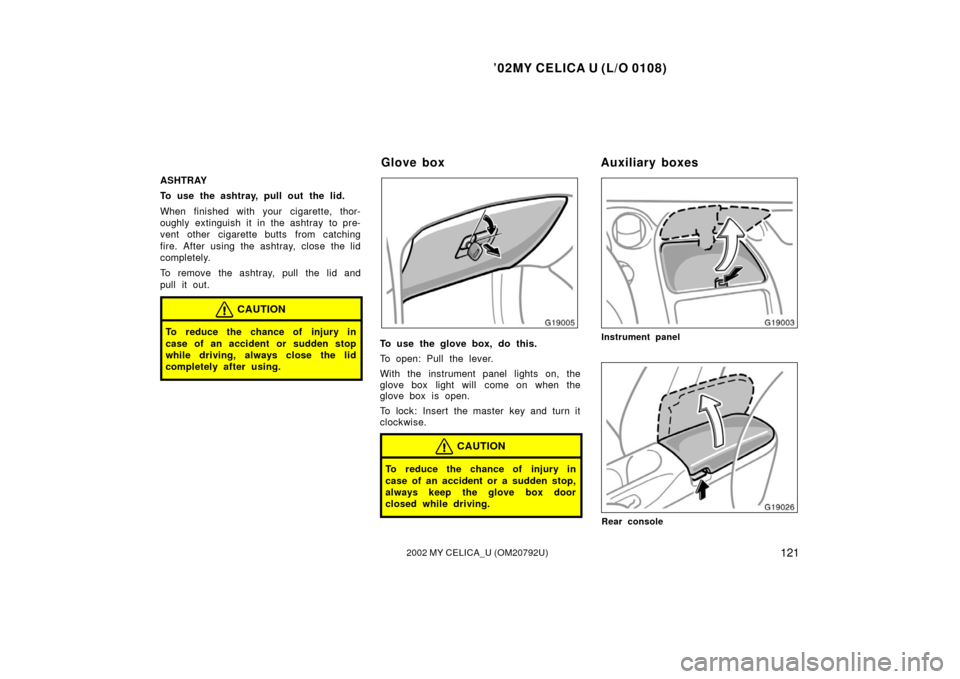

To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Instrument panel
Rear console
Glove boxAuxiliary boxes

’02MY CELICA U (L/O 0108)
2092002 MY CELICA_U (OM20792U)
Light bulbsBulbNo.WTy p e
Glove box light—1.2D
Luggage
compartment light—5F
A: H7 halogen bulbs
B: HB3 halogen bulbs
C: H3 halogen bulbs
D: Wedge base bulbs
E: Single end bulbs
F: Double end bulbs
1. Open the hood.
RIGHT SIDE HEADLIGHT—Remove the
clips and take out the cover. In doing
so, remove the washer hose from the
notch on the cover.
Remove and install the cover clips as
shown in the following illustrations.
—Headlights (low beam)

’02MY CELICA U (L/O 0108)
2252002 MY CELICA_U (OM20792U)
20. HEAD RH UPR 10 A: Righthand
headlight (high beam), daytime running
light system
21. HEAD LH UPR 10 A: Lefthand head-
light (high beam)
22. S/ROOF 15 A: Electric moon roof
23. CIG 15 A: Cigarette lighter
24. FL P/W 20 A: Power windows
25. AM1 25 A: Starting system, “CIG”,
“ECU ACC”, “SRSIG”, “WASHER”,
“WIPER”, “BK/UP LP”, “TENS RDC”,
“DEF RLY”, “BODY ECUIG”, “TURN”,
“HTR”, “WARNING”, “FAN RLY”, “ABS
IG” and “ECUIG” fuses
26. STOP 10 A: Stop lights, antilock
brake system, high mounted stoplight,
multiport fuel injection system/sequen-
tial multiport fuel injection system, elec-
tronically controlled automatic transmis-
sion system, cruise control system
27. DOOR 20 A: Power door lock system
28. SRSIG 7.5 A: SRS airbag system
29. FR FOG 15 A: Front fog lights
30. WASHER 15 A: Windshield wipers and
washer, rear window wiper and washer
31. OBD 7.5 A: Onboard diagnosis sys-
tem 32. RADIO 15 A:
Car audio system
33. WIPER 25 A: Windshield wipers and
washer
34. TURN 7.5 A: Turn signal lights
35. MIR HTR 10 A: No circuit
36. HTR 10 A: Air conditioning system
37. RR WIPER 15 A: Rear window wiper
and washer
38. TAIL 10 A: Tail lights, instrument panel
lights, license plate lights, front side
maker lights
39. FR P/W 20 A: Power windows
Fuses (type B)
40. SPARE 7.5 A: Spare fuse
41. a. MPXB 7.5 A: Wireless remote con-
trol system
b. RR FOG 7.5 A: No circuit
c. DOME 7.5 A: Clock, interior light
d. ECUB 7.5 A: Air conditioning sys-
tem, gauges and meters
42. a. WARNING 5 A: Charging system,
gauges and meters
b. ECUIG 5 A: Cruise control system
c. ABSIG 5 A: Antilock brake sys-
tem
d. FAN RLY 5 A: Electric cooling
fan 43. a. PANEL1 7.5 A:
Car audio system,
cigarette lighter, glove box light
b. PANEL2 7.5 A: Gauges and meters ,
air conditioning system, electronical-
ly controlled automatic transmission
system, h eadlight beam level control
system, front fog lights, emer gency
flasher, turn signal lights
c. ECUACC 7.5 A: Clock, car audio
system, power rear view mirror con-
trols
44. a. BK/UP LP 5 A: Backup lights
b. DEF RLY 5 A: Power windows, rear
window defogger
c.
BODY ECUIG 5 A: Multiplex com-
munication system
d. TENS RDC 5 A: Electronically con-
trolled automatic transmission sys-
tem, shift lock control system, elec-
tric moon roof
Fuses (type C)
45. CDS 30 A: Electric cooling fan
46. MAIN 40 A: Starting system, daytime
running light system
47. ABS NO.1 40 A: Antilock brake sys-
tem
48. RDI 30 A: Electric cooling fan
49. HTR 50 A: Air conditioning system
50. DEF 30 A: Rear window defogger
