TOYOTA CELICA 2003 T230 / 7.G Owners Manual

’03MY CELICA U (L/O 0208)
217
2003 CELICA from Aug. ’02 Prod. (OM20809U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition218
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 219
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 220
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

’03MY CELICA U (L/O 0208)
218
2003 CELICA from Aug. ’02 Prod. (OM20809U)

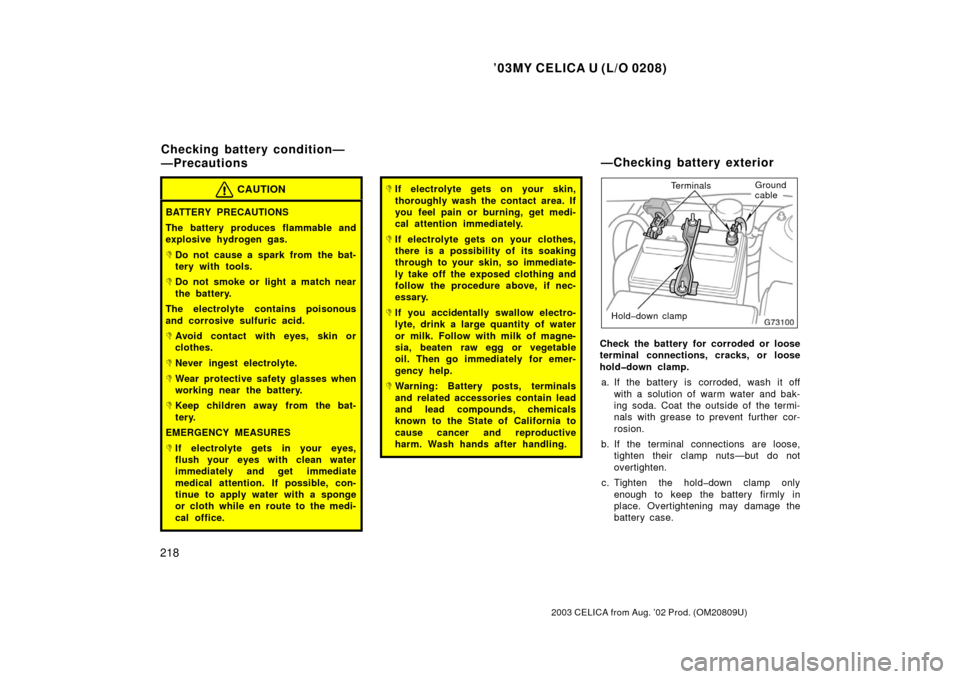

CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.
Do not cause a spark from the bat-
tery with tools.
Do not smoke or light a match near
the battery.
The electrolyte contains poisonous
and corrosive sulfuric acid.
Avoid contact with eyes, skin or
clothes.
Never ingest electrolyte.
Wear protective safety glasses when
working near the battery.
Keep children away from the bat-
tery.
EMERGENCY MEASURES
If electrolyte gets in your eyes,
flush your eyes with clean water
immediately and get immediate
medical attention. If possible, con-
tinue to apply water with a sponge
or cloth while en route to the medi-
cal office.
If electrolyte gets on your skin,
thoroughly wash the contact area. If
you feel pain or burning, get medi-
cal attention immediately.
If electrolyte gets on your clothes,
there is a possibility of its soaking
through to your skin, so immediate-
ly take off the exposed clothing and
follow the procedure above, if nec-
essary.
If you accidentally swallow electro-
lyte, drink a large quantity of water
or milk. Follow with milk of magne-
sia, beaten raw egg or vegetable
oil. Then go immediately for emer-
gency help.
Warning: Battery posts, terminals
and related accessories contain lead
and lead compounds, chemicals
known to the State of California to
cause cancer and reproductive
harm. Wash hands after handling.
Terminals Ground
cable
Holddown clamp
Check the battery for corroded or loose
terminal connections, cracks, or loose
holddown clamp. a. If the battery is corroded, wash it off with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose, tighten their clamp nuts—but do not
overtighten.
c. Tighten the holddown clamp only enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
Checking battery c ondition—
—Precautions —Checking battery exterior

’03MY CELICA U (L/O 0208)
219
2003 CELICA from Aug. ’02 Prod. (OM20809U)
NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
If the battery is disconnected or run
down, the moon roof may not operate
automatically and the jam protection func-
tion will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normal-
ize the moon roof. To normalize the moon
roof, see “Electric moon roof” in Section
12.
Ty p e A
Green Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear orlight
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery c ondition Battery recharging pr ecautions

’03MY CELICA U (L/O 0208)
220
2003 CELICA from Aug. ’02 Prod. (OM20809U)

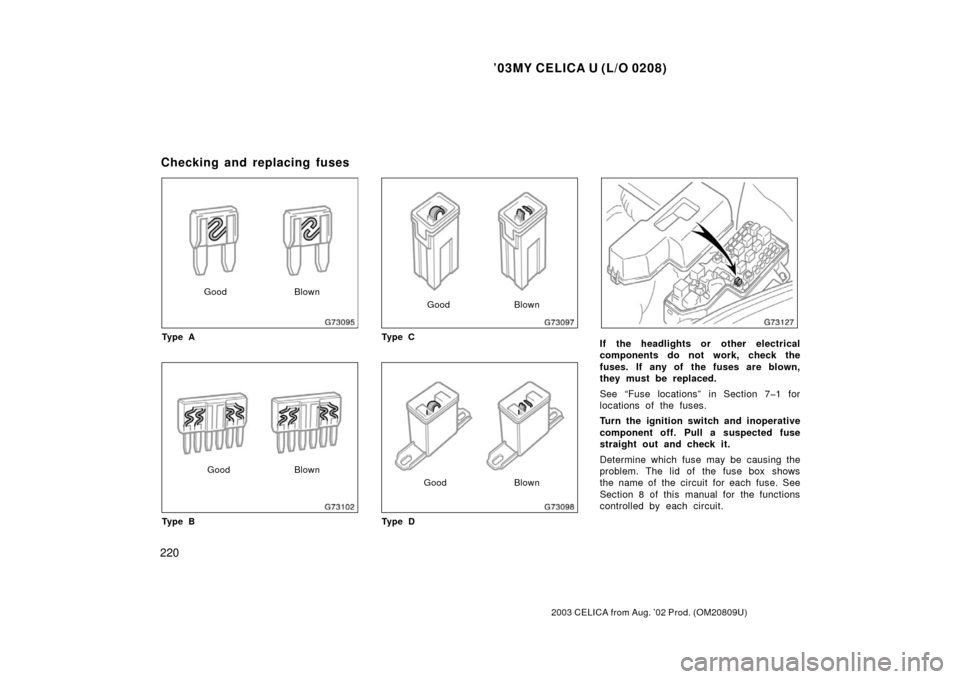

GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
Ty p e D
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Section 71 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions
controlled by each circuit.
Checking and replacing fuses

’03MY CELICA U (L/O 0208)
221
2003 CELICA from Aug. ’02 Prod. (OM20809U)
Type A fuses can be pulled out by the
pullout tool. The location of the pullout
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “RADIO”,
“CIG” or “HTR” fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work, the wash-
er tank may be empty. Check the wash-
er fluid level on the level gauge. If the
washer fluid level is below “LOW”, add
washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
Adding washer fluid

’03MY CELICA U (L/O 0208)
222
2003 CELICA from Aug. ’02 Prod. (OM20809U)
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Vehicles with discharge headlights—
Do not disassemble, repair or take
apart the headlight bulbs, connec-
tor, power supply circuits and ro-
tated components. Or you may be
injured by electric shocks. Call your
dealer when the headlights fail to
work or have to be replaced or dis-
posed of.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.
NOTICE
Only use a bulb of the listed type.
Replacing light bulbs—

’03MY CELICA U (L/O 0208)
223
2003 CELICA from Aug. ’02 Prod. (OM20809U)
A: D2S discharge bulbs
B: H7 halogen bulbs
C: HB3 halogen bulbs
D: H3 halogen bulbs
E: Wedge base bulbs (clear)
F: Single end bulbs (amber)
G: Wedge base bulbs (amber)
H: Single end bulbs (clear)
I: Double end bulbsTy p e
W
Bulb No.
35
55
Light bulbs
Headlights (low) With discharge headlights
Without discharge headlights
Headlights (high) —
—
A
B
Front fog lights
Parking lights
Front turn signal lights
Front side marker lights
Rear turn signal lights
Stop/tail and rear side marker lights
Backup lights
License plate lights
Interior light With moon roof
Without moon roof
Glove box light
Luggage compartment light 60
9005 C
55
—D
5
—E
21
—F
3.8
194 E
21
—G
21/5
7443 E
16
921 E
5
—E
108
—
— H
I
1.2
—E
5
—I

’03MY CELICA U (L/O 0208)
224
2003 CELICA from Aug. ’02 Prod. (OM20809U)

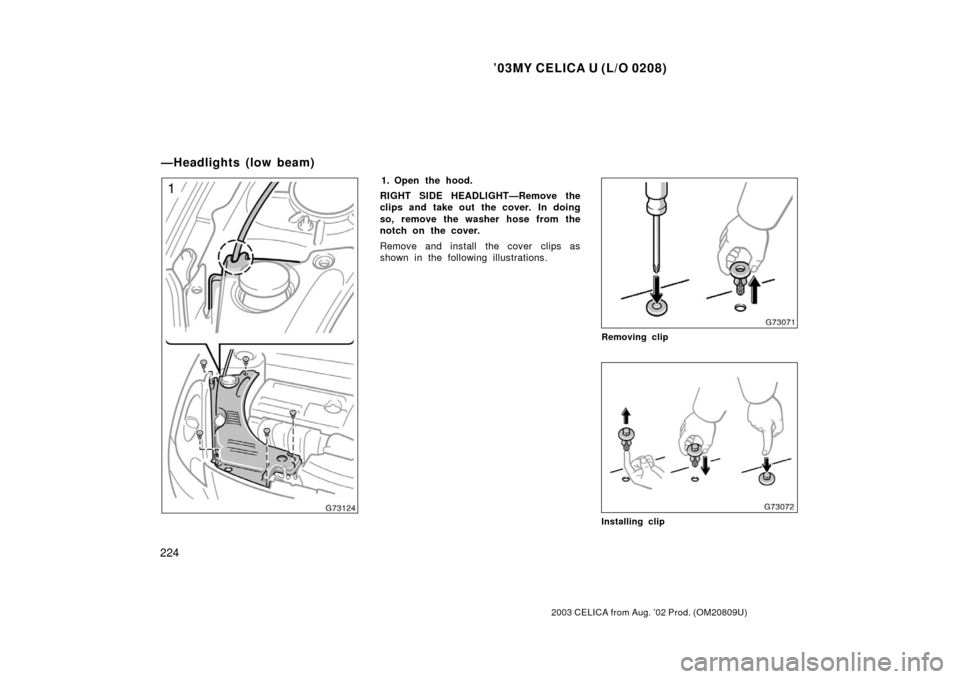

1. Open the hood.
RIGHT SIDE HEADLIGHT—Remove the
clips and take out the cover. In doing
so, remove the washer hose from the
notch on the cover.
Remove and install the cover clips as
shown in the following illustrations.
Removing clip
Installing clip
—Headlights (low beam)

’03MY CELICA U (L/O 0208)
225
2003 CELICA from Aug. ’02 Prod. (OM20809U)

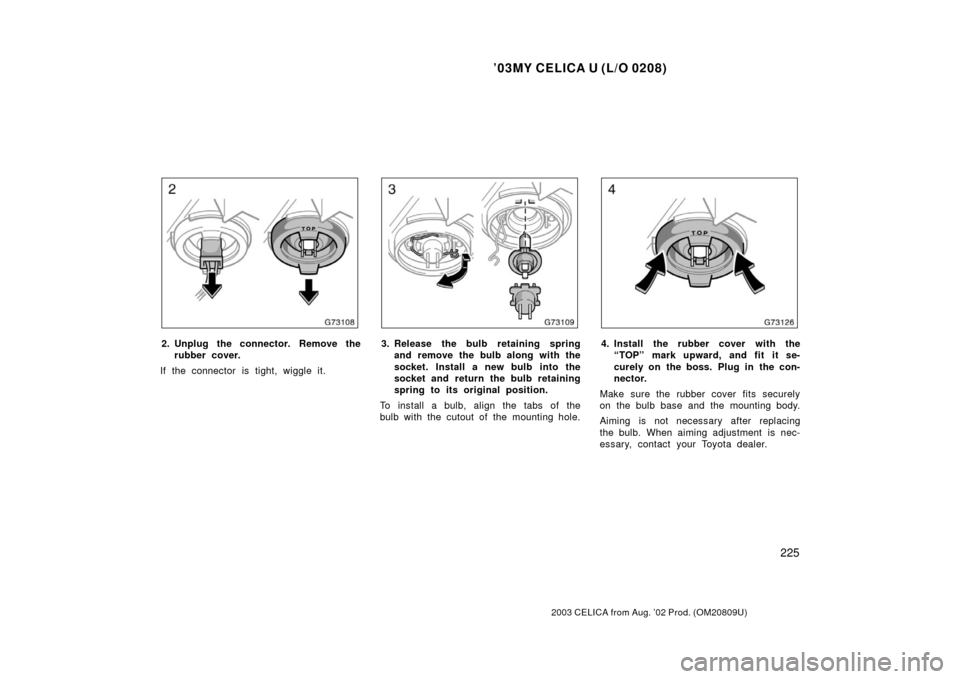

2. Unplug the connector. Remove therubber cover.
If the connector is tight, wiggle it.3. Release the bulb retaining spring and remove the bulb along with the
socket. Install a new bulb into the
socket and return the bulb retaining
spring to its original position.
To install a bulb, align the tabs of the
bulb with the cutout of the mounting hole.4. Install the rubber cover with the “TOP” mark upward, and fit it se-
curely on the boss. Plug in the con-
nector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’03MY CELICA U (L/O 0208)
226
2003 CELICA from Aug. ’02 Prod. (OM20809U)

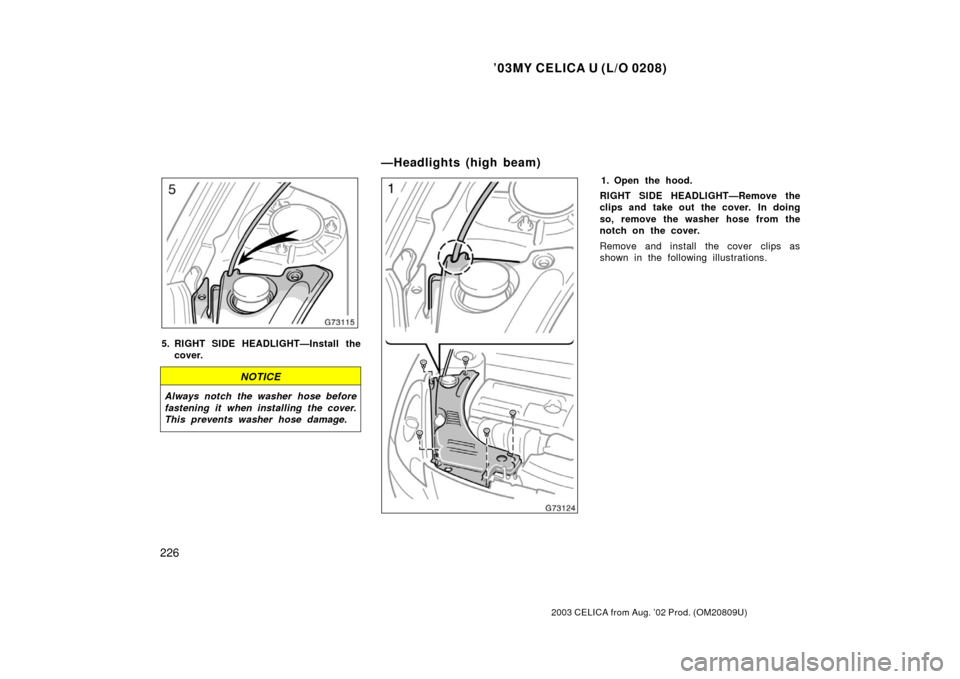

5. RIGHT SIDE HEADLIGHT—Install thecover.
NOTICE
Always notch the washer hose before
fastening it when installing the cover.
This prevents washer hose damage.
1. Open the hood.
RIGHT SIDE HEADLIGHT—Remove the
clips and take out the cover. In doing
so, remove the washer hose from the
notch on the cover.
Remove and install the cover clips as
shown in the following illustrations.
—Headlights (high beam)
