Defogging and defrosting
The inside of the windshield
For best results, set controls to:Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM (red
zone) to heat; COLD
(blue zone) cool
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defogging
function with the purpose of clearing the
front view.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
On humid days, do not blow cold air
on the windshield—the difference be-
tween the outside and inside tempera-
tures could make the fogging worse. The outside of the windshield
For best results, set controls to:
Fan speed— Any setting except “OFF”
Temperature— To w a r d s WARM
(red zone)
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Turning the air flow selector to the wind-
shield position turns on the defogging
function with the purpose of clearing the
front view.
Vehicles with “A/C” button—
Press the “A/C” button for dehumidified
heating or cooling. This setting clears the
front view more quickly.
To heat the vehicle interior while de-
frosting the windshield, choose floor/
windshield air flow.
Open
Close

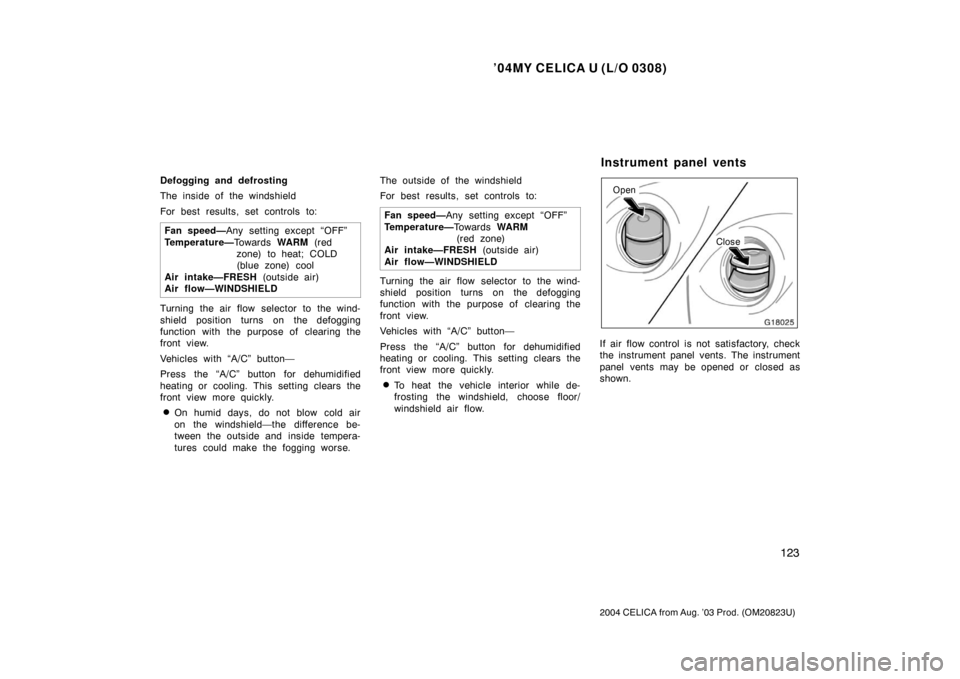

If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
Instrument panel vents

’04MY CELICA U (L/O 0308)
124
2004 CELICA from Aug. ’03 Prod. (OM20823U)
You can change air flow direction by turn-
ing the instrument panel vents.

’04MY CELICA U (L/O 0308)
125
2004 CELICA from Aug. ’03 Prod. (OM20823U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Outside temperature display 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Tie −down hooks 129
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Luggage cover 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Grocery bag hooks 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Floor mat 130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

’04MY CELICA U (L/O 0308)
126
2004 CELICA from Aug. ’03 Prod. (OM20823U)
Ty p e A
Ty p e B

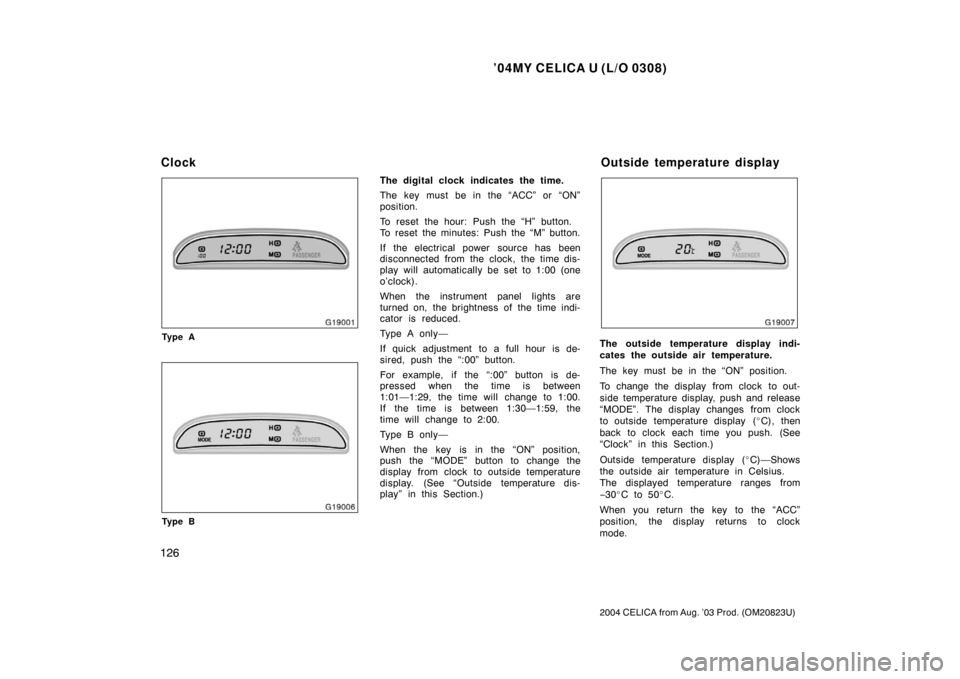

The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cator is reduced.
Type A only—
If quick adjustment to a full hour is de-
sired, push the “:00” button.
For example, if the “:00” button is de-
pressed when the time is between
1:01—1:29, the time will change to 1:00.
If the time is between 1:30—1:59, the
time will change to 2:00.
Type B only—
When the key is in the “ON” position,
push the “MODE” button to change the
display from clock to outside temperature
display. (See “Outside temperature dis-
play” in this Section.)
The outside temperature display indi-
cates the outside air temperature.
The key must be in the “ON” position.
To change the display from clock to out-
side temperature display, push and release
“MODE”. The display changes from clock
to outside temperature display (C), then
back to clock each time you push. (See
“Clock” in this Section.)
Outside temperature display ( C)—Shows
the outside air temperature in Celsius.
The displayed temperature ranges from
− 30 C to 50 C.
When you return the key to the “ACC”
position, the display returns to clock
mode.
Clock Outside temperature display

’04MY CELICA U (L/O 0308)
127
2004 CELICA from Aug. ’03 Prod. (OM20823U)
If there is a problem with the connection
to the outside air temperature sensor, “−−”
will appear on the display. Contact your
Toyota dealer.
When the instrument panel lights are
turned on, the brightness of the tempera-
ture indicator is reduced.
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement. ASHTRAY

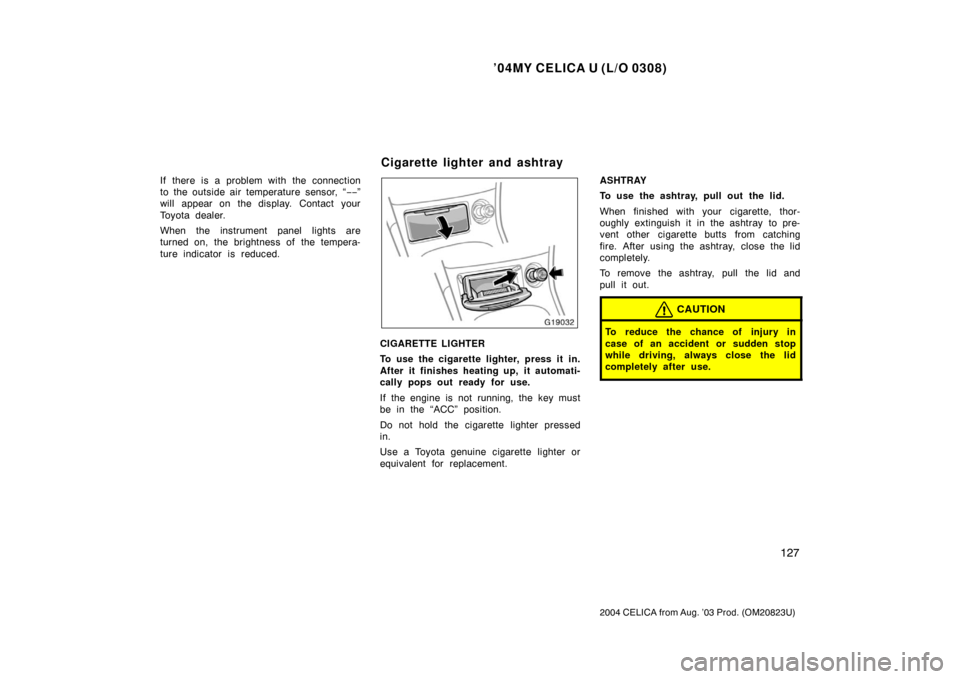

To use the ashtray, pull out the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, pull the lid and
pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always close the lid
completely after use.
Cigarette lighter and ashtray

’04MY CELICA U (L/O 0308)
128
2004 CELICA from Aug. ’03 Prod. (OM20823U)
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
glove box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Type A (instrument panel)
Type B (rear console)
To use the boxes, open them as shown
in the illustrations.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Type A—During hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
Glove boxAuxiliary boxes

’04MY CELICA U (L/O 0308)
129
2004 CELICA from Aug. ’03 Prod. (OM20823U)
Front
Rear

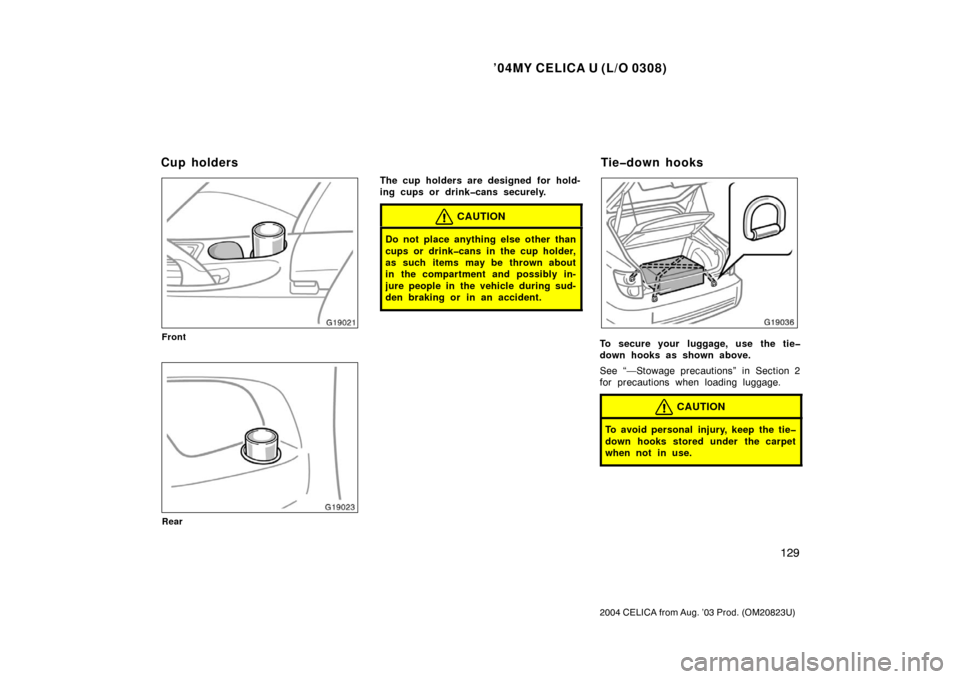

The cup holders are designed for hold-
ing cups or drinkcans securely.
CAUTION
Do not place anything else other than
cups or drinkcans in the cup holder,
as such items may be thrown about
in the compartment and possibly in-
jure people in the vehicle during sud-
den braking or in an accident.
To secure your luggage, use the tie
down hooks as shown above.
See “—Stowage precautions” in Section 2
for precautions when loading luggage.
CAUTION
To avoid personal injury, keep the tie
down hooks stored under the carpet
when not in use.
Cup holdersTiedown hooks

’04MY CELICA U (L/O 0308)
130
2004 CELICA from Aug. ’03 Prod. (OM20823U)

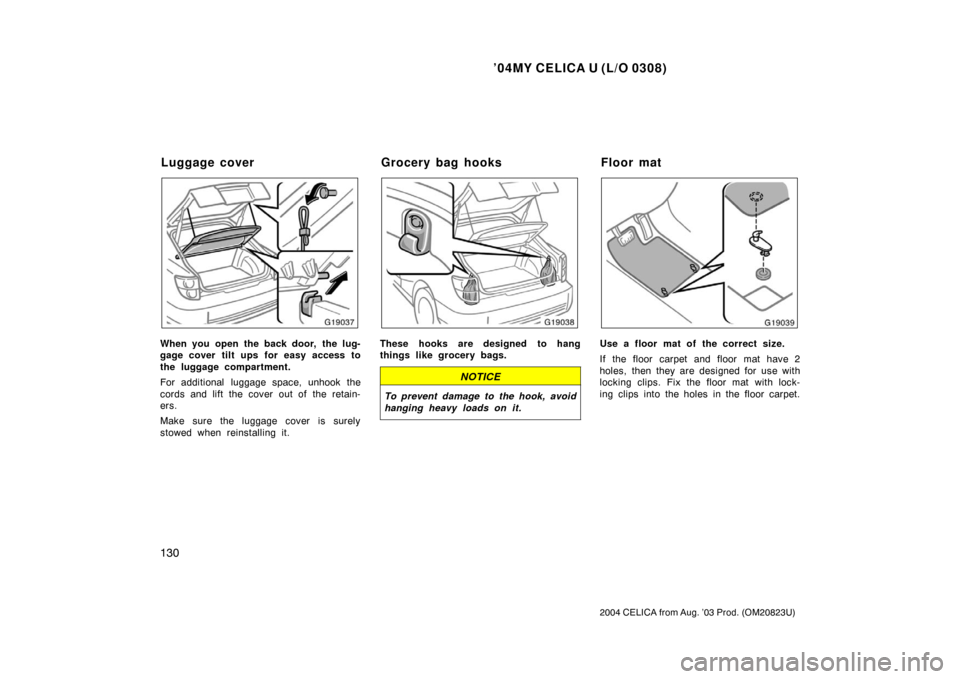

When you open the back door, the lug-
gage cover tilt ups for easy access to
the luggage compartment.
For additional luggage space, unhook the
cords and lift the cover out of the retain-
ers.
Make sure the luggage cover is surely
stowed when reinstalling it.These hooks are designed to hang
things like grocery bags.
NOTICE
To prevent damage to the hook, avoid
hanging heavy loads on it.
Use a floor mat of the correct size.
If the floor carpet and floor mat have 2
holes, then they are designed for use with
locking clips. Fix the floor mat with lock-
ing clips into the holes in the floor carpet.
Luggage coverGrocery bag hooksFloor mat

’04MY CELICA U (L/O 0308)
131
2004 CELICA from Aug. ’03 Prod. (OM20823U)
CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.

’04MY CELICA U (L/O 0308)
132
