’05MY CELICA U (L/O 0409)
3
2005 CELICA from Sep. ’04 Prod. (OM20888U)

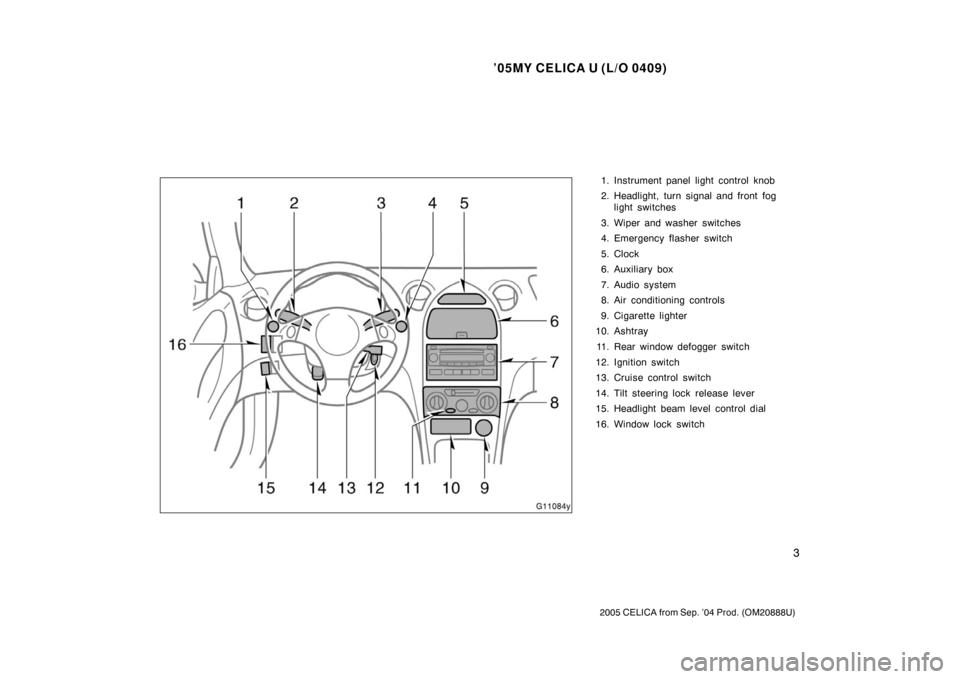

1. Instrument panel light control knob
2. Headlight, turn signal and front foglight switches
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. Auxiliary box
7. Audio system
8. Air conditioning controls
9. Cigarette lighter
10. Ashtray
11. Rear window defogger switch
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Headlight beam level control dial
16. Window lock switch
Page 12 of 282
’05MY CELICA U (L/O 0409)
4
2005 CELICA from Sep. ’04 Prod. (OM20888U)
1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer 4. Fuel gauge
5. Engine coolant temperature gauge
6. Odometer and two trip meters
7. Trip meter reset knob
8. Gear position indicators
Instrument cluster overview
Page 13 of 282
’05MY CELICA U (L/O 0409)
5
2005 CELICA from Sep. ’04 Prod. (OM20888U)
SRS warning light∗1
Open door warning light∗1
Brake system warning light∗1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
Anti −lock brake system warning light∗
1
Driver ’s seat belt reminder light∗1
Low fuel level warning light∗1
or or
Automatic transmission fluid temperature
warning light∗
1
Headlight low beam indicator light
Tail light indicator light
Headlight high beam indicator light
Front passenger ’s seat belt reminder light∗1
Indicator symbols on the instrument panel
Page 14 of 282
’05MY CELICA U (L/O 0409)
6
2005 CELICA from Sep. ’04 Prod. (OM20888U)
∗1: For details, see “Service reminder indicators and warning
buzzers” in Section 1 −6.
∗
2: If this light flashes, see “Automatic transmission” in Section
1−7.
∗
3: If this light flashes, see “Cruise control” in Section 1 −7.
Cruise control indicator light
∗
3
Overdrive −off indicator light
Automatic transmission indicator lights
M mode indicator light
∗
2
Turn signal indicator lights
Page 15 of 282
’05MY CELICA U (L/O 0409)
7
2005 CELICA from Sep. ’04 Prod. (OM20888U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Wireless remote control 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Side doors 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Back door 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Hood 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2
Page 16 of 282
’05MY CELICA U (L/O 0409)
8
2005 CELICA from Sep. ’04 Prod. (OM20888U)

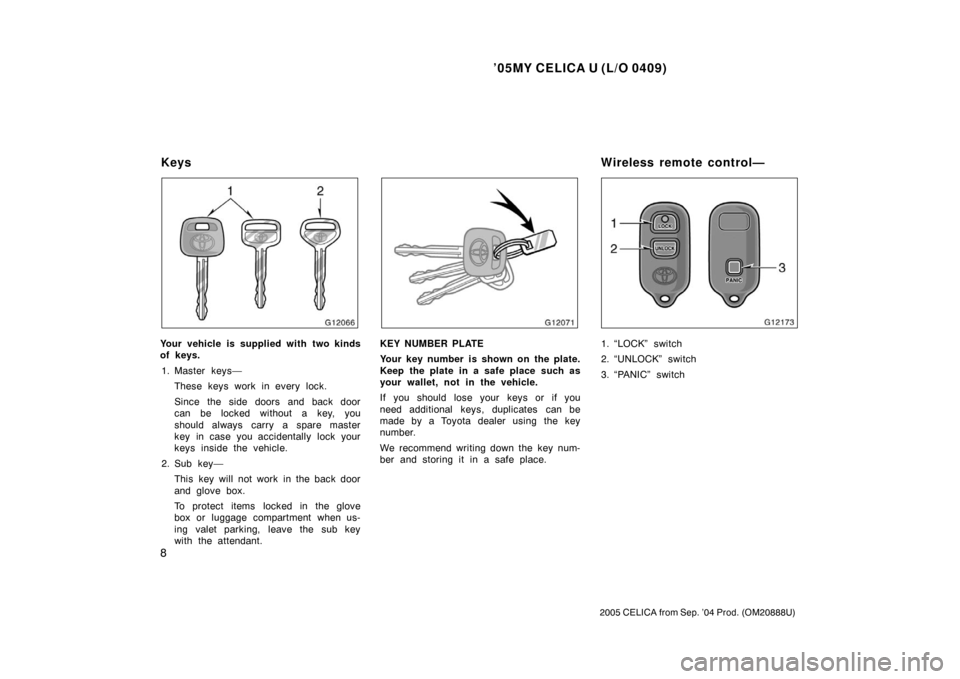

Your vehicle is supplied with two kinds
of keys.1. Master keys— These keys work in every lock.
Since the side doors and back door
can be locked without a key, you
should always carry a spare master
key in case you accidentally lock your
keys inside the vehicle.
2. Sub key— This key will not work in the back door
and glove box.
To protect items locked in the glove
box or luggage compartment when us-
ing valet parking, leave the sub key
with the attendant.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.1. “LOCK” switch
2. “UNLOCK” switch
3. “PANIC” switch
Keys Wireless remote control—
Page 17 of 282
’05MY CELICA U (L/O 0409)
9
2005 CELICA from Sep. ’04 Prod. (OM20888U)
The wireless remote control system is
designed to lock or unlock all the
doors or activate the “PANIC” mode
from a distance within approximately 1
m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
battery”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” in Section 4.) For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
Page 18 of 282
’05MY CELICA U (L/O 0409)
10
2005 CELICA from Sep. ’04 Prod. (OM20888U)
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

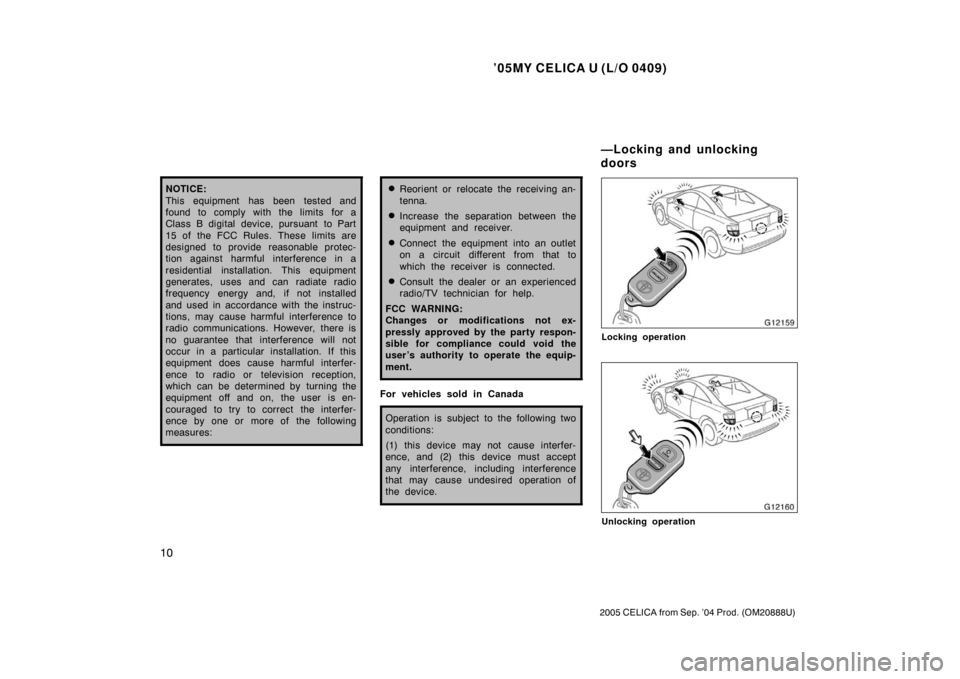

Locking operation
Unlocking operation
—Locking and unlocking
doors
Page 19 of 282
’05MY CELICA U (L/O 0409)
11
2005 CELICA from Sep. ’04 Prod. (OM20888U)
To lock: Push the “LOCK” switch. Both
side doors and back door are locked si-
multaneously. At this time, parking lights,
side marker lights and tail lights flash.
Check to see that both side doors and
back door are securely locked.
If either side doors or back door is not
securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the “LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks both side doors and back door
simultaneously. At this time, parking lights,
side marker lights and tail lights flash
twice.
When the interior light switch is in the
“DOOR” position, and both side doors and
back door are unlocked simultaneously us-
ing the wireless remote control transmitter,
the interior light will come on and remain
on for about 15 seconds before fading
out, even if the door is not opened. (For
further information, see “Interior light” in
Section 1−5.) You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, both side
doors and back door will be automatically
locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
Push the “PANIC” switch once again.
Unlock either side door or back door
with the key or wireless remote control
transmitter.
Turn the ignition key from the “LOCK”
to “ACC” or “ON” position.
—Activating panic mode
Page 20 of 282
’05MY CELICA U (L/O 0409)
12
2005 CELICA from Sep. ’04 Prod. (OM20888U)
The “PANIC” mode does not work when
the ignition key is in the “ACC” or “ON”
position.For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE
During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
Replace only with the same or
equivalent type recommended by a
Toyota dealer.
Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:

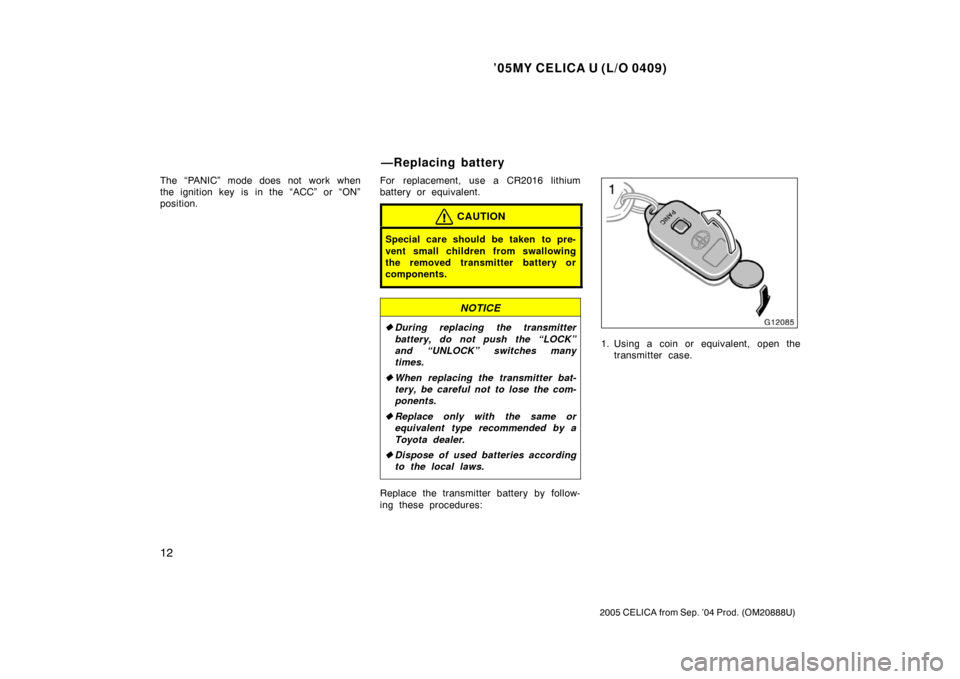

1. Using a coin or equivalent, open the
transmitter case.
—Replacing battery
