4. Release the bulb retaining spring
and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.5. Install the rubber cover with the
”TOP” mark upward, and snuggle on
the boss. Insert the connector.
Make sure the rubber cover fits snugly on
the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.Use a Phillips−head screwdriver.
—Parking, front side marker
and front turn signal lights
ProCarManuals.com

1998 COROLLA(U)
200

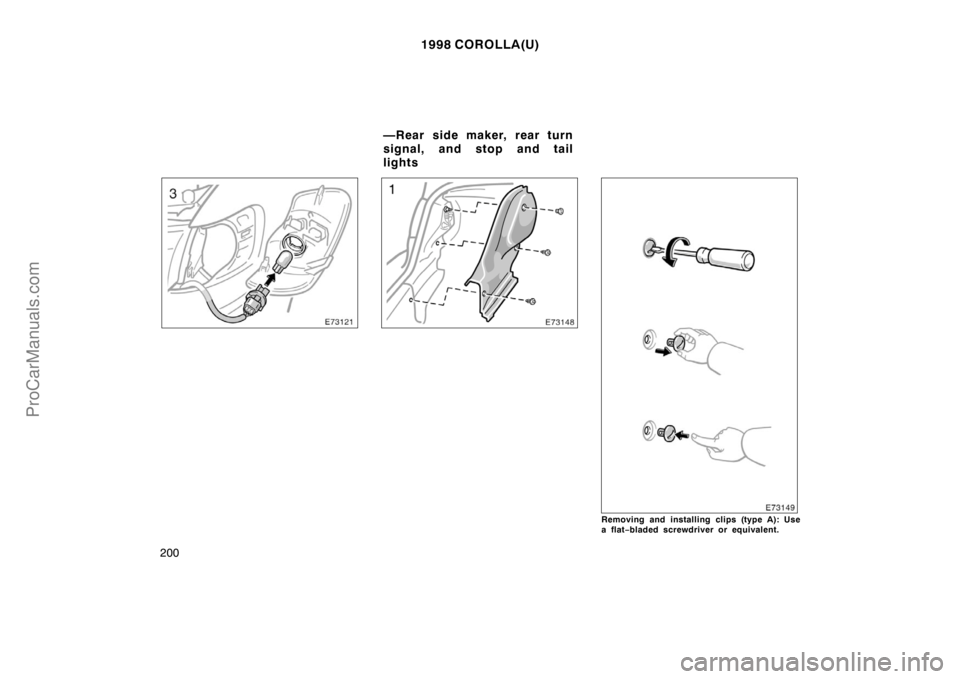

Removing and installing clips (type A): Use
a flat−bladed screwdriver or equivalent.
—Rear side maker, rear turn
signal, and stop and tail
lights
ProCarManuals.com

1998 COROLLA(U)
201

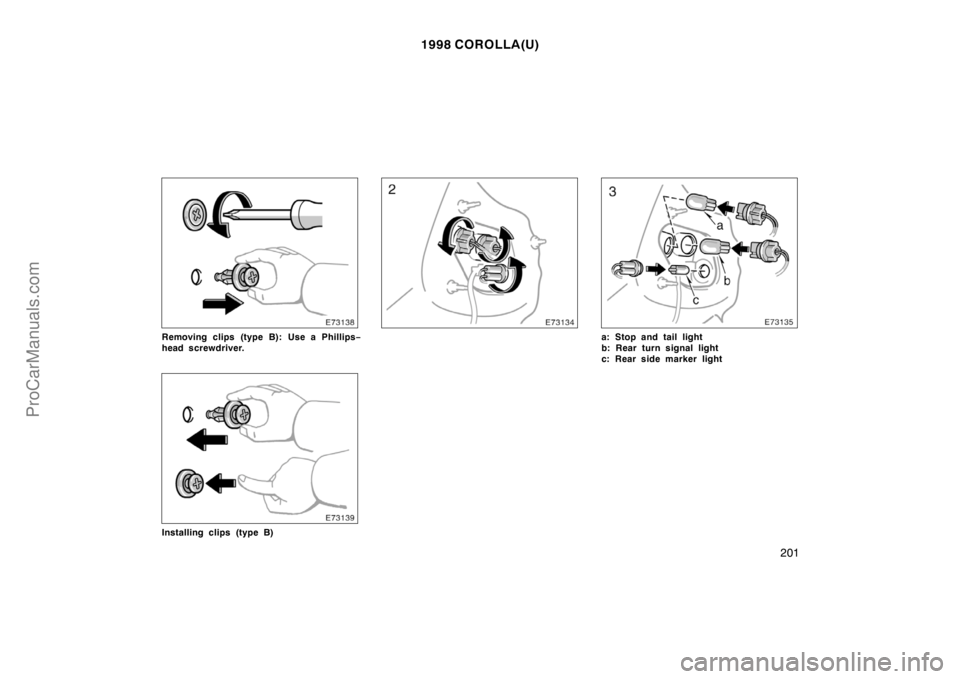

Removing clips (type B): Use a Phillips−
head screwdriver.
Installing clips (type B)
a: Stop and tail light
b: Rear turn signal light
c: Rear side marker light
ProCarManuals.com

1998 COROLLA(U)
202

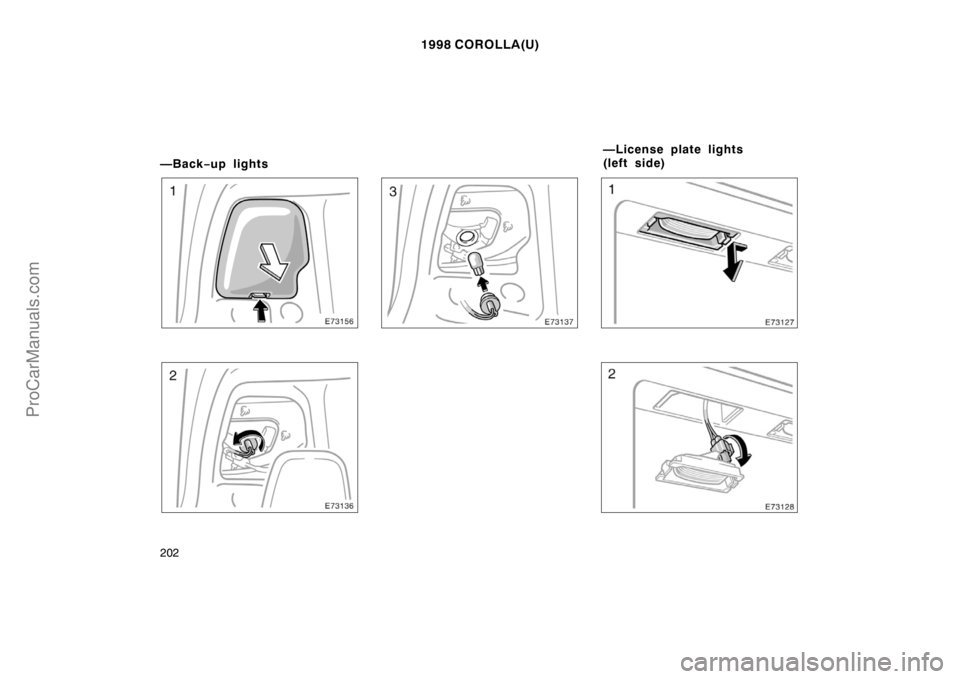

—Back−up lights
—License plate lights
( lef t sid e)
ProCarManuals.com

1998 COROLLA(U)
203
—License plate lights
(right side)
ProCarManuals.com

1998 COROLLA(U)
204

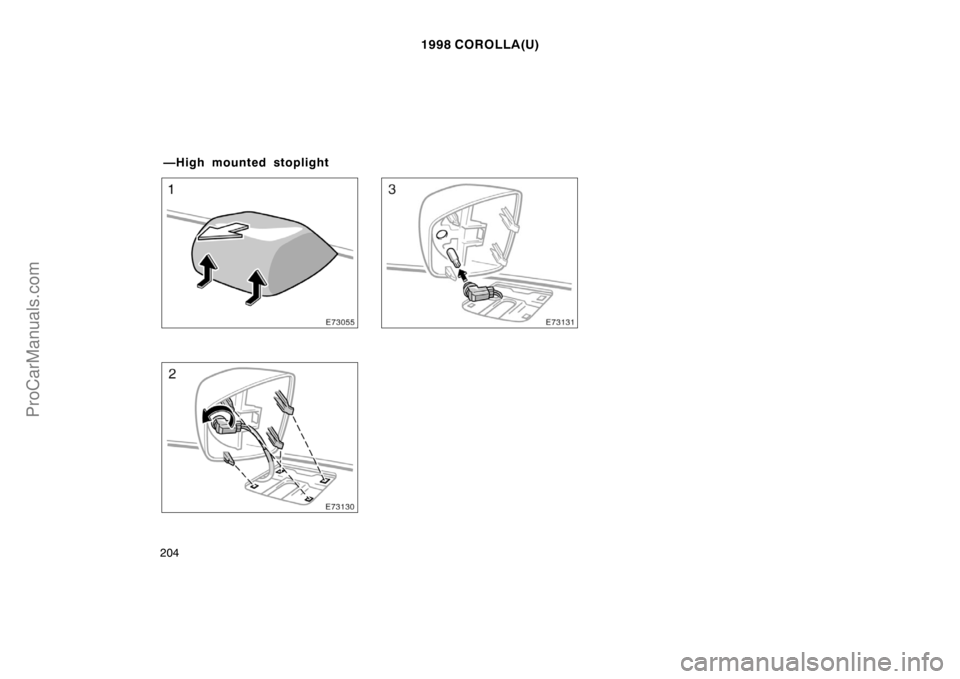

—High mounted stoplight
ProCarManuals.com

1998 COROLLA(U)
205
Part 8
SPECIFICATIONS
Dimensions and weight
Engine
Fuel
Service specifications
Ti r es
Fuses
Dimensions and weight
Overall length mm (in):
4420 (174.0)
Overall width mm (in):
1695 (66.7)
Overall height mm (in):
1385 (54.5)
∗
Wheelbase mm (in):
2465 (97.0)
Front tread mm (in):
1460(57.5)
Rear tread mm (in):
1450(57.1)
Vehicle capacity weight
(occupants+luggage)
kg(lb): 385 (850)
∗:Unladen vehicle
Engine
Model:
1ZZ−FE
Type:
4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.):
79.0 x 91.5 (3.11 x 3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
ProCarManuals.com

1998 COROLLA(U)
206
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87 (Re-
search Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.):
50 (13.2, 11.0)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO K16TR11
NGK BKR5EKB−11
Spark plug gap, mm(in.):
1.1 (0.043)ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
Oil grade:
API grade SH, ”Energy−Conserving II”
or SJ, ”Energy−Conserving” multigrade
engine oil or ILSAC multigrade engine
oil is recommended.
Recommended oil viscosity (SAE):
ProCarManuals.com

1998 COROLLA(U)
207
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
Manual transmission
5.8 (6.1, 5.1)
Automatic transmission
5.7 (6.0, 5.0)
Coolant type:
With ethylene−glycol antifreeze
(Do not use alcohol type.)
BATTERY
Open voltage
∗ at 20C (68F):
12.6−12.8 V Fully charged
12.2−12.4 V Half charged
11 . 8−12.0 V Discharged
∗: Voltage that is checked 20 minutes after
the key is removed with all the lights
turned off
Charging rates: 5 A max.
CLUTCH
Pedal freeplay, mm (in.):
5—15 (0.2—0.6)
Fluid type:
SAE J1703 or FMVSS No. 116 DOT 3MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.):
1.9 (2.0, 1.7)
Oil type:
Gear oil API GL−4 or GL−5
Recommended oil viscosity:
SAE 75W−90
AUTOMATIC TRANSAXLE
Automatic transmission
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Four−speed type
Up to 3.1 (3.3, 2.7)
Three−speed type
2.5 (2.6,2.2)
Fluid type:
Automatic transmission fluid D−ll or
DEXRONIII (DEXRONII)
Differential (three−speed type only)
Fluid capacity L (qt., Imp. qt.):
1.4 (1.5, 1.2)
Fluid type:
Automatic transmission fluid D−II or
DEXRONIII (DEXRONII)BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
Vehicles with anti−lock brake system
90 (3.5)
Vehicles without anti−lock brake system
85 (3.3)
Pedal freeplay, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf):
4—7 clicks
Fluid type:
SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel freeplay:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
ProCarManuals.com

1998 COROLLA(U)
208
Tires
Tire size:
Compact spare tire
T115/70D14
T125/70D14
Except compact spare tire
P175/65SR14
P185/65SR14
Tire pressure, kPa (kgf/cm
2 or bar, psi):
Compact spare tire 420 (4.2 60)
Except compact spare tire 2 1 0 ( 2 . 1 , 3 0 )
Wheel size:
Compact spare tire
14 x 4T
Except compact Spare tire
14 x 5.5JJ
Wheel nut torque, N·m (kgf·m, ft·lbf):
102.9 (10.5, 76)
Fuses
Engine compartment
Fuses (type A)
1. A/C 7.5 A: Air conditioning system,
electric cooling fan
2. SPARE 5 A: Spare fuse
3. SPARE 10 A: Spare fuse
4. SPARE 15 A: Spare fuse
5. DOME 15 A: Car audio system, interior
lights, personal lights, trunk lights,
clock, daytime running light system,
theft deterrent system
6. HAZARD 10 A: Turn signal lights,
emergency flashers
Engine compartment
7. AM2 15 A: Starter system, ”ST” and
”IGN” fuses
8. HEAD (LH) or HEAD (LH−UPR) 10 A:
Left−hand headlight
9. ALT−S 5 A: Charging system
10. HEAD (RH) or HEAD (RH−UPR) 10 A:
Right−hand headlight
11 . E F I o r F−HTR 15 A: Multiport fuel in-
jection system/sequential multiport fuel
injection system
12. HORN 10 A: Horn, theft deterrent sys-
tem
