TOYOTA COROLLA 2001 Owners Manual

'01 Corolla U (L/O 0005)
782001MY_COROLLA_U (OM12720U)
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Instrument panel light control
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Front fog lights
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
ProCarManuals.com

'01 Corolla U (L/O 0005)
792001MY_COROLLA_U (OM12720U)
Interior light
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
ªONºÐKeeps the light on all the time.
ªOFFºÐTurns the light off.
ªDOORºÐTurns the light on when any of
the door is opened. The light remains on
for a certain time after all the doors are
closed. When all the doors are locked or
the ignition switch is turned to ªACCº or
ªONº after all the doors are closed, the
light goes off.
Ignition switch light
For easy access to the ignition switch,
the ignition switch light comes on when
any of the doors are opened.
The light remains on for a certain time
after all the doors are closed. When all
the doors are locked or the ignition switch
is turned to ªACCº or ªONº after all the
doors are closed, the light goes off.
Personal lights
With electric moon roof
Without electric moon roof
ProCarManuals.com

'01 Corolla U (L/O 0005)
802001MY_COROLLA_U (OM12720U)
To turn on the personal light, push the
switch. To turn it off, push the switch
once again.
Ty p e A
Ty p e B
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the ªONº position.
Ty p e A Ð
Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
Ty p e B Ð
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
With interval adjuster: The ªINT TIMEº
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.
Windshield wipers and
washer
ProCarManuals.com

'01 Corolla U (L/O 0005)
812001MY_COROLLA_U (OM12720U)
To squirt washer fluid, pull the lever
toward you.
With interval adjuster: If the windshield
wipers are off, they will operate a couple
of times after the washer squirts.
For instructions on adding washer fluid,
see ªAdding washer fluidº in Section 7±3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Rear window defogger
To defog or defrost the rear window,
push the switch.
The key must be in the ªONº position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop±and±
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires.
ProCarManuals.com

'01 Corolla U (L/O 0005)
822001MY_COROLLA_U (OM12720U)
ProCarManuals.com

'01 Corolla U (L/O 0005)
832001MY_COROLLA_U (OM12720U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gaug84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer85 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzer86 . . . . . . . . . . . . . . . .
SECTION 1± 5
ProCarManuals.com

'01 Corolla U (L/O 0005)
842001MY_COROLLA_U (OM12720U)

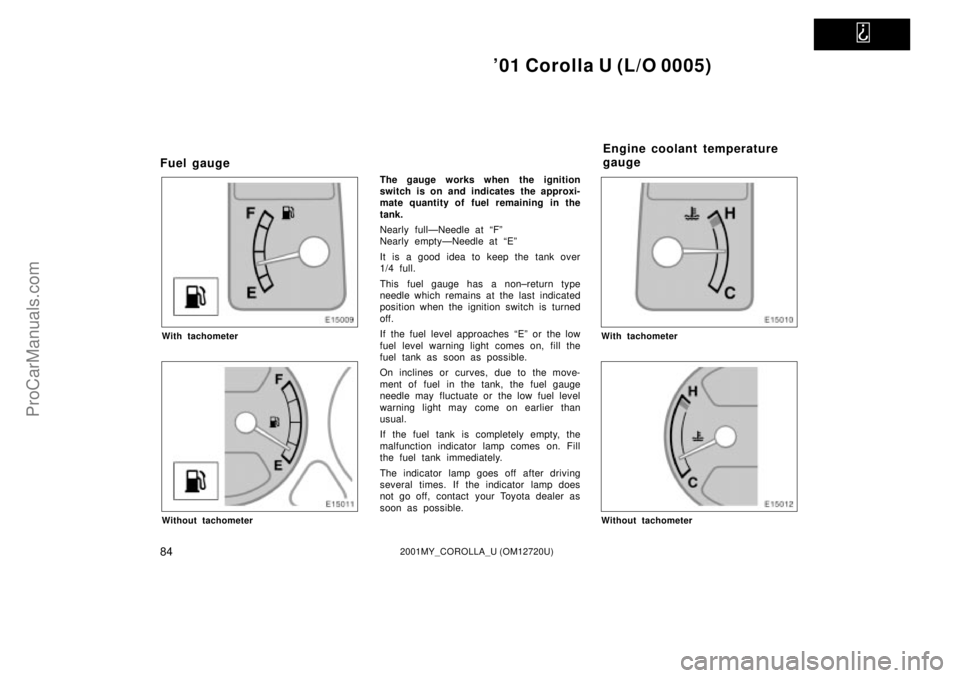

Fuel gauge
With tachometer
Without tachometer
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly fullÐNeedle at ªFº
Nearly emptyÐNeedle at ªEº
It is a good idea to keep the tank over
1/4 full.
This fuel gauge has a non±return type
needle which remains at the last indicated
position when the ignition switch is turned
off.
If the fuel level approaches ªEº or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
With tachometer
Without tachometer
Engine coolant temperature
gauge
ProCarManuals.com

'01 Corolla U (L/O 0005)
852001MY_COROLLA_U (OM12720U)
The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:

Driving up a long hill on a hot day.

Reducing speed or stopping after high
speed driving.

Idling for a long period with the air
conditioning on in stop±and±go traffic.

Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
Do not continue driving with an
overheated engine. See ªIf your ve-
hicle overheatsº in Section 4.
Tachometer
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and over±revving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
ProCarManuals.com

'01 Corolla U (L/O 0005)
862001MY_COROLLA_U (OM12720U)
Odometer and two trip meters
This meter displays the odometer and
two trip meters.
1. OdometerÐShows the total distance
the vehicle has been driven.
2. Two trip metersÐShow two different
distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.3. Trip meter reset knobÐResets the two
trip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.(a) If parking brake
is off, stop
immediately
and contact
Toyota dealer.
(b) Fasten seat belt.If the indicator or
buzzer comes on...
(c) Stop and check.
(d) Take vehicle to
Toyota dealer.
(e) Fill up tank.or
(indicator and buzzer)Do this.
Service reminder indicators
an d warn in g bu zzers
ProCarManuals.com

'01 Corolla U (L/O 0005)
872001MY_COROLLA_U (OM12720U)
(f) Stop and check.
(g) Take vehicle to
Toyota dealer.
(h) Close all doors.
(i) Take vehicle to
Toyota dealer
immediately. or
(j) Add washer
fluid.If the indicator or
buzzer comes on...Do this.
(k) Remove key.Key reminder
buzzer
(l) Turn off lights.Light reminder
buzzer If the indicator or
buzzer comes on...Do this.(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the ªONº posi-
tion.
When the parking brake is applied...

When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following case:

The light does not come on even if the
parking brake is applied when the igni-
tion key is in the ªONº position.
