Reporting safety defects for
U.S. owners
ProCarManuals.com

'01 Corolla U (L/O 0005)
2432001MY_COROLLA_U (OM12720U)
TreadwearÐThe treadwear grade is a
comparative rating based on the wear rate
of the tire when tested under controlled
conditions on a specified government test
course. For example, a tire graded 150
would wear one and a half (1±1/2) times
as well on the government course as a
tire graded 100. The relative performance
of tires depends upon the actual condi-
tions of their use, however, and may de-
part significantly from the norm due to
variations in driving habits, service prac-
tices and differences in road characteris-
tics and climate.
Traction AA, A, B, CÐThe traction
grades, from highest to lowest, are AA, A,
B, and C, and they represent the tire's
ability to stop on wet pavement as mea-
sured under controlled conditions on spe-
cified government test surfaces of asphalt
and concrete. A tire marked C may have
poor traction performance.
Warning: The traction grade assigned to
this tire is based on braking (straight
ahead) traction tests and does not include
cornering (turning) traction.Temperature A, B, CÐThe temperature
grades are A (the highest), B, and C,
representing the tire's resistance to the
generation of heat and its ability to dissi-
pate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature
can cause the material of the tire to de-
generate and reduce tire life, and exces-
sive temperature can lead to sudden tire
failure. The grade C corresponds to a lev-
el of performance which all passenger car
tires must meet under the Federal Motor
Vehicle Safety Standard No.109. Grades B
and A represent higher levels of perfor-
mance on the laboratory test wheel than
the minimum required by law.
Warning: The temperature grades for this
tire are established for a tire that is prop-
erly inflated and not overloaded. Exces-
sive speed, underinflation, or excessive
loading, either separately or in combina-
tion, can cause heat buildup and possible
tire failure.
ProCarManuals.com

'01 Corolla U (L/O 0005)
2442001MY_COROLLA_U (OM12720U)
ProCarManuals.com

'01 Corolla U (L/O 0005)
12001MY_COROLLA_U (OM12720U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument pane7 . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 1
ProCarManuals.com

'01 Corolla U (L/O 0005)
22001MY_COROLLA_U (OM12720U)
Instrument panel overview
1. Rear view mirror remote control levers
2. Side vents
3. Instrument cluster
4. Center vents
5. Electric moon roof switches
6. Personal light
(with electric moon roof)
7. Personal lights
(without electric moon roof)
8. Power door lock switches
(without power windows)
9. Glove box
10. Power door lock switches
(with power windows)
11. Power window switches
12. Automatic transmission selector lever
or manual transmission gear shift lever
13. Parking brake lever
14. Cup holder
15. Power outlet
16. Hood lock release lever
17. Window lock switch
ProCarManuals.com

'01 Corolla U (L/O 0005)
32001MY_COROLLA_U (OM12720U)

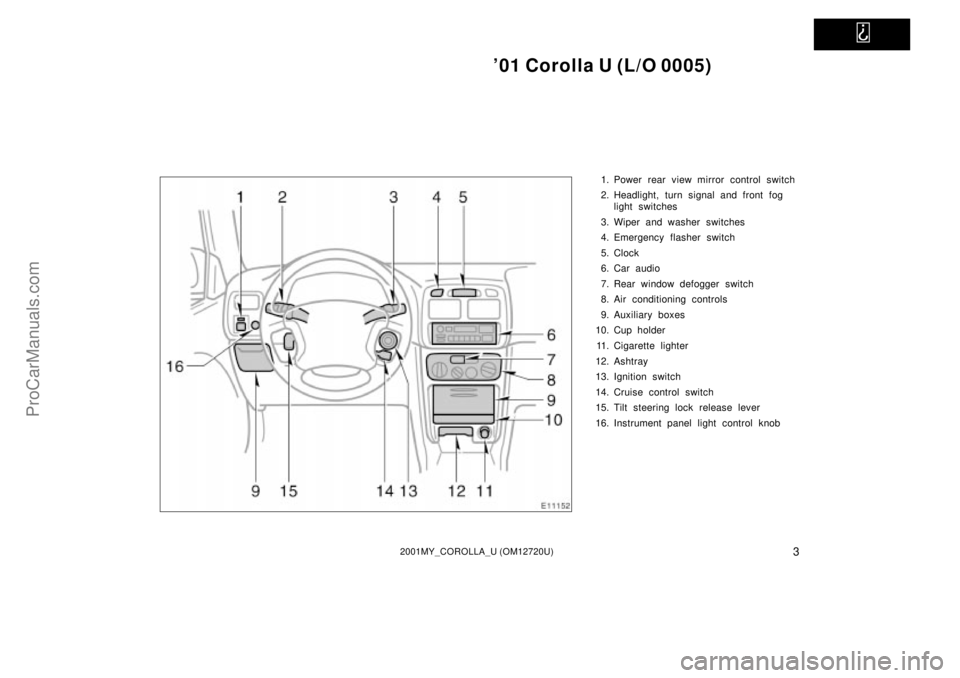

1. Power rear view mirror control switch
2. Headlight, turn signal and front fog
light switches
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. Car audio
7. Rear window defogger switch
8. Air conditioning controls
9. Auxiliary boxes
10. Cup holder
11. Cigarette lighter
12. Ashtray
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. Instrument panel light control knob
ProCarManuals.com

'01 Corolla U (L/O 0005)
42001MY_COROLLA_U (OM12720U)
1. Service reminder indicators and
indicator lights
2. Engine coolant temperature gauge3. Fuel gauge
4. Speedometer
5. Trip meter reset knob6. Odometer and two trip meters
Instrument cluster overview

Ty p e A
ProCarManuals.com

'01 Corolla U (L/O 0005)
52001MY_COROLLA_U (OM12720U)
1. Service reminder indicators and
indicator lights
2. Tachometer3. Speedometer
4. Fuel gauge
5. Trip meter reset knob6. Odometer and two trip meters
7. Outside temperature display
8. Engine coolant temperature gauge
Ty p e B
ProCarManuals.com

'01 Corolla U (L/O 0005)
62001MY_COROLLA_U (OM12720U)

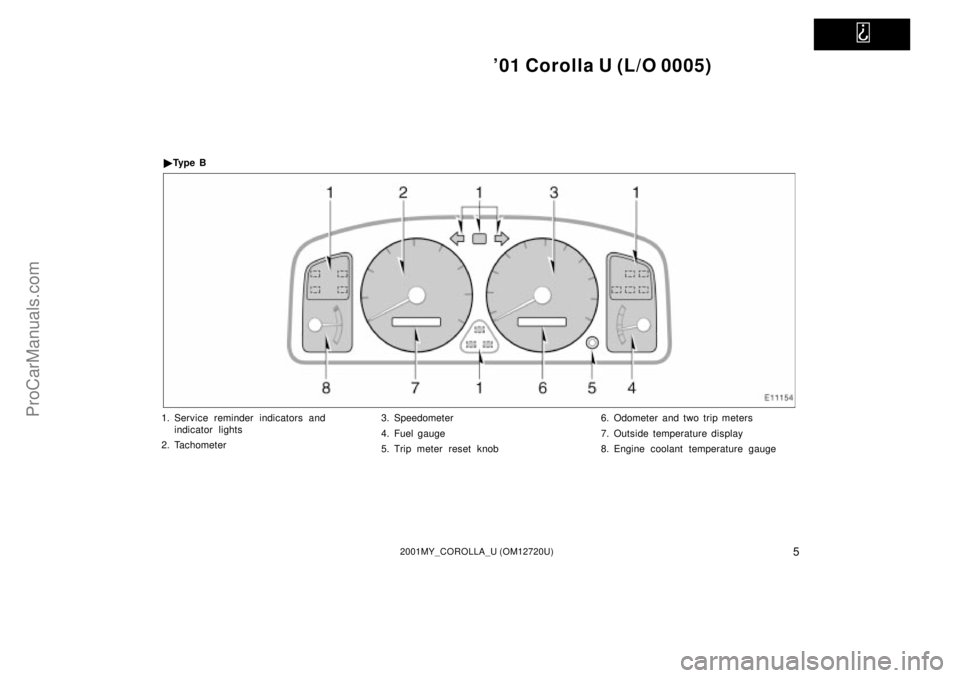

1. Service reminder indicators and
indicator lights
2. Tachometer3. Speedometer
4. Fuel gauge
5. Trip meter reset knob6. Odometer and two trip meters
7. Outside temperature display
8. Engine coolant temperature gauge
Ty p e C
ProCarManuals.com

'01 Corolla U (L/O 0005)
72001MY_COROLLA_U (OM12720U)
Indicator symbols on the instrument panel
or
orBrake system warning light*
1
Seat belt reminder light*
1
Discharge warning light*
1
Malfunction indicator lamp*
1
Low oil pressure warning light*
1
Anti±lock brake system warning light*
1
Open door warning light*
1
SRS warning light*
1
Low windshield washer fluid level warning
light*
1
Low fuel level warning light*
1
Turn signal indicator lights Headlight high beam indicator light
Overdrive±off indicator light
Cruise control indicator light
*
2
*
1
: For details, see ªService reminder indicators and warning
buzzersº in Section 1±5.
*
2: If this light flashes, see ªCruise controlº in Section 1±6.
