airbag TOYOTA COROLLA 2001 Owners Manual

'01 Corolla U (L/O 0005)
iii2001MY_COROLLA_U (OM12720U)
Spark ignition system of
your Toyota
The spark ignition system in your Toyota meets all re-
quirements of the Canadian Interference±Causing Equip-
ment Standard.
Installation of a mobile
two±way radio system
As the installation of a mobile two±way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti±lock brake
system, SRS airbag system and seat belt pretensioner
system, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding
installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by a qualified
service shop or by your Toyota dealer before you dis-
pose of your vehicle.
ProCarManuals.com

'01 Corolla U (L/O 0005)
1482001MY_COROLLA_U (OM12720U)
NOTICE
Do not use gasohol other than
stated above. It will cause fuel sys-
tem damage or vehicle performance
problems.
If driveability problems occur (poor
hot starting, vaporizing, engine
knock, etc.), discontinue the use.
Take care not to spill gasohol dur-
ing refueling. Gasohol may cause
paint damage.
FUEL TANK CAPACITY
50 L (13.2 gal., 11.0 lmp. gal.)
Fuel pump shut off system
The fuel pump shut off system stops sup-
plying fuel to the engine to minimize the
risk of fuel leakage when the engine stalls
or an airbag inflates upon collision. To
restart the engine after the fuel pump shut
off system activates, turn the ignition
switch to ªACCº or ªLOCKº once and start
it.
CAUTION
Inspect the ground under the vehicle
before restarting the engine. If you
find that liquid has leaked onto the
ground, it is the fuel system has
been damaged and it is in need of
repair. In this case, do not restart the
engine.
Operation in foreign countries
If you plan to drive your Toyota in
another country...
First, comply with the vehicle registration
laws.
Second, confirm the availability of the cor-
rect fuel (unleaded and minimum octane
number).
ProCarManuals.com

'01 Corolla U (L/O 0005)
1932001MY_COROLLA_U (OM12720U)
Cleaning the interior
CAUTION

Vehicles with side airbags:
Be careful not to splash water or
spill liquid on the floor. This may
prevent the side airbags from acti-
vating correctly, resulting in serious
injury.

Do not wash the vehicle floor with
water, or allow water to get onto
the floor when cleaning the vehicle
interior or exterior. Water may get
into audio components or other
electrical components above or un-
der the floor carpet (or mat) and
cause a malfunction; and it may
cause body corrosion.
Vinyl interior
The vinyl upholstery may be easily
cleaned with a mild soap or detergent
and water.
First vacuum over the upholstery to re-
move loose dirt. Then, using a sponge or
soft cloth, apply the soap solution to the
vinyl. After allowing it to soak in for a few
minutes to loosen the dirt, remove the dirt
and wipe off the soap with a clean damp
cloth. If all the dirt do not come off, re-
peat the procedure. Commercial foaming±
type vinyl cleaners are also available
which work well. Follow the manufacturer 's
instructions.
NOTICE
Do not use solvent, thinner, gasoline
or window cleaner on the interior.
Carpets
Use a good foam±type shampoo to
clean the carpets.
Begin by vacuuming thoroughly to remove
as much dirt as possible. Several types of
foam cleaners are available; some are in
aerosol can sand others are powders or
liquids which you mix with water to pro-
duce a foam. To shampoo the carpets,
use a sponge or brush to apply the foam.
Rub in overlapping circles.
Do not apply waterÐthe best results are
obtained by keeping the carpet as dry as
possible. Read the shampoo instructions
and follow them closely.
Seat belts
The seat belts may be cleaned with
mild soap and water or with
l ukewarm
water.
Use a cloth or sponge. As you are clean-
ing, check the belts for excessive wear,
fraying, or cuts.
NOTICE
Do not use dye or bleach on the
beltsÐit may weaken them.
Do not use the belts until they be-
come dry.
ProCarManuals.com

'01 Corolla U (L/O 0005)
2382001MY_COROLLA_U (OM12720U)
Engine compartment
13. DRL 7.5 A: Daytime running light sys-
tem
14. HEAD RH±LWR 10 A: Right±hand
headlight (low beam)
15. HEAD LH±LWR 10 A: Left±hand head-
light (low beam)
16. CDS 30 A: Electric cooling fan
17. TURN 7.5 A: Turn signal lights, emer-
gency flashers
18. GAUGE 10 A: Gauge and meters,
buck±up lights, air conditioning system,
power windows, rear window defogger,
power door lock system
Instrument panel
19. WIP 20 A: Windshield wipers and
washer
20. DEF I±UP/M±HTR 10 A: Rear window
defogger, multiport fuel injection sys-
tem/sequential multiport fuel injection
system
21. ECU±IG 10 A: Starting system, electric
cooling fan, automatic transmission
shift lock system, anti±lock brake sys-
tem, cruise control system
22. IGN 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, SRS airbag
system, seat belt pretensioners23. STOP 15 A: Stop lights, high mounted
stoplight, anti±lock brake system, auto-
matic transmission shift lock system,
cruise control system, multiport fuel in-
jection system/sequential multiport fuel
injection system
24. TAIL 15 A: Tail lights, gauges and me-
ters, instrument panel light control, cig-
arette lighter, clock, car audio system,
rear window defogger, license plate
lights, electronically controlled automat-
ic transmission system, multiport fuel
injection system/sequential multiport
fuel injection system, air conditioning
system, emergency flashers
25. OBD 7.5 A: On±board diagnosis sys-
tem
26. ECU±B 7.5 A: SRS airbag system,
seat belt pretensioners
27. ST 5 A: Starter system, multiport fuel
injection system/sequential multiport
fuel injection system
28. D/L 30 A: Power door lock system
29. FOG 15 A: Front fog lights
30. S±HTR 15 A: No circuit
ProCarManuals.com

'01 Corolla U (L/O 0005)
2392001MY_COROLLA_U (OM12720U)
31. CIG 15 A: Car audio system, clock,
cigarette lighter, power rear view mir-
rors, SRS airbag system, seat belt pre-
tensioners, automatic transmission shift
lock system
Fuses (type B)
32. HTR 50 A: Air conditioning system,
ªA/Cº fuse
33. MAIN 40 A: Starter system, ªHEAD
(LH) or HEAD (LH±UPR)º, ªHEAD (RH)
or HEAD (RH±UPR)º, ªHEAD LH±LWRº,
ªHEAD RH±LWRº and ªDRLº fuses
34. RDI 30 A: Electric cooling fan
35. AM1 50 A: ªCIGº, ªTURNº, ªGAUGEº,
ªECU±IGº and ªWIPº fuses
36. DEF 40 A: Rear window defogger,
ªDEF I±UP/M±HTRº fuse
37. POWER 30 A: Power windows, electric
moon roof
Fuses (type C)
38. FL ABS 50 A: Anti±lock brake system
39. FL ALT 100 A: ªRDIº, ªCDSº, ªAM1º,
ªPOWERº, ªD/Lº, ªTAILº, ªOBDº, ªFOGº,
ªECU±Bº, ªSTOPº and ªDEFº, ªHTRº
fuses
ProCarManuals.com

'01 Corolla U (L/O 0005)
212001MY_COROLLA_U (OM12720U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Seats, Seat belts, Steering wheel and Mirrors
Seats22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front seats22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fold±down rear seat24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head restraints26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat belts27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS driver and front passenger airbags36 . . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Child restraint48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti±glare inside rear view mirro72 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirror73 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 3
ProCarManuals.com

'01 Corolla U (L/O 0005)
222001MY_COROLLA_U (OM12720U)

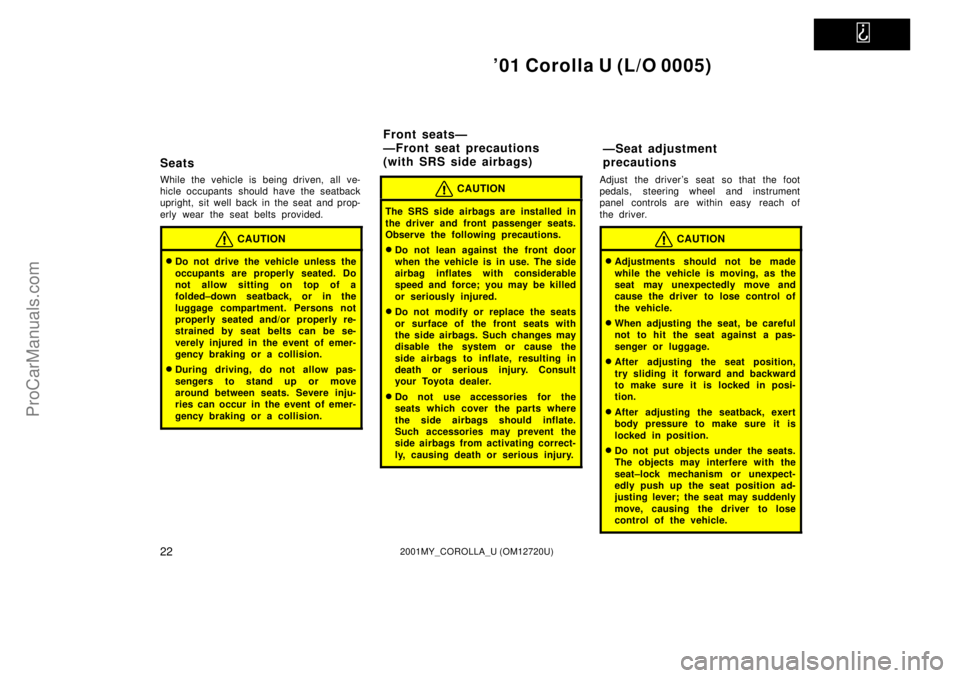

Seats
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION

Do not drive the vehicle unless the
occupants are properly seated. Do
not allow sitting on top of a
folded±down seatback, or in the
luggage compartment. Persons not
properly seated and/or properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.

During driving, do not allow pas-
sengers to stand up or move
around between seats. Severe inju-
ries can occur in the event of emer-
gency braking or a collision.
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.

Do not lean against the front door
when the vehicle is in use. The side
airbag inflates with considerable
speed and force; you may be killed
or seriously injured.

Do not modify or replace the seats
or surface of the front seats with
the side airbags. Such changes may
disable the system or cause the
side airbags to inflate, resulting in
death or serious injury. Consult
your Toyota dealer.

Do not use accessories for the
seats which cover the parts where
the side airbags should inflate.
Such accessories may prevent the
side airbags from activating correct-
ly, causing death or serious injury.
Adjust the driver's seat so that the foot
pedals, steering wheel and instrument
panel controls are within easy reach of
the driver.
CAUTION

Adjustments should not be made
while the vehicle is moving, as the
seat may unexpectedly move and
cause the driver to lose control of
the vehicle.

When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.

After adjusting the seat position,
try sliding it forward and backward
to make sure it is locked in posi-
tion.

After adjusting the seatback, exert
body pressure to make sure it is
locked in position.

Do not put objects under the seats.
The objects may interfere with the
seat±lock mechanism or unexpect-
edly push up the seat position ad-
justing lever; the seat may suddenly
move, causing the driver to lose
control of the vehicle.
Front seatsÐ
ÐFront seat precautions
(with SRS side airbags)ÐSeat adjustment
precautions
ProCarManuals.com

'01 Corolla U (L/O 0005)
272001MY_COROLLA_U (OM12720U)

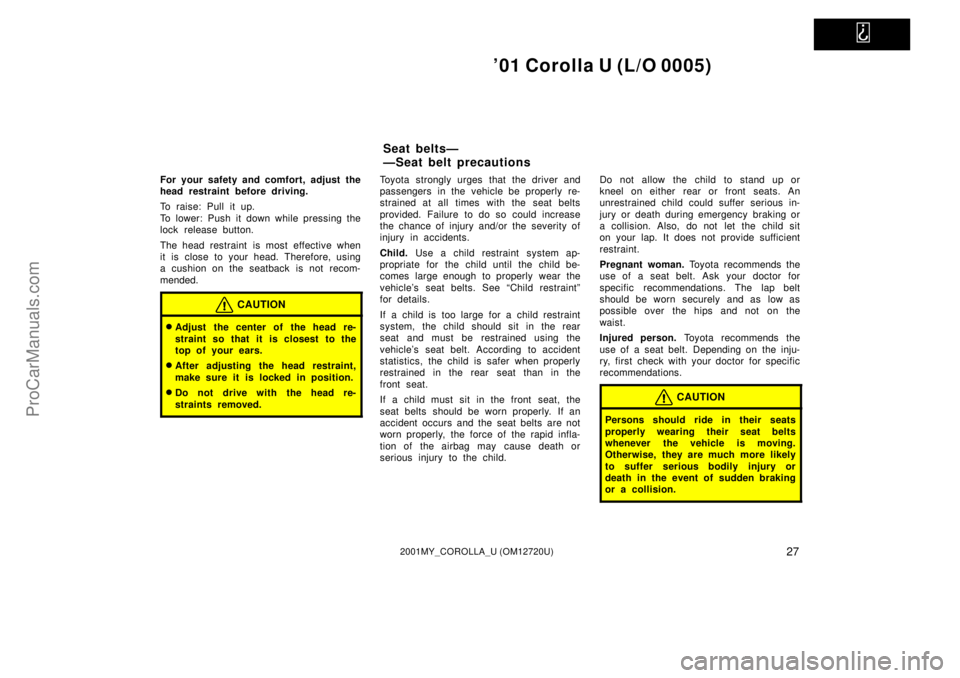

For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION

Adjust the center of the head re-
straint so that it is closest to the
top of your ears.

After adjusting the head restraint,
make sure it is locked in position.

Do not drive with the head re-
straints removed.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle's seat belts. See ªChild restraintº
for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle's seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. It does not provide sufficient
restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.
CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
Seat beltsÐ
ÐSeat belt precautions
ProCarManuals.com

'01 Corolla U (L/O 0005)
332001MY_COROLLA_U (OM12720U)
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the ªPRESSº signs on
the buckle±release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle±release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer.
ÐFront seat belt pretensioners
The driver and front passenger 's seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belt is quickly drawn back in by the re-
tractor so that the belt snugly restrains
the front seat occupants.
The seat belt pretensioners are activated
even with no passenger in the front seat.
Collisions occurring at certain speeds and
angles may cause the seat belt preten-
sioners and SRS airbags not to operate
all together.
ProCarManuals.com

'01 Corolla U (L/O 0005)
342001MY_COROLLA_U (OM12720U)
This indicator comes on when the igni-
tion key is turned to the ªACCº or
ªONº position. It goes off after about
6 seconds. This means the front seat
belt pretensioners are operating proper-
ly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, seat belt pretensioner assemblies,
warning light, interconnecting wiring and
power sources. (For details, see ªService
reminder indicators and warning buzzersº
in Section 1±5.)The seat belt pretensioner system mainly
consists of the following components and
their locations are shown in the illustra-
tion.
1. Front airbag sensors
2. SRS warning light
3. Seat belt pretensioner assemblies
4. Airbag sensor assembly
The seat belt pretensioner is controlled by
the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor.When a seat belt pretensioner is acti-
vated, an operating noise may be heard
and a small amount of smoke±like gas
may be released. This gas is harmless
and does not indicate that a fire is occur-
ring.
Once the seat belt pretensioner has been
activated, the seat belt retractor remains
locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing any of
these may cause sudden operation of
the front seat belt pretensioners or
disable the system, which could re-
sult in serious injury.
Failure to follow these instructions
can result in serious injuries.
ProCarManuals.com
