Car audio system
Reference108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Car audio system operating hints 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 7

’02 Corolla U (L/O 0105)
1082002 Corolla_U (OM12743U)

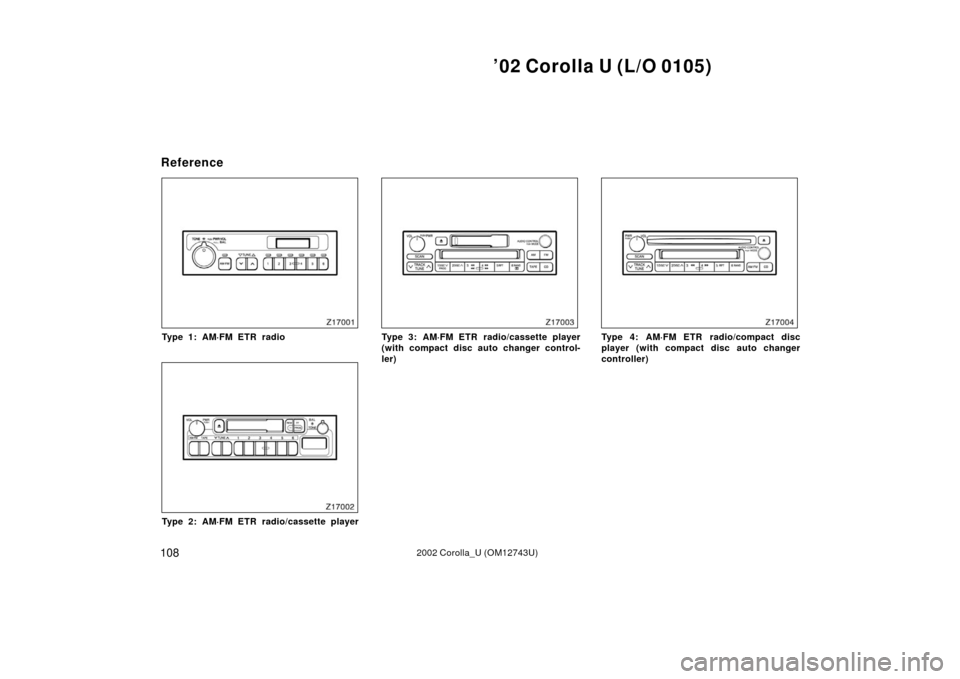

Type 1: AM·FM ETR radio
Type 2: AM·FM ETR radio/cassette player
Type 3: AM·FM ETR radio/cassette player
(with compact disc auto changer control-
ler)Type 4: AM·FM ETR radio/compact disc
player (with compact disc auto changer
controller)
Reference

’02 Corolla U (L/O 0105)
1092002 Corolla_U (OM12743U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “VOL/PWR”, “PWR·VOL” or “PWR/
VOL” to turn the audio system on and off.
Push “AM”, “FM”, “AM·FM”, “TAPE” or
“CD” to turn on that function without push-
ing “VOL/PWR”, “PWR·VOL” or “PWR/
VOL”.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM”, “AM·FM”, “TAPE” or
“CD” if the system is already on but you
want to switch from one function to anoth-
er.TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble and bass levels. In fact, differ-
ent kinds of music and vocal programs
usually sound better with different mixes
of treble and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
To lower a manual antenna, carefully push
it down.
NOTICE
To prevent damage to the antenna,
make sure it is retracted before driv-
ing your Toyota through an automatic
car wash.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should be to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
Using your audio system—
—Some basics

’02 Corolla U (L/O 0105)
11 02002 Corolla_U (OM12743U)
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.
8 cm (3 in.) compact disc singles
Your compact disc player does not need
an adaptor to play compact disc singles.
Compact disc singles are about 8 cm (3
in.) in diametersmaller than standard
discs.
After you eject a compact disc single, do
not insert a standard 12 cm (4.7 in.) disc
until “DISC” disappears from the display.
NOTICE
Do not use an adaptor for compact
disc singles—it could cause tracking
errors or interfere with the ejection of
compact discs.

’02 Corolla U (L/O 0105)
1112002 Corolla_U (OM12743U)
Details of specific buttons, controls and
features are described in the alphabetical
listing that follows.
—Controls and features

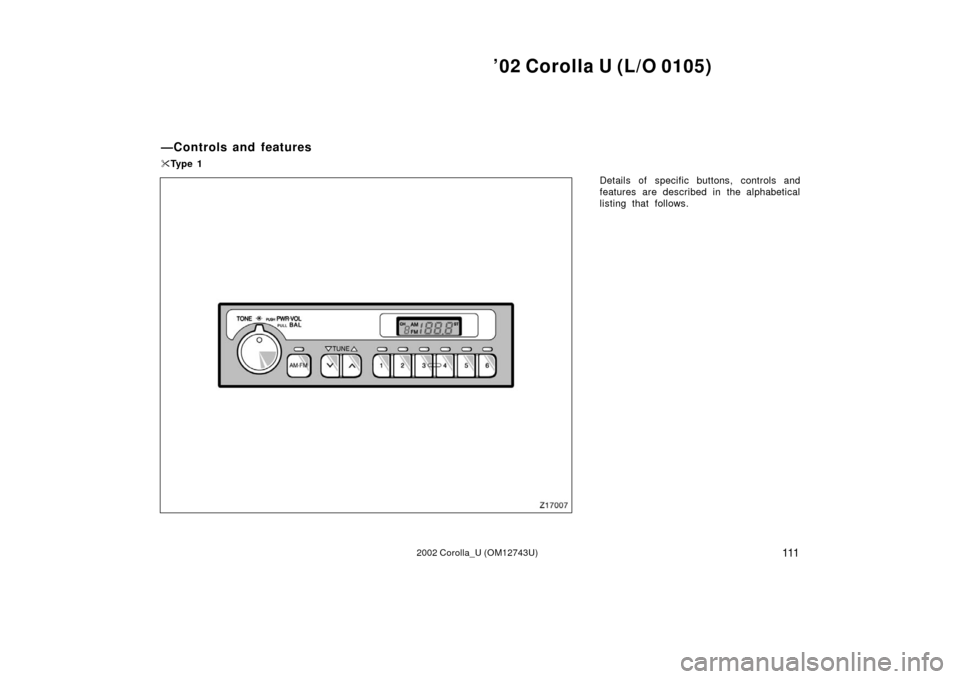

Ty p e 1

’02 Corolla U (L/O 0105)
11 22002 Corolla_U (OM12743U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see “TUNE” button).
Push and hold down the button until you
hear a beep—this will set the station to
the button. The button number will appear
on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and one
FM station for each button. The preset
station memory will be canceled out if the
power source is interrupted (battery dis-
connected or fuse blown).
AM·FM
Push “AM·FM” to switch between the AM
and FM bands. “AM” or “FM” will appear
on the display.
If the audio system is off, you can turn
on the radio by pushing “AM·FM”.BAL (Balance)
Turn the “BAL” knob with pulling to adjust
the balance between the right and left
speakers.
PWR·VOL (Power·Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TONE
Move the “TONE” ring around “BAL” to
adjust the tone.
TUNE
Tuning
Your Toyota has an electronic tuning radio
(ETR). Push and release the “
” (up) or
“  ” (down) side of “TUNE” to step up or
down the station band. (If you hear a
beep, you held the button too long and
the radio will go into the seek mode.)
Seeking
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, push and hold the “ ”
or “ ” side of “TUNE” until you hear a
beep. Do this again to find another sta-
tion.

’02 Corolla U (L/O 0105)
11 32002 Corolla_U (OM12743U)
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.

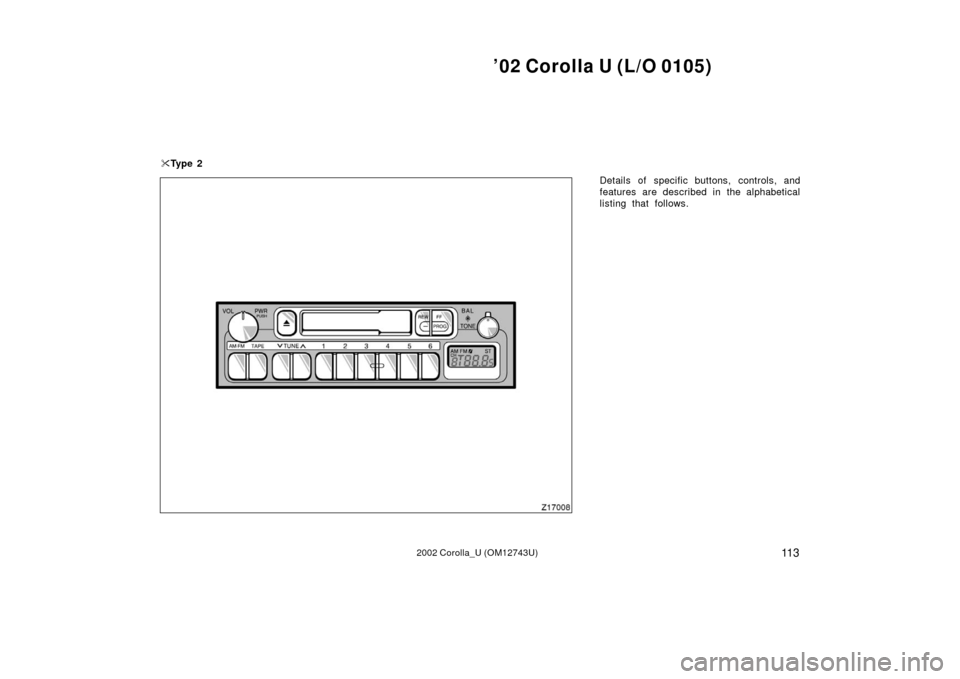

Ty p e 2

’02 Corolla U (L/O 0105)
11 42002 Corolla_U (OM12743U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see “TUNE” button).
Push and hold down the button until you
hear a beep—this will set the station to
the button. The button number will appear
on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and one
FM station for each button. The preset
station memory will be canceled out if the
power source is interrupted (battery dis-
connected or fuse blown).
(Eject button)
Push this button to eject a cassette.
AM·FM
Push “AM·FM” to switch between the AM
and FM bands. “AM” or “FM” will appear
on the display.
If the audio system is off, you can turn
on the radio by pushing “AM·FM”. Also,
push “AM·FM” to switch from cassette op-
eration to radio operation. BAL (Balance)
Move the “BAL” ring around “TONE” to
adjust the balance between the right and
left speakers.
FF (Fast forward)
Push the “FF” to fast forward a cassette
tape.
To stop the tape while it is fast forward-
ing, lightly push the “REW”.
If a tape fast forwards completely, the
cassette player will play the other side of
the tape, using the autoreverse feature.
PROG (Program)
Push “PROG” to select the other side of
a cassette tape.
Autoreverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
REW (Rewind)
Push the “REW” to rewind to a tape.
To stop the tape while it is rewinding,
lightly push the “FF”.
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push “TAPE” to switch from radio opera-
tion to cassette operation. If the audio
system is off, you can turn on the cas-
sette player by pushing “TAPE”. In both
cases, a cassette must already be loaded
in the player.
TONE
Turn the “TONE” knob to adjust the tone.

’02 Corolla U (L/O 0105)
11 52002 Corolla_U (OM12743U)
TUNE
Tuning
Your Toyota has an electronic tuning radio
(ETR). Push and release the “” (up) or
“  ” (down) side of “TUNE” to step up or
down the station band. (If you hear a
beep, you held the button too long and
the radio will go into the seek mode.)
Seeking
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, push and hold the “ ”
or “ ” side of “TUNE” until you hear a
beep. Do this again to find another sta-
tion.
VOL/PWR (Volume/Power)
Push “VOL/PWR” to turn the audio system
on and off. Turn “VOL/PWR” to adjust the
volume.

’02 Corolla U (L/O 0105)
11 62002 Corolla_U (OM12743U)
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.

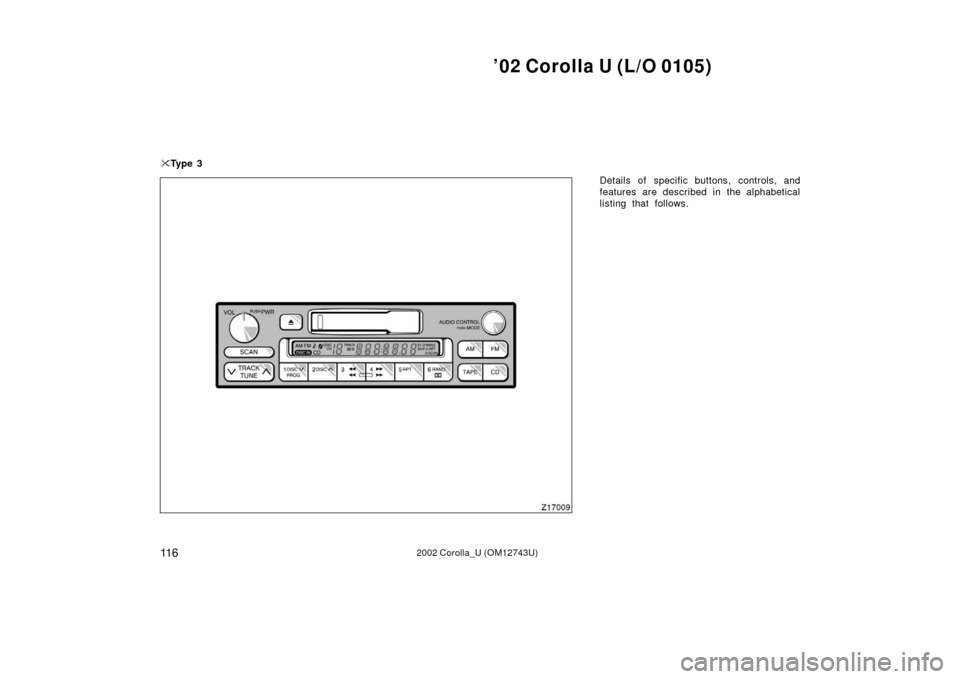

Ty p e 3
