TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 225 in Section 73.To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Emergency flashers

’03 Corolla U (L/O 0201)
2072003 MY COROLLA_U (OM12744U)
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in “Re-
placing light bulbs” on page 225 in
Section 73.)
Tools:
Screwdriver

’03 Corolla U (L/O 0201)
2212003 MY COROLLA_U (OM12744U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 223
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 224
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

’03 Corolla U (L/O 0201)
2252003 MY COROLLA_U (OM12744U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or low
windshield washer fluid level warning
light* comes on, the washer tank may
be empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
*: When equippedThe following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent from burning yourself,
do not replace the light bulbs while
they are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
Adding washer fluid
Replacing light bulbs—

’03 Corolla U (L/O 0201)
2262003 MY COROLLA_U (OM12744U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights
(high beam)900560A
Headlights
(low beam)900655B
Parking/front side
marker/front turn
signal lights
3157A27/8C
Front fog lights—55D
Rear side marker
and stop/tail lights315727/8E
Rear turn signal
lights315627E
Backup lights92118E
High mounted
stoplight92118E
License plate lights—5E
Interior light—8F
Light bulbsBulbNo.WTy p e
Personal light
(on the switch
panel of the electric
moon roof)
—10G
Personal lights
(on the inside rear
view mirror without
compass)
1924.3E
Trunk light1684.9E
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: H3 halogen bulbs
E: Wedge base bulbs (clear)
F: Double end bulbs
G: Single end bulbs

’03 Corolla U (L/O 0201)
2272003 MY COROLLA_U (OM12744U)

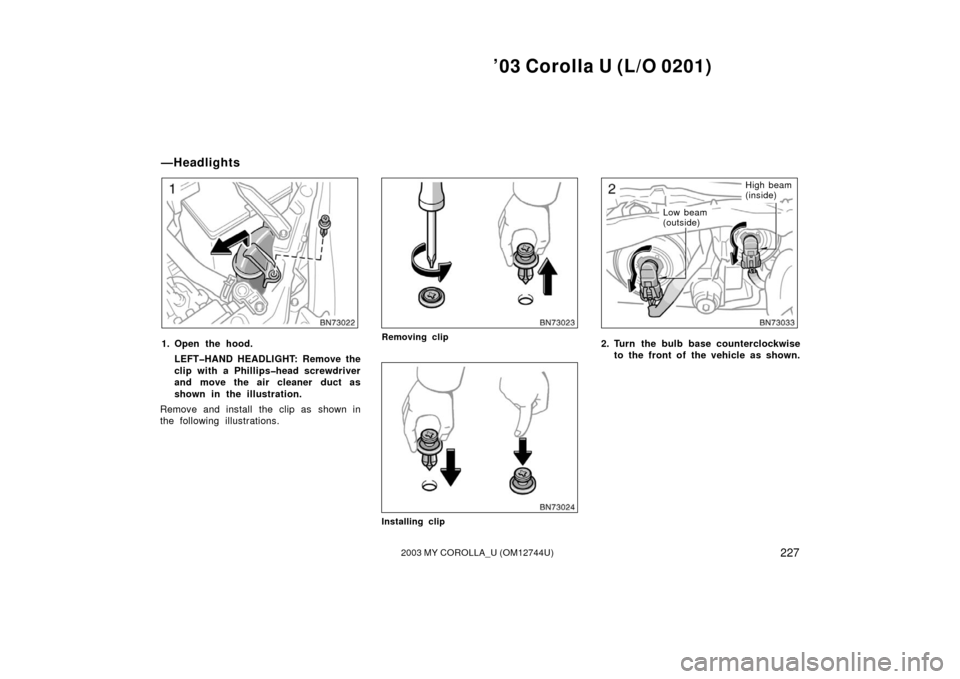

1. Open the hood.LEFTHAND HEADLIGHT: Remove the
clip with a Phillipshead screwdriver
and move the air cleaner duct as
shown in the illustration.
Remove and install the clip as shown in
the following illustrations.Removing clip
Installing clip
Low beam
(outside) High beam
(inside)
2. Turn the bulb base counterclockwise
to the front of the vehicle as shown.
—Headlights

’03 Corolla U (L/O 0201)
2282003 MY COROLLA_U (OM12744U)
3. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.4. Install a new bulb and connectorinto the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Parking/front side
marker/front turn signal lights

’03 Corolla U (L/O 0201)
2302003 MY COROLLA_U (OM12744U)

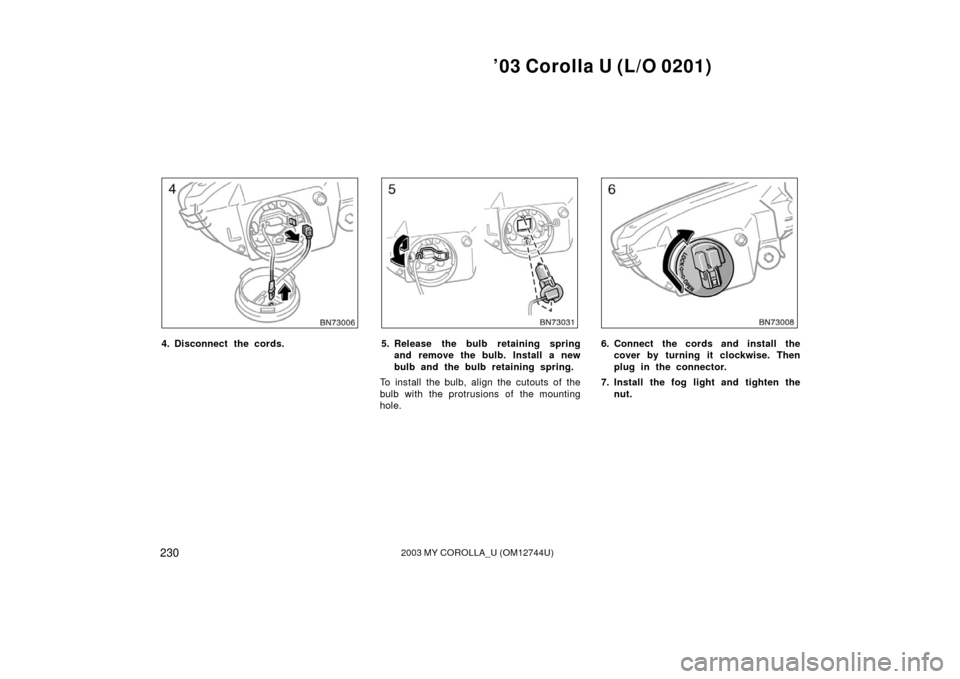

4. Disconnect the cords.5. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install the bulb, align the cutouts of the
bulb with the protrusions of the mounting
hole.6. Connect the cords and install the cover by turning it clockwise. Then
plug in the connector.
7. Install the fog light and tighten the nut.

’03 Corolla U (L/O 0201)
2322003 MY COROLLA_U (OM12744U)

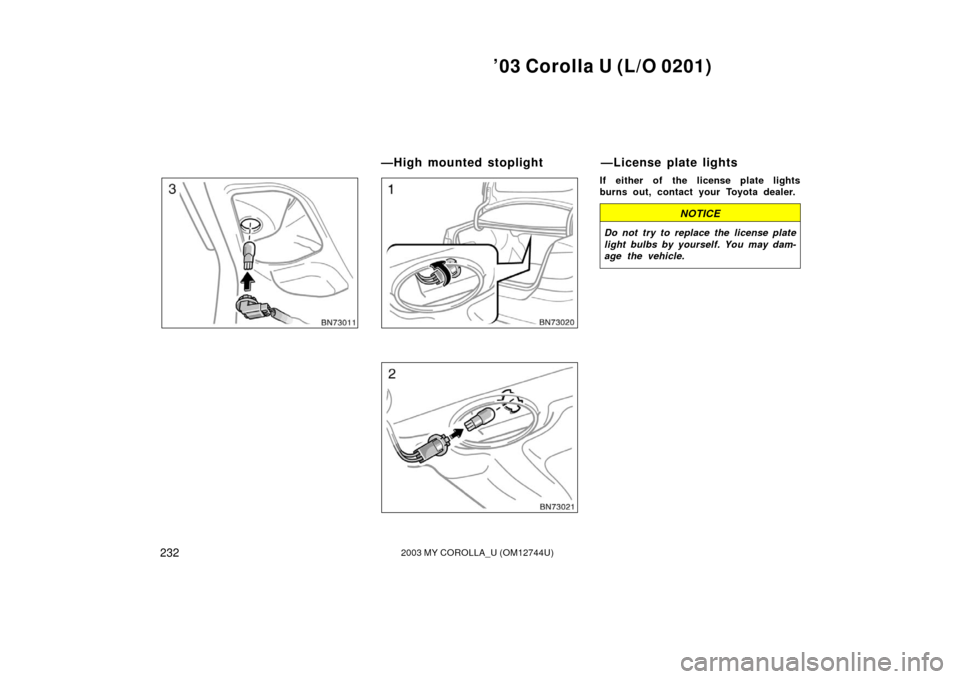

If either of the license plate lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the license plate
light bulbs by yourself. You may dam-
age the vehicle.
—High mounted stoplight —License plate lights
