low beam TOYOTA COROLLA 2003 E120 / 9.G Owners Manual

’03 Corolla U (L/O 0201)
62003 MY COROLLA_U (OM12744U)
orBrake system warning light∗1
Driver ’s seat belt reminder light∗1
Discharge warning light∗1
Low fuel level warning light∗1
or Low engine oil pressure warning light
∗
1
Antilock brake system warning light∗1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light
∗1,
∗
3
Turn signal indicator lights Headlight high beam indicator light
Front passenger ’s seat belt reminder light∗1
Malfunction indicator lamp∗1or
Indicator symbols on the instrument panel

’03 Corolla U (L/O 0201)
752003 MY COROLLA_U (OM12744U)

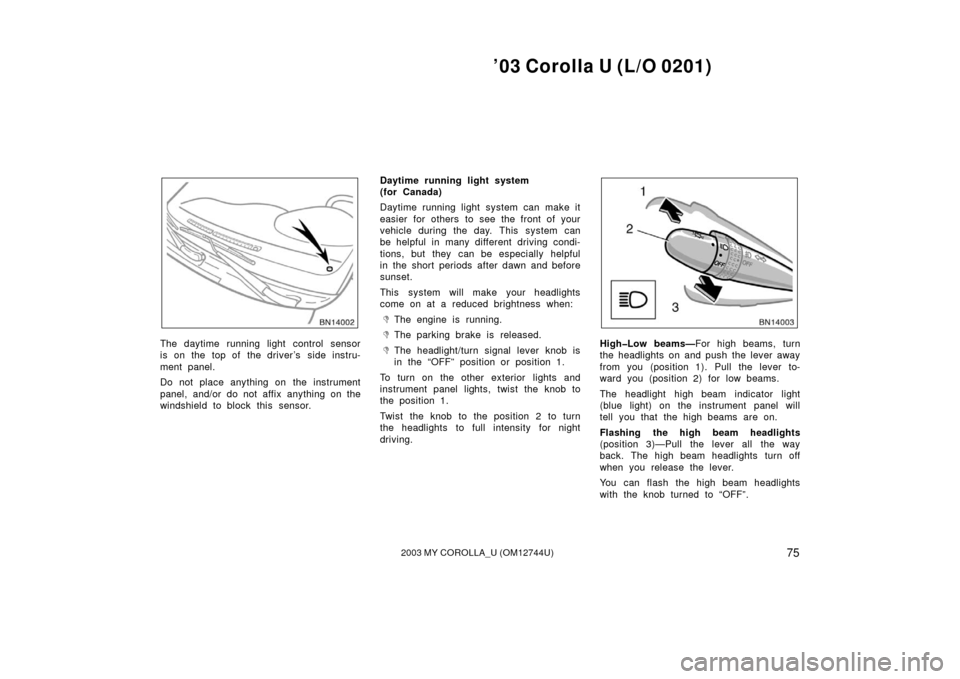

The daytime running light control sensor
is on the top of the driver’s side instru-
ment panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.Daytime running light system
(for Canada)
Daytime running light system can make it
easier for others to see the front of your
vehicle during the day. This system can
be helpful in many different driving condi-
tions, but they can be especially helpful
in the short periods after dawn and before
sunset.
This system will make your headlights
come on at a reduced brightness when:
The engine is running.
The parking brake is released.
The headlight/turn signal lever knob is
in the “OFF” position or position 1.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for night
driving.HighLow beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

’03 Corolla U (L/O 0201)
772003 MY COROLLA_U (OM12744U)
To turn on the front fog lights, twist
the band of the headlight/turn signal
lever. They will come on only when the
headlights are on low beam.
OFF
ON
DOOR
INTERIOR LIGHT
To turn on the interior light, turn the
dial.
The interior light dial has the following
positions:
OFF—Turns the light off.
ON—Keeps the light on all the time.
DOOR—Turns the light on when any of
the doors is opened. The light goes off
when all the doors are closed.Illuminated entry system
With the dial in the DOOR position, the
light comes on when any door is opened.
After all the doors are closed, the light
remains on for about 15 seconds and then
goes out.
However, in the following cases, the light
goes out immediately:
All the doors are closed when the igni-
tion key is in “ACC” or “ON” position.
The ignition key is turned to “ACC” or
“ON” after all the doors are closed.
All the doors are locked when the light
is still on.
When any door is unlocked with the key
or wireless remote control transmitter, the
light comes on for 15 seconds, even if the
door is not opened.
To prevent the battery being discharged,
the lights will automatically turn off when
the key is removed and the door is left
opened with the dial in the DOOR position
for 20 minutes or more.
Front fog lights Interior/instrument panel light
control

’03 Corolla U (L/O 0201)
1202003 MY COROLLA_U (OM12744U)
Your compact disc player cannot play
discs with a special shape, label or
lowquality compact discs such as
those shown here. Do not use them as
the player could be damaged.
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lintfree cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lintfree cloth. Do not use a conventional
record cleaner or antistatic device.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.

’03 Corolla U (L/O 0201)
2262003 MY COROLLA_U (OM12744U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights
(high beam)900560A
Headlights
(low beam)900655B
Parking/front side
marker/front turn
signal lights
3157A27/8C
Front fog lights—55D
Rear side marker
and stop/tail lights315727/8E
Rear turn signal
lights315627E
Backup lights92118E
High mounted
stoplight92118E
License plate lights—5E
Interior light—8F
Light bulbsBulbNo.WTy p e
Personal light
(on the switch
panel of the electric
moon roof)
—10G
Personal lights
(on the inside rear
view mirror without
compass)
1924.3E
Trunk light1684.9E
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: H3 halogen bulbs
E: Wedge base bulbs (clear)
F: Double end bulbs
G: Single end bulbs

’03 Corolla U (L/O 0201)
2272003 MY COROLLA_U (OM12744U)
1. Open the hood.LEFTHAND HEADLIGHT: Remove the
clip with a Phillipshead screwdriver
and move the air cleaner duct as
shown in the illustration.
Remove and install the clip as shown in
the following illustrations.Removing clip
Installing clip
Low beam
(outside) High beam
(inside)
2. Turn the bulb base counterclockwise
to the front of the vehicle as shown.
—Headlights

’03 Corolla U (L/O 0201)
2382003 MY COROLLA_U (OM12744U)
Instrument panel
Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Lefthand head-
light (high beam)
3. HEAD RH UPR 10 A: Righthand
headlight (high beam), high beam indi-
cator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. MAIN 30 A: Starting system, “AM2”
fuse 8. DOME 15 A:
Car audio system, clock,
personal lights, interior light, trunk light,
open door warning light, wireless re-
mote control system
9. HORN 10 A: Horn
10. HAZARD 10 A: Emergency flashers ,
turn signal lights
11. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
12. ALTS 5 A: Charging system
13. HEAD LH LWR 10 A: Lefthand head-
light (low beam)
14. HEAD RH LWR 10 A: Righthand
headlight (low beam)
15. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights , instru-
ment cluster lights
16. OBD 7.5 A: Onboard diagnosis sys-
tem
17. WIPER 25 A: Windshield wipers
18. AM2 15 A: Charging system, multiport
fuel injection system/sequential multi-
port fuel injection system, starting sys-
tem, SRS airbag system 19. STOP 15 A:
Stop lights, high mounted
stoplight, antilock brake system, shift
lock control system, engine control sys-
tem, cruise control system
20. DOOR 25 A: Power door lock system
21. AM1 25 A: “CIG” fuse
22. ECUIG 10 A: Electric cooling fan,
antilock brake system, shift lock con-
trol system, cruise control system
23. RR WIPER 15 A: No circuit
24. A/C 10 A: Air conditioning system
25. INV 15 A: No circuit
26. P/POINT 15 A: Power outlet (in the
rear console box)
27. ECUB 10 A: Daytime running light
system
28. CIG 15 A: Power outlet (on the instru-
ment panel) or cigarette lighter, car au-
dio system, clock, power rear view mir-
ror control, shift lock control system
29. GAUGE 10 A: Gauges and meters, air
conditioning system, daytime running
light system, charging system, auto
antiglare inside rear view mirror, pow-
er windows, cruise control system, rear
window defogger, backup lights, front
passenger ’s seat belt reminder light
