In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function, push
the “
” switch.
To turn on the automatic function again,
push the “
” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
To ensure correct functioning of an
antiglare mirror sensor located on the
back side of the mirror, do not touch
or cover the sensor with your finger or
a piece of cloth, etc.Driver’s side
Front passenger’s side
Vanity mirrors

’04 Corolla_U (L/O 0306)
74
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
Driver’s side only—To use the vanity
mirror, open the cover.

’04 Corolla_U (L/O 0306)
75
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals76
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Front fog lights 79
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Interior/instrument panel light control 79
. . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Windshield wipers and washer 81
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1 5

’04 Corolla_U (L/O 0306)
76
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver’s door is opened if you
remove the key with the headlight switch
on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(for U.S.A.)
Daytime running light system can make it
easier for others to see the front of your
vehicle during the day. This system can
be helpful in many different driving condi-
tions, but they can be especially helpful
in the short periods after dawn and before
sunset.
This system will make your headlights
come on at a reduced brightness when:
The engine is running.
The parking brake is released.
The headlight/turn signal lever knob is
in the “OFF” position.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for night
driving.
The headlights automatically switch to full
or reduced intensity depending on the
darkness of the surroundings when the
daytime running light system is activated.
Also, the other exterior lights and instru-
ment panel lights automatically turn on or
off.
Headlights and turn signals

’04 Corolla_U (L/O 0306)
77
2004 COROLLA from Oct. ’03 Prod. (OM12859U)

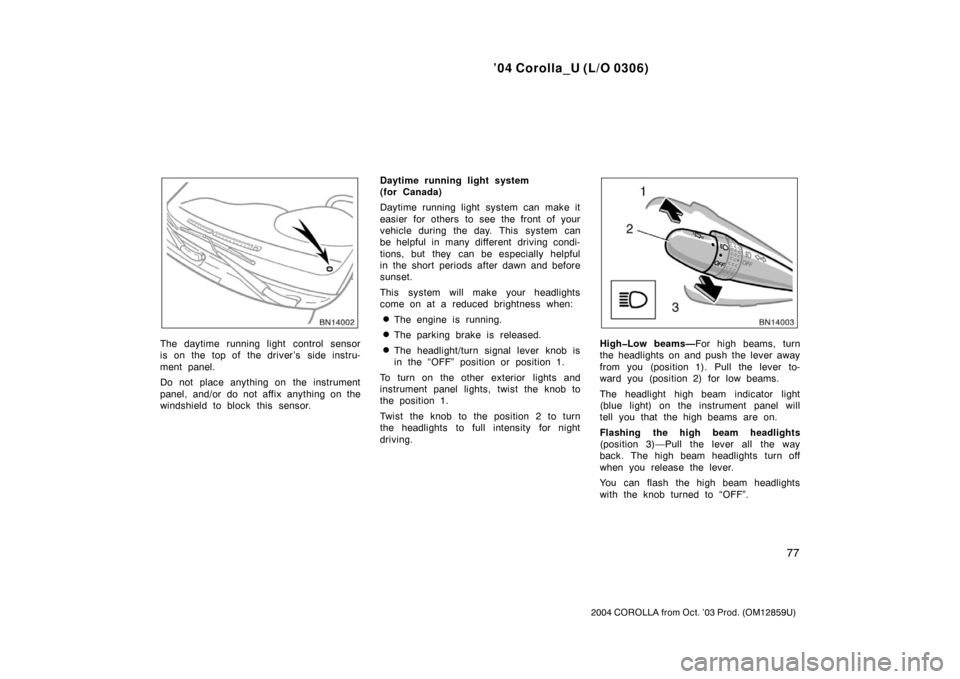

The daytime running light control sensor
is on the top of the driver’s side instru-
ment panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.Daytime running light system
(for Canada)
Daytime running light system can make it
easier for others to see the front of your
vehicle during the day. This system can
be helpful in many different driving condi-
tions, but they can be especially helpful
in the short periods after dawn and before
sunset.
This system will make your headlights
come on at a reduced brightness when:
The engine is running.
The parking brake is released.
The headligh
t/turn signal lever knob is
in the “OFF” position or position 1.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for night
driving.HighLow beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

’04 Corolla_U (L/O 0306)
78
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
TURN SIGNALS

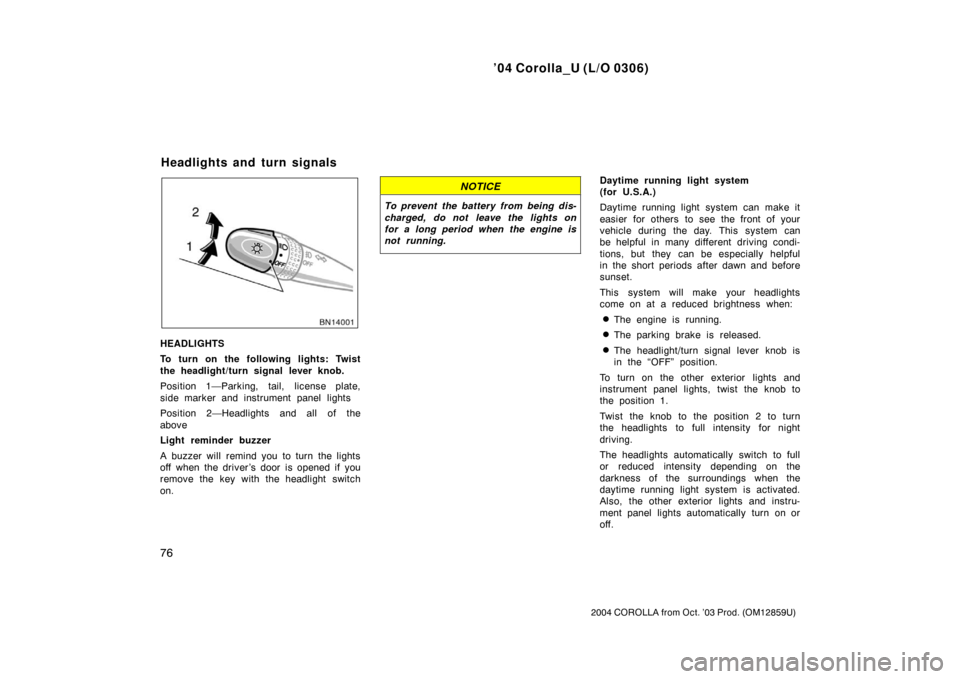

To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 243 in Section 7−3.To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Emergency flashers

’04 Corolla_U (L/O 0306)
79
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
To turn on the front fog lights, twist
the band of the headlight/turn signal
lever. They will come on only when the
headlights are on low beam.
OFF
ON
DOOR
INTERIOR LIGHT
To turn on the interior light, turn the
dial.
The interior light dial has the following
positions:
OFF—Turns the light off.
ON—Keeps the light on all the time.
DOOR—Turns the light on when any door
is opened. The light goes off when all the
doors are closed.Illuminated entry system
When the dial is in the DOOR position
and any door is opened, the light will
come on. After all the doors are closed,
the light remains on for about 15 seconds
before fading out.
However, in the following cases, the light
goes out immediately:
All the doors are closed when the igni-
tion key is in the “ACC” or “ON” posi-
tion.
The ignition key is turned to “ACC” or
“ON” after all the doors are closed.
All the doors are locked when the light
is still on.
When any door is unlocked using either
the key or the wireless remote control
transmitter, the light will come on and re-
main on for 15 seconds before fading out.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the dial in the DOOR position
for 20 minutes or more.
Front fog lights Interior/instrument panel light
control

’04 Corolla_U (L/O 0306)
80
2004 COROLLA from Oct. ’03 Prod. (OM12859U)

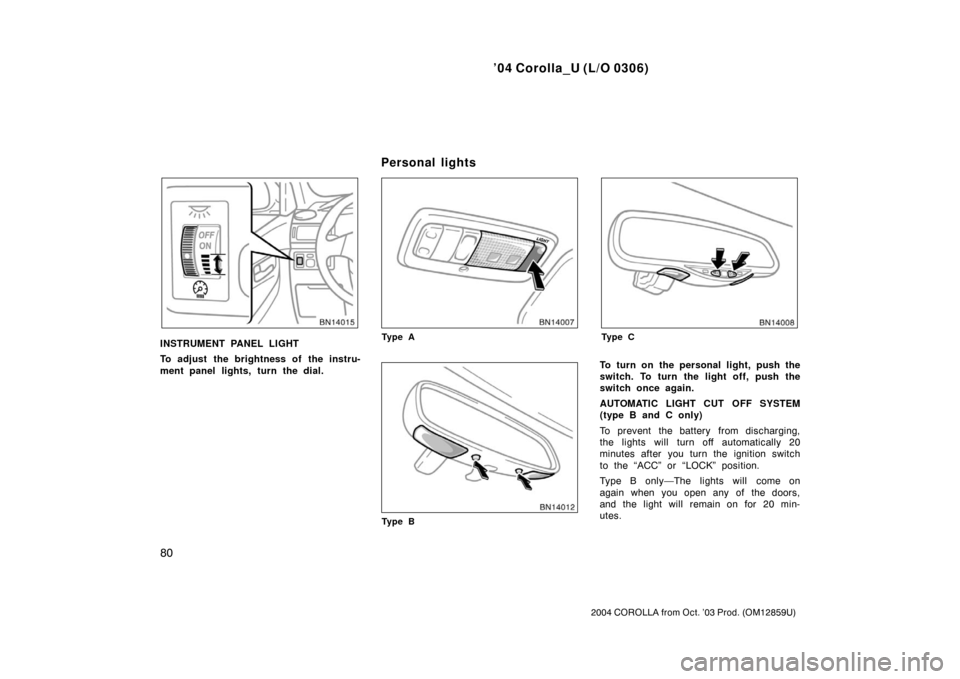

INSTRUMENT PANEL LIGHT
To adjust the brightness of the instru-
ment panel lights, turn the dial.Ty p e A
Ty p e B
Ty p e C
To turn on the personal light, push the
switch. To turn the light off, push the
switch once again.
AUTOMATIC LIGHT CUT OFF SYSTEM
(type B and C only)
To prevent the battery from discharging,
the lights will turn off automatically 20
minutes after you turn the ignition switch
to the “ACC” or “LOCK” position.
Type B only—The lights will come on
again when you open any of the doors,
and the light will remain on for 20 min-
utes.
Personal lights

’04 Corolla_U (L/O 0306)
81
2004 COROLLA from Oct. ’03 Prod. (OM12859U)
This function will be canceled when you
turn the ignition switch to the “ON” posi-
tion.

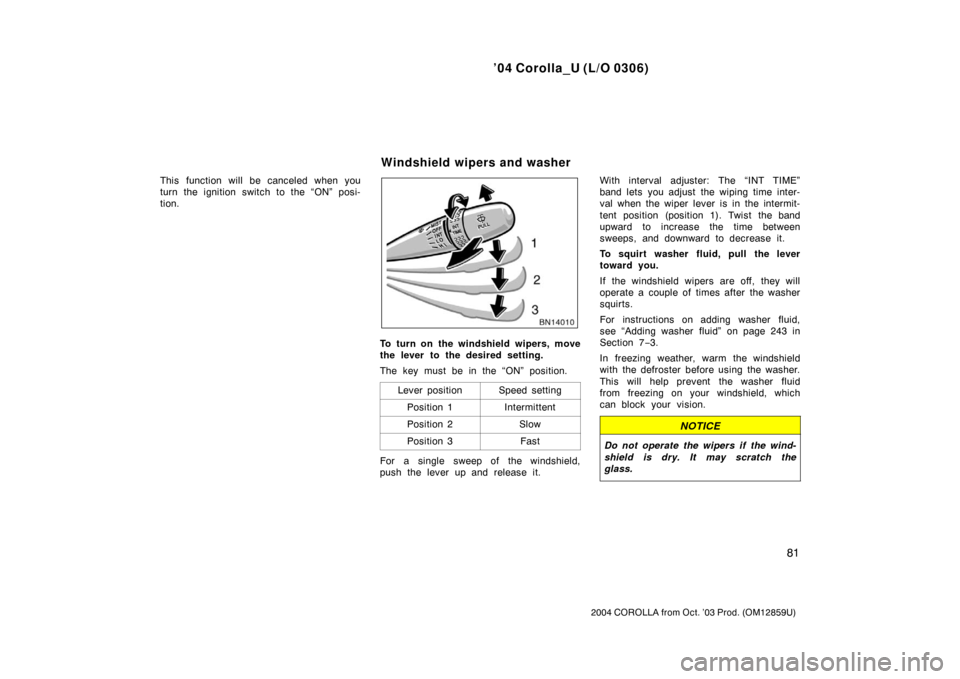

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. With interval adjuster: The “INT TIME”
band lets you adjust the wiping time inter-
val when the wiper lever is in the intermit-
tent position (position 1). Twist the band
upward to increase the time between
sweeps, and downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 243 in
Section 7
−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Windshield wipers and washer

’04 Corolla_U (L/O 0306)
82
2004 COROLLA from Oct. ’03 Prod. (OM12859U)

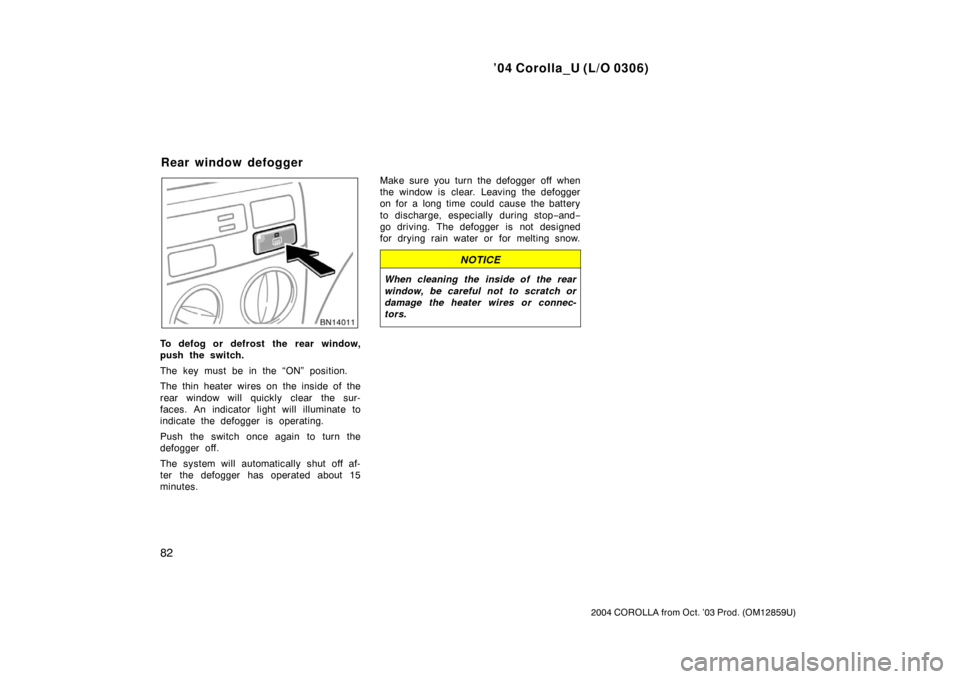

To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop
−and−
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Rear window defogger
