1 Perform these service items only if you drive primarily under the conditions indicated.2 Required under the terms of the Emission Control Warranty.3 Inspect thickness measurement and disc runout.4 Applies to Corolla Matrix 4WD only.5 Applies to vehicles equipped with manual transmission.
Scheduled Maintenance Log
30,000 Miles or 36 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Replace engine air filter
❑Replace spark plugs (ECHO)2
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil5
❑Replace manual transmission oil
❑Replace rear differential oil4
❑Replace transfer case oil4
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
7
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Rear differential oil
4
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
4
__ Transmission fluid or oil

1 Perform these service items only if you drive primarily under the conditions indicated.2 Required under the terms of the Emission Control Warranty.3 Inspect thickness measurement and disc runout.4 Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.5 Applies to Corolla Matrix 4WD only.
Scheduled Maintenance Log

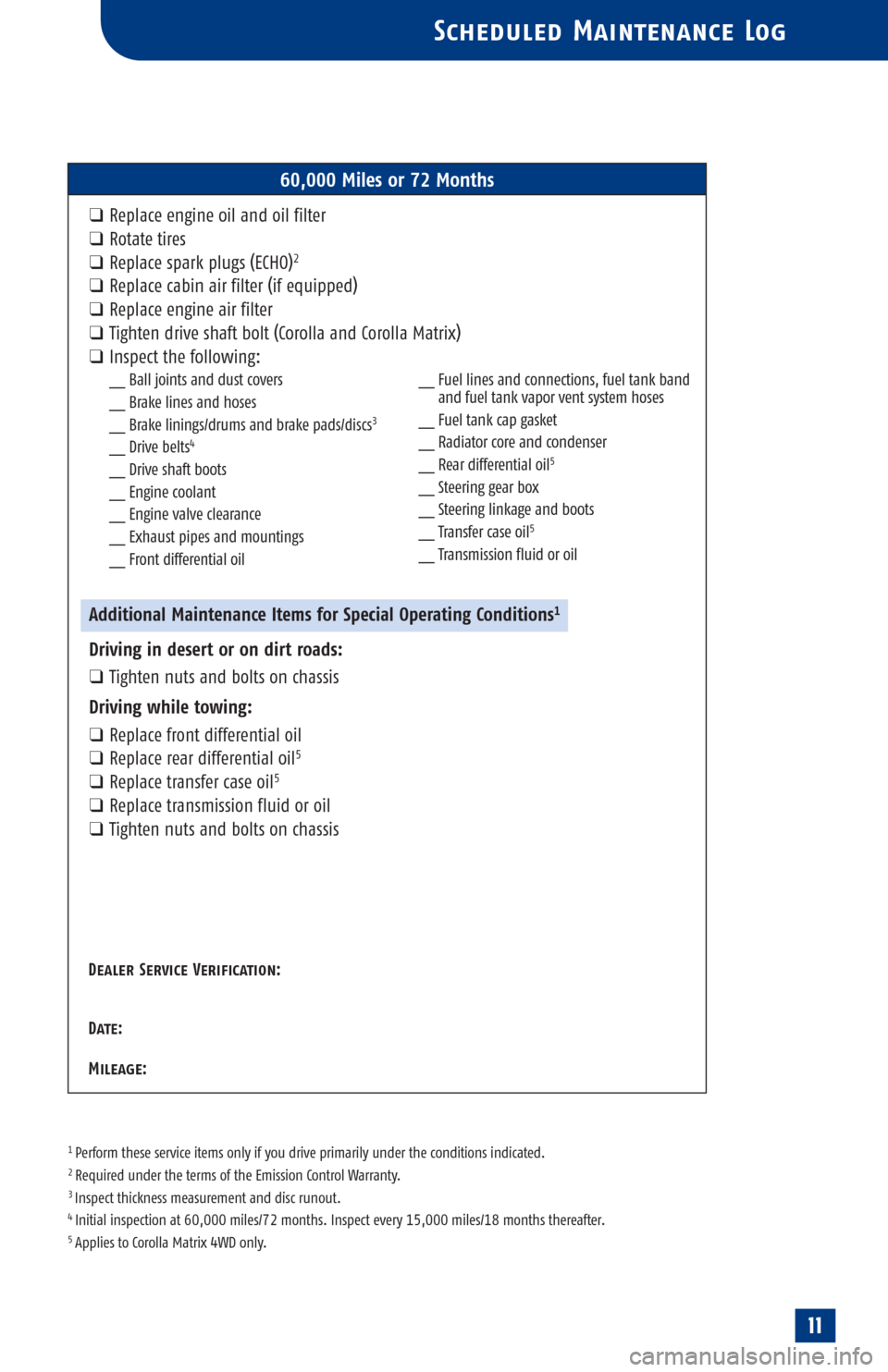

60,000 Miles or 72 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Replace spark plugs (ECHO)2
❑Replace cabin air filter (if equipped)
❑Replace engine air filter
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Drive belts4
__ Drive shaft boots
__ Engine coolant
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Front differential oil
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil
❑Replace rear differential oil5
❑Replace transfer case oil5
❑Replace transmission fluid or oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
11
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Rear differential oil
5
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
5
__ Transmission fluid or oil

1 Perform these service items only if you drive primarily under the conditions indicated.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4 Applies to Corolla Matrix 4WD only.5 Applies to vehicles equipped with manual transmission.
Scheduled Maintenance Log

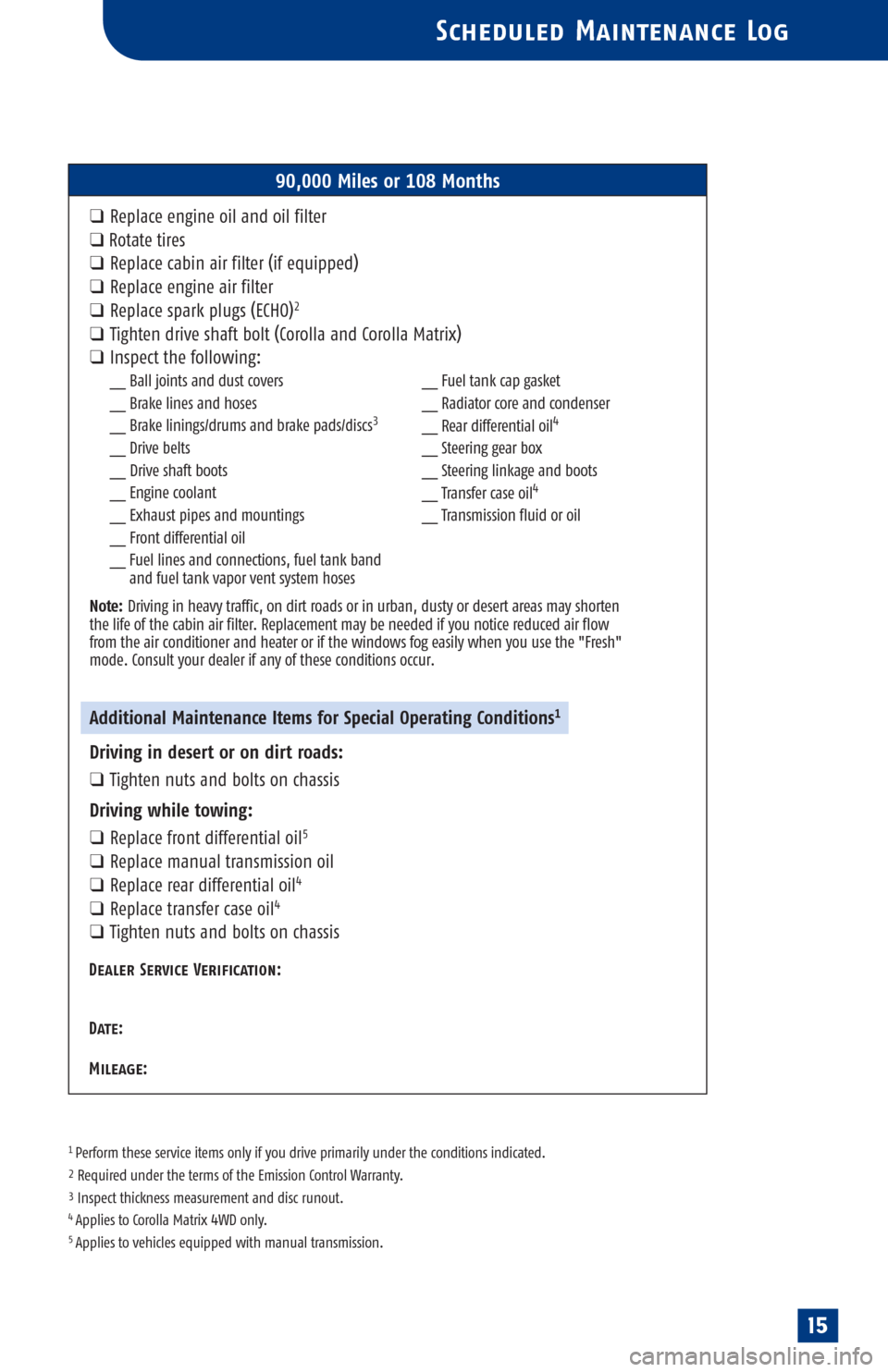

90,000 Miles or 108 Months
❑ Replace engine oil and oil filter
❑Rotate tires
❑ Replace cabin air filter (if equipped)
❑Replace engine air filter
❑ Replace spark plugs (ECHO)2
❑ Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Drive belts
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil5
❑Replace manual transmission oil
❑Replace rear differential oil4
❑Replace transfer case oil4
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Rear differential oil
4
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
4
__ Transmission fluid or oil
15

1 Perform these service items only if you drive primarily under the conditions indicated.2 Required under the terms of the Emission Control Warranty.3 Inspect thickness measurement and disc runout.4 Applies to Corolla Matrix 4WD only.
Scheduled Maintenance Log

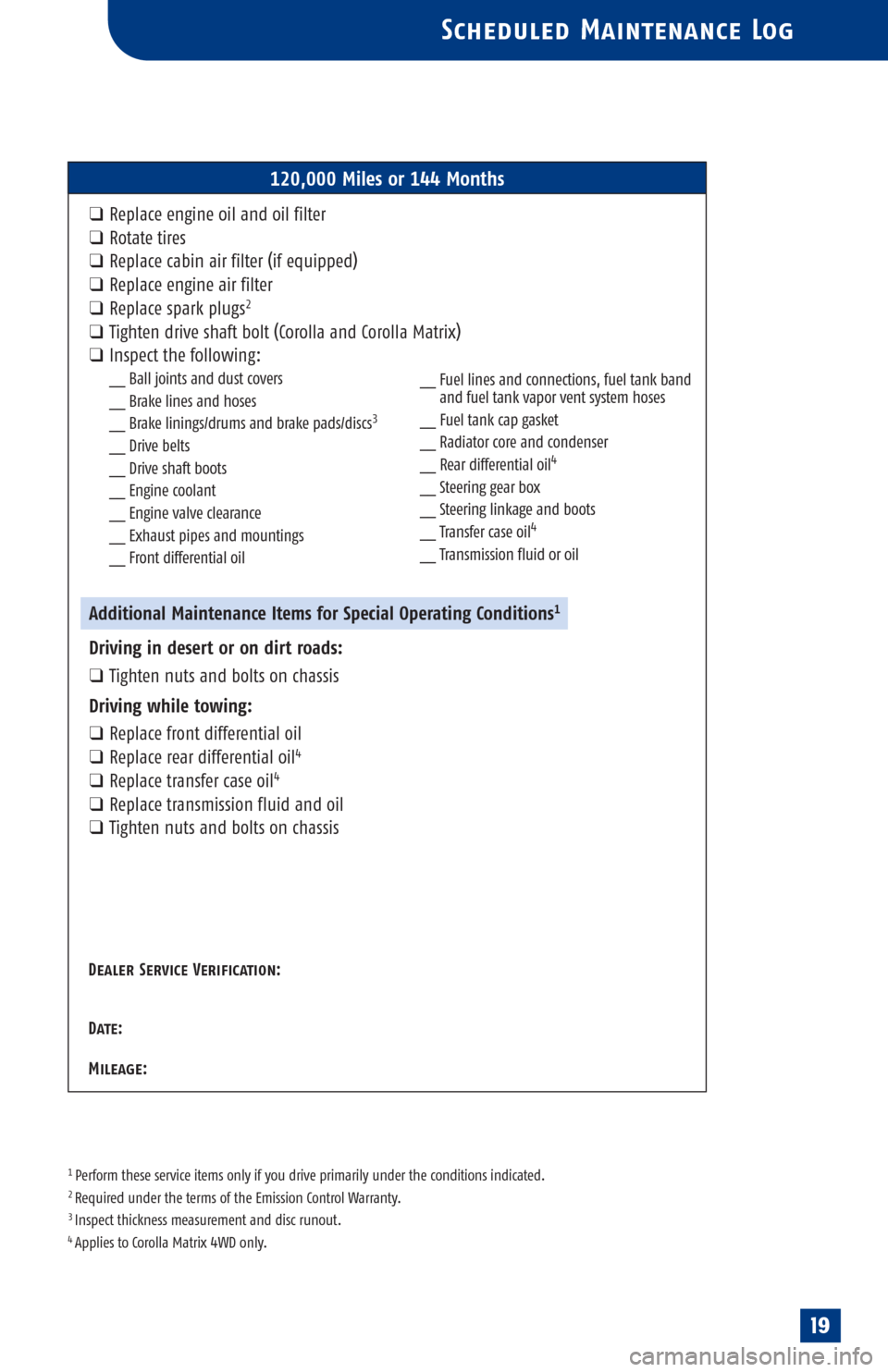

120,000 Miles or 144 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Replace cabin air filter (if equipped)
❑Replace engine air filter
❑Replace spark plugs2
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Drive belts
__ Drive shaft boots
__ Engine coolant
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Front differential oil
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil
❑Replace rear differential oil4
❑Replace transfer case oil4
❑Replace transmission fluid and oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
19
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Rear differential oil
4
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
4
__ Transmission fluid or oil
