window TOYOTA COROLLA 2005 E120 / 9.G Scheduled Maintenance Guide

1 Perform these service items only if you drive primarily under the conditions indicated.2 Applies to Corolla Matrix 4WD only.
Scheduled Maintenance Log
15,000 Miles or 18 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace rear differential oil2
❑Replace transfer case oil2
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
5
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

1 Perform these service items only if you drive primarily under the conditions indicated.2 Required under the terms of the Emission Control Warranty.3 Inspect thickness measurement and disc runout.4 Applies to Corolla Matrix 4WD only.5 Applies to vehicles equipped with manual transmission.
Scheduled Maintenance Log
30,000 Miles or 36 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Replace engine air filter
❑Replace spark plugs (ECHO)2
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil5
❑Replace manual transmission oil
❑Replace rear differential oil4
❑Replace transfer case oil4
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
7
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Rear differential oil
4
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
4
__ Transmission fluid or oil

1 Perform these service items only if you drive primarily under the conditions indicated.2 Applies to Corolla Matrix 4WD only.
Scheduled Maintenance Log
45,000 Miles or 54 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace rear differential oil2
❑Replace transfer case oil2
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
9
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

1 Perform these service items only if you drive primarily under the conditions indicated.2 Applies to Corolla Matrix 4WD only.
Scheduled Maintenance Log
75,000 Miles or 90 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace rear differential oil2
❑Replace transfer case oil2
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
13
__ Exhaust pipes and mountings
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

1 Perform these service items only if you drive primarily under the conditions indicated.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4 Applies to Corolla Matrix 4WD only.5 Applies to vehicles equipped with manual transmission.
Scheduled Maintenance Log
90,000 Miles or 108 Months
❑ Replace engine oil and oil filter
❑Rotate tires
❑ Replace cabin air filter (if equipped)
❑Replace engine air filter
❑ Replace spark plugs (ECHO)2
❑ Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Drive belts
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil5
❑Replace manual transmission oil
❑Replace rear differential oil4
❑Replace transfer case oil4
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Rear differential oil
4
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
4
__ Transmission fluid or oil
15

1 Perform these service items only if you drive primarily under the conditions indicated.2Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. See page 21
foradditional information.
3Applies to Corolla Matrix 4WD only.

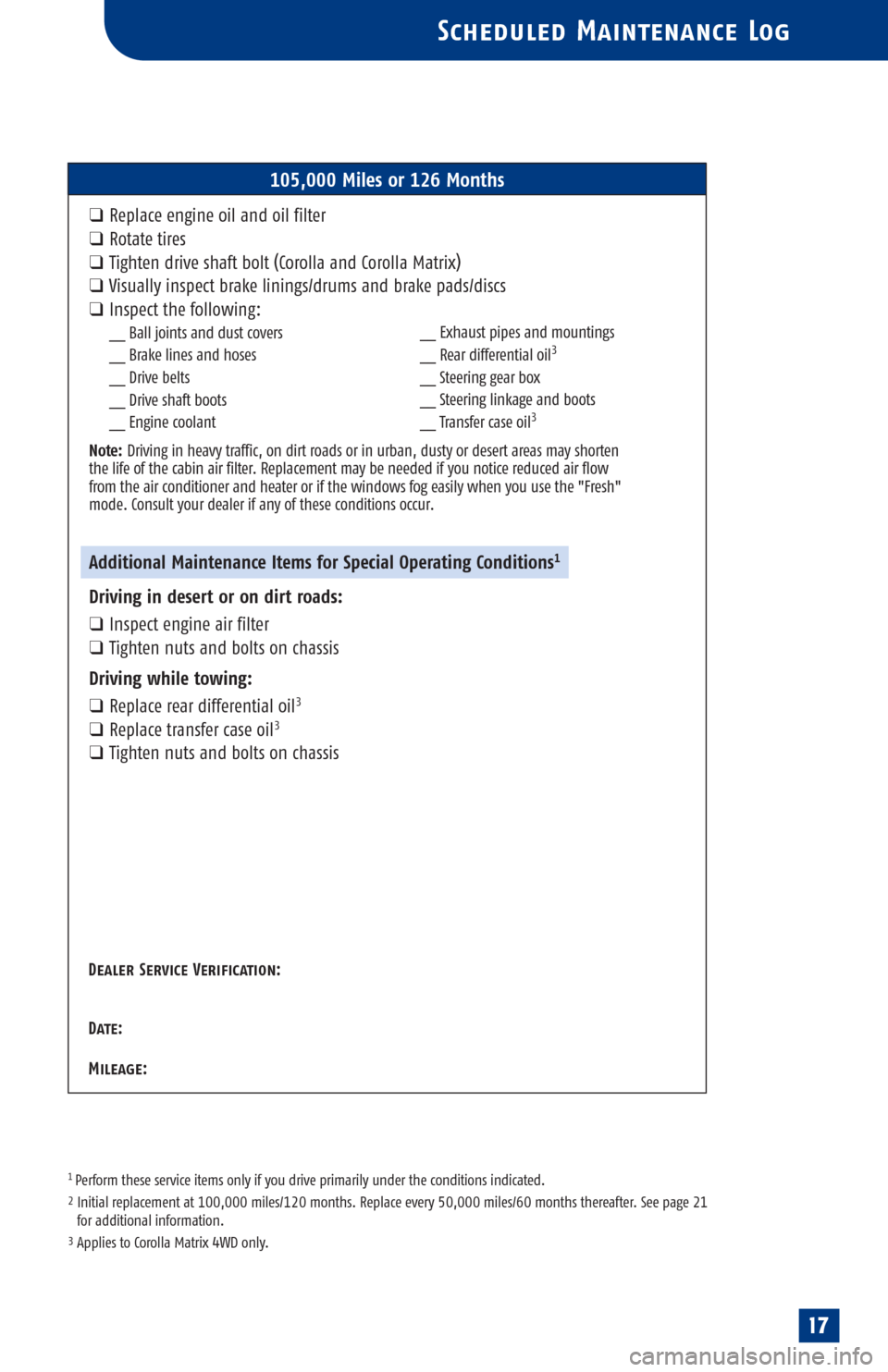

Scheduled Maintenance Log
105,000 Miles or 126 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace rear differential oil3
❑Replace transfer case oil3
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
17
__ Exhaust pipes and mountings
__ Rear differential oil3
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
3
