TRACTION CONTROL OFF MODE
When getting the vehicle out of mud or
newly fallen snow, etc., turn off the
traction control system. This system
that controls engine performance inter-
feres with the process of freeing front
wheels.
To turn off: Push “TRAC OFF” switch.
The slip indicator light/traction control sys-
tem off indicator light will come on.
The vehicle stability control system is al-
ways activated, even if the traction control
system is turned off.To turn on: Push “TRAC OFF” switch
once again.
The slip indicator light/traction control sys-
tem off indicator light will go off.
The indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. It will come on again when you
push the “TRAC OFF” switch to turn off
the traction control system.
In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on with the
normal driving mode while driving.
“VSC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle stability control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.
Page 132 of 302
’06 Corolla_U (L/O 0508)
122
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The slip indicator light/traction control sys-
tem off indicator light will come on when
the “VSC” warning light comes on even if
the “TRAC OFF” switch is not pushed. The vehicle stability control system
helps provide integrated control of the
systems such as anti lock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.
This system will activate when your ve-
hicle speed reaches or exceeds 15 km/h
(9 mph), and will deactivate when the ve-
hicle speed reduces to below 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self
−check mode, but does
not indicate a malfunction.
CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
flashes, an alarm sounds, and spe-
cial care should be taken while
driving.
Only use tires of specified size. The
size, manufacture, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 262 in Section 7 2.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
Vehicle stability control
system
Page 133 of 302
’06 Corolla_U (L/O 0508)
123
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light/traction control sys-
tem off indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If you select the traction control
off mode, the indicator light will come on
again.In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on with the
normal driving mode while driving.
“VSC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system or the traction control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.
Page 134 of 302
’06 Corolla_U (L/O 0508)
124
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The slip indicator light/traction control sys-
tem off indicator light will come on when
the “VSC” warning light comes on even if
the “TRAC OFF” switch is not pushed. The tire pressure warning system is de-
signed to provide warning when tire
inflation pressure of any one of the
tires is critically low while the vehicle
is moving. The low tire pressure warn-
ing light comes on to inform you that
such low tire pressure may hamper
driving.
This system is not designed to operate
when the vehicle is stopped. Therefore,
check the tire inflation pressure regularly.
The recommended cold tire inflation pres-
sure, tire size and the vehicle capacity
weight are on the tire and loading informa-
tion label. (For instructions, see “Checking
tire inflation pressure” on page 259 in
Section 7
−2.)
Installed tires should be of the specified
size. They should be of the same size
and construction. If tires other than the
specified size are used, or if tires of dif-
ferent sizes or constructions are mixed,
the tire pressure warning system will not
function properly.
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
If the low tire pressure warning light
comes on or blinks while driving, do
the following.
Tire pressure warning system
Page 135 of 302
’06 Corolla_U (L/O 0508)
125
If the warning light comes on:1. Adjust the tire inflation pressure to the specified level as soon as pos-
sible. (See “Tires” on page 284 in
Section 8.)
2. Push the tire pressure warning sys- tem reset switch for a few seconds
and make sure the warning light
goes off.
If the light remains on after the reset
switch has been pushed, have the tire
pressure warning system checked at your
Toyota dealer.
If you have a flat tire, replace it with the
spare tire. For details, see “If you have
a flat tire” on page 217 in Section 4.
If the warning light blinks once every
second:
The low tire pressure warning system may
be malfunctioning. Contact your Toyota
dealer.
If the warning light blinks once every
three seconds:
The low tire pressure warning system
needs to be initialized. Reset the system
with the tire pressure warning system re-
set switch. (To reset the system, see
“TIRE PRESSURE WARNING SYSTEM
RESET SWITCH”.) The tire pressure warning system does
not function properly under certain cir-
cumstances. In the following cases, the
low tire pressure warning light may not
come on even if the tire inflation pres-
sure is low, or it may come on when
the tire inflation pressure is actually
normal.
A compact spare tire, snow tires, or
tire chains are used.
The tire inflation pressure is excessive-
ly higher than specified, or tire inflation
pressure suddenly drops due to burst-
ing or other causes.
The vehicle is driven on a slippery
road surface such as rough or frozen
roads.
The vehicle speed is less than 30 km/h
(19 mph) or more than 100 km/h (62
mph), and the driving duration is less
than 5 minutes.
The tires differ in tread pattern or
manufacturer.
The tires are not the specified size.
The tread wear is very different among
the installed tires.
Rapid acceleration/deceleration or
sharp turns is continued.
Towing a trailer.
The loading is over the limit or imbal-
anced.
Initialization was not performed correct-
ly after replacing or rotating tires or
wheels.
The outside temperature is below 0
C
(32 F) or above 40 C (104 F).
CAUTION
When the tire pressure warning light
comes on, observe the following in-
structions:
Adjust the tire inflation pressure to
the specified level as soon as pos-
sible.
Avoid abrupt steering wheel maneu-
vering and braking. If the vehicle
tires deteriorate, you could lose
control of the steering wheel or the
brakes, causing death or serious in-
jury.
Page 136 of 302
’06 Corolla_U (L/O 0508)
126

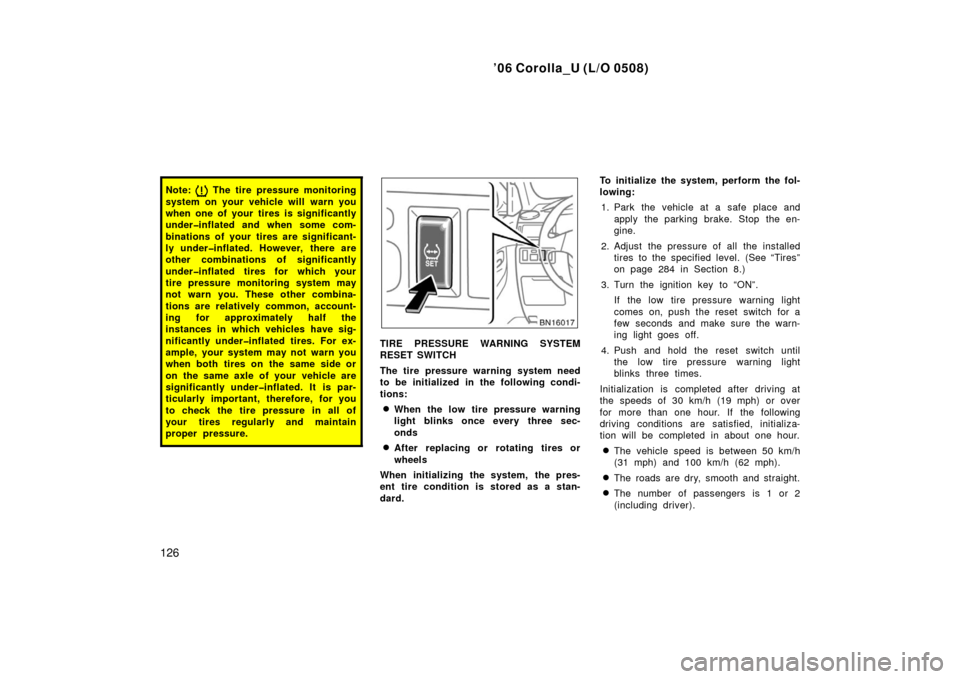

Note: The tire pressure monitoring
system on your vehicle will warn you
when one of your tires is significantly
under inflated and when some com-
binations of your tires are significant-
ly under inflated. However, there are
other combinations of significantly
under inflated tires for which your
tire pressure monitoring system may
not warn you. These other combina-
tions are relatively common, account-
ing for approximately half the
instances in which vehicles have sig-
nificantly under inflated tires. For ex-
ample, your system may not warn you
when both tires on the same side or
on the same axle of your vehicle are
significantly under inflated. It is par-
ticularly important, therefore, for you
to check the tire pressure in all of
your tires regularly and maintain
proper pressure.
TIRE PRESSURE WARNING SYSTEM
RESET SWITCH
The tire pressure warning system need
to be initialized in the following condi-
tions:
When the low tire pressure warning
light blinks once every three sec-
onds
After replacing or rotating tires or
wheels
When initializing the system, the pres-
ent tire condition is stored as a stan-
dard. To initialize the system, perform the fol-
lowing:
1. Park the vehicle at a safe place and apply the parking brake. Stop the en-
gine.
2. Adjust the pressure of all the installed tires to the specified level. (See “Tires”
on page 284 in Section 8.)
3. Turn the ignition key to “ON”. If the low tire pressure warning light
comes on, push the reset switch for a
few seconds and make sure the warn-
ing light goes off.
4. Push and hold the reset switch until the low tire pressure warning light
blinks three times.
Initialization is completed after driving at
the speeds of 30 km/h (19 mph) or over
for more than one hour. If the following
driving conditions are satisfied, initializa-
tion will be completed in about one hour.The vehicle speed is between 50 km/h
(31 mph) and 100 km/h (62 mph).
The roads are dry, smooth and straight.
The number of passengers is 1 or 2
(including driver).
Page 137 of 302
’06 Corolla_U (L/O 0508)
127
When initializing the system, make sure
the low tire pressure warning light blinks
three times. If the warning light does not
blink three times, initializing will be failed
and the tire pressure warning system will
not function properly.
Do not push the reset switch without ad-
justing the tire inflation pressure to the
specified level. Otherwise, the low tire
pressure warning light may not come on
even if the tire pressure is low, or it may
come on when the tire inflation pressure
is actually normal.
If you push the reset switch while the
vehicle is moving, initialization is not per-
formed.If the low tire pressure warning light does
not blink when you push and hold the
reset switch, have the low pressure warn-
ing system checked at your Toyota dealer.
When the warning light blinks once every
three seconds while driving, you may be
unable to reset the system. In this case,
set the system again according to the
above procedure.Ty p e A
Ty p e B
Parking brake
Page 138 of 302
’06 Corolla_U (L/O 0508)
128
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.

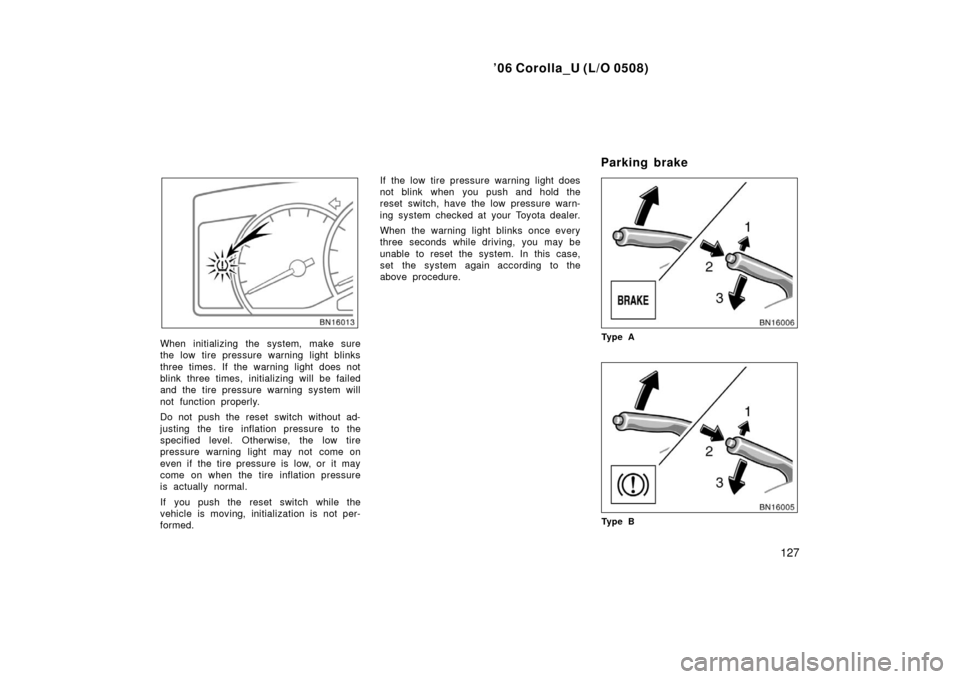

To release: Pull up the lever slightly (1),
press the lock release button (2), and low-
er (3).
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control is designed to main-
tain a set cruising speed without requir-
ing the driver to operate the accelera-
tor. Cruising speed can be set to any
speed above 40 km/h (25 mph).
Within the limits of the engine’s capabili-
ties, cruising speed can be maintained up
or down grades. However, changes in ve-
hicle speed may occur on steeper grades.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snow covered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
TURNING THE SYSTEM ON AND OFF

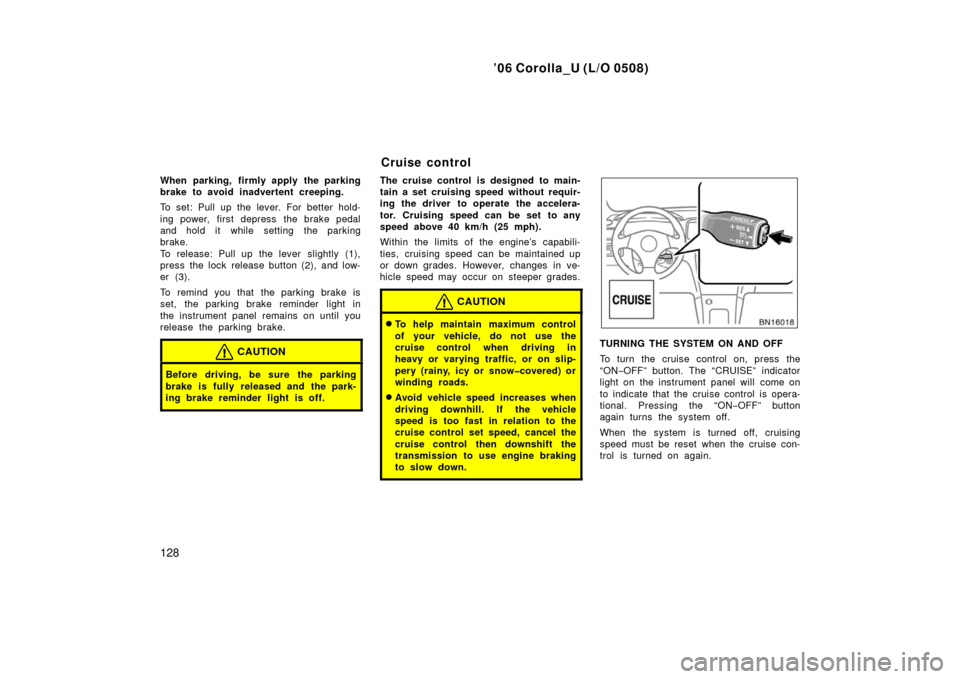

To turn the cruise control on, press the
“ON−OFF” button. The “CRUISE” indicator
light on the instrument panel will come on
to indicate that the cruise control is opera-
tional. Pressing the “ON −OFF” button
again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
Cruise control
Page 139 of 302
’06 Corolla_U (L/O 0508)
129
CAUTION
To avoid accidentally engaging the
cruise control, turn the system off
when it is not in use. Make sure the
“CRUISE” indicator light is off.
SETTING THE CRUISING SPEED
On vehicles with automatic transmission,
the transmission must be in “D” before
you set the cruising speed.

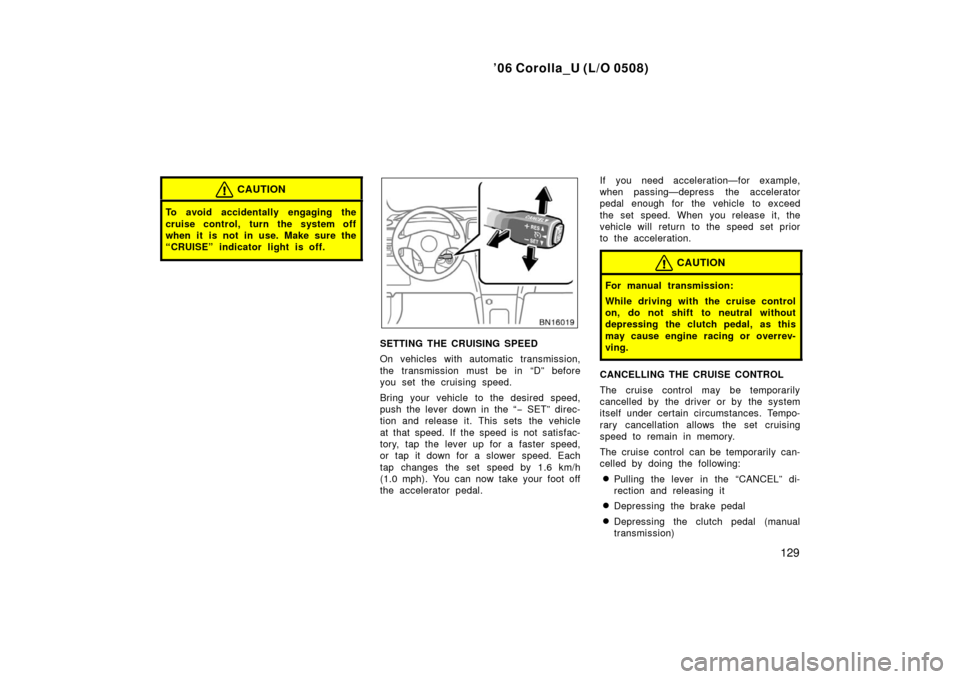

Bring your vehicle to the desired speed,
push the lever down in the “− SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal. If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CAUTION
For manual transmission:
While driving with the cruise control
on, do not shift to neutral without
depressing the clutch pedal, as this
may cause engine racing or overrev-
ving.
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the “CANCEL” di-
rection and releasing it
Depressing the brake pedal
Depressing the clutch pedal (manual
transmission)
Page 140 of 302
’06 Corolla_U (L/O 0508)
130
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory.
The “CRUISE” indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, push the
“ON −OFF” button. Make sure the
“CRUISE” indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph). RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
On vehicles with automatic transmission,
even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled. CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light flashes
when using the cruise control, press the
“ON
−OFF” button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.
