TOYOTA COROLLA 2007 10.G User Guide

’07 Corolla_U (L/O 0608)
1
2007 COROLLA from June ’06 Prod. (OM12B07U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 7
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

’07 Corolla_U (L/O 0608)
2
2007 COROLLA from June ’06 Prod. (OM12B07U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Electric moon roof switches
6. Personal lights
7. Power door lock switches
8. Power window switches
9. Glove box
10. Portable ashtray
11. Rear console box
12. Cup holders
13. Power outlet
14. Parking brake lever
15. Automatic transmission selector lever or manual transmission gear shift lever
16. Hood lock release lever
17. Window lock switch
Instrument panel overview

’07 Corolla_U (L/O 0608)
3
2007 COROLLA from June ’06 Prod. (OM12B07U)

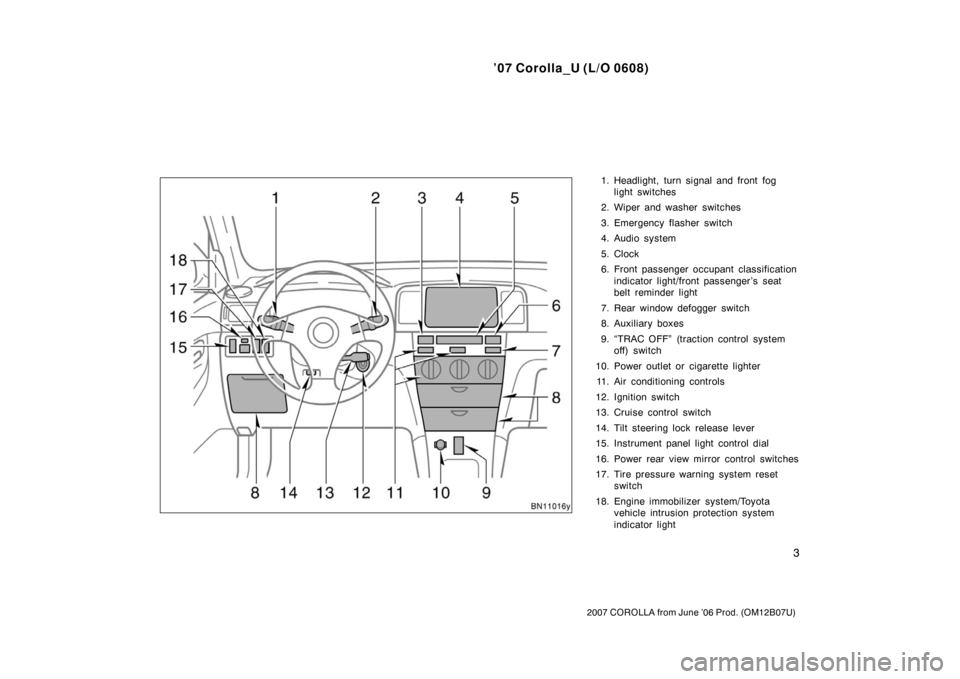

1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Audio system
5. Clock
6. Front passenger occupant classification indicator light/front passenger ’s seat
belt reminder light
7. Rear window defogger switch
8. Auxiliary boxes
9. “TRAC OFF” (traction control system off) switch
10. Power outlet or cigarette lighter 11. Air conditioning controls
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Instrument panel light control dial
16. Power rear view mirror control switches
17. Tire pressure warning system reset switch
18. Engine immobilizer system/Toyota vehicle intrusion protection system
indicator light

’07 Corolla_U (L/O 0608)
4
2007 COROLLA from June ’06 Prod. (OM12B07U)

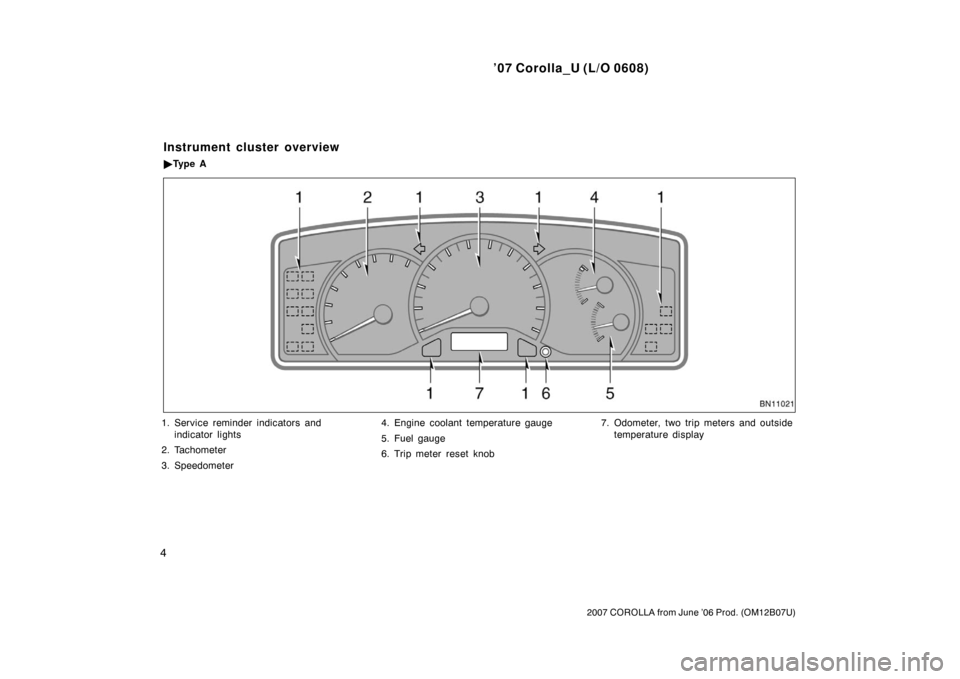

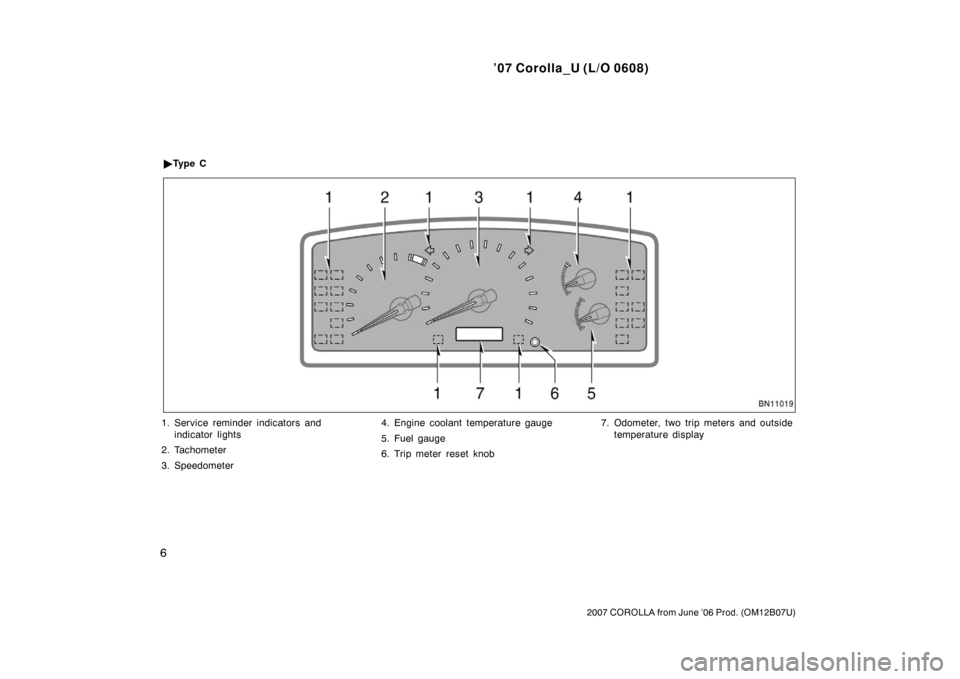

1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display
Instrument cluster overview
Ty p e A

’07 Corolla_U (L/O 0608)
5
2007 COROLLA from June ’06 Prod. (OM12B07U)
1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display

Ty p e B

’07 Corolla_U (L/O 0608)
6
2007 COROLLA from June ’06 Prod. (OM12B07U)

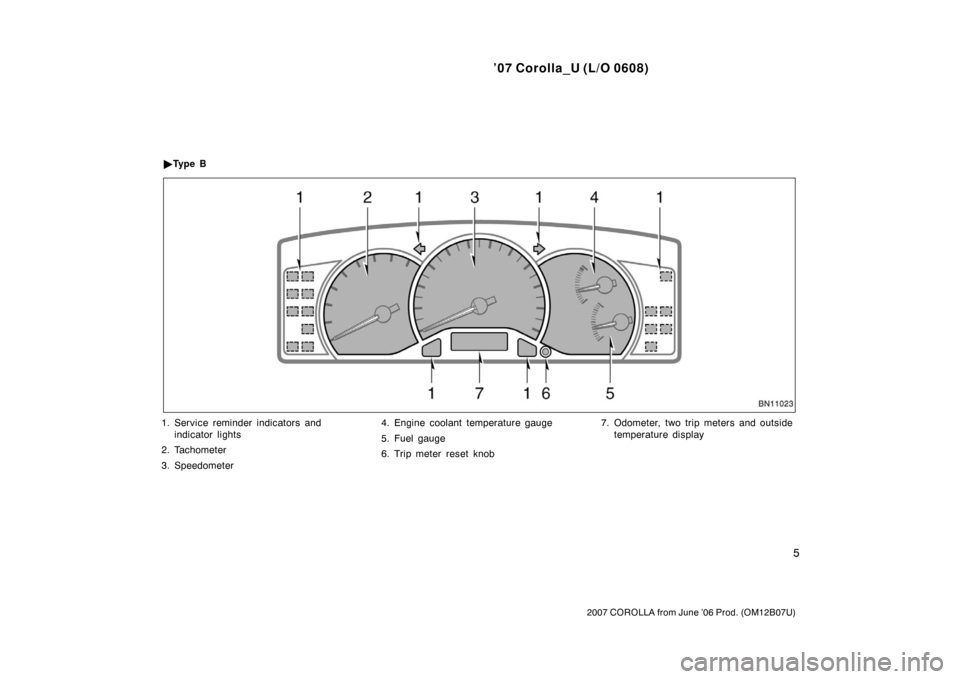

1. Service reminder indicators andindicator lights
2. Tachometer
3. Speedometer 4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display

Ty p e C

’07 Corolla_U (L/O 0608)
7
2007 COROLLA from June ’06 Prod. (OM12B07U)
orBrake system warning light∗1
Driver ’s seat belt reminder light∗1
Charging system warning light∗1
Low fuel level warning light∗1
or
Low engine oil pressure warning light
∗ 1
Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Front passenger ’s seat belt reminder light∗1
Malfunction indicator lamp∗1or
Vehicle stability control system/traction control
system warning light
∗1
Low tire pressure warning light∗1
Engine oil replacement reminder light∗1
Front passenger occupant classification
indicator light
Indicator symbols on the instrument panel

’07 Corolla_U (L/O 0608)
8
2007 COROLLA from June ’06 Prod. (OM12B07U)
Overdrive−off indicator light
Cruise control indicator light
∗ 2
∗ 1
: For details, see “Service reminder indicators and warning
buzzers” on page 102 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 128 in
Section 1 −7.
Turn signal indicator lights Headlight high beam indicator light
Headlight indicator light
Tail light indicator light
Slip indicator light/traction control system off
indicator light

’07 Corolla_U (L/O 0608)
9
2007 COROLLA from June ’06 Prod. (OM12B07U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Side doors 18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Power windows 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Trunk lid 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Toyota vehicle intrusion protection system (TVIP) 25
. . . . . . . . . . . . . . .
Hood 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Fuel tank cap 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

’07 Corolla_U (L/O 0608)
10
2007 COROLLA from June ’06 Prod. (OM12B07U)

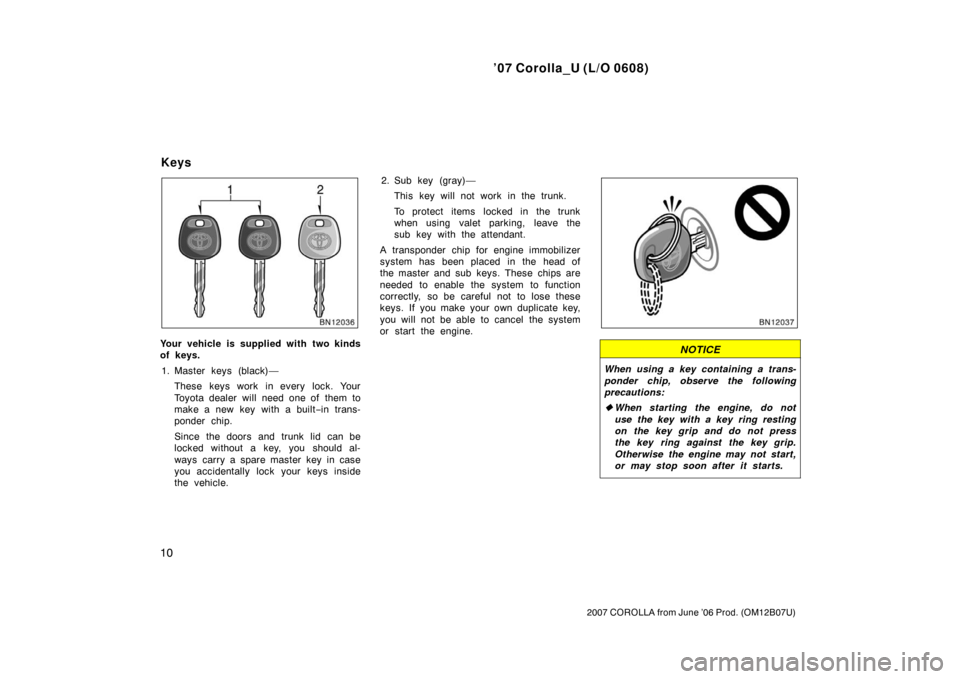

Your vehicle is supplied with two kinds
of keys.1. Master keys (black)— These keys work in every lock. Your
Toyota dealer will need one of them to
make a new key with a built −in trans-
ponder chip.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle. 2. Sub key (gray)—
This key will not work in the trunk.
To protect items locked in the trunk
when using valet parking, leave the
sub key with the attendant.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
Keys
