TOYOTA COROLLA 2007 10.G Owners Manual

’07 Corolla_U (L/O 0608)
271
2007 COROLLA from June ’06 Prod. (OM12B07U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
For vehicles sold in the U.S.A.—If any
washer does not work, the washer tank
may be empty. Check the washer fluid
level on the level gauge. If the washer
fluid level is at “LOW”, add washer
fluid.
For vehicles sold in Canada—If any
washer does not work or the low wind-
shield washer fluid level warning light
comes on, the washer tank may be
empty. Add washer fluid.You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

’07 Corolla_U (L/O 0608)
272
2007 COROLLA from June ’06 Prod. (OM12B07U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
Vehicles with rear spoiler—The high
mounted stoplight consists of a number of
LEDs. If any of the LEDs burn out, take
your vehicle to your Toyota dealer to have
the light replaced.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights
(high beam)900565A
Headlights
(low beam)900655B
Parking/front side
marker/front turn
signal lights
3157A27/8C
Front fog lights900655B
Rear side marker
and stop/tail lights315727/8D
Rear turn signal
lights3157A27/8C
Back −up lights92118D
High mounted
stoplight92118D
License plate lights—5D
Interior light—8E
Replacing light bulbs—

’07 Corolla_U (L/O 0608)
273
2007 COROLLA from June ’06 Prod. (OM12B07U)
Light bulbsBulbNo.WTy p e
Personal light
(on the switch
panel of the electric
moon roof)
—10F
Personal lights
(on the inside rear
view mirror without
compass)
1924.3D
Trunk light Ty p e A∗1
Ty p e B∗2168
—4.9
3.8D
D
A: HB3 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: Double end bulbs
F: Single end bulbs
∗ 1: Except for ZZE130L −AEPDKA and
− AEPNKA models
∗
2: For ZZE130L− AEPDKA and −AEPNKA
models
The model code appears on the Certifica-
tion Label with the heading “MODEL”. See
“Your Toyota’s identification” on page 182
in Section 2 for the Certification Label
location.
1. Open the hood. LEFTHAND HEADLIGHT: Remove the
clip and move the air cleaner duct
as shown in the illustration.
Remove and install the clip as shown in
the following illustrations.Removing clip
Installing clip
—Headlights

’07 Corolla_U (L/O 0608)
274
2007 COROLLA from June ’06 Prod. (OM12B07U)

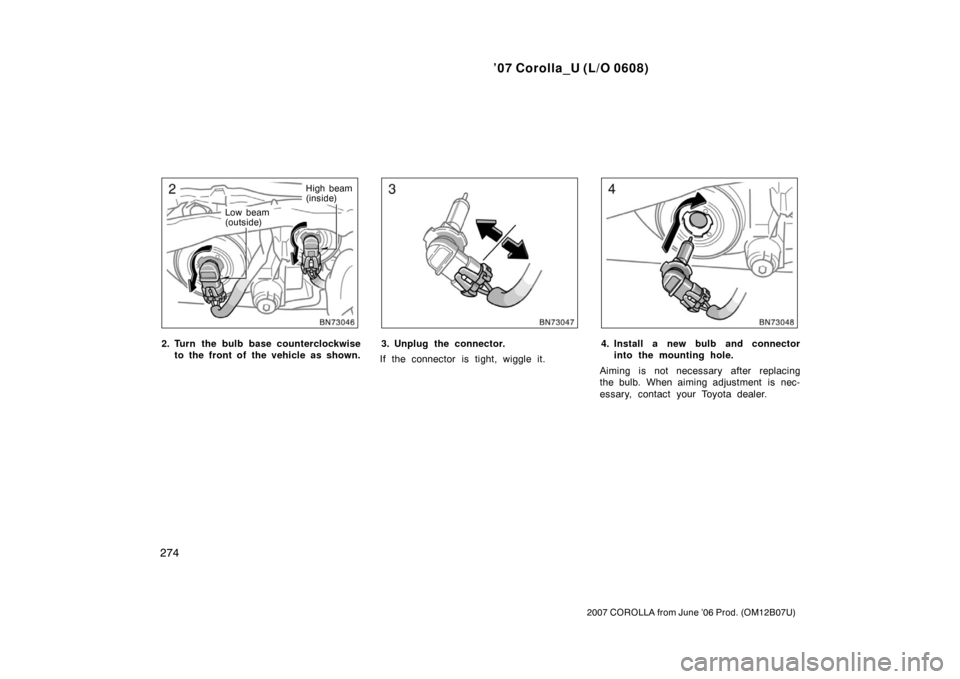

Low beam
(outside)High beam
(inside)
2. Turn the bulb base counterclockwise
to the front of the vehicle as shown.3. Unplug the connector.
If the connector is tight, wiggle it.4. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’07 Corolla_U (L/O 0608)
275
2007 COROLLA from June ’06 Prod. (OM12B07U)

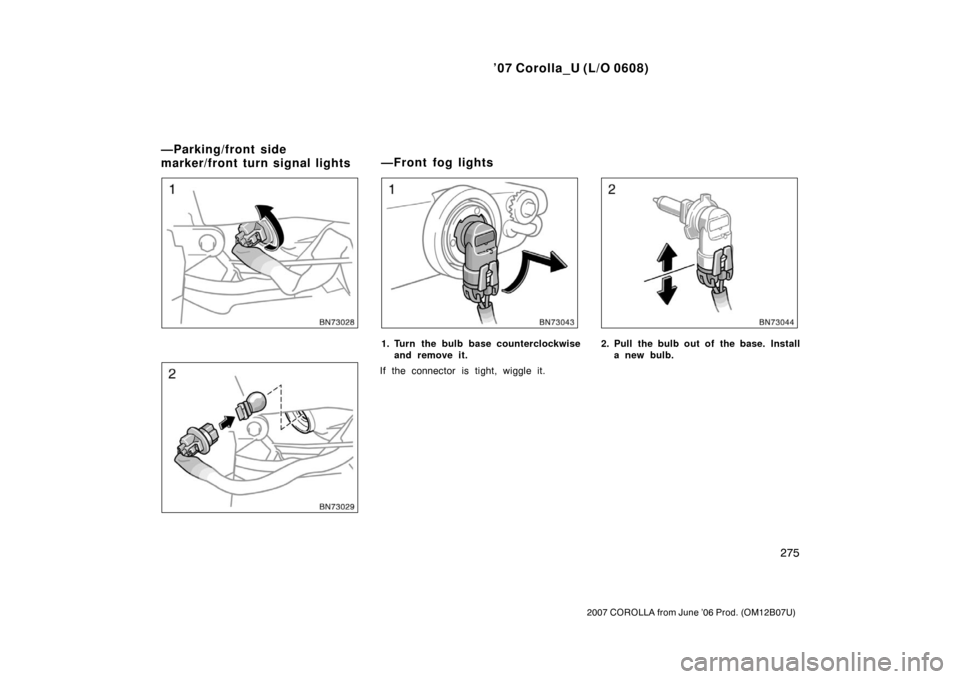

1. Turn the bulb base counterclockwiseand remove it.
If the connector is tight, wiggle it.2. Pull the bulb out of the base. Install a new bulb.
—Parking/front side
marker/front turn signal lights —Front fog lights

’07 Corolla_U (L/O 0608)
276
2007 COROLLA from June ’06 Prod. (OM12B07U)

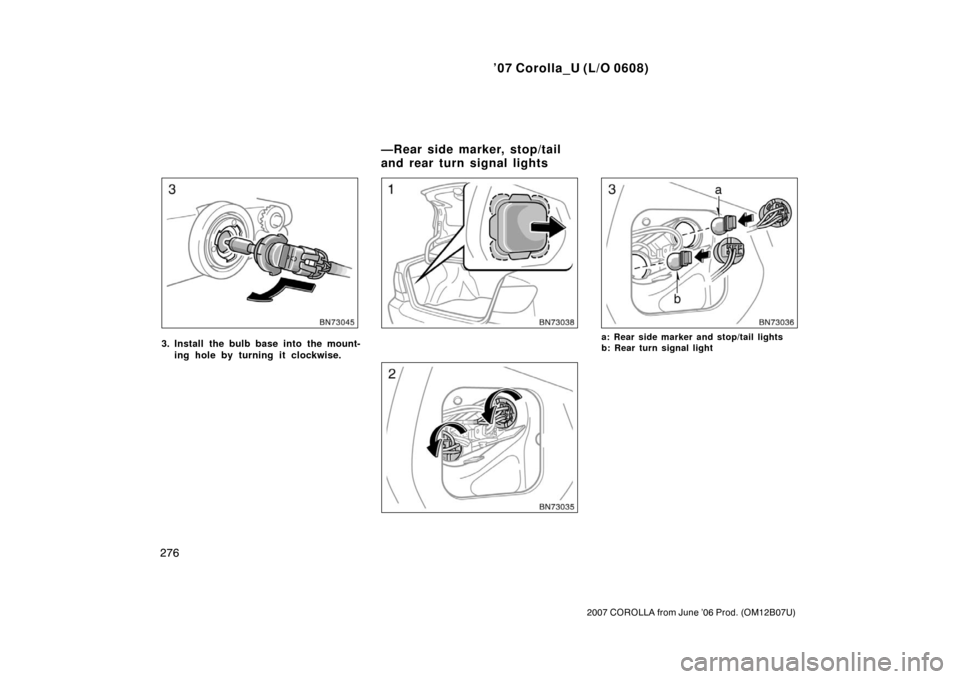

3. Install the bulb base into the mount-ing hole by turning it clockwise.a: Rear side marker and stop/tail lights
b: Rear turn signal light
—Rear side marker, stop/tail
and rear turn signal lights

’07 Corolla_U (L/O 0608)
277
2007 COROLLA from June ’06 Prod. (OM12B07U)

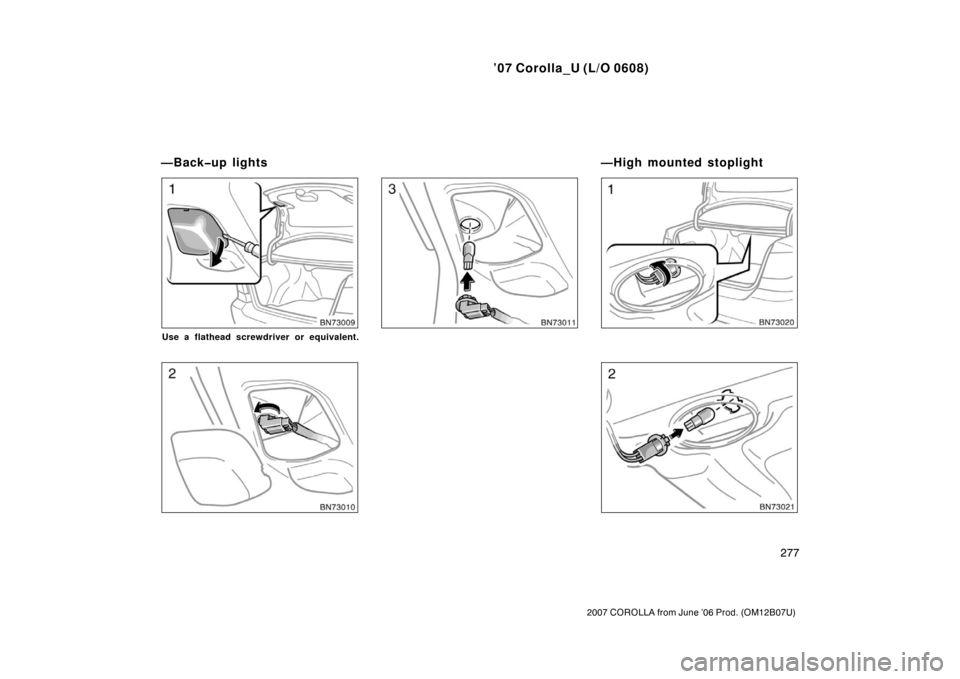

Use a flathead screwdriver or equivalent.
—Backup lights—High mounted stoplight

’07 Corolla_U (L/O 0608)
278
2007 COROLLA from June ’06 Prod. (OM12B07U)
If either of the license plate lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the license plate
light bulbs by yourself. You may dam-
age the vehicle.
—License plate lights

’07 Corolla_U (L/O 0608)
279
2007 COROLLA from June ’06 Prod. (OM12B07U)
SPECIFICATIONS
Specifications
Dimensions and weights280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 280
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 284
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 284
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

’07 Corolla_U (L/O 0608)
280
2007 COROLLA from June ’06 Prod. (OM12B07U)
Model:1ZZ −FE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 79.0  91.5 (3.11  3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.) 4530 (178.3)
1460 (57.5) 1480 (58.3)
2600 (102.4)
1480 (58.3) 1700 (66.9)
Vehicle capacity weight
(occupants + luggage) kg (lb.)
Towing capacity
(trailer weight + cargo weight) kg (lb.)
680 (1500) 385 (850)
∗: Unladen vehicle
