AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp. qt.):Up to 3.0 (3.2, 2.6)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T −IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type T IV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details. BRAKES
Minimum pedal clearance when depressed
with the force of 294 N (30 kgf, 66 lbf)
with the engine running, mm (in.):
With anti −lock brake system 76 (2.99)
Without anti −lock brake system
78 (3.07)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6—9 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
Page 302 of 310
’08 Corolla_U (L/O 0706)
292
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
Engine compartment
Tires
Ti r e siz e
P185/65R15 86S Front
P195/65R15 89S210 (2.1, 30)
210 (2.1, 30) Rear
210 (2.1, 30)
210 (2.1, 30) Wheel size
15 6 JJ
15 6 JJ
Spare kPa (kgf/cm
2 or bar, psi) Wheel size
T125/70R16 96M 420 (4.2, 60) 16 4T
W h eel nu t to rq u e, N·m (kg f· m, ft· l b f ) : 103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum
wheel precautions”, pages 267 through 274, in Section 7 −2.
Tire size and cold tire inflation pressure:
Front and rear
kPa (kgf/cm
2 or bar, psi)
195/55R16 87V 220 (2.2, 32) 220 (2.2, 32) 16 6 JJ
Fuses
Page 303 of 310
’08 Corolla_U (L/O 0706)
293
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
Instrument panel
Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), high beam indi-
cator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. ETCS 10 A: Electronic throttle control
system 8. AMP 30 A:
Audio system
9. MAIN 30 A: Starting system, “AM2”
fuse
10. DOME 15 A: Audio system, clock, per-
sonal lights, interior light, trunk light,
open door warning light, wireless re-
mote control system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers ,
turn signal lights
13. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system,
“EFI2” fuse
14. ALT S 5 A: Charging system
15. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
16. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
17. EFI2 15 A: Multiport fuel injection sys-
tem/ sequential multiport fuel injection
system, emission control system
18. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights , instru-
ment cluster lights 19. OBD 7.5 A:
On−board diagnosis sys-
tem
20. P/W 30 A: No circuit
21. WIPER 25 A: Windshield wipers
22. AM2 15 A: Charging system, multiport
fuel injection system/sequential multi-
port fuel injection system, starting sys-
tem, SRS airbag system
23. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system, shift
lock control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, cruise control system
24. DOOR 25 A: Power door lock system
25. AM1 25 A: “CIG” fuse
26. ECU IG 10 A: Electric cooling fan,
anti −lock brake system, vehicle stability
control system, traction control system,
brake assist system, shift lock control
system, cruise control system
27. RR WIPER 15 A: No circuit
28. A/C 10 A: Air conditioning system
29. INV 15 A: No
circuit
30. P/POINT 15 A: Power outlet (in the
rear console box)
31. ECU B 10 A: Daytime running light
system
Page 304 of 310
’08 Corolla_U (L/O 0706)
294
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
32. CIG 15 A: Power outlet (on the instru-
ment panel) or cigarette lighter, audio
system, clock, power rear view mirror
control, shift lock control system
33. GAUGE 10 A: Gauges and meters, air
conditioning system, daytime running
light system, charging system, auto
anti −glare inside rear view mirror, pow-
er windows, cruise control system, rear
window defogger, back −up lights, front
passenger ’s seat belt reminder light
34. WASHER 15 A: Windshield washer
35. M HTR/DEF I UP 10 A: Engine control
system

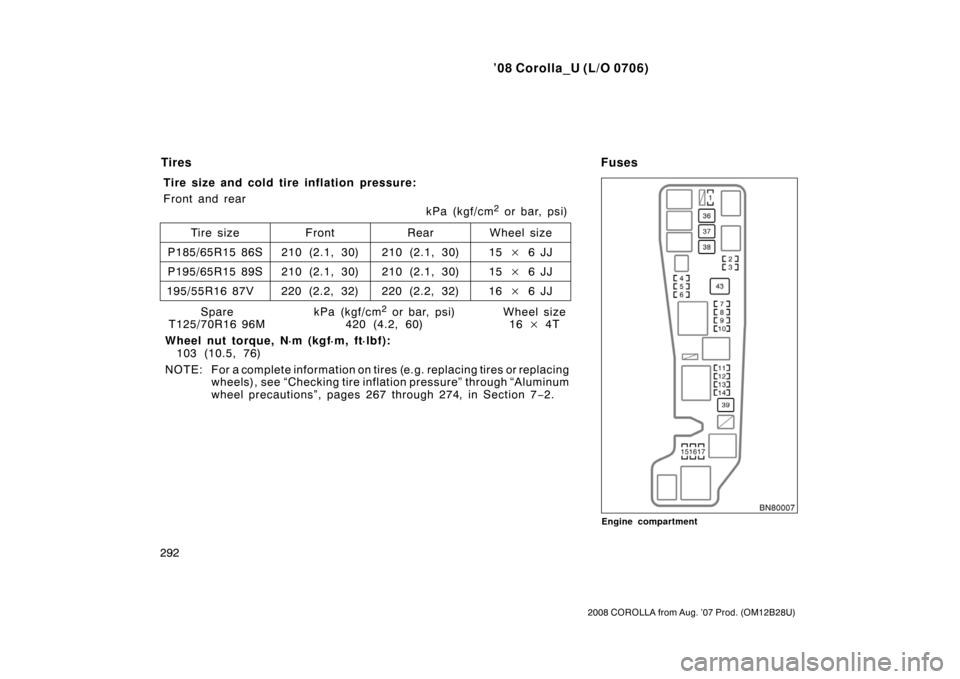

Fuses (type B)
36. ABS NO.1 30 A: Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system
37. RDI FAN 30 A: Electric cooling fan
38. ABS NO.2 40 A (without vehicle sta- bility control system): Anti−lock brake
system
ABS NO.2 50 A (with vehicle stability
control system): Anti−lock brake sys-
tem, vehicle stability control system,
traction control system, brake assist
system 39. HEAD MAIN 40 A:
“HEAD LH UPR”,
“HEAD RH UPR”, “HEAD LH LWR” and
“HEAD RH LWR” fuses
40. HTR 40 A: Air conditioning system
41. DEF 40 A: Rear window defogger,
“M −HTR/DEF I −UP” fuse
42. POWER 30 A: Power windows, electric
moon roof
Fuse (type C)
43. ALT 100 A: Charging system, “ABS
NO.1”, “ABS NO.2”, “RDI FAN”, “FOG”,
“HTR”, “AM1”, “POWER”, “DOOR”,
“ECU −B”, “TAIL”, “STOP”, “P/POINT”,
“INV” and “OBD” fuses
Page 305 of 310
’08 Corolla_U (L/O 0706)
295
2008 COROLLA from Aug. ’07 Prod. (OM12B28U)
