TOYOTA COROLLA 2008 10.G Scheduled Maintenance Guide

2008 Corolla Scheduled Maintenance Guide
105,000 Miles or 126 Months
Replace engine oil and oil filter1
Rotate tiresTighten drive shaft boltVisually inspect brake linings/drums and brake pads/discs
Inspect the following: __ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots __ Engine coolant
3
__ Exhaust pipes and mountings
__ Steering gear box
__ Steering linkage and boots
NOTE:
Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from
the air conditioner and heater or if the windows fog easily when you use the Freshmode.
Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:Inspect engine air filterTighten nuts and bolts on chassis
Driving while towing:
Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
19
1Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for more
information.
4Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. Refer to Engine
Coolant  in theExplanation of Maintenance Items section in the back of this guide for more information.

2008 Scheduled Maintenance GuideCOROLLA

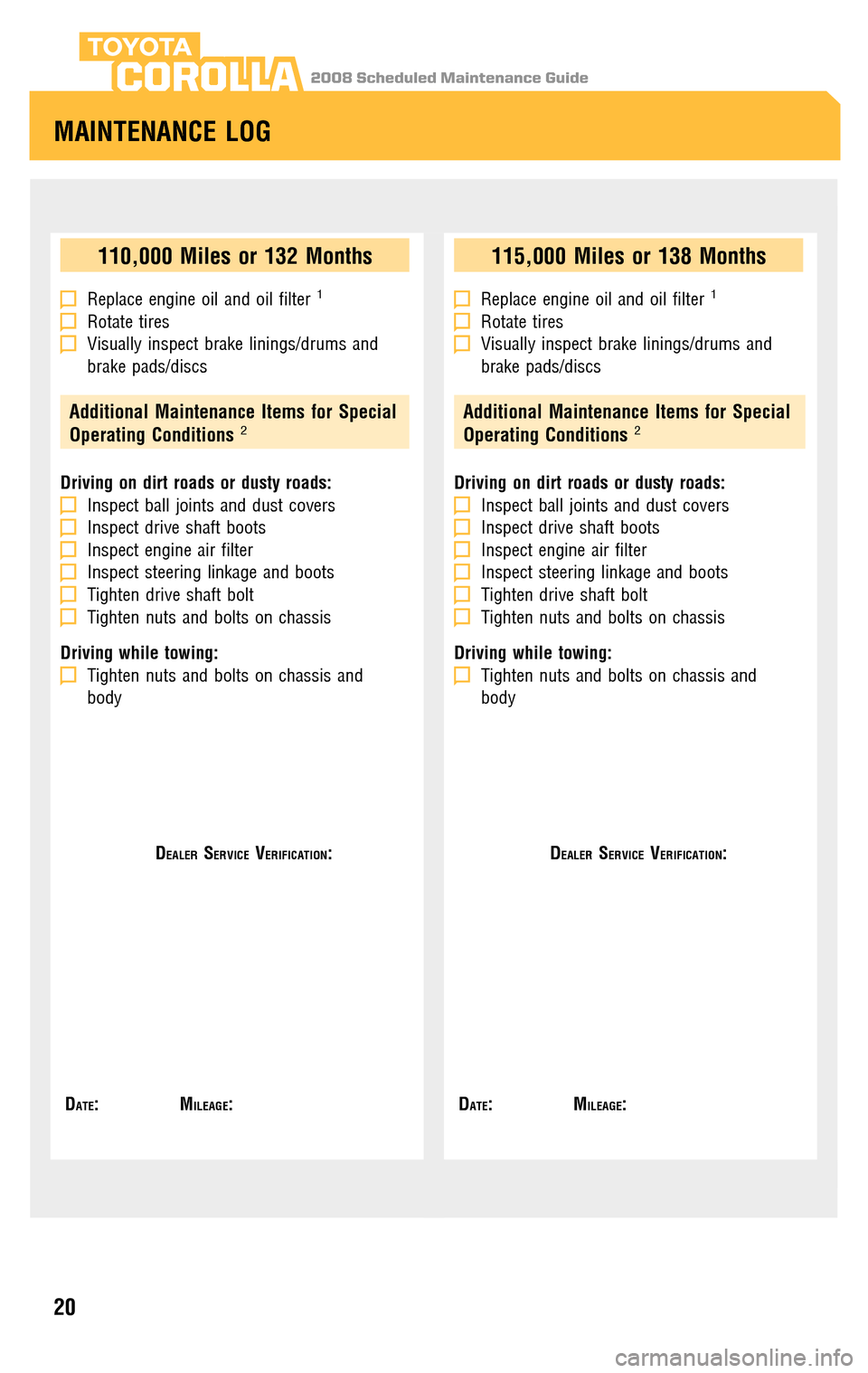

110,000 Miles or 132 Months
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten drive shaft boltTighten nuts and bolts on chassis
Driving while towing:
Tighten nuts and bolts on chassis and
body
D
EALERSERVICEVERIFICATION:
D
ATE:MILEAGE:
115,000 Miles or 138 Months
Replace engine oil and oil filter1
Rotate tiresVisually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions2
Driving on dirt roads or dusty roads:Inspect ball joints and dust coversInspect drive shaft bootsInspect engine air filterInspect steering linkage and bootsTighten drive shaft boltTighten nuts and bolts on chassis
Driving while towing:
Tighten nuts and bolts on chassis and
body
D
EALERSERVICEVERIFICATION:
D
ATE:MILEAGE:
MAINTENANCE LOG
20

2008 Corolla Scheduled Maintenance Guide
120,000 Miles or 144 Months
Replace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs5
Rotate tiresTighten drive shaft bolt
Inspect the following: __ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
4
__ Drive belts
__ Drive shaft boots
__ Engine coolant
3
__ Engine valve clearance6
__ Exhaust pipes and mountings __ Front differential oil
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from
the air conditioner and heater or if the windows fog easily when you use the Freshmode.
Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions
2
Driving on dirt roads or dusty roads:
Tighten nuts and bolts on chassis
Driving while towing:
Replace front differential oil
Replace transmission fluid or oil
Tighten nuts and bolts on chassis and body
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
21
1Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for more
information.
4Inspect thickness measurement and disc runout.5Required under the terms of the Emission Control Warranty.6Check for tappet noise and engine vibration and adjust if necessary.

2008 Scheduled Maintenance GuideCOROLLA

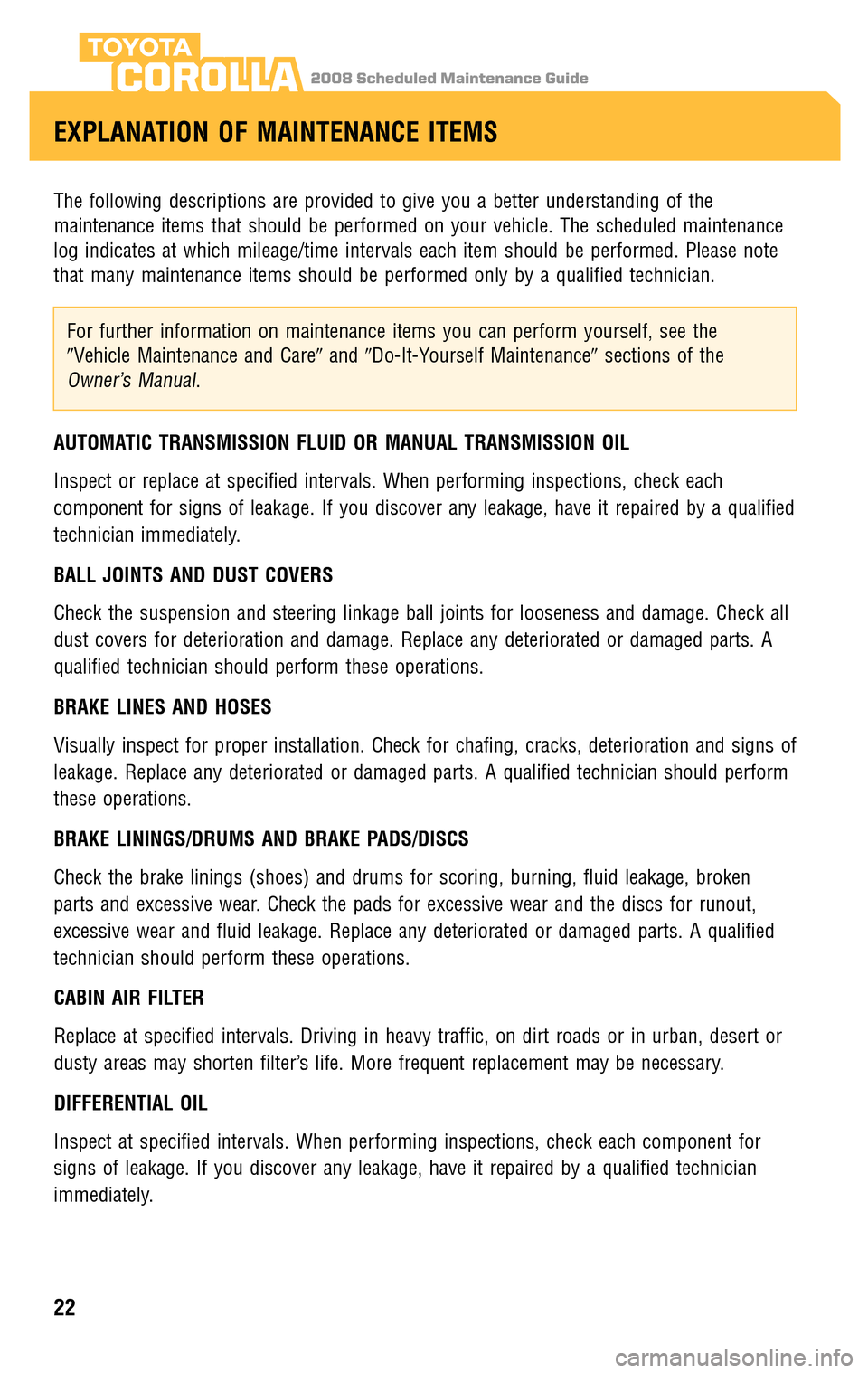

The following descriptions are provided to give you a better understanding of the
maintenance items that should be performed on your vehicle. The scheduled maintenance
log indicates at which mileage/time intervals each item should be performed. Please note
that many maintenance items should be performed only by a qualified technician. For further information on maintenance items you can perform yourself, see the
 Vehicle Maintenance and Care and Do-It-Yourself Maintenance sections of the
Owner’s Manual.
AUTOMATIC TRANSMISSION FLUID OR MANUAL TRANSMISSION OIL
Inspect or replace at specified intervals. When performing inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired by a qualified
technician immediately.
BALL JOINTS AND DUST COVERS
Check the suspension and steering linkage ball joints for looseness and damage. Check all
dust covers for deterioration and damage. Replace any deteriorated or damaged parts. A
qualified technician should perform these operations.
BRAKE LINES AND HOSES
Visually inspect for proper installation. Check for chafing, cracks, deterioration and signs of
leakage. Replace any deteriorated or damaged parts. A qualified technician should perform
these operations.
BRAKE LININGS/DRUMS AND BRAKE PADS/DISCS
Check the brake linings (shoes) and drums for scoring, burning, fluid leakage, broken
parts and excessive wear. Check the pads for excessive wear and the discs for runout,
excessive wear and fluid leakage. Replace any deteriorated or damaged parts. A qualified
technician should perform these operations.
CABIN AIR FILTER
Replace at specified intervals. Driving in heavy traffic, on dirt roads or in urban, desert or
dusty areas may shorten filter’s life. More frequent replacement may be necessary.
DIFFERENTIAL OIL
Inspect at specified intervals. When performing inspections, check each component for
signs of leakage. If you discover any leakage, have it repaired by a qualified technician
immediately.
EXPLANATION OF MAINTENANCE ITEMS
22

2008 Corolla Scheduled Maintenance Guide

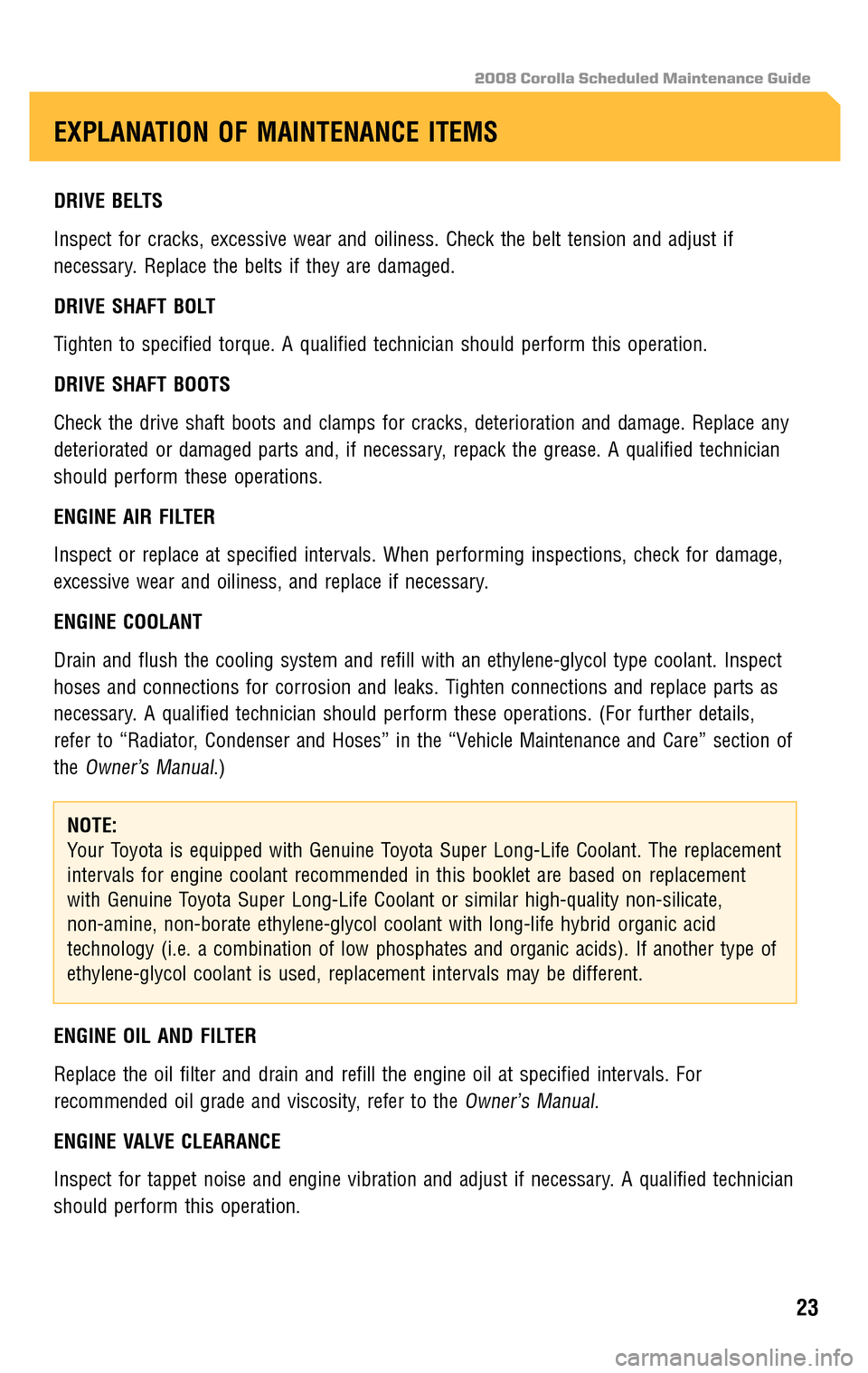

DRIVE BELTS
Inspect for cracks, excessive wear and oiliness. Check the belt tension and adjust if
necessary. Replace the belts if they are damaged.
DRIVE SHAFT BOLT
Tighten to specified torque. A qualified technician should perform this operation.
DRIVE SHAFT BOOTS
Check the drive shaft boots and clamps for cracks, deterioration and damage. Replace any
deteriorated or damaged parts and, if necessary, repack the grease. A qualified technician
should perform these operations.
ENGINE AIR FILTER
Inspect or replace at specified intervals. When performing inspections, check for damage,
excessive wear and oiliness, and replace if necessary.
ENGINE COOLANT
Drain and flush the cooling system and refill with an ethylene-glycol type coolant. Inspect
hoses and connections for corrosion and leaks. Tighten connections and replace parts as
necessary. A qualified technician should perform these operations. (For further details,
refer to “Radiator, Condenser and Hoses” in the “Vehicle Maintenance and Care” section of
the
Owner’s Manual.)
NOTE:
Your Toyota is equipped with Genuine Toyota Super Long-Life Coolant. The replacement
intervals for engine coolant recommended in this booklet are based on replacement
with Genuine Toyota Super Long-Life Coolant or similar high-quality non-silicate,
non-amine, non-borate ethylene-glycol coolant with long-life hybrid organic acid
technology (i.e. a combination of low phosphates and organic acids). If another type of
ethylene-glycol coolant is used, replacement intervals may be different.
ENGINE OIL AND FILTER
Replace the oil filter and drain and refill the engine oil at specified intervals. For
recommended oil grade and viscosity, refer to the
Owner’s Manual.
ENGINE VALVE CLEARANCE
Inspect for tappet noise and engine vibration and adjust if necessary. A qualified technician
should perform this operation.
EXPLANATION OF MAINTENANCE ITEMS
23

2008 Scheduled Maintenance GuideCOROLLA

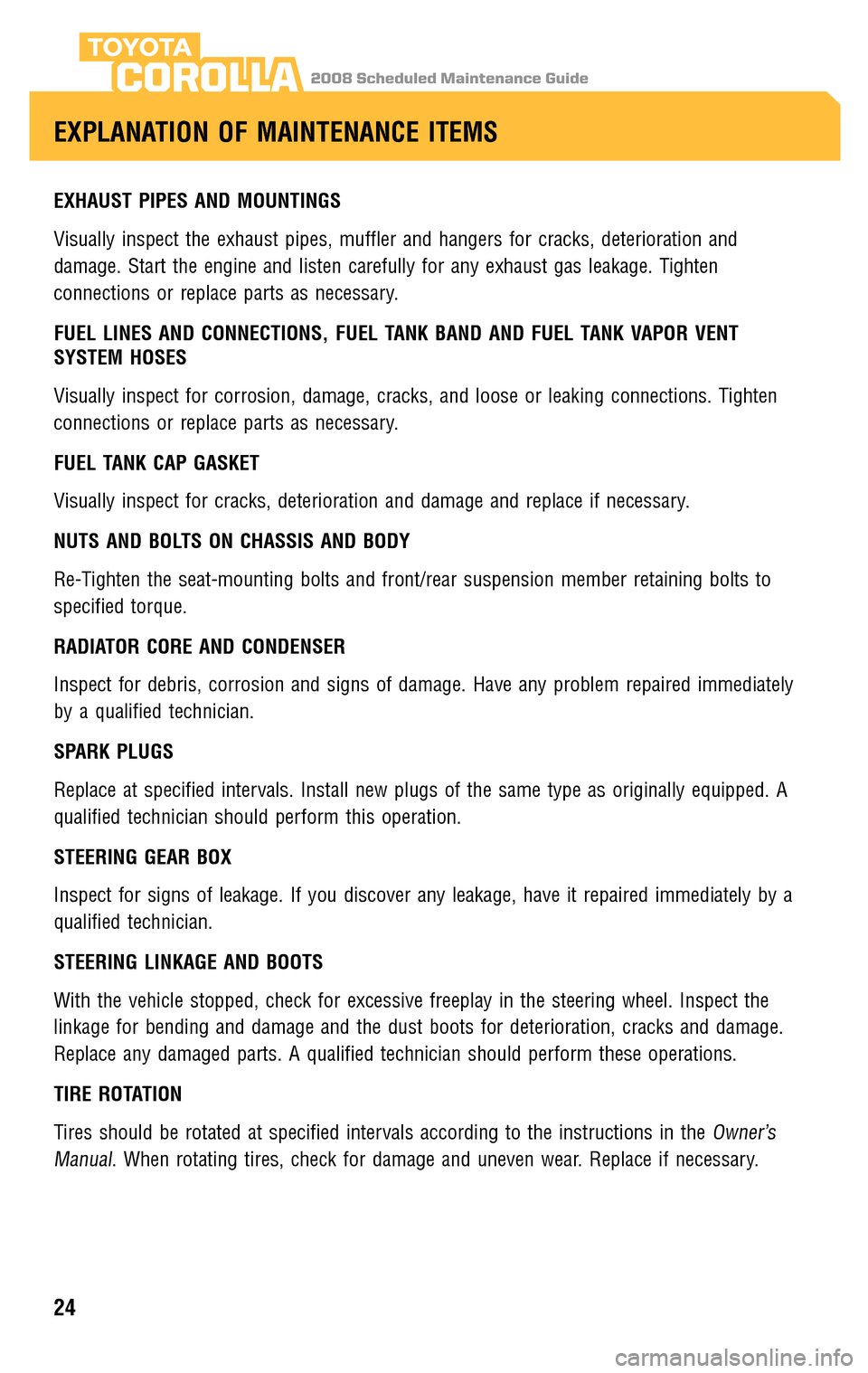

EXHAUST PIPES AND MOUNTINGS
Visually inspect the exhaust pipes, muffler and hangers for cracks, deterioration and
damage. Start the engine and listen carefully for any exhaust gas leakage. Tighten
connections or replace parts as necessary.
FUEL LINES AND CONNECTIONS, FUEL TANK BAND AND FUEL TANK VAPOR VENT
SYSTEM HOSES
Visually inspect for corrosion, damage, cracks, and loose or leaking connections. Tighten
connections or replace parts as necessary.
FUEL TANK CAP GASKET
Visually inspect for cracks, deterioration and damage and replace if necessary.
NUTS AND BOLTS ON CHASSIS AND BODY
Re-Tighten the seat-mounting bolts and front/rear suspension member retaining bolts to
specified torque.
RADIATOR CORE AND CONDENSER
Inspect for debris, corrosion and signs of damage. Have any problem repaired immediately
by a qualified technician.
SPARK PLUGS
Replace at specified intervals. Install new plugs of the same type as originally equipped. A
qualified technician should perform this operation.
STEERING GEAR BOX
Inspect for signs of leakage. If you discover any leakage, have it repaired immediately by a
qualified technician.
STEERING LINKAGE AND BOOTS
With the vehicle stopped, check for excessive freeplay in the steering wheel. Inspect the
linkage for bending and damage and the dust boots for deterioration, cracks and damage.
Replace any damaged parts. A qualified technician should perform these operations.
TIRE ROTATION
Tires should be rotated at specified intervals according to the instructions in the
Owner’s
Manual
. When rotating tires, check for damage and uneven wear. Replace if necessary.
EXPLANATION OF MAINTENANCE ITEMS
24
