TOYOTA COROLLA 2009 10.G Owners Manual

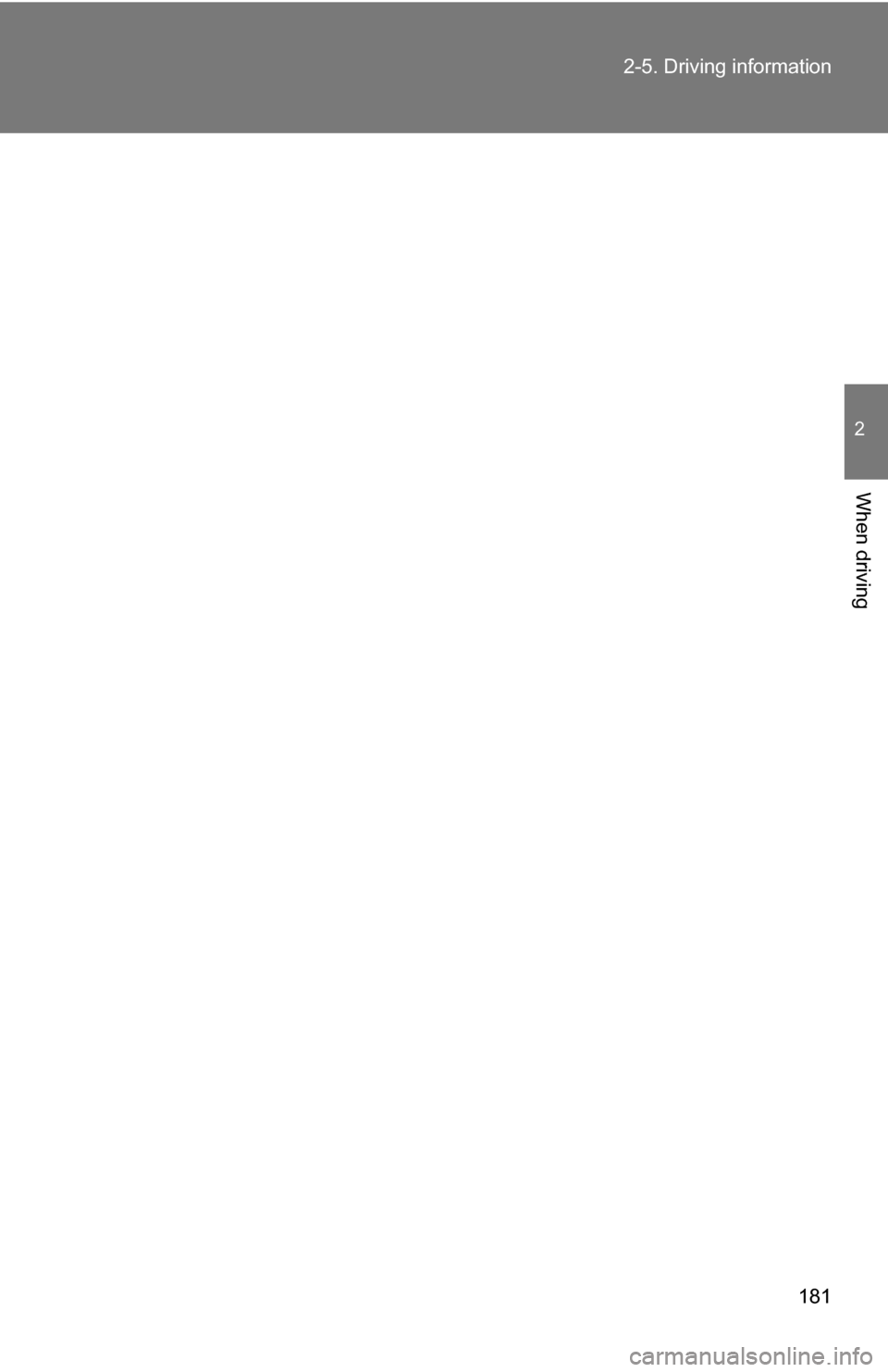

181
2-5. Driving information
2
When driving

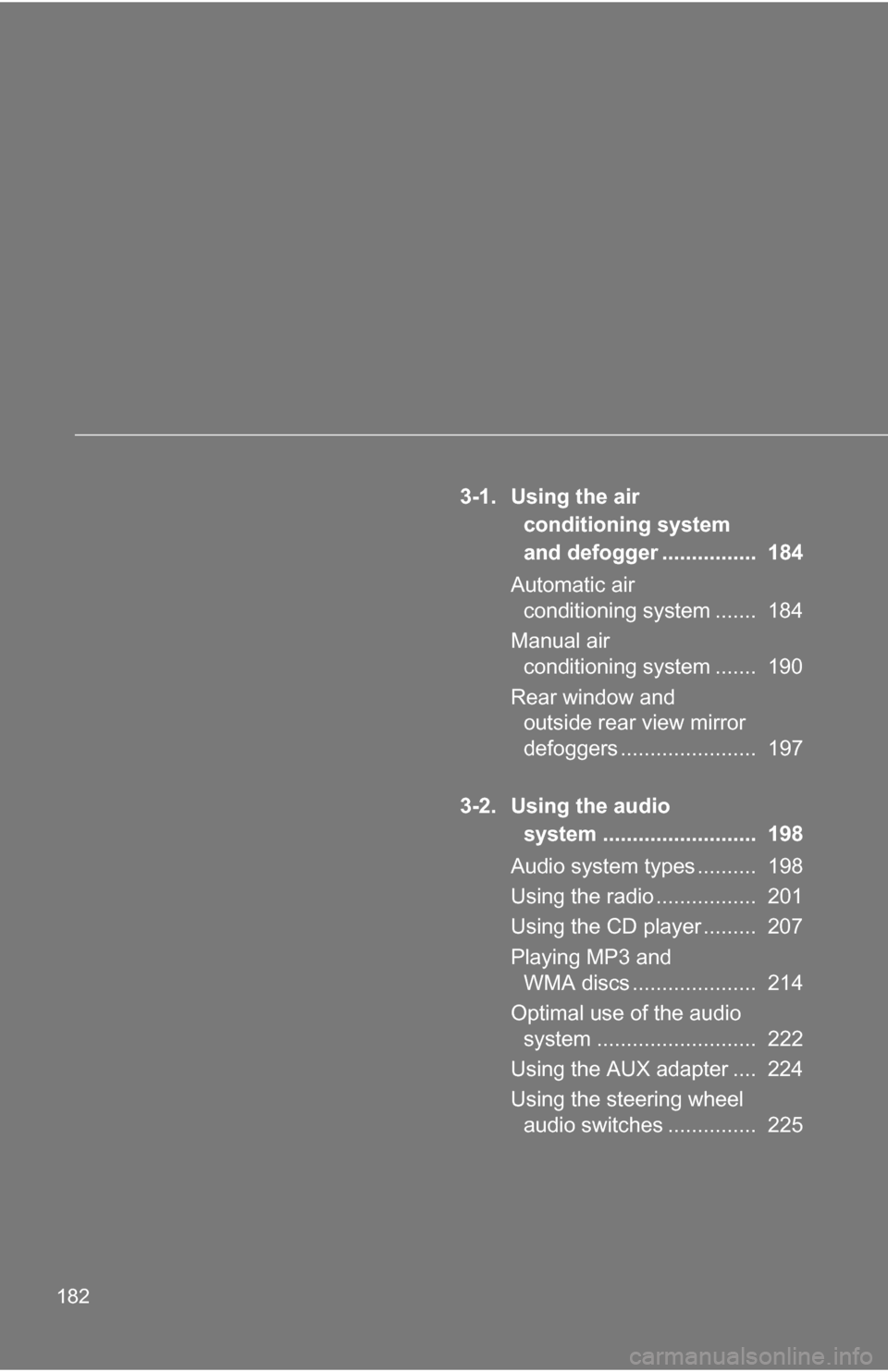

182
3-1. Using the air conditioning system
and defogger ................ 184
Automatic air conditioning system ....... 184
Manual air conditioning system ....... 190
Rear window and outside rear view mirror
defoggers ....................... 197
3-2. Using the audio system .......................... 198
Audio system types .......... 198
Using the radio ................. 201
Using the CD player ......... 207
Playing MP3 and WMA discs ..................... 214
Optimal use of the audio system ........................... 222
Using the AUX adapter .... 224
Using the steering wheel audio switches ............... 225

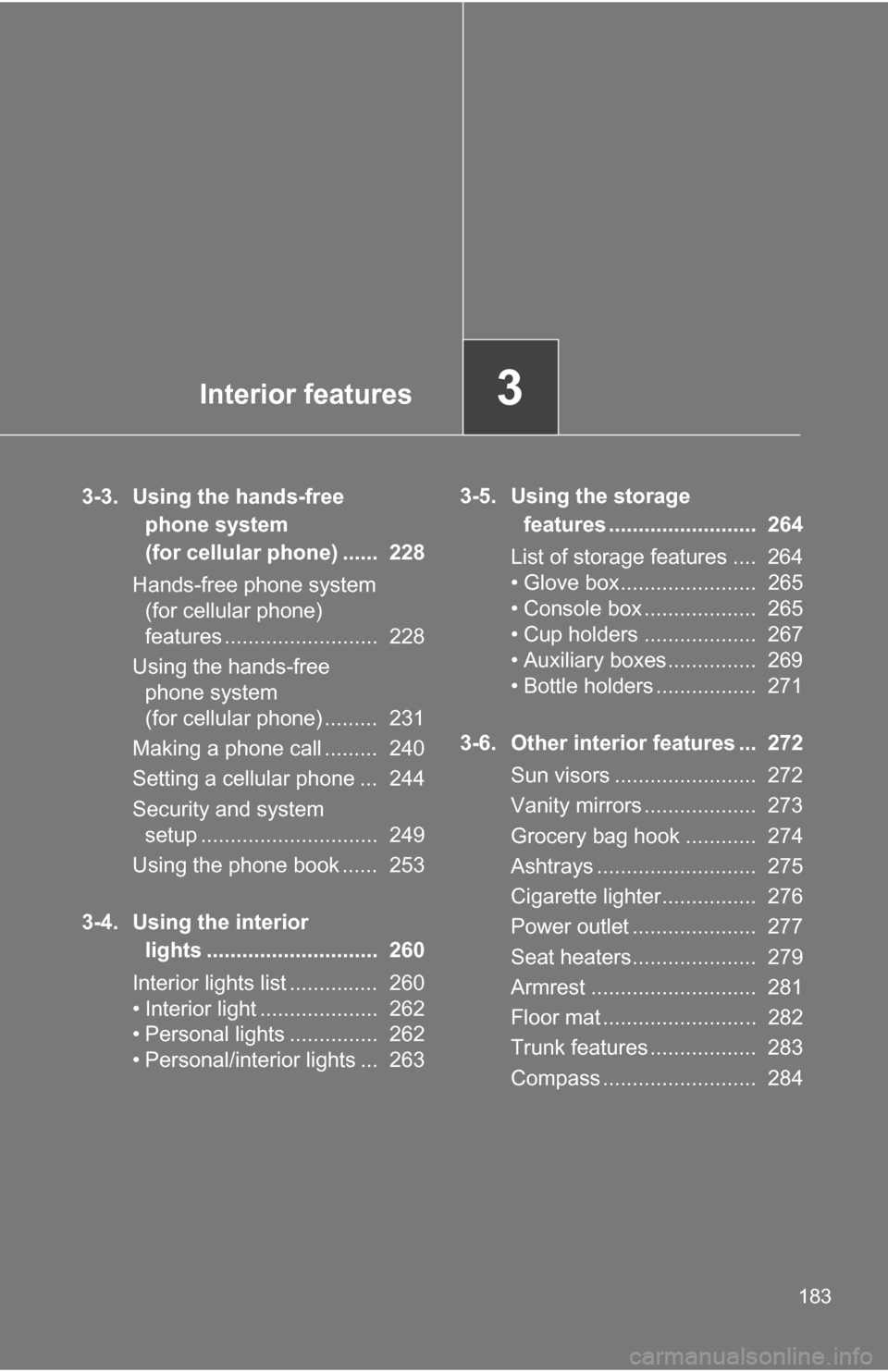

Interior features3
183
3-3. Using the hands-free phone system
(for cellular phone) ...... 228
Hands-free phone system (for cellular phone)
features .......................... 228
Using the hands-free phone system
(for cellular phone) ......... 231
Making a phone call ......... 240
Setting a cellular phone ... 244
Security and system setup .............................. 249
Using the phone book ...... 253
3-4. Using the interior lights ............................. 260
Interior lights list ............... 260
• Interior light .................... 262
• Personal lights ............... 262
• Personal/interior lights ... 263 3-5. Using the storage
features ......................... 264
List of storage features .... 264
• Glove box....................... 265
• Console box ................... 265
• Cup holders ................... 267
• Auxiliary boxes ............... 269
• Bottle holders ................. 271
3-6. Other interior features ... 272 Sun visors ........................ 272
Vanity mirrors ................... 273
Grocery bag hook ............ 274
Ashtrays ........................... 275
Cigarette lighter................ 276
Power outlet ..................... 277
Seat heaters..................... 279
Armrest ............................ 281
Floor mat .......................... 282
Trunk features .................. 283
Compass .......................... 284

184
3-1. Using the air conditioning system and defogger

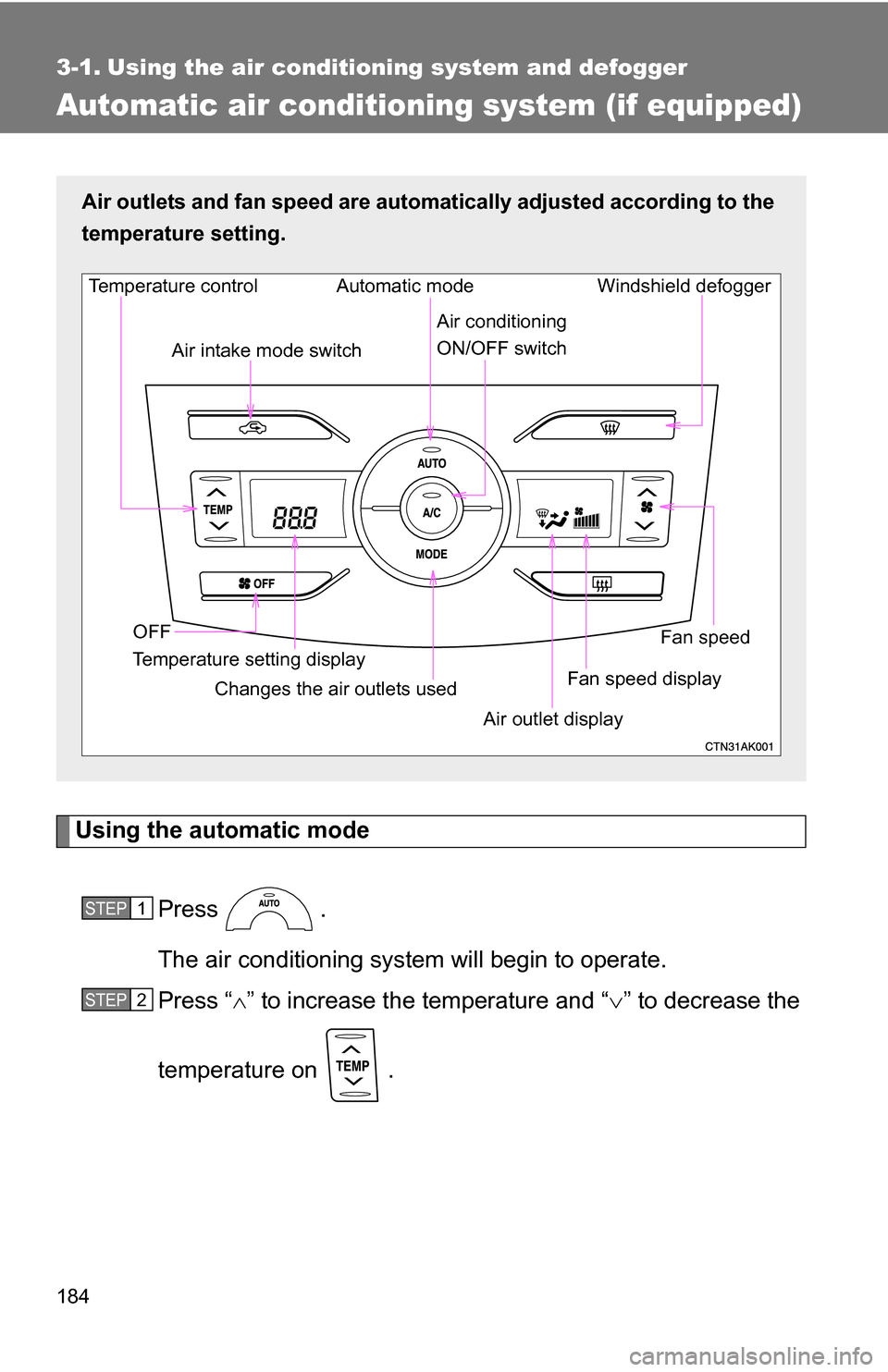

Automatic air conditioning system (if equipped)
Using the automatic modePress .
The air conditioning system will begin to operate.
Press “ ” to increase the temperature and “ ” to decrease the
temperature on .
Air outlets and fan speed are automa tically adjusted according to the
temperature setting.
Fan speed display Windshield defogger
Temperature control
Air intake mode switch
Fan speed
Temperature setting display OFF Automatic mode
Changes the air outlets used Air outlet display
Air conditioning
ON/OFF switch
STEP1
STEP2

185
3-1. Using the air conditioning system
and defogger
3
Interior features

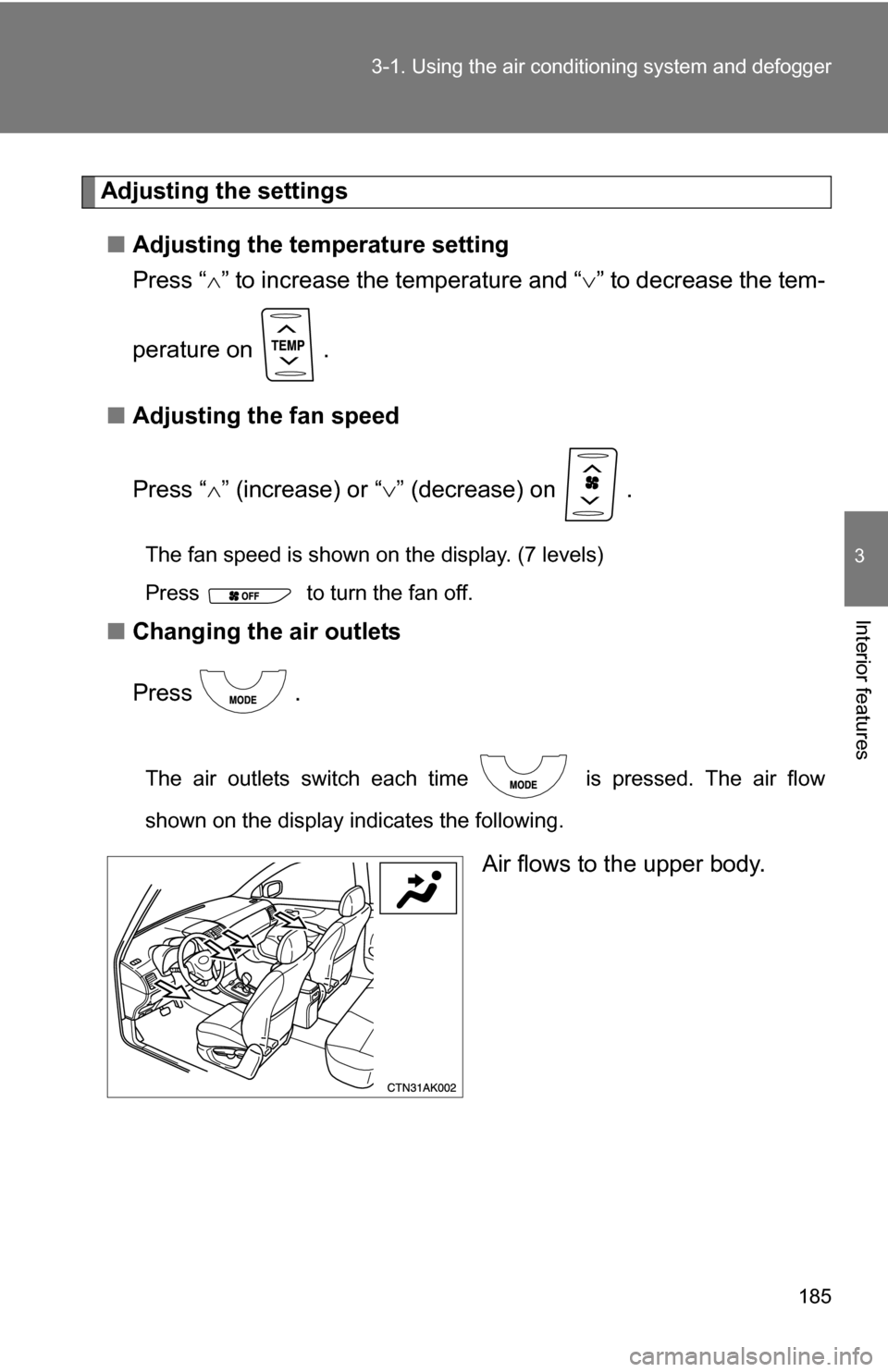

Adjusting the settings
■ Adjusting the temperature setting
Press “ ” to increase the temperature and “ ” to decrease the tem-
perature on .
■ Adjusting the fan speed
Press “ ” (increase) or “ ” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
■ Changing the air outlets
Press .
The air outlets switch each time is pressed. The air flow
shown on the display indicates the following.
Air flows to the upper body.

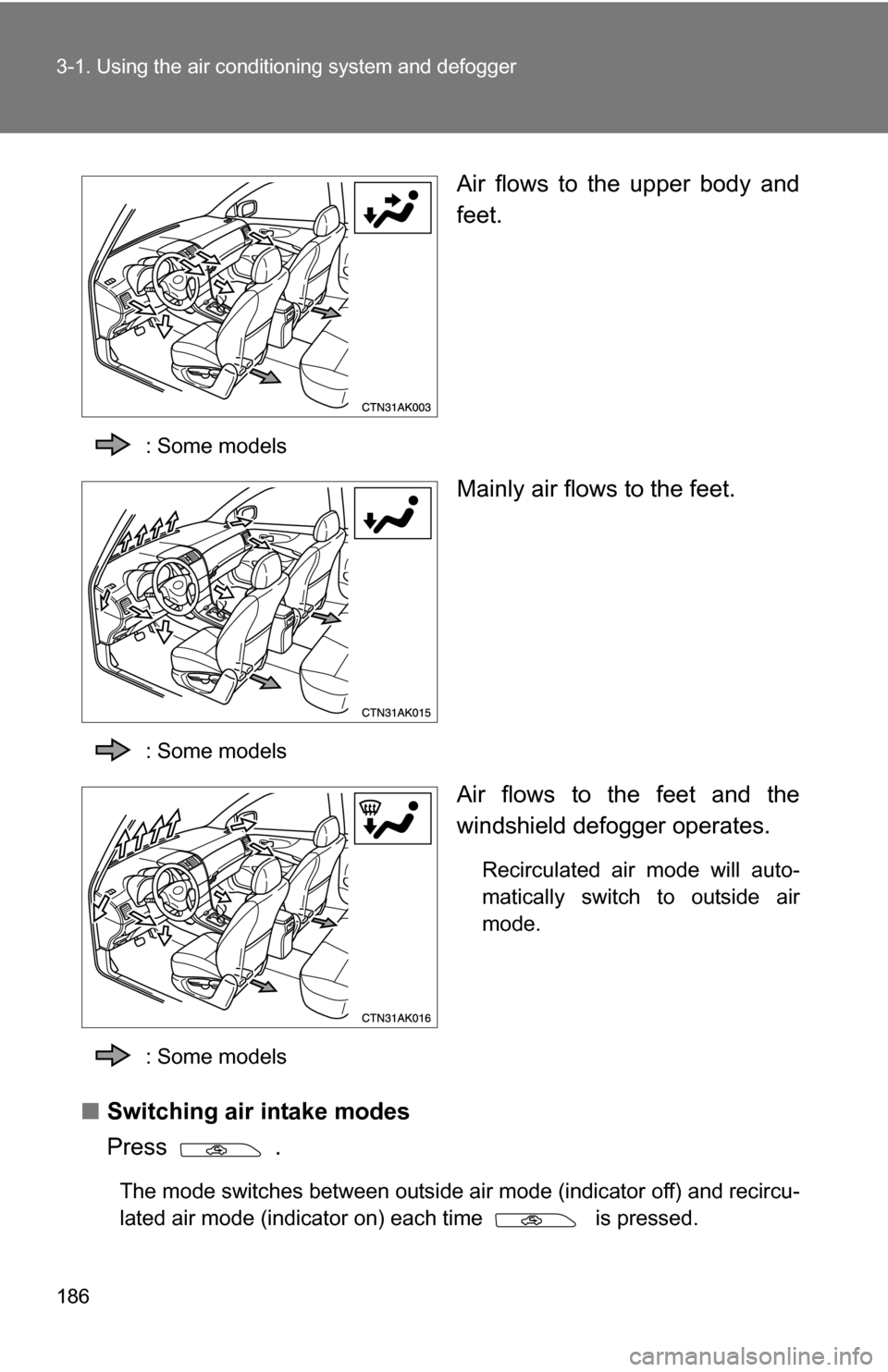

186 3-1. Using the air conditioning system and defogger
Air flows to the upper body and
feet.
: Some models
Mainly air flows to the feet.
: Some models
Air flows to the feet and the
windshield defogger operates.
Recirculated air mode will auto-
matically switch to outside air
mode.
: Some models
■ Switching air intake modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time is pressed.

187
3-1. Using the air conditioning system
and defogger
3
Interior features

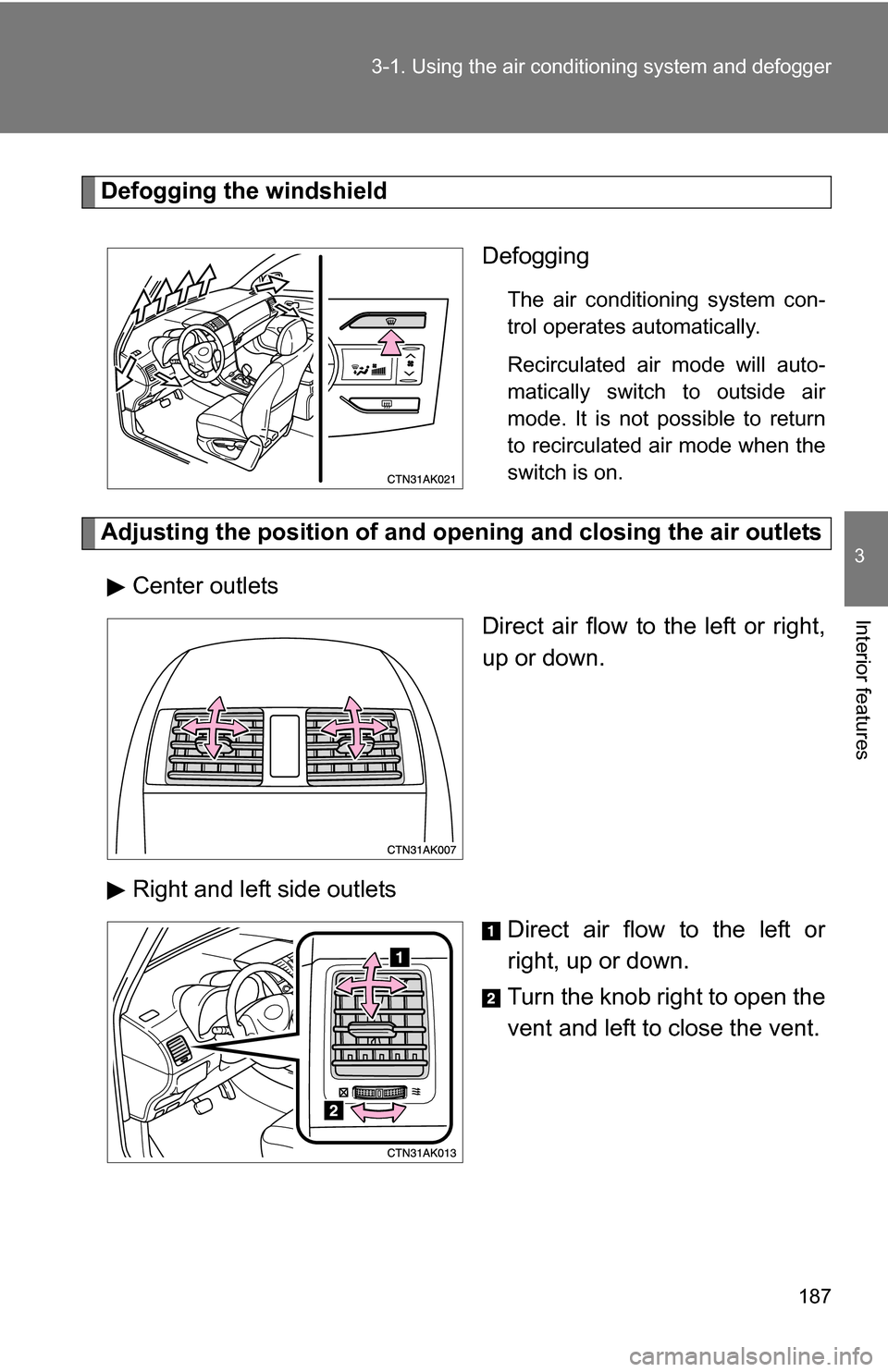

Defogging the windshield
Defogging
The air conditioning system con-
trol operates automatically.
Recirculated air mode will auto-
matically switch to outside air
mode. It is not possible to return
to recirculated air mode when the
switch is on.
Adjusting the position of and opening and closing the air outletsCenter outlets Direct air flow to the left or right,
up or down.
Right and left side outlets Direct air flow to the left or
right, up or down.
Turn the knob right to open the
vent and left to close the vent.

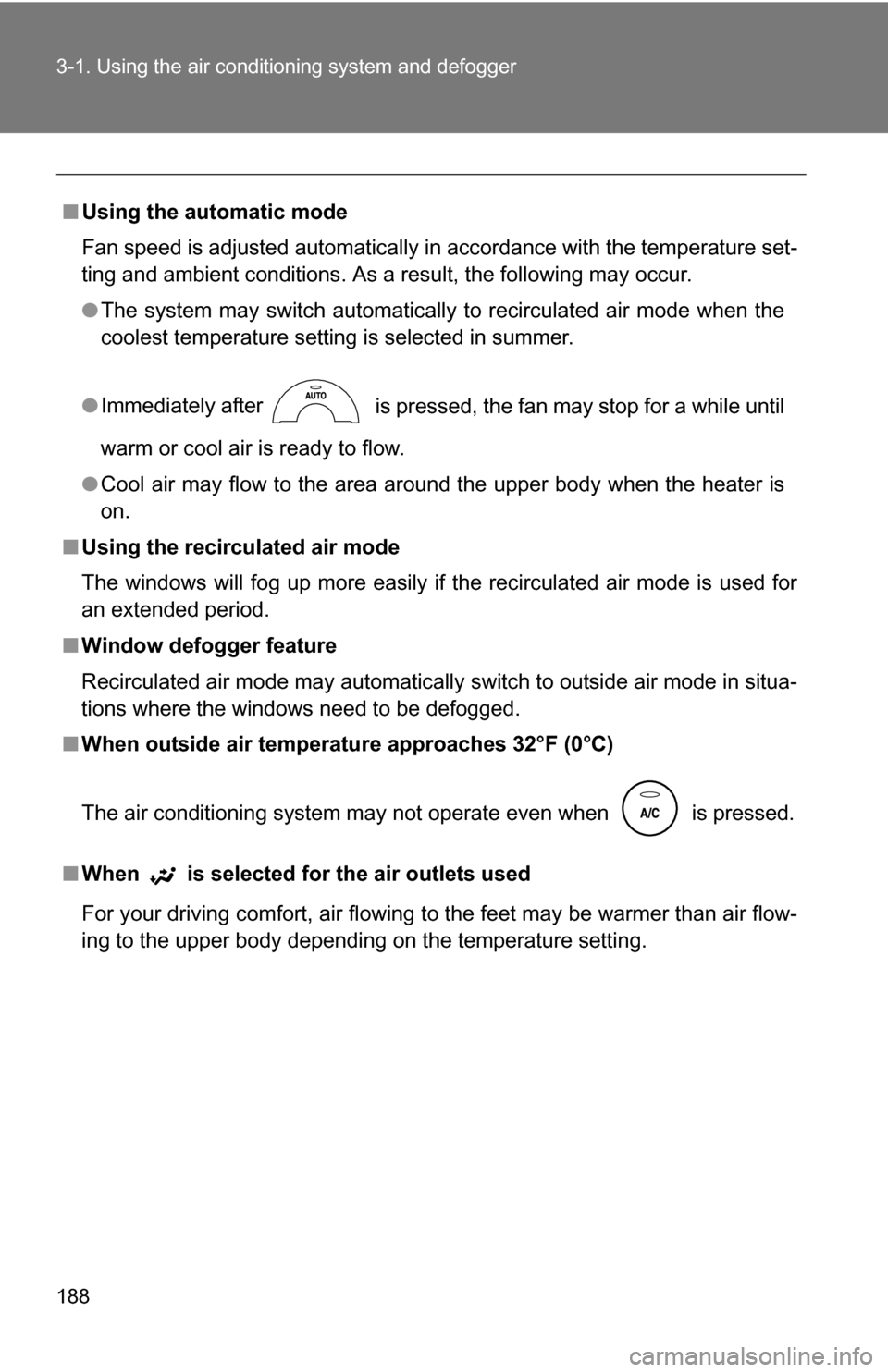

188 3-1. Using the air conditioning system and defogger
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature set-
ting and ambient conditions. As a result, the following may occur.
●The system may switch automatically to recirculated air mode when the
coolest temperature setting is selected in summer.
● Immediately after
is pressed, the fan may stop for a while until
warm or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is
on.
■ Using the recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
■ Window defogger feature
Recirculated air mode may automatically switch to outside air mode in situa-
tions where the windows need to be defogged.
■ When outside air temperat ure approaches 32°F (0°C)
The air conditioning system may not operate even when
is pressed.
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the temperature setting.

189
3-1. Using the air conditioning system
and defogger
3
Interior features

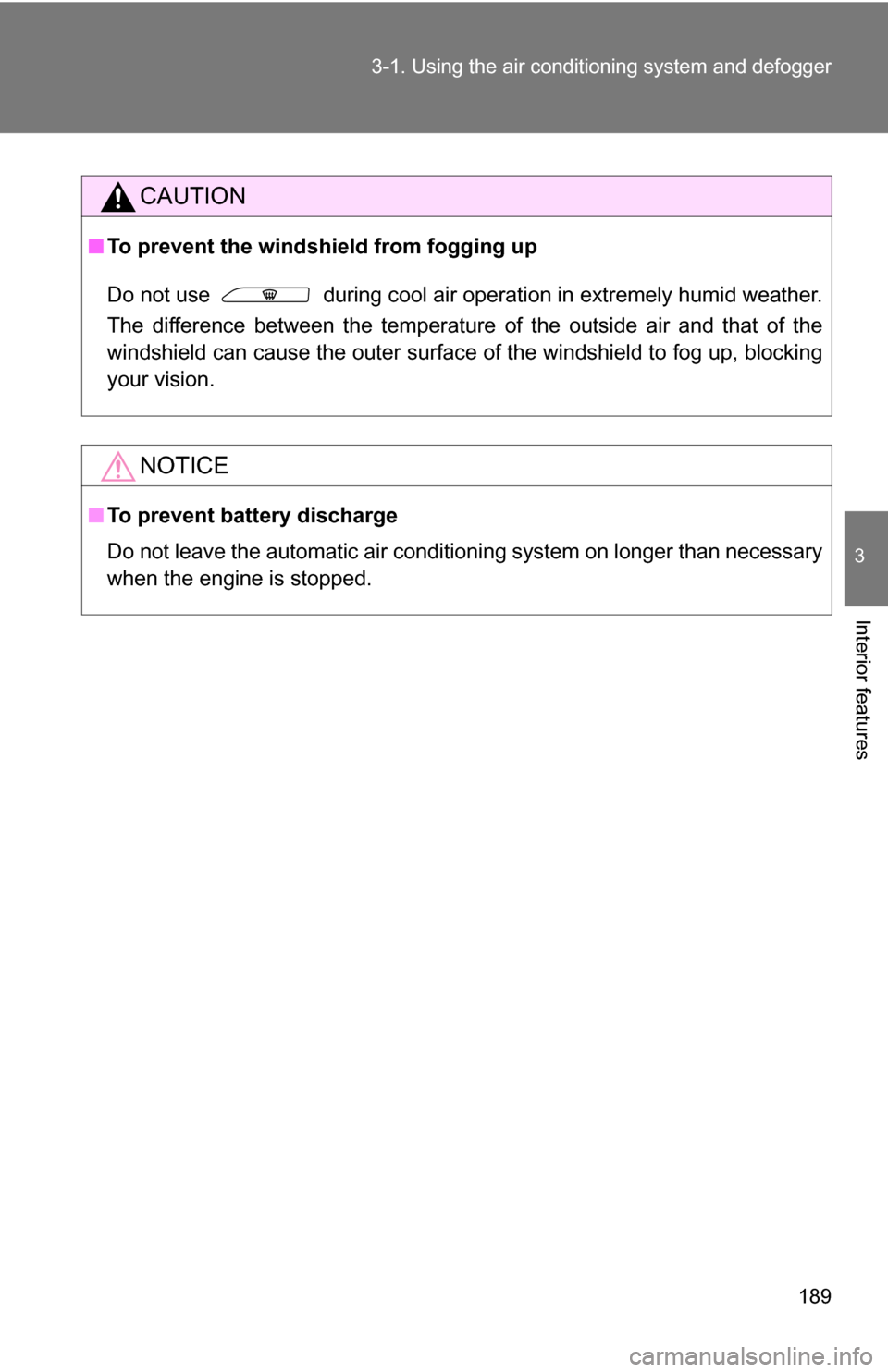

CAUTION
■To prevent the windshield from fogging up
Do not use during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, blocking
your vision.
NOTICE
■To prevent battery discharge
Do not leave the automatic air conditioning system on longer than necessary
when the engine is stopped.

190
3-1. Using the air conditioning system and defogger

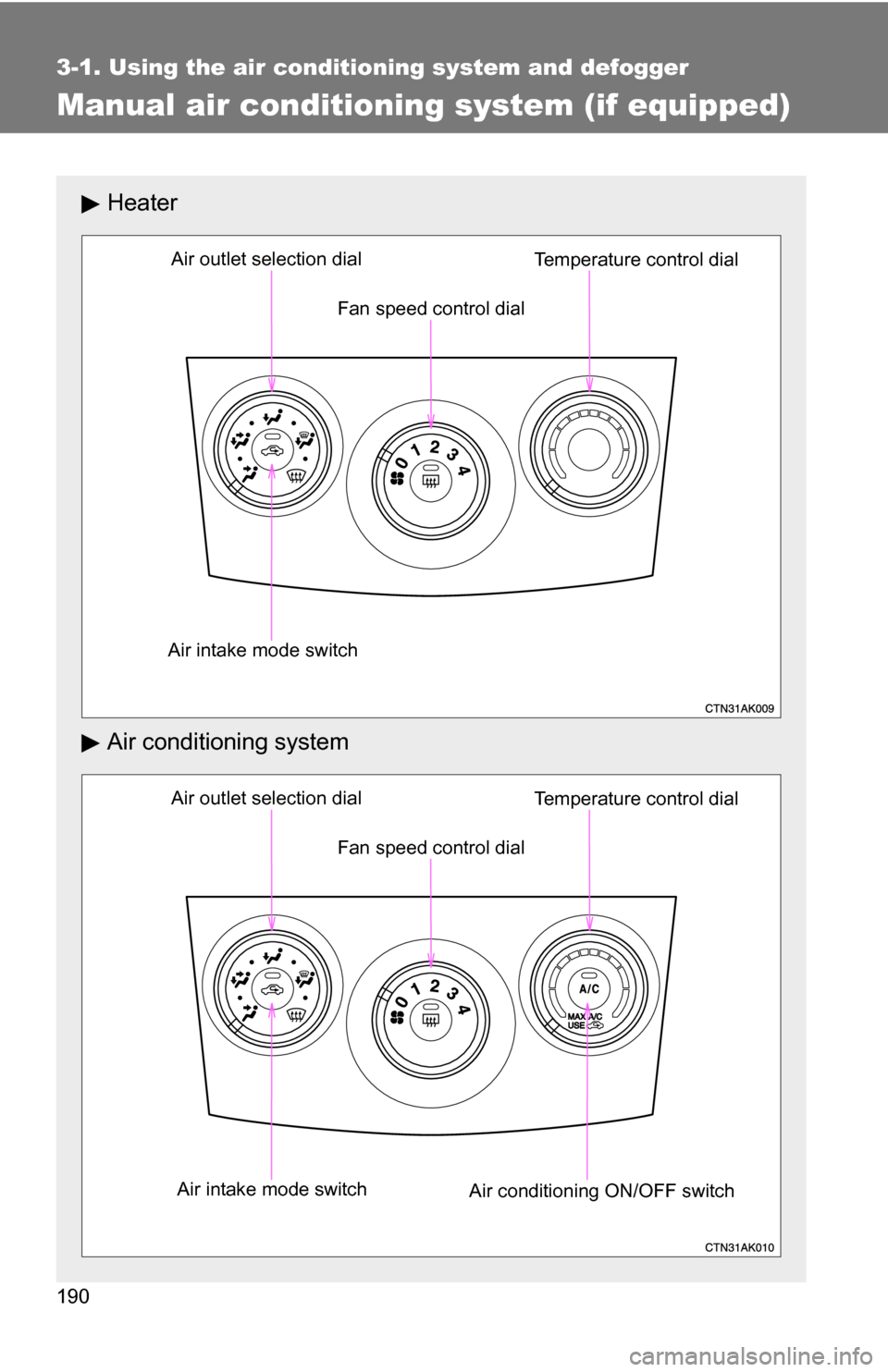

Manual air conditioning system (if equipped)
Heater
Air conditioning system
Fan speed control dial
Air outlet selection dial
Air intake mode switch Temperature control dial
Fan speed control dial
Air outlet selection dial
Air intake mode switch Air conditioning ON/OFF switchTemperature control dial
