Page 351 of 468
351
4-3. Do-it-yourself maintenance
4
Maintenance and care

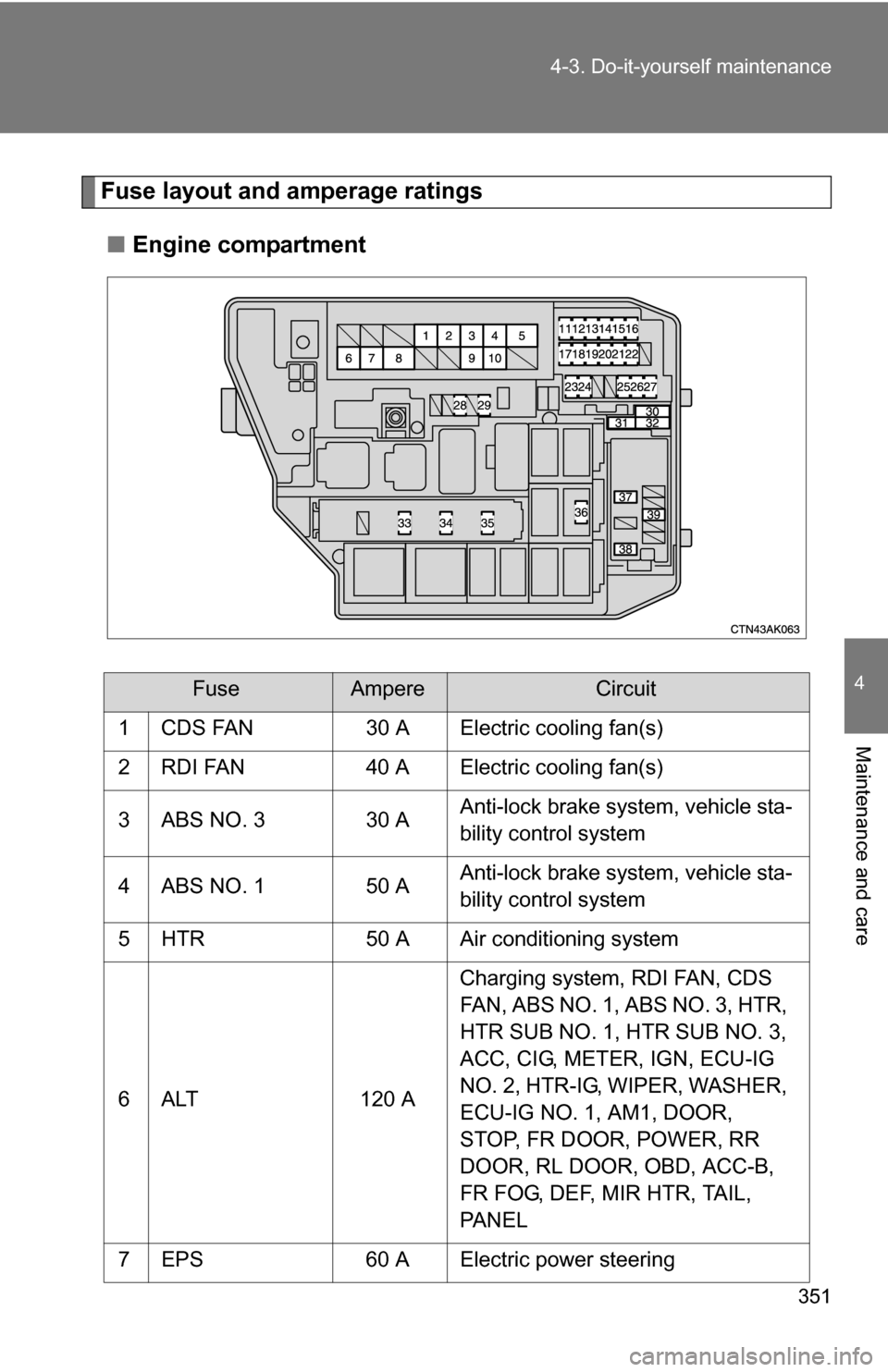

Fuse layout and amperage ratings
■ Engine compartment
FuseAmpereCircuit
1 CDS FAN 30 A Electric cooling fan(s)
2 RDI FAN 40 A Electric cooling fan(s)
3 ABS NO. 3 30 A Anti-lock brake system, vehicle sta-
bility control system
4 ABS NO. 1 50 A Anti-lock brake system, vehicle sta-
bility control system
5 HTR 50 A Air conditioning system
6 ALT 120 A Charging system, RDI FAN, CDS
FAN, ABS NO. 1, ABS NO. 3, HTR,
HTR SUB NO. 1, HTR SUB NO. 3,
ACC, CIG, METER, IGN, ECU-IG
NO. 2, HTR-IG, WIPER, WASHER,
ECU-IG NO. 1, AM1, DOOR,
STOP, FR DOOR, POWER, RR
DOOR, RL DOOR, OBD, ACC-B,
FR FOG, DEF, MIR HTR, TAIL,
PA N E L
7 EPS 60 A Electric power steering

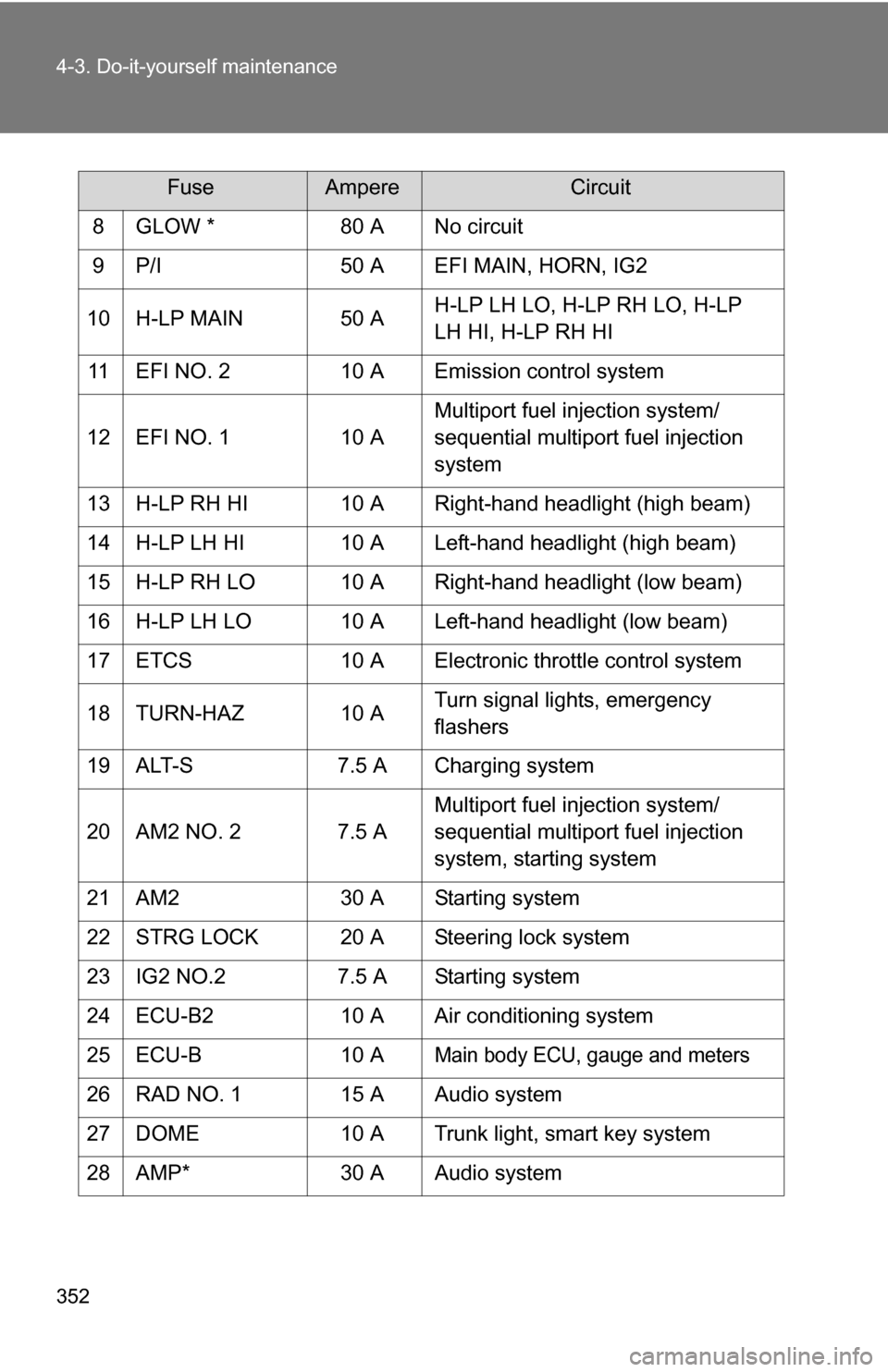

Page 352 of 468

352 4-3. Do-it-yourself maintenance
8 GLOW *80 A No circuit
9 P/I 50 A EFI MAIN, HORN, IG2
10 H-LP MAIN 50 A H-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
11 EFI NO. 2 10 A Emission control system
12 EFI NO. 1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
13 H-LP RH HI 10 A Right-hand headlight (high beam)
14 H-LP LH HI 10 A Left-hand headlight (high beam)
15 H-LP RH LO 10 A Right-hand headlight (low beam)
16 H-LP LH LO 10 A Left-hand headlight (low beam)
17 ETCS 10 A Electronic throttle control system
18 TURN-HAZ 10 A Turn signal lights, emergency
flashers
19 ALT-S 7.5 A Charging system
20 AM2 NO. 2 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system, starting system
21 AM2 30 A Starting system
22 STRG LOCK 20 A Steering lock system
23 IG2 NO.2 7.5 A Starting system
24 ECU-B2 10 A Air conditioning system
25 ECU-B 10 A
Main body ECU, gauge and meters
26 RAD NO. 1 15 A Audio system
27 DOME 10 A Trunk light, smart key system
28 AMP* 30 A Audio system
FuseAmpereCircuit

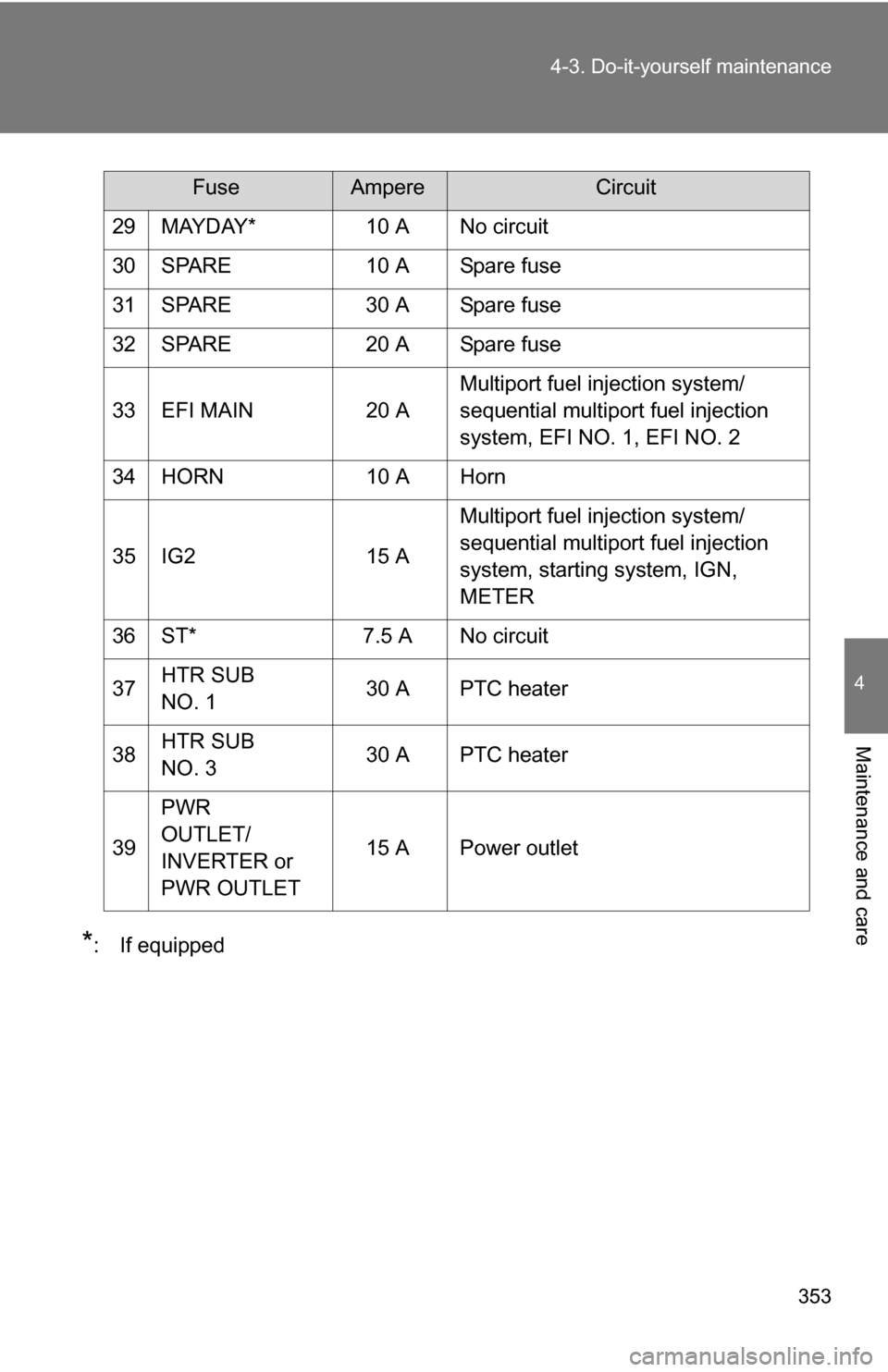

Page 353 of 468
353
4-3. Do-it-yourself maintenance
4
Maintenance and care
*: If equipped
29 MAYDAY* 10 A No circuit
30 SPARE 10 A Spare fuse
31 SPARE 30 A Spare fuse
32 SPARE 20 A Spare fuse
33 EFI MAIN 20 A
Multiport fuel injection system/
sequential multiport fuel injection
system, EFI NO. 1, EFI NO. 2
34 HORN 10 A Horn
35 IG2 15 A Multiport fuel injection system/
sequential multiport fuel injection
system, starting system, IGN,
METER
36 ST* 7.5 A No circuit
37 HTR SUB
NO. 1 30 A PTC heater
38 HTR SUB
NO. 3 30 A PTC heater
39 PWR
OUTLET/
INVERTER or
PWR OUTLET 15 A Power outlet
FuseAmpereCircuit
Page 354 of 468
354 4-3. Do-it-yourself maintenance
■Under the driver’s side instrument panel
FuseAmpereCircuit
1 DEF 40 A Rear window defogger, MIR HTR
2 PWR SEAT 30 A Power seat
3 TAIL 10 A Parking lights, tail lights, license
plate lights, front side marker lights,
multiport fuel injection system/
sequential multiport fuel injection
system, instrument cluster lights
4 PANEL 7.5 A Switch illumination
5 FR DOOR 20 A Power windows, moon roof
6 RL DOOR 20 A Power windows
7 RR DOOR 20 A Power windows
8 SUNROOF 20 A Moon roof
9 CIG 15 A Cigarette lighter
10 ACC 7.5 A Outside rear view mirrors, audio
system, main body ECU
11 MIR HTR 10 A Outside rear view mirror defogger
12 IGN 7.5 A Steering lock system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injec-
tion system, front passenger
occupant classification system
13 METER 7.5 A Gauge and meters

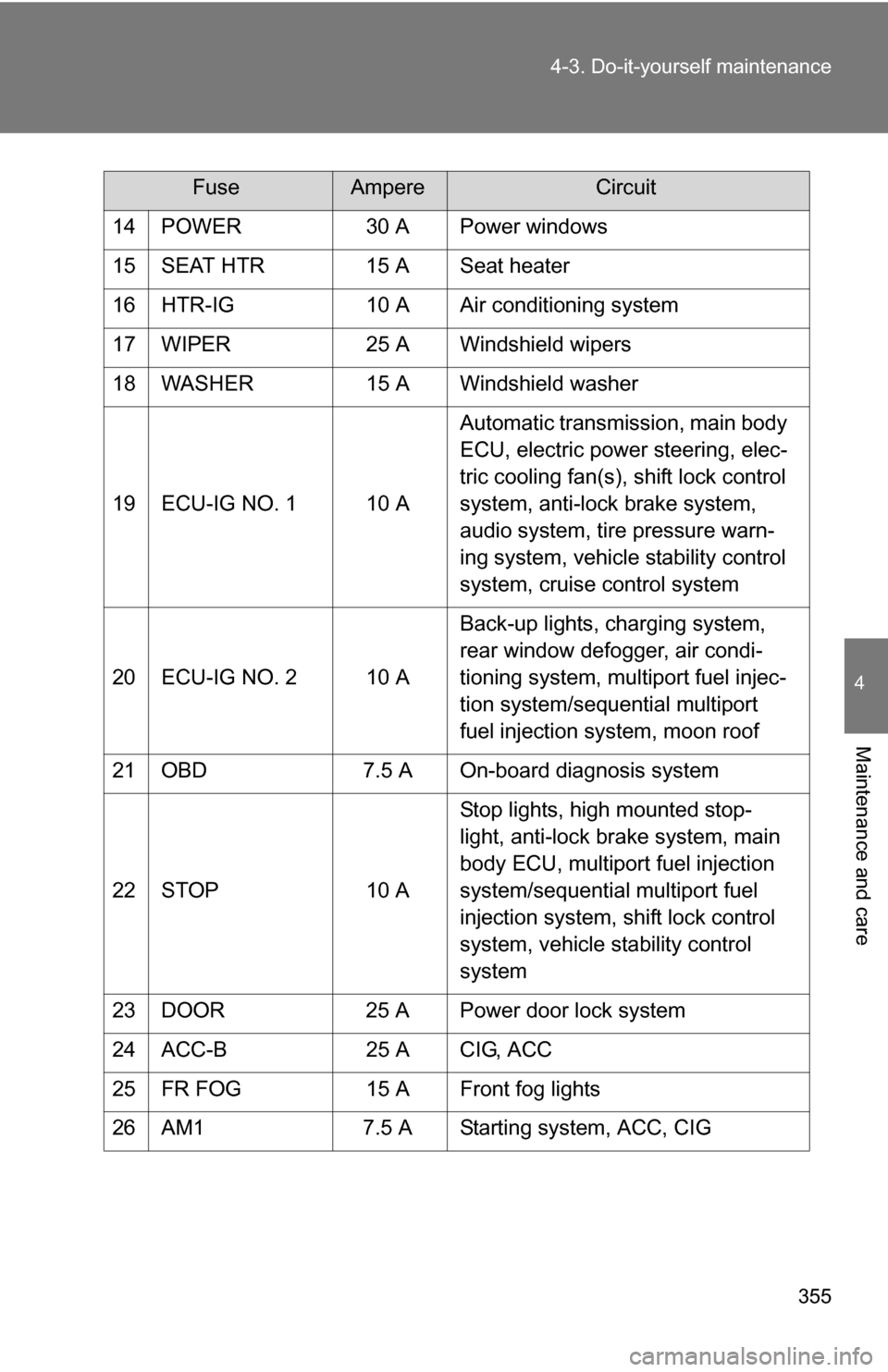

Page 355 of 468

355
4-3. Do-it-yourself maintenance
4
Maintenance and care
14 POWER
30 A Power windows
15 SEAT HTR 15 A Seat heater
16 HTR-IG 10 A Air conditioning system
17 WIPER 25 A Windshield wipers
18 WASHER 15 A Windshield washer
19 ECU-IG NO. 1 10 A Automatic transmission, main body
ECU, electric power steering, elec-
tric cooling fan(s), shift lock control
system, anti-lock brake system,
audio system, tire pressure warn-
ing system, vehicle stability control
system, cruise control system
20 ECU-IG NO. 2 10 A Back-up lights, charging system,
rear window defogger, air condi-
tioning system, multiport fuel injec-
tion system/sequential multiport
fuel injection system, moon roof
21 OBD 7.5 A On-board diagnosis system
22 STOP 10 AStop lights, high mounted stop-
light, anti-lock brake system, main
body ECU, multiport fuel injection
system/sequential multiport fuel
injection system, shift lock control
system, vehicle stability control
system
23 DOOR 25 A Power door lock system
24 ACC-B 25 A CIG, ACC
25 FR FOG 15 A Front fog lights
26 AM1 7.5 A Starting system, ACC, CIG
FuseAmpereCircuit

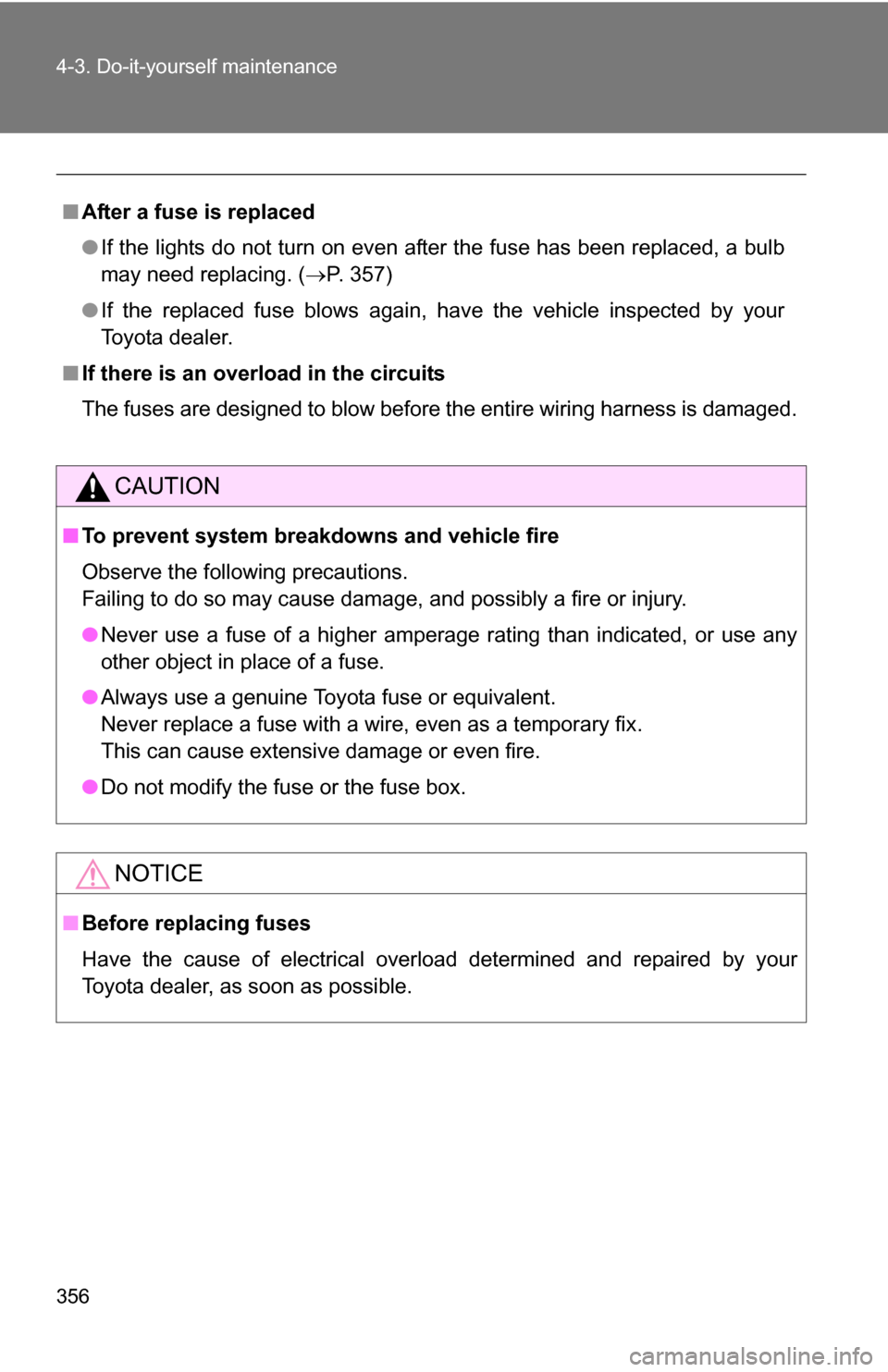

Page 356 of 468
356 4-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacing. ( P. 357)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer, as soon as possible.
Page 357 of 468
357
4-3. Do-it-yourself maintenance
4
Maintenance and care

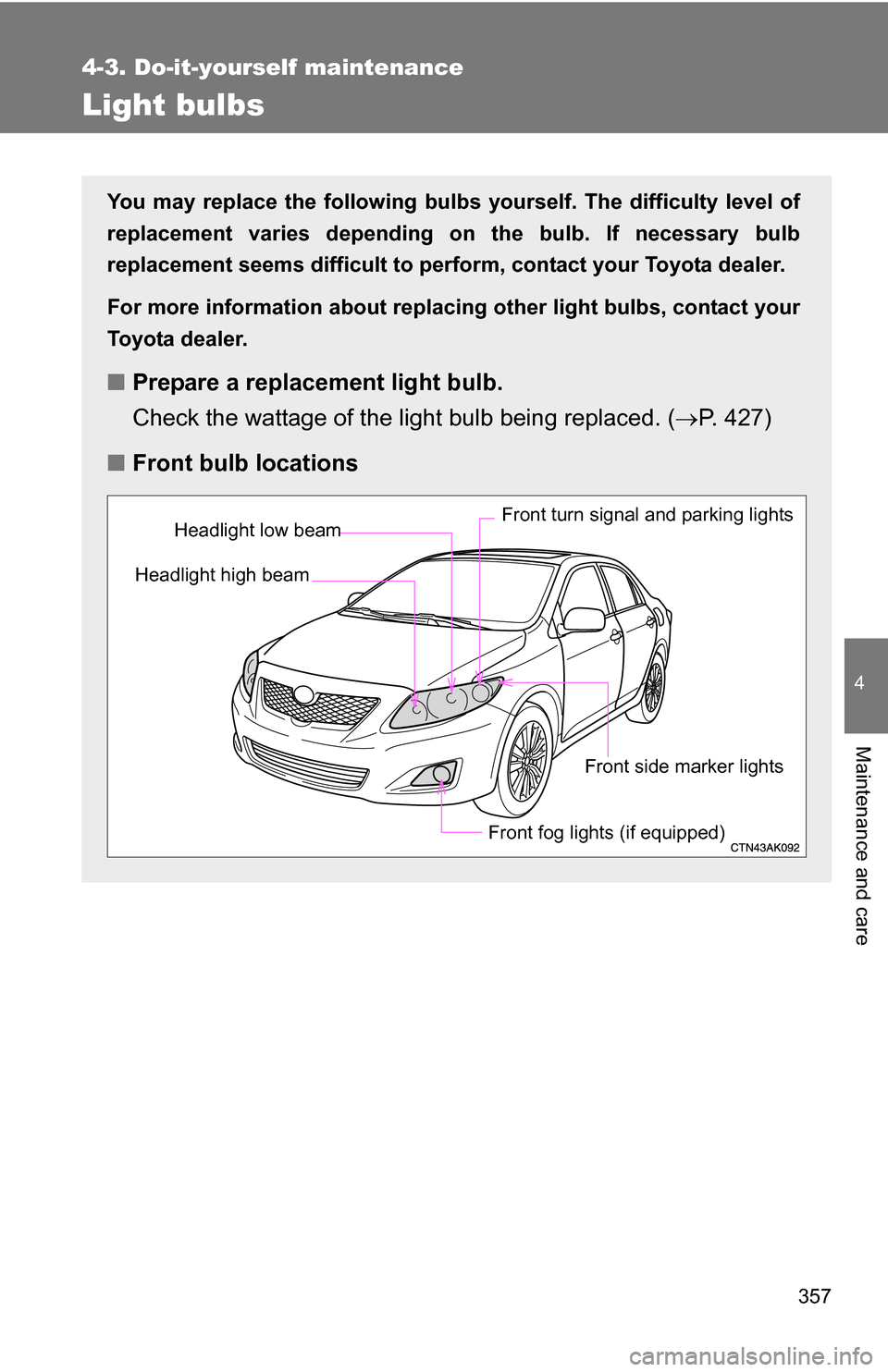

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 427)
■ Front bulb locations
Headlight high beam
Headlight low beamFront turn signal and parking lights
Front fog lights (if equipped)
Front side marker lights
Page 358 of 468
358 4-3. Do-it-yourself maintenance

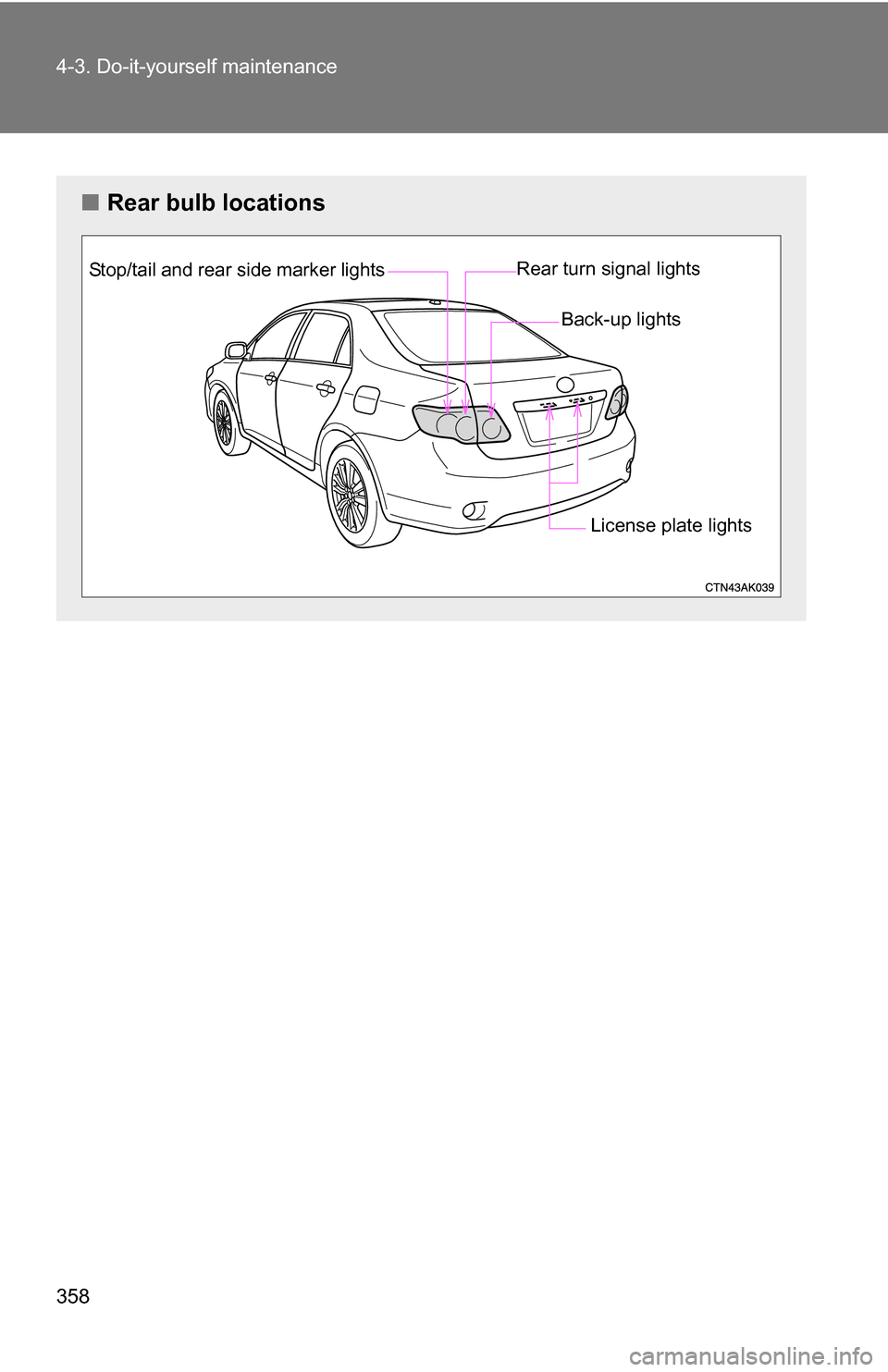

■Rear bulb locations
Stop/tail and rear side marker lights Rear turn signal lights
Back-up lights
License plate lights
Page 359 of 468
359
4-3. Do-it-yourself maintenance
4
Maintenance and care

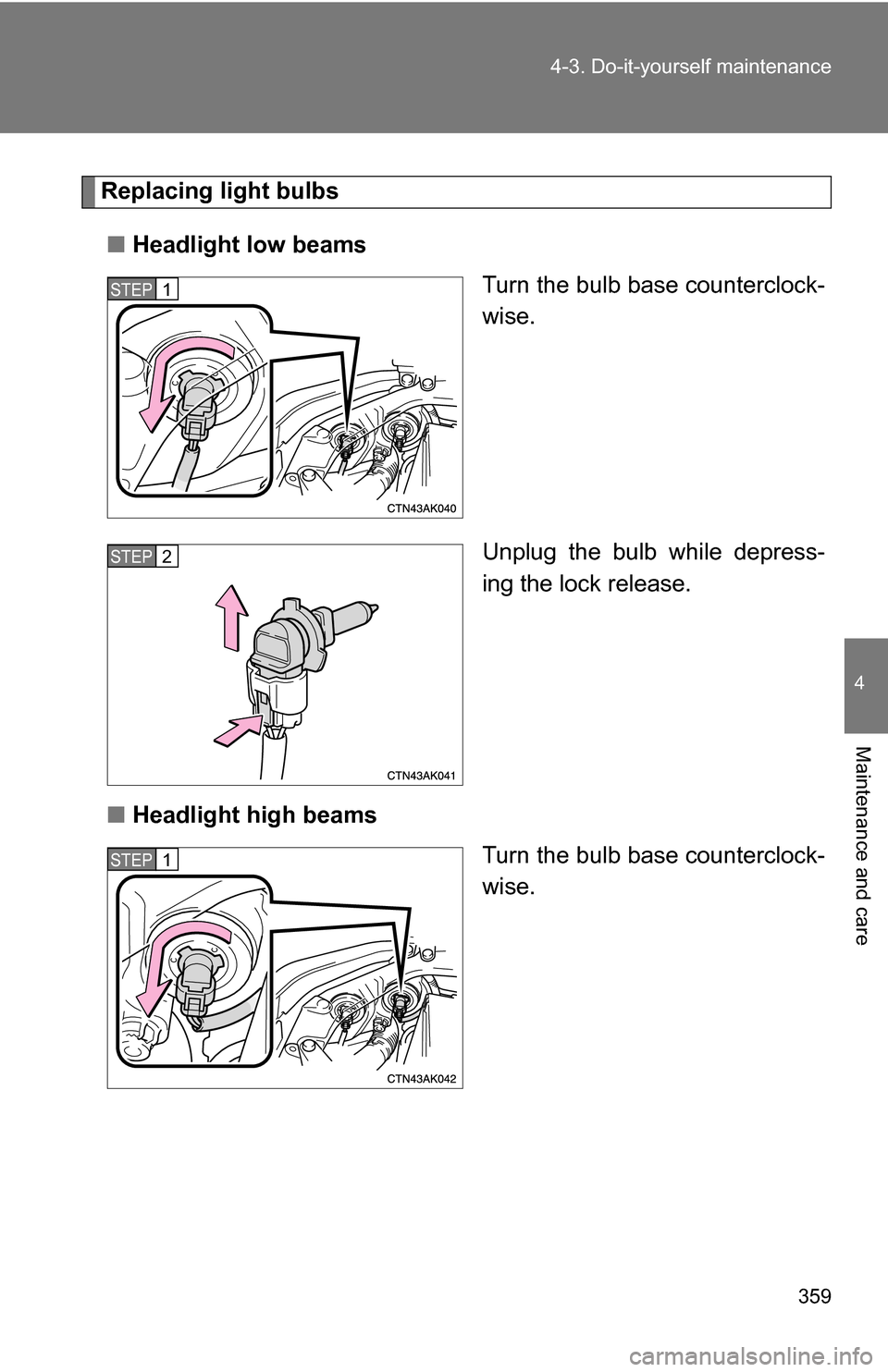

Replacing light bulbs
■ Headlight low beams
Turn the bulb base counterclock-
wise.
Unplug the bulb while depress-
ing the lock release.
■ Headlight high beams
Turn the bulb base counterclock-
wise.
STEP1
STEP2
STEP1

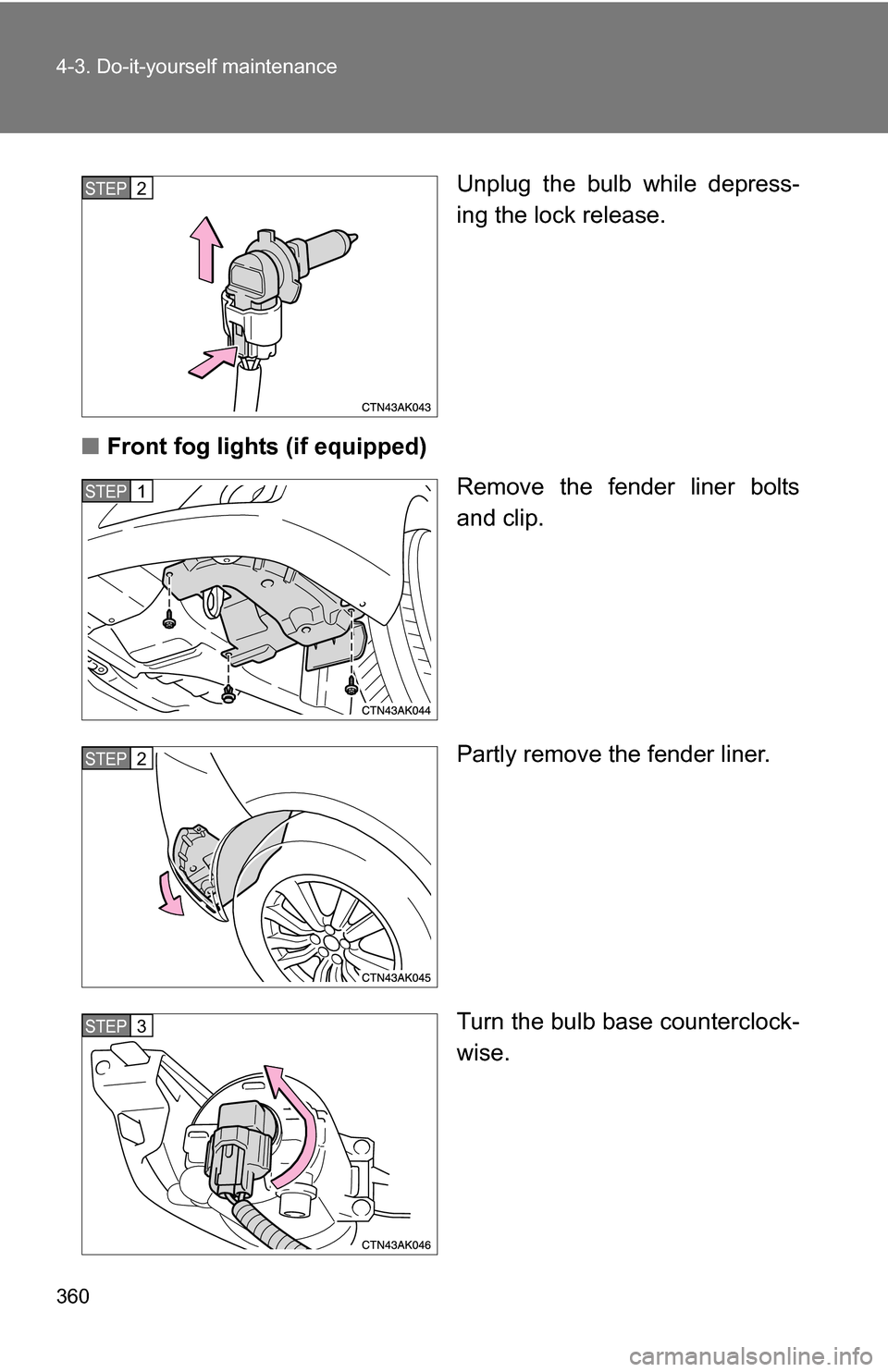

Page 360 of 468
360 4-3. Do-it-yourself maintenance
Unplug the bulb while depress-
ing the lock release.
■ Front fog lights (if equipped)
Remove the fender liner bolts
and clip.
Partly remove the fender liner.
Turn the bulb base counterclock-
wise.STEP2
STEP1
STEP2
STEP3
