audio TOYOTA COROLLA 2009 10.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 14Audio 12-13Auto lock functions29Automatic Transmission 8Auxiliary storage 18Clock 16Cruise control 15Cup holders 18Door locks-Power 17Light control-Instrument panel 18Lights & turn signals 11Moonroof 17Multi-information display 15Parking brake 8Power outlets 14Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 10Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 17Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19Doors-Child safety locks 20Seat belts 19Seat belts-Shoulder belt adjustment 19Spare tire & tools 21Tire Pressure Warning System 20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
2009 Corolla Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel audio controls1,2
Voice command button1
Telephone controls1
Engine switch (mechanical key)1
Cruise control1
VSC/TRAC OFF switch1
Power rearview mirror control
Auxiliary storage
Headlight, turn signal and front fog light
1controls
Wiper and washer controls
Emergency flasher button
Audio system
2
Air Conditioning controls
Outside rearview mirror1/Rear window defogger button
Steering wheel controls

12
FEATURES/OPERATIONS
Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
Eject CD
Push to
turn
ON/OFF
Seek
station/
CD track
select
Station/CD
track scan
Mode Preset buttons - functions in other
modes indicated above number
View CD
text
Push to skip
up/down
folder and
radio
category
type
Push and
turn to
adjust tone
& balance
Load CD(s)
Type 2 other functions
Type 1 functions

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

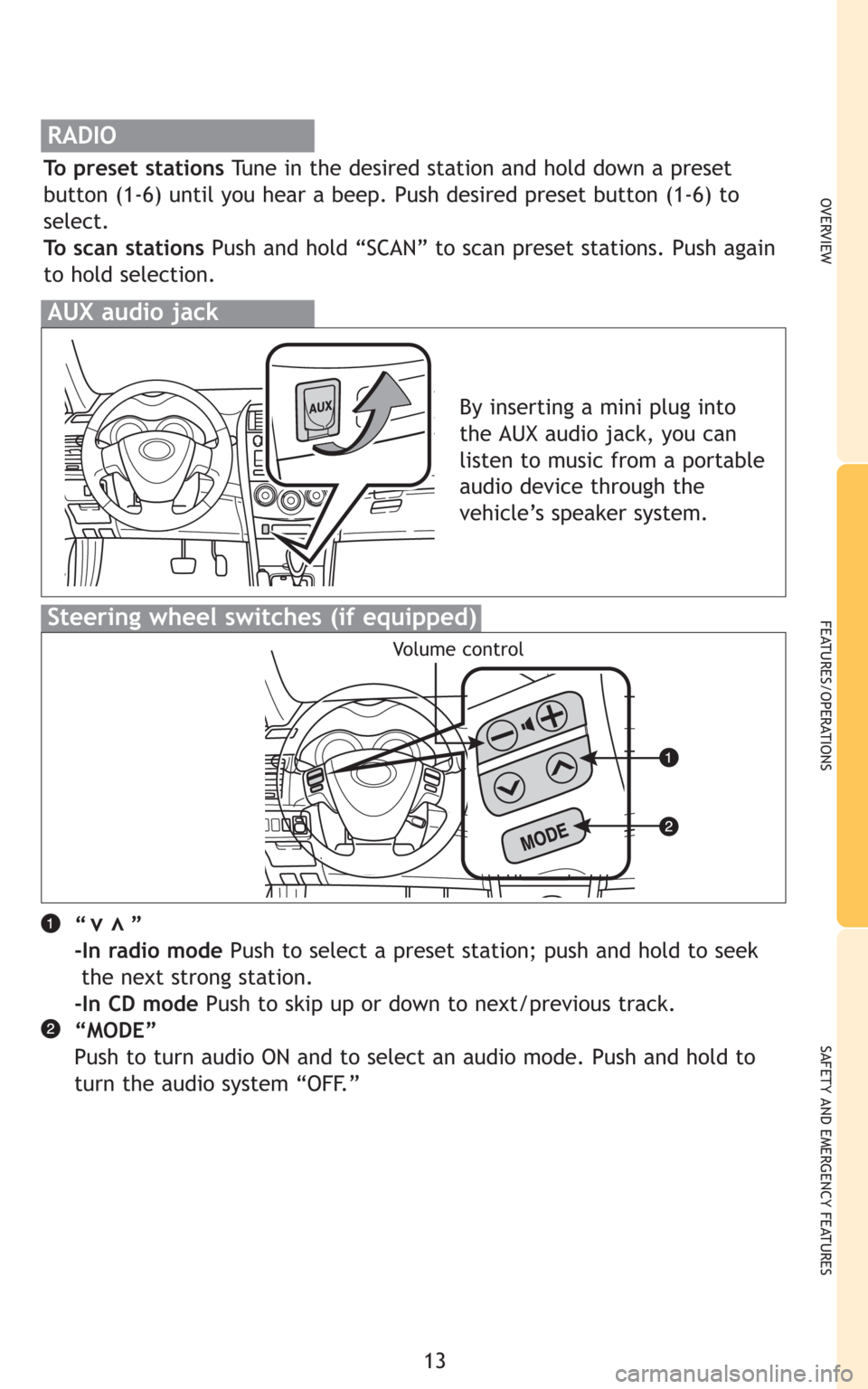

RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
“”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn the audio system “OFF.”
vv
AUX audio jack
Steering wheel switches (if equipped)
Volume control
By inserting a mini plug into
the AUX audio jack, you can
listen to music from a portable
audio device through the
vehicle’s speaker system.
