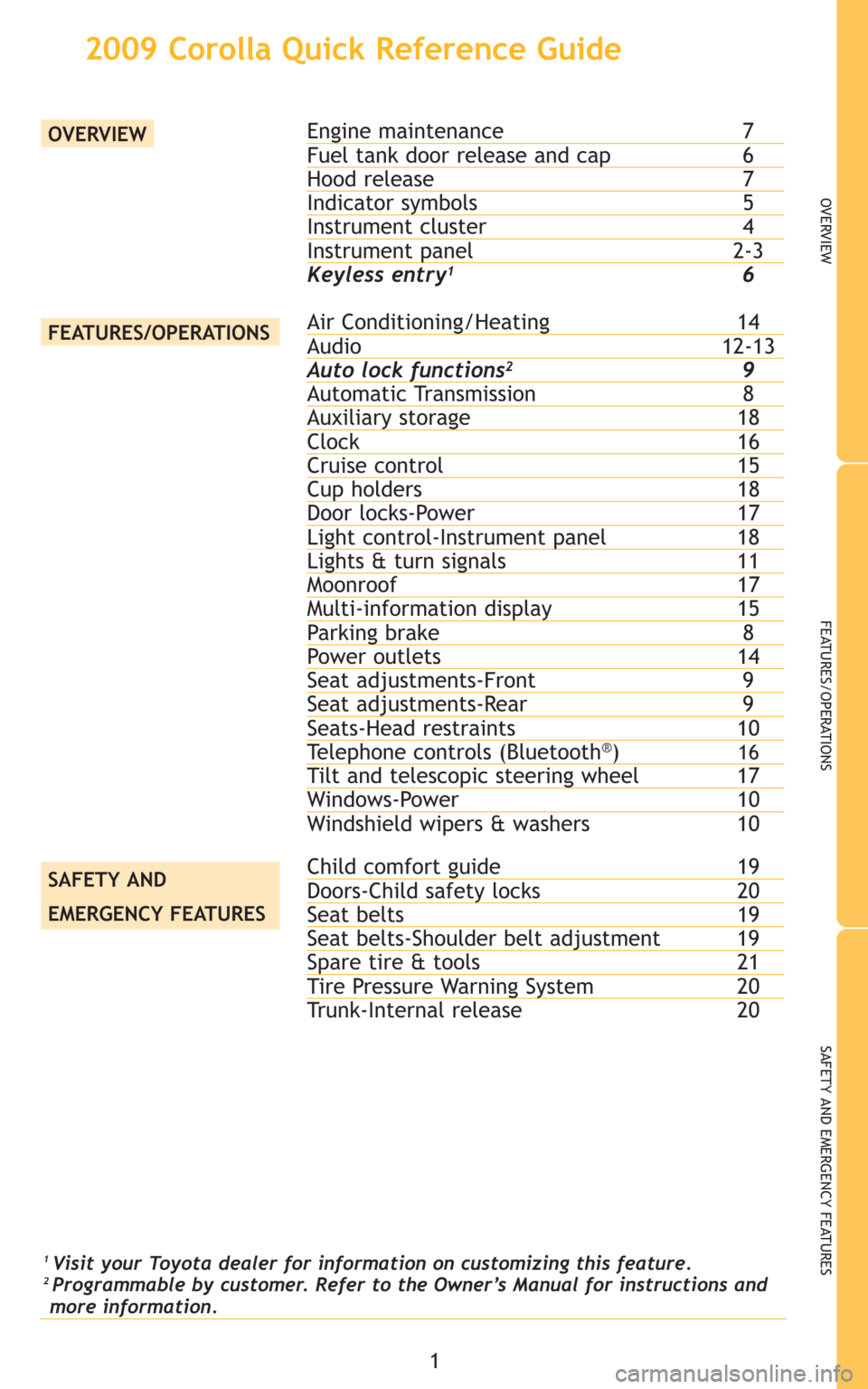

lock TOYOTA COROLLA 2009 10.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 14Audio 12-13Auto lock functions29Automatic Transmission 8Auxiliary storage 18Clock 16Cruise control 15Cup holders 18Door locks-Power 17Light control-Instrument panel 18Lights & turn signals 11Moonroof 17Multi-information display 15Parking brake 8Power outlets 14Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 10Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 17Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19Doors-Child safety locks 20Seat belts 19Seat belts-Shoulder belt adjustment 19Spare tire & tools 21Tire Pressure Warning System 20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
2009 Corolla Quick Reference Guide

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

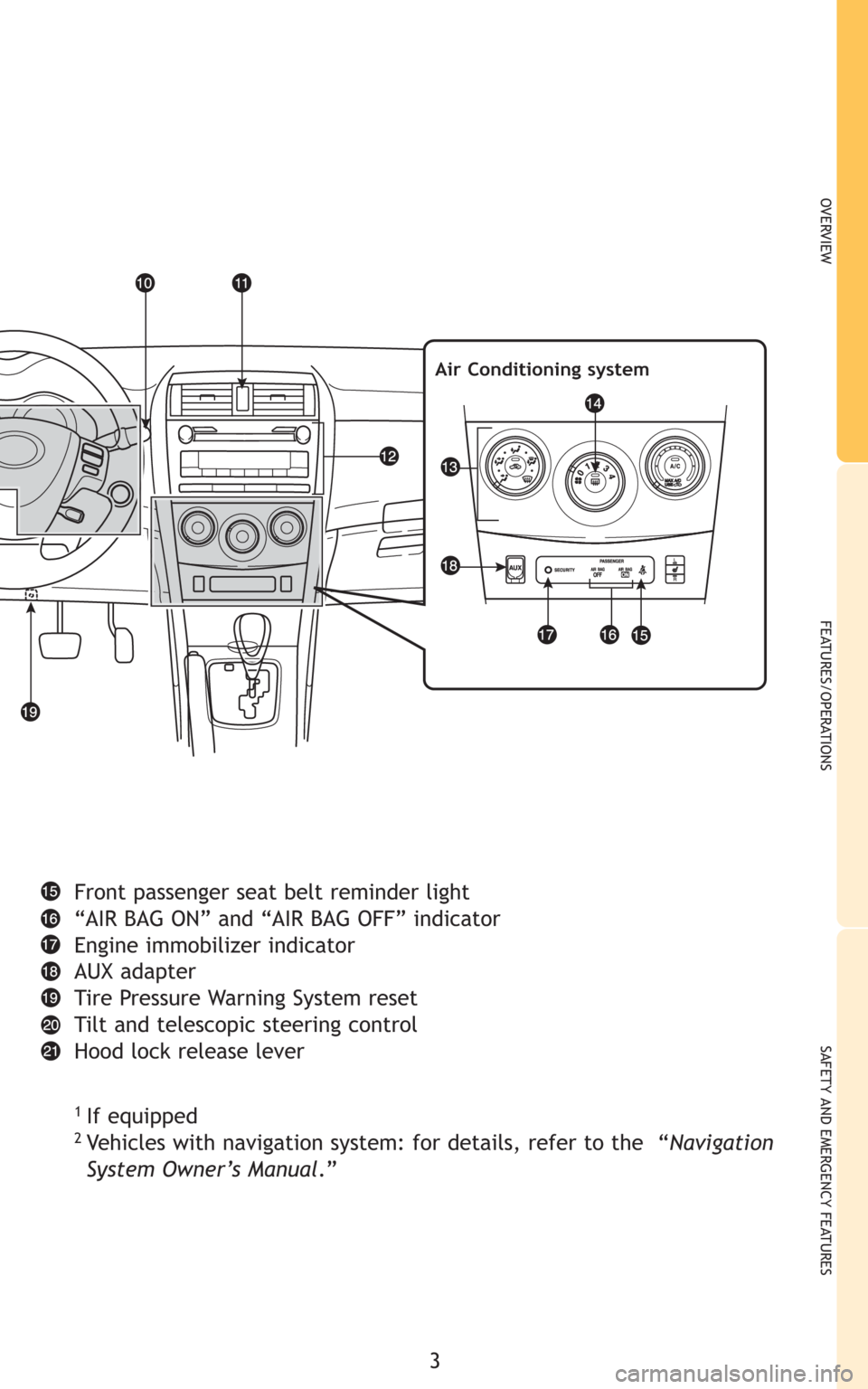

Front passenger seat belt reminder light
“AIR BAG ON” and “AIR BAG OFF” indicator
Engine immobilizer indicator
AUX adapter
Tire Pressure Warning System reset
Tilt and telescopic steering control
Hood lock release lever
1If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
Air Conditioning system

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

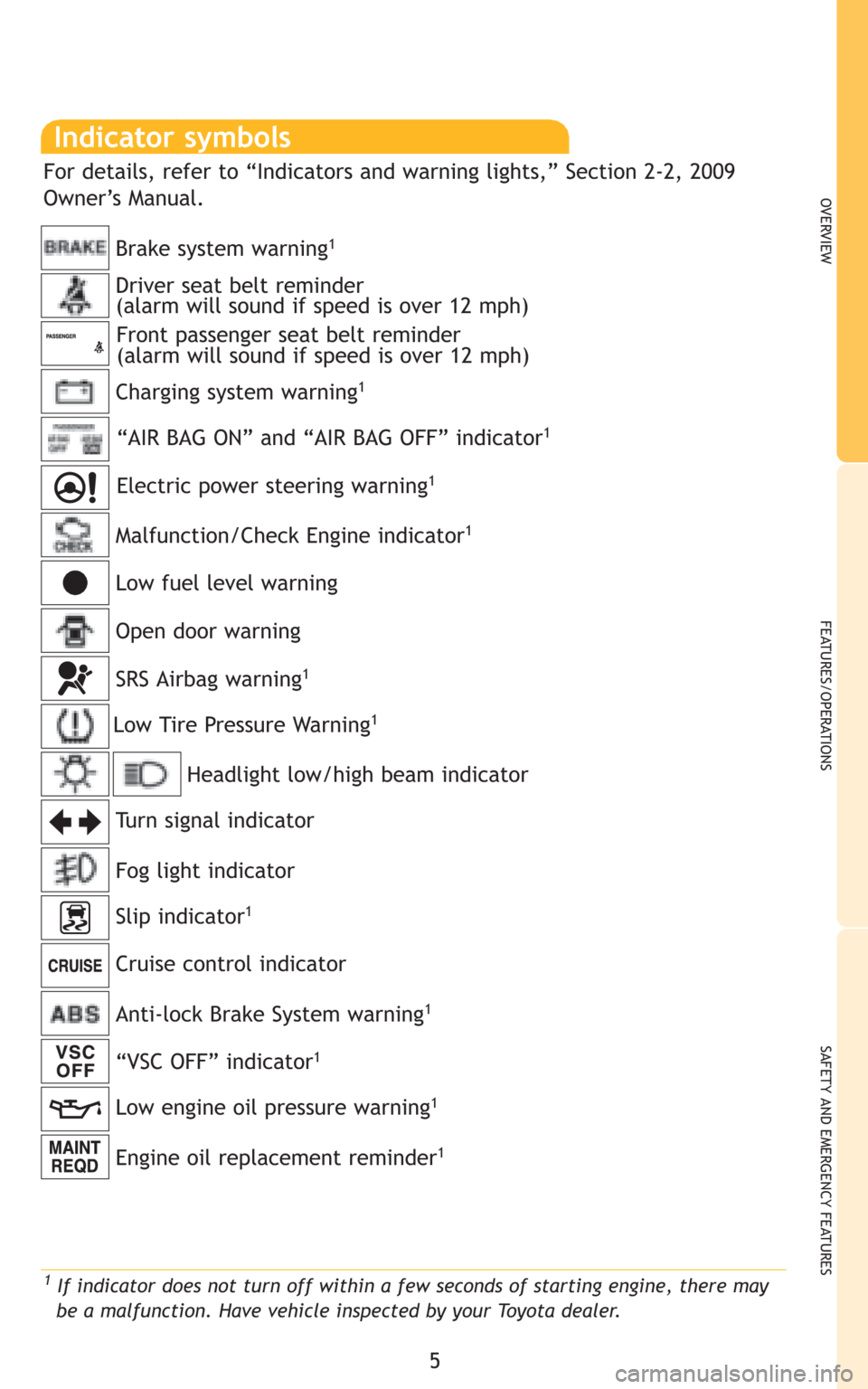

Indicator symbols
Charging system warning1
Brake system warning1
“AIR BAG ON” and “AIR BAG OFF” indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.
Low engine oil pressure warning1
“VSC OFF” indicator1
Engine oil replacement reminder1
Electric power steering warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.

6
OVERVIEW

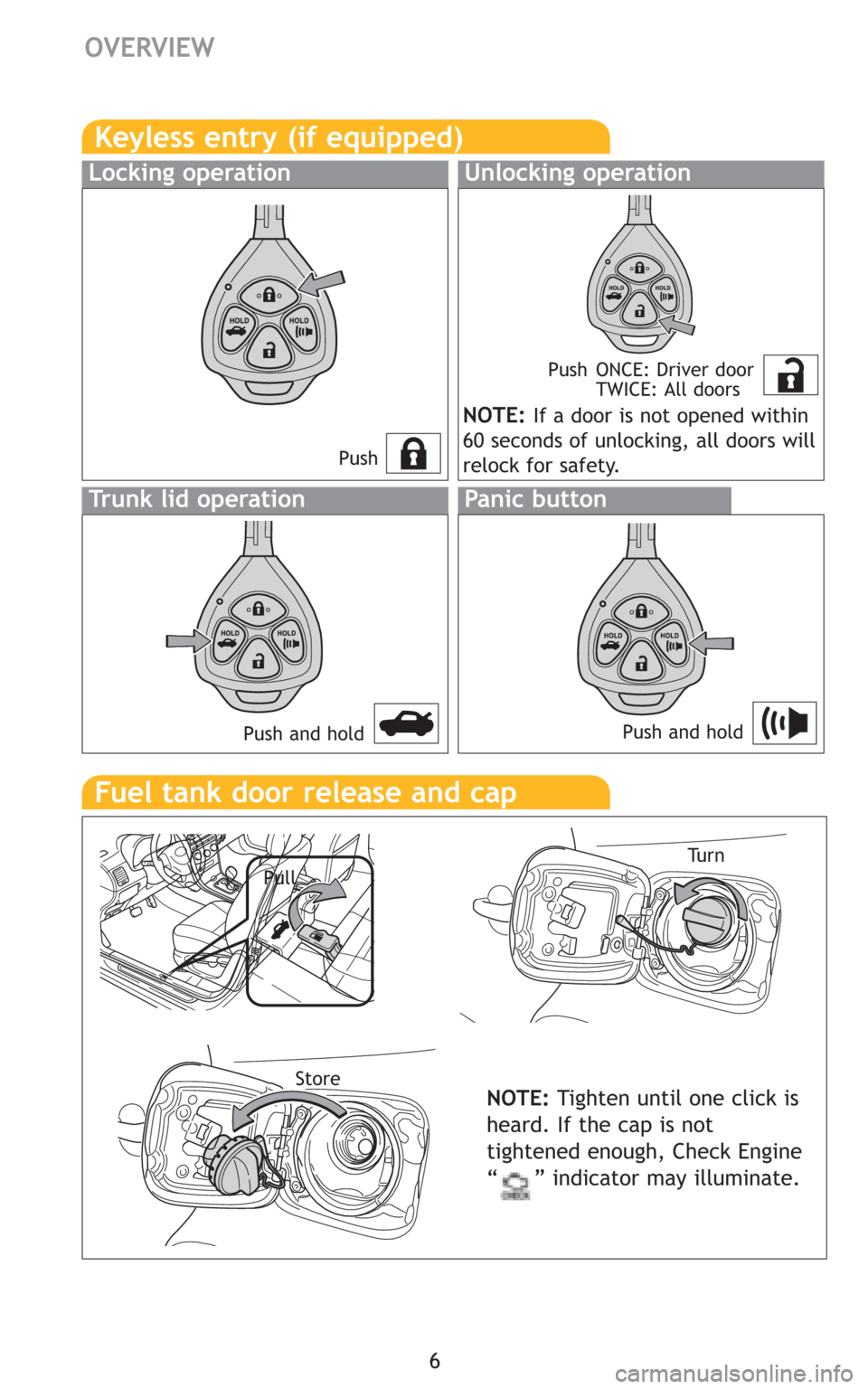

Keyless entry (if equipped)
PushPush ONCE: Driver door
TWICE: All doors
Locking operationUnlocking operation
Panic button
Push and hold
NOTE:If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
Trunk lid operation
Push and hold
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not
tightened enough, Check Engine
“ ” indicator may illuminate.
PullTu r n
Store

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Auto lock functions (if equipped)
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into “Park.”
-Doors unlock when the driver’s door is opened within 10 seconds after
setting the engine switch or “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manualfor more details.
Seat adjustments-Rear
Seat adjustments-Front
Manual seat
Position
Height crank (driver side only)
Seatback angle
Pull
Fold down

10
FEATURES/OPERATIONS
Seats-Head restraints
FrontRear
Lock release buttonLock release button
Windshield wipers & washers
Interval wipe Single wipe
Slow
Fast
Pull to wash
and wipe
Windows-Power (if equipped)
Up
Down
Driver sideWindow lock switch
Automatic operation (driver side only) Push the switch completely down
and release to fully open. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Adjust interval*
* Intermittent windshield wiper interval adjustmentRotate up to
decrease interval, down to increase interval (if equipped).

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

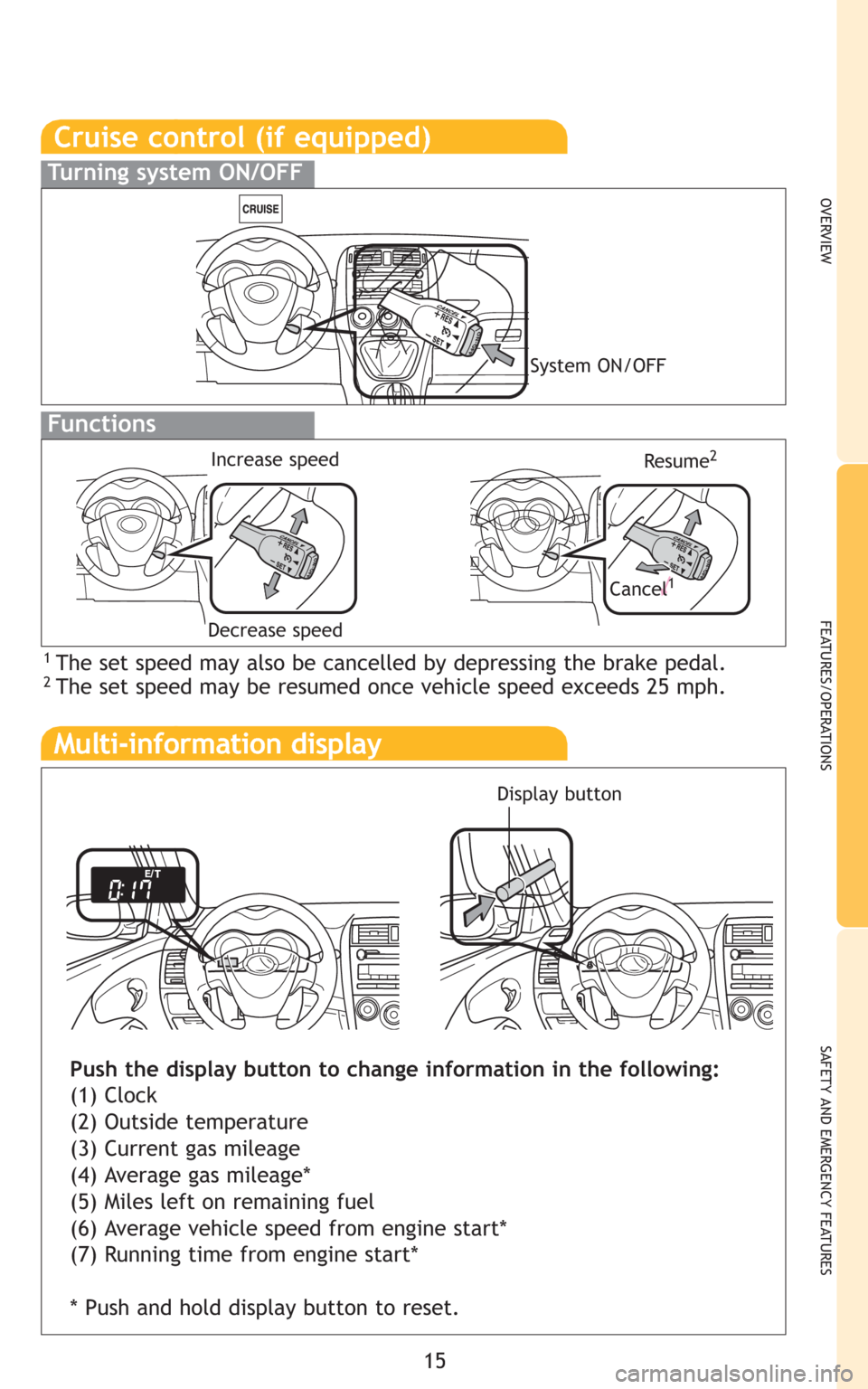

Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speedCancel
1
Resume2
Multi-information display
Push the display button to change information in the following:
(1) Clock
(2) Outside temperature
(3) Current gas mileage
(4) Average gas mileage*
(5) Miles left on remaining fuel
(6) Average vehicle speed from engine start*
(7) Running time from engine start*
* Push and hold display button to reset.
Display button

16
FEATURES/OPERATIONS

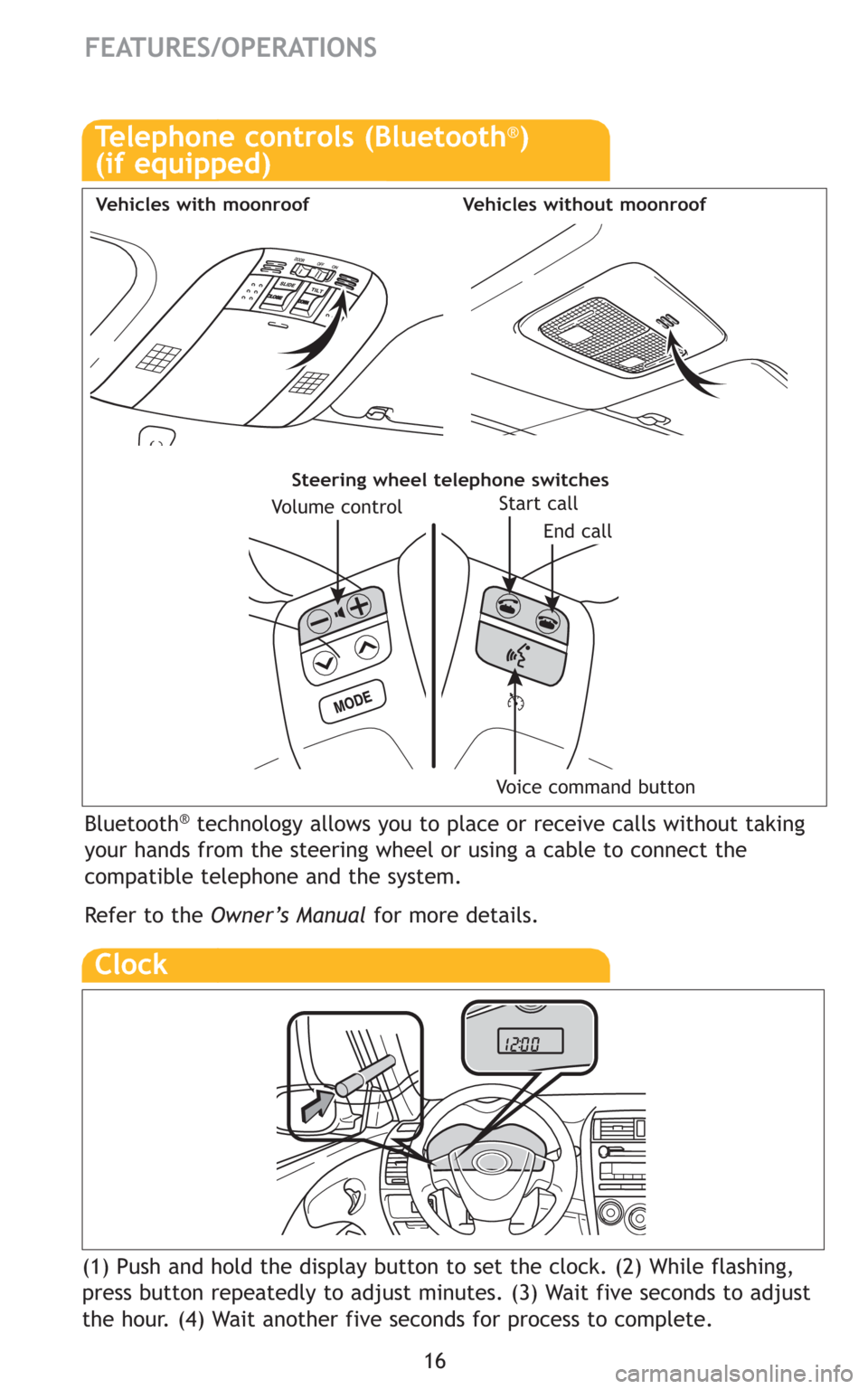

Bluetooth®technology allows you to place or receive calls without taking
your hands from the steering wheel or using a cable to connect the
compatible telephone and the system.
Refer to the Owner’s Manualfor more details.
Telephone controls (Bluetooth®)
(if equipped)
Vehicles without moonroofVehicles with moonroof
Steering wheel telephone switchesStart call
End call
Voice command button
Volume control
Clock
(1) Push and hold the display button to set the clock. (2) While flashing,
press button repeatedly to adjust minutes. (3) Wait five seconds to adjust
the hour. (4) Wait another five seconds for process to complete.

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Note: Do not attempt to adjust while the vehicle is in motion.

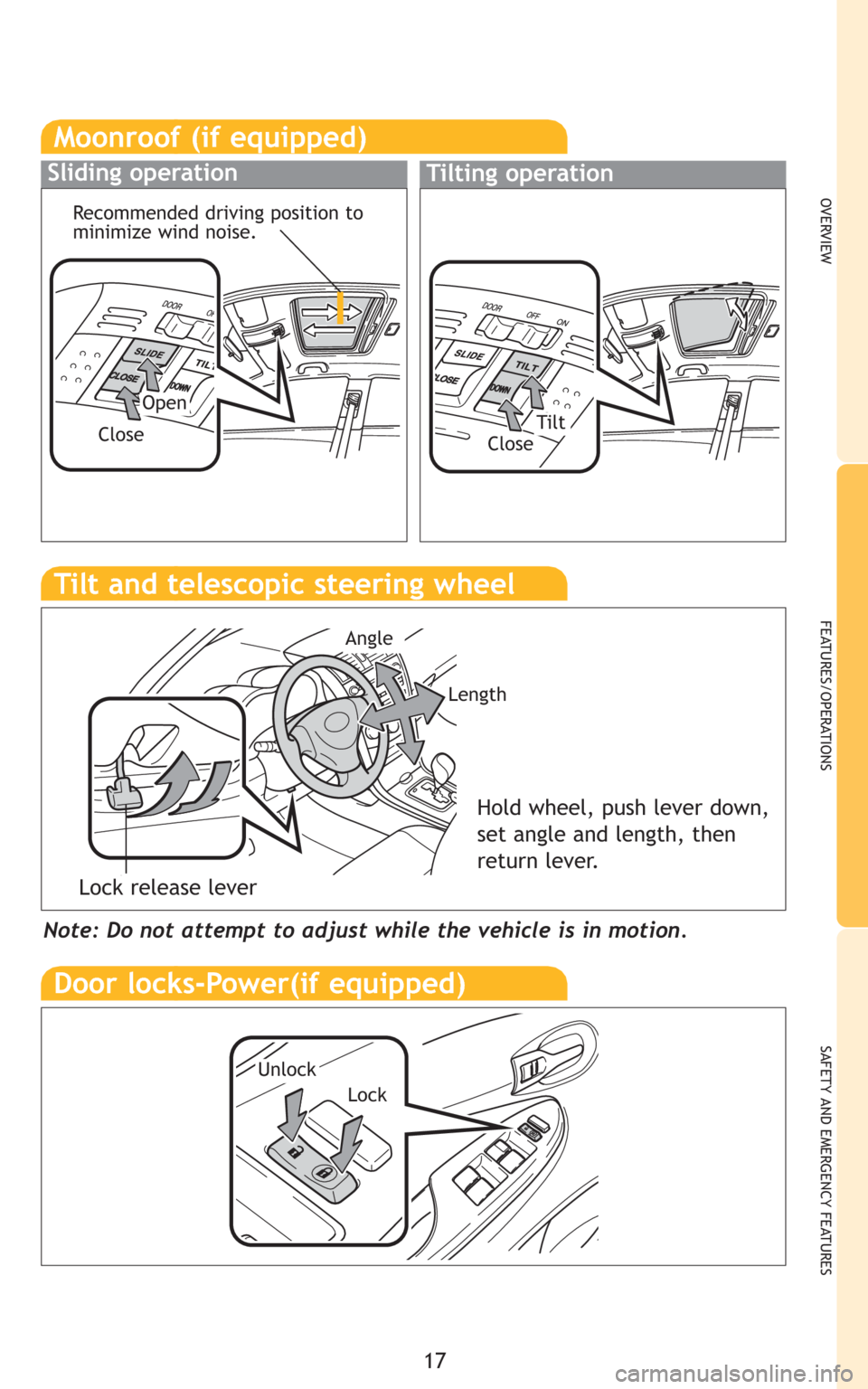

Tilt and telescopic steering wheel
Lock release lever
Angle
Length
Hold wheel, push lever down,
set angle and length, then
return lever.
Door locks-Power(if equipped)
Lock
Unlock
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltClose
Close
Recommended driving position to
minimize wind noise.

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

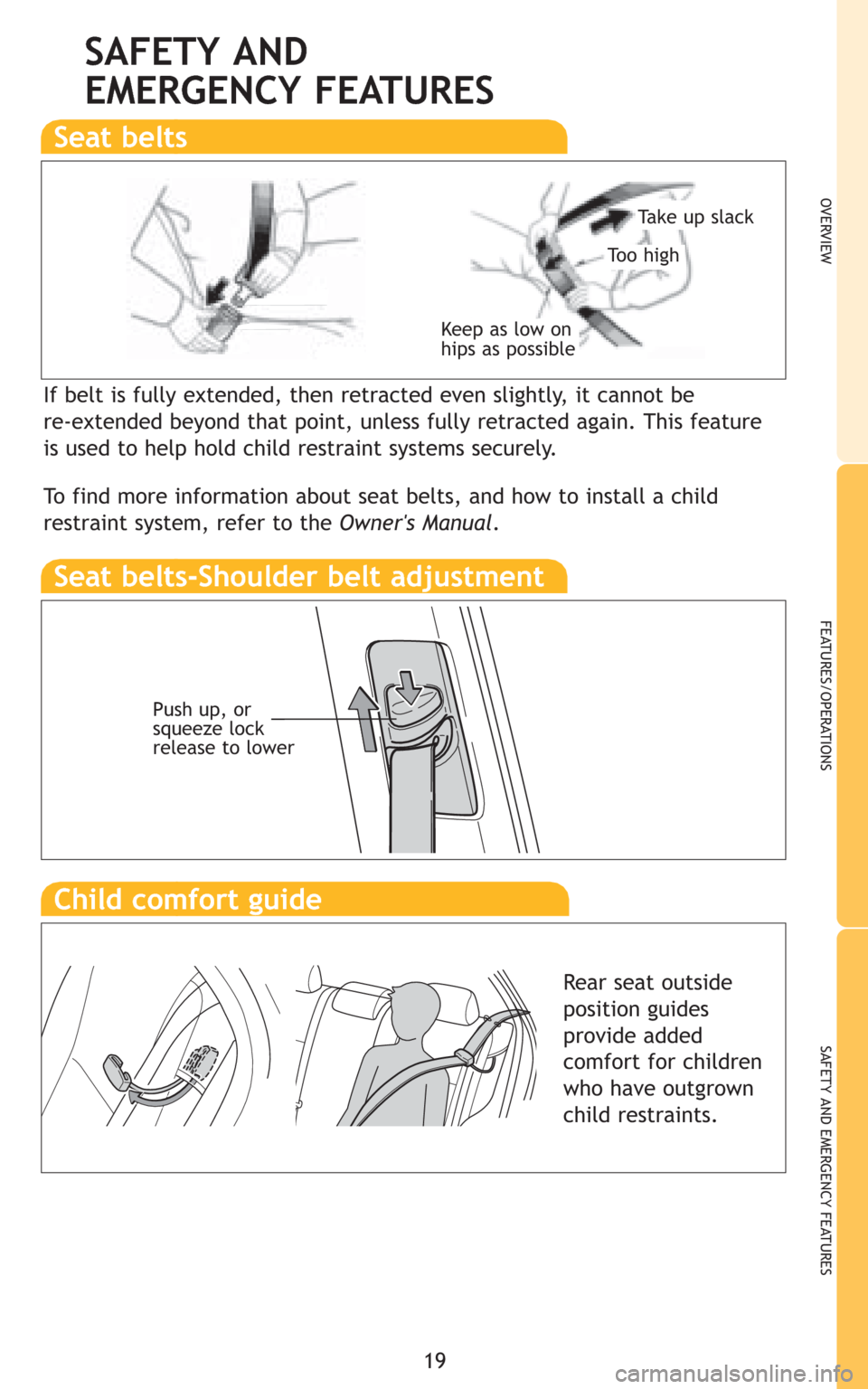

If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the
Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or
squeeze lock
release to lower
Seat belts-Shoulder belt adjustment
Rear seat outside
position guides
provide added
comfort for children
who have outgrown
child restraints.
Child comfort guide
