mirror TOYOTA COROLLA 2009 10.G Quick Reference Guide

2

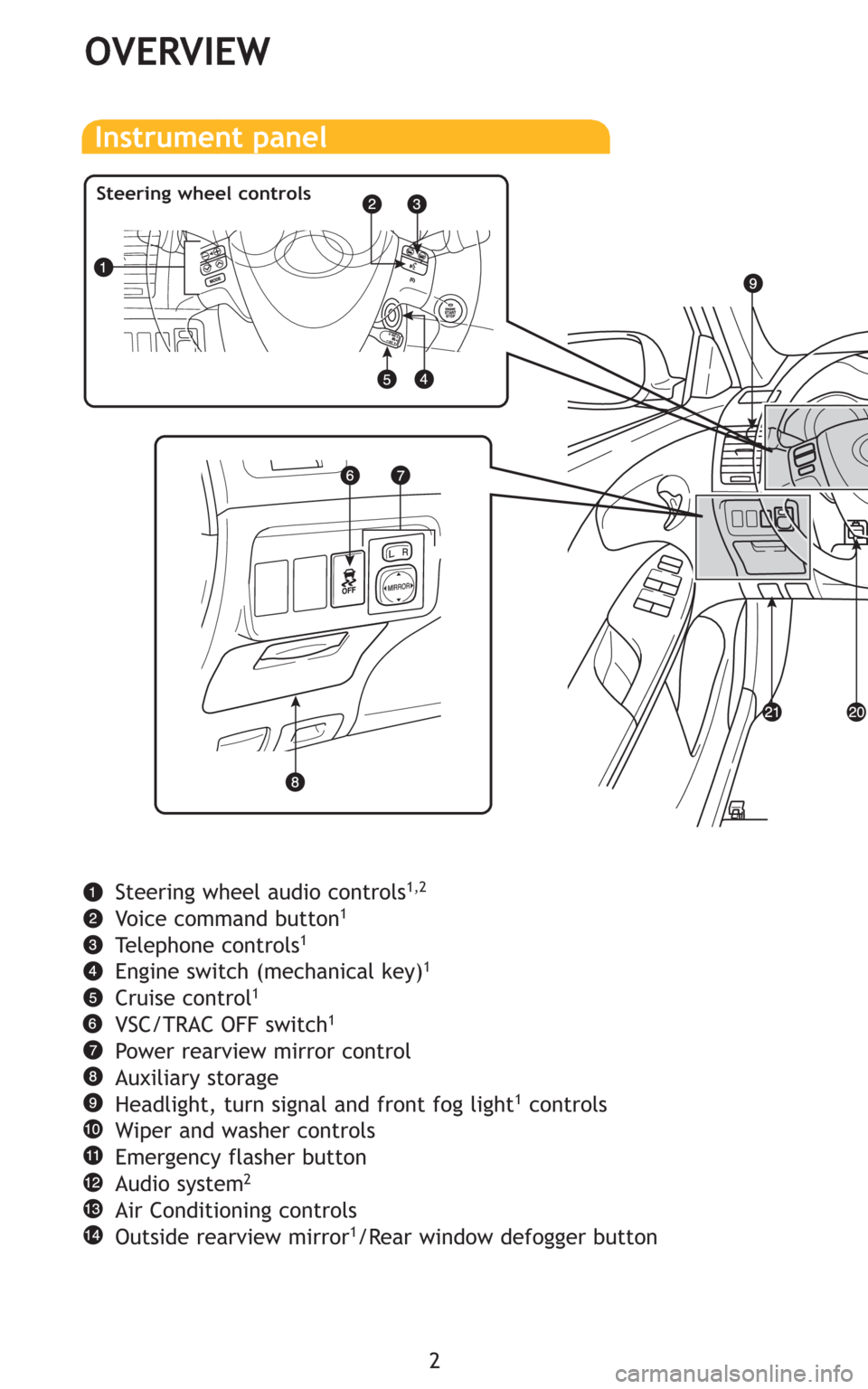

OVERVIEW
Instrument panel
Steering wheel audio controls1,2
Voice command button1
Telephone controls1
Engine switch (mechanical key)1
Cruise control1
VSC/TRAC OFF switch1
Power rearview mirror control
Auxiliary storage
Headlight, turn signal and front fog light
1controls
Wiper and washer controls
Emergency flasher button
Audio system
2
Air Conditioning controls
Outside rearview mirror1/Rear window defogger button
Steering wheel controls

14

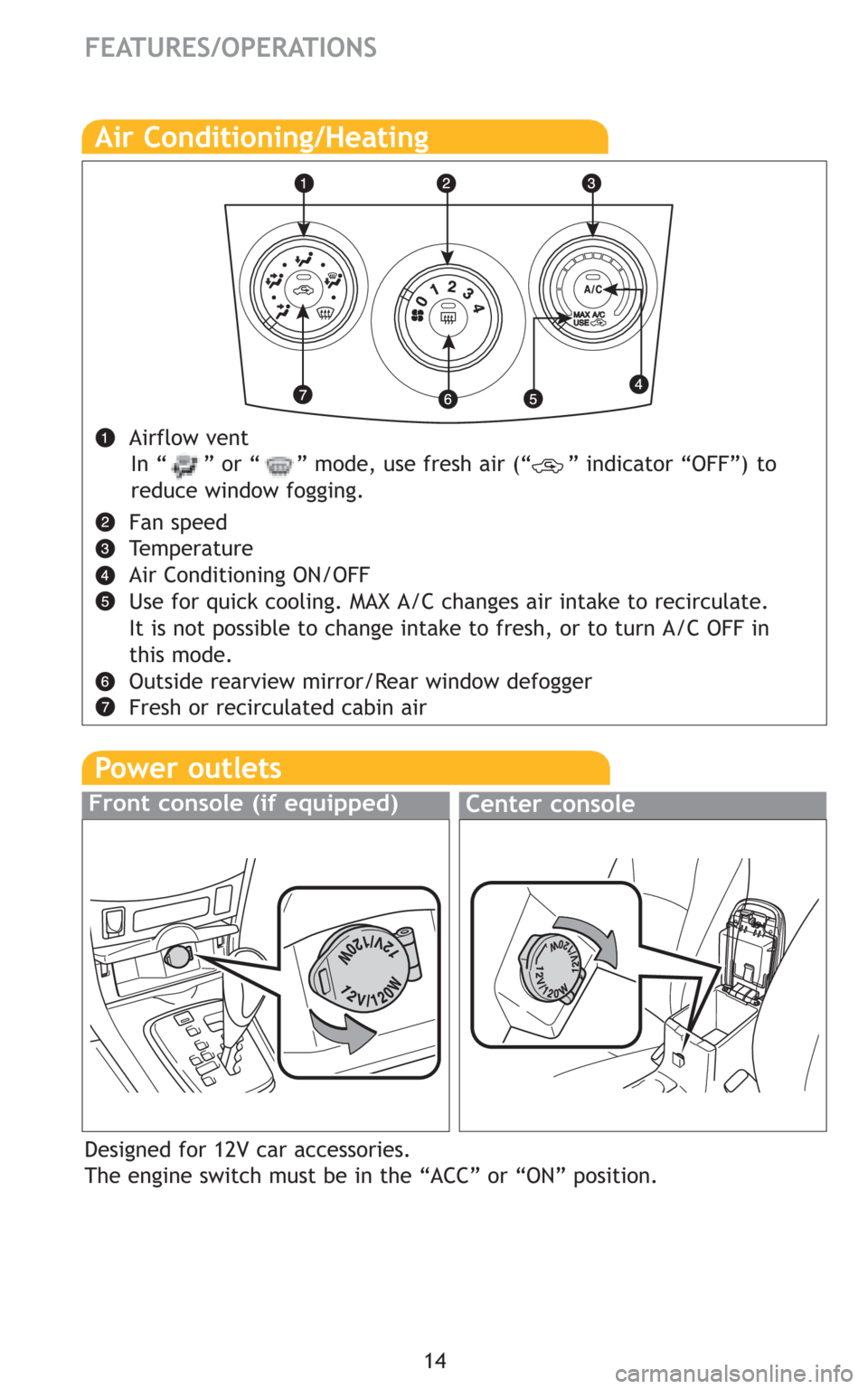

FEATURES/OPERATIONS
Air Conditioning/Heating
Airflow vent
Fan speed
Temperature
Air Conditioning ON/OFF
Use for quick cooling. MAX A/C changes air intake to recirculate.
It is not possible to change intake to fresh, or to turn A/C OFF in
this mode.
Outside rearview mirror/Rear window defogger
Fresh or recirculated cabin airIn “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to
reduce window fogging.
Power outlets
Center console
Designed for 12V car accessories.
The engine switch must be in the “ACC” or “ON” position.
Front console (if equipped)
