TOYOTA COROLLA 2011 10.G Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

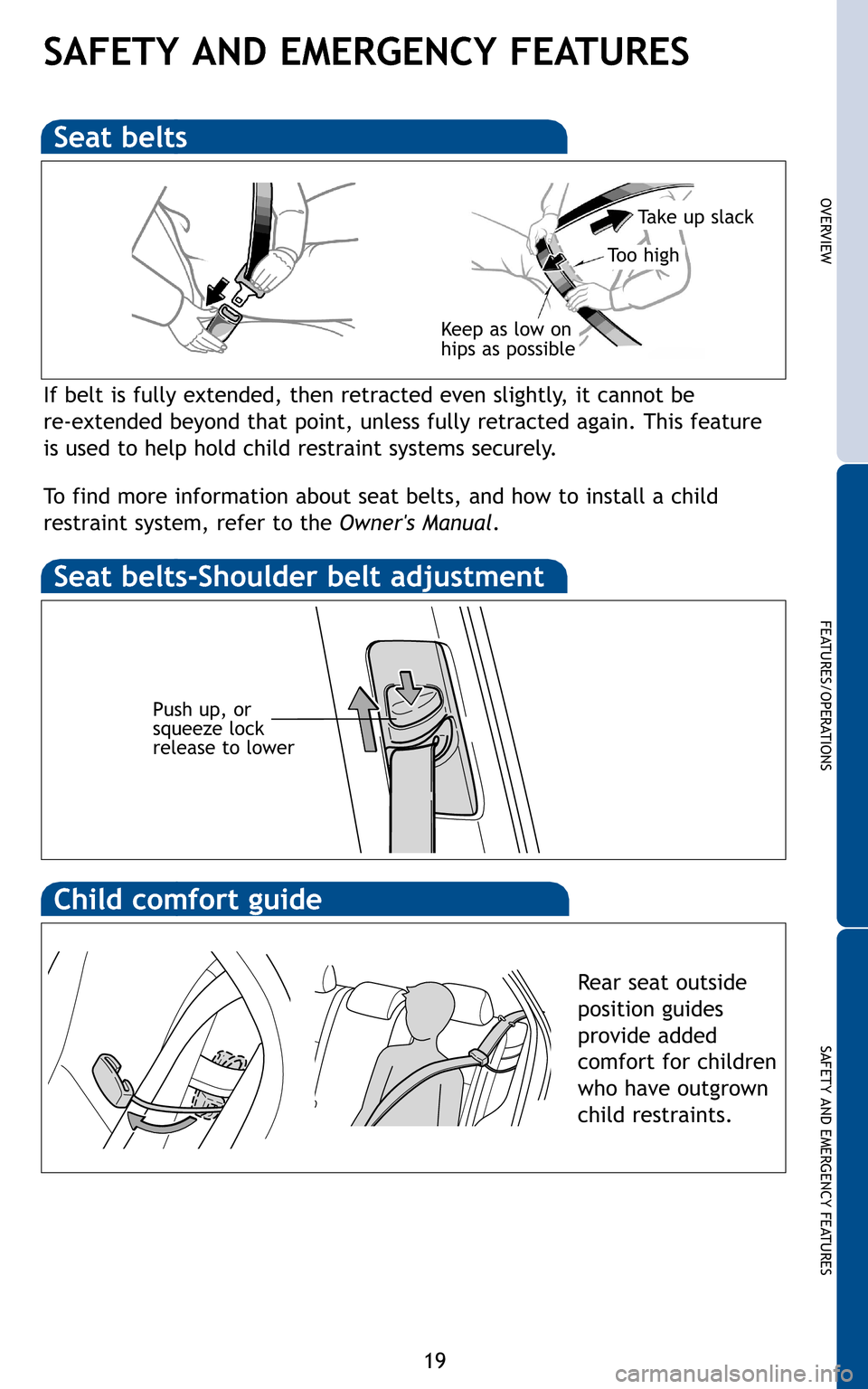

If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high

Push up, or
squeeze lock
release to lower

Rear seat outside
position guides
provide added
comfort for children
who have outgrown
child restraints.

SAFETY AND EMERGENCY FEATURES
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 19

20

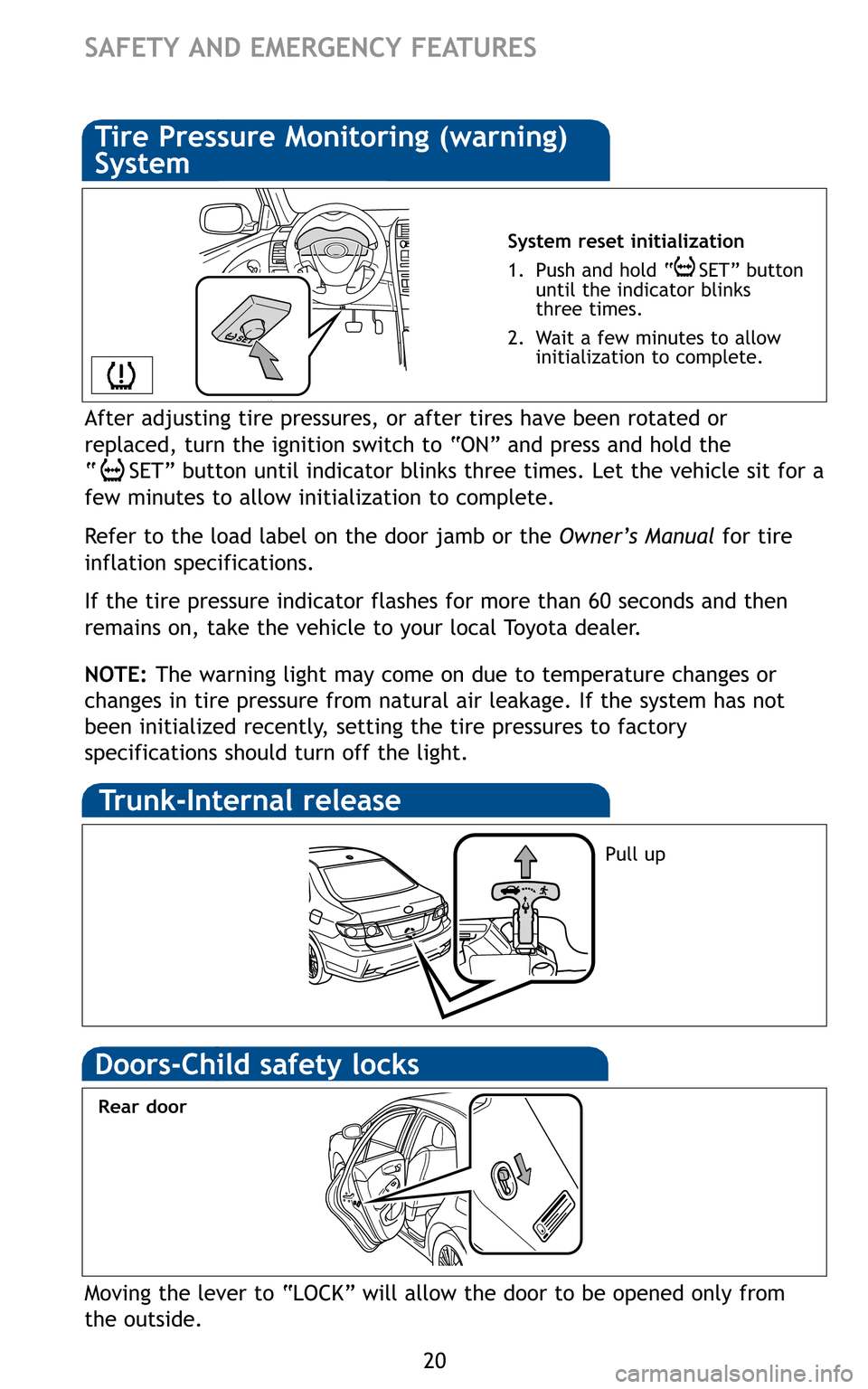

System reset initialization
1. Push and hold “ SET” button until the indicator blinks
three times.
2. Wait a few minutes to allow initialization to complete.

Pull up
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door


After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
SAFETY AND EMERGENCY FEATURES
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 20

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

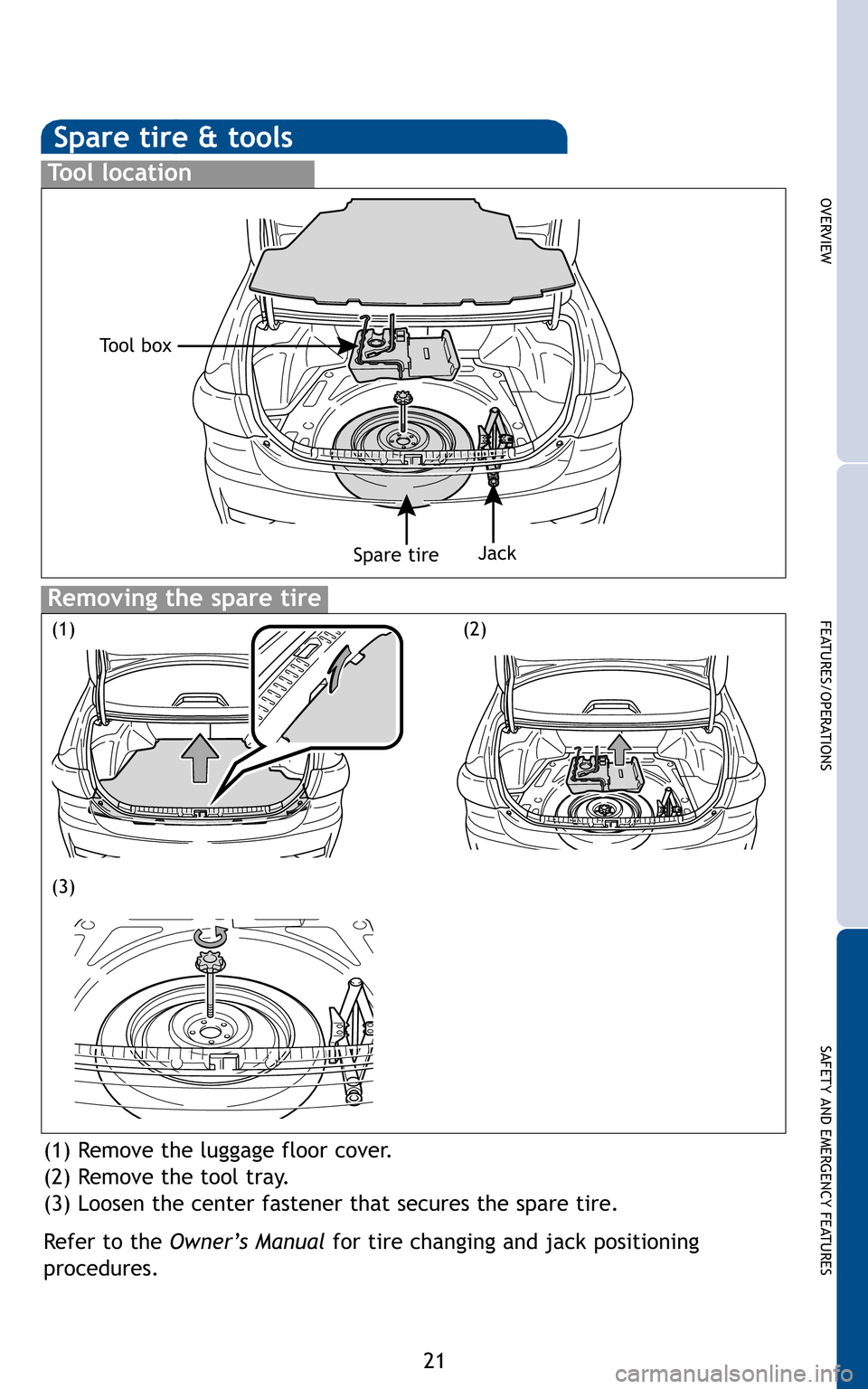

(1) Remove the luggage floor cover.
(2) Remove the tool tray.
(3) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Spare tireJack
Tool box
(1)(2)
(3)
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 21
