bluetooth TOYOTA COROLLA 2011 10.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance 7Fuel tank door release and cap6Hood release 7Indicator symbols 5Instrument cluster4Instrument panel2-3
Keyless entry16
Air Conditioning/Heating 14Audio 12-13Auto lock/unlock29Automatic Transmission 8Auxiliary storage 18Clock16Cruise control15Cup holders18Door locks-Power 17Light control-Instrument panel 18Lights & turn signals 11Moonroof 17Multi-information display 15Parking brake8Power outlet 11Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints10Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel17Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19Doors-Child safety locks 20Seat belts19Seat belts-Shoulder belt adjustment 19Spare tire & tools21Tire Pressure Monitoring (warning) System20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
INDEX
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 1

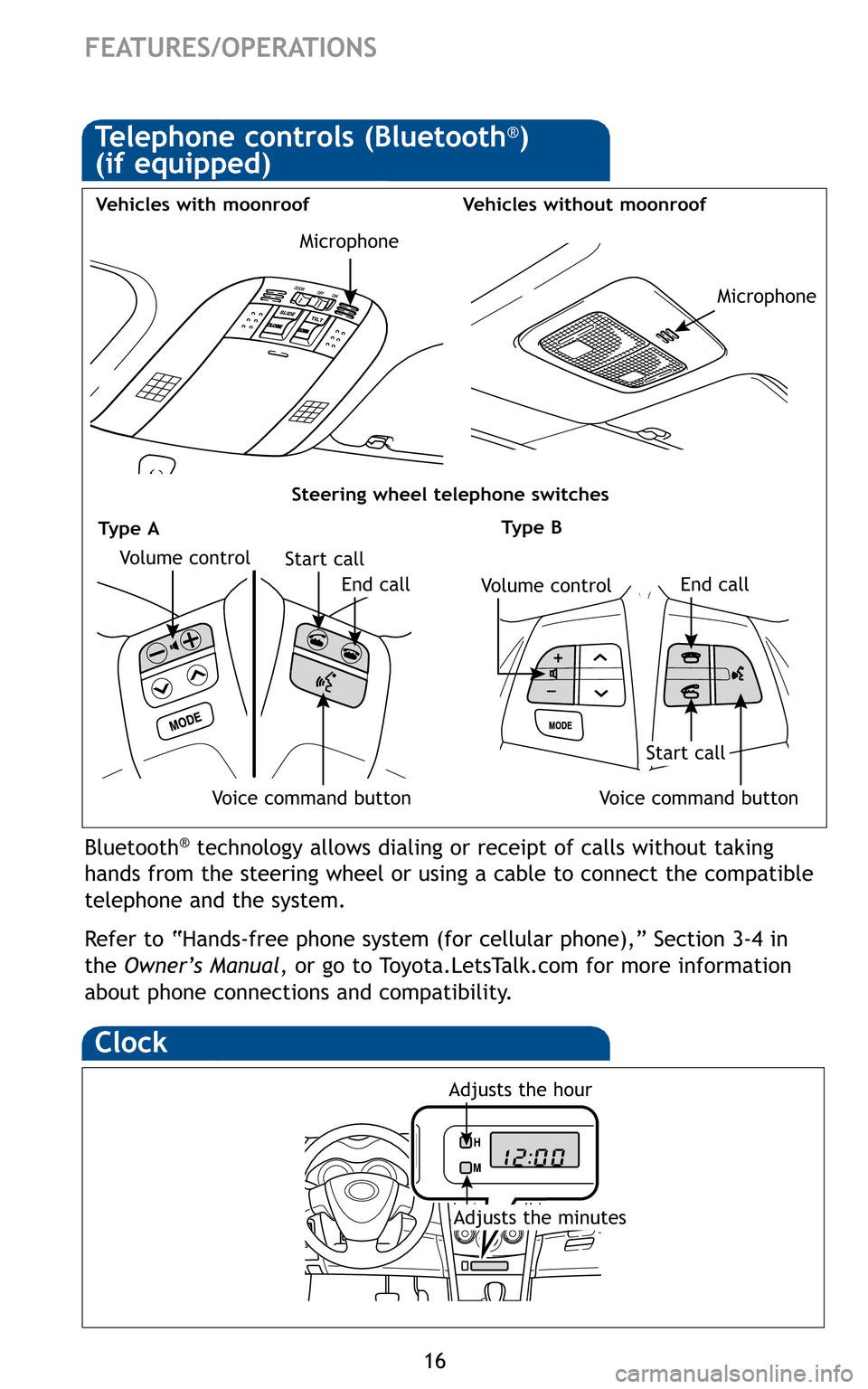

16
FEATURES/OPERATIONS
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in
the Owner’s Manual , or go to Toyota.LetsTalk.com for more information
about phone connections and compatibility.

Vehicles without moonroofVehicles with moonroof
Steering wheel telephone switches
Start call
End call
Voice command button
Volume control

Start call
End call
Voice command button
Volume control
Type BType A
Adjusts the hour
Adjusts the minutes
Microphone
Microphone
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 16
