check engine TOYOTA COROLLA 2011 10.G Quick Reference Guide

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Anti-lock Brake System warning1
Headlight high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control/Cruise control SET indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seat belt reminder (on the instrument cluster)
(alarm will sound if speed is over 12 mph) Front passenger seat belt reminder (on the center panel)
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2011
Owner’s Manual .
Low engine oil pressure warning1
Vehicle Stability Control OFF indicator1
Maintenance/Service required indicator1
Electric power steering warning1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Traction Control OFF indicator1
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 5

6
OVERVIEW

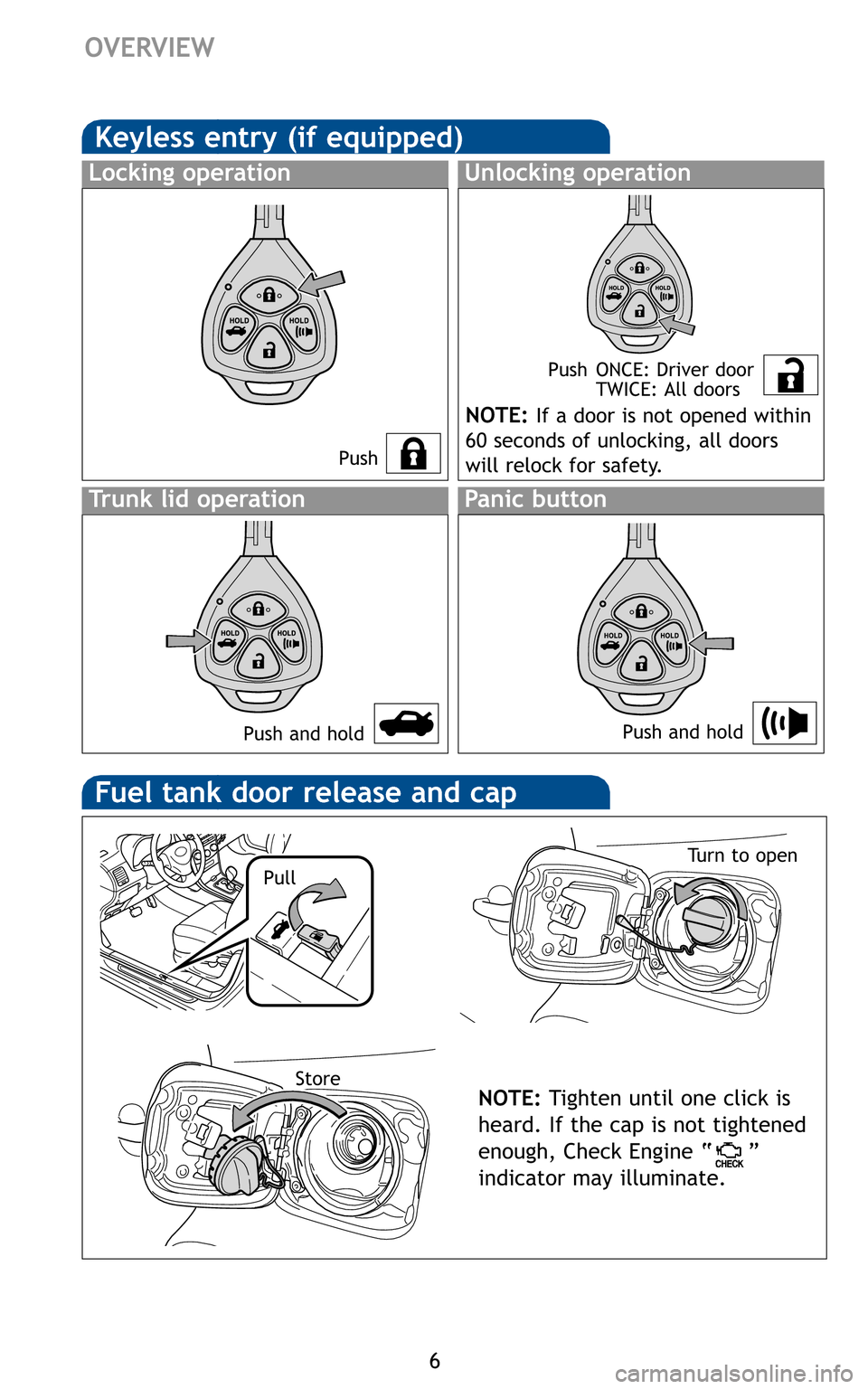

Push Push ONCE: Driver door
TWICE: All doors


Push and hold
NOTE:If a door is not opened within
60 seconds of unlocking, all doors
will relock for safety.

Push and hold

NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull Turn to open
Store
414868M2.qxd:414868M2 11/18/10 9:35 AM Page 6
