TOYOTA COROLLA 2012 10.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9

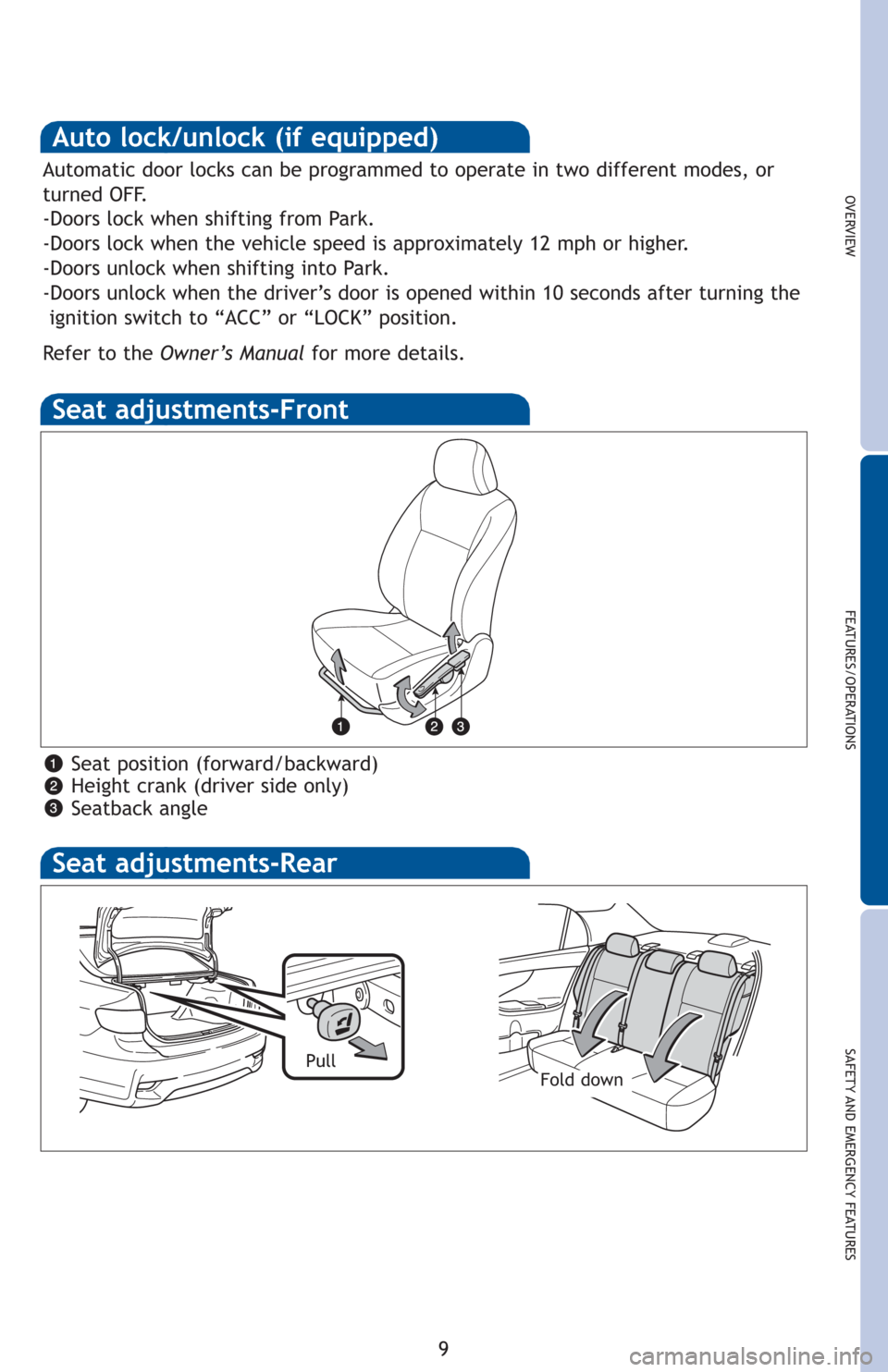

Auto lock/unlock (if equipped)
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
ignition switch to “ACC” or “LOCK” position.
Refer to the Owner’s Manualfor more details.
Seat adjustments-Rear
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Fold downPull

10
FEATURES/OPERATIONS
Seats-Head restraints
FrontRear
Lock release buttonLock release button
Windshield wipers & washers
Interval wipe Single wipe
Slow
Fast
Pull to wash and wipe
Windows-Power (if equipped)
Up
Down
Driver sideWindow lock switch
Automatic operation (driver side only) Push the switch completely down and
release to fully open. To stop window midway, lightly push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable. Intermittent windshield wiper
frequency adjustment
(if equipped)
Increase
Decrease

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

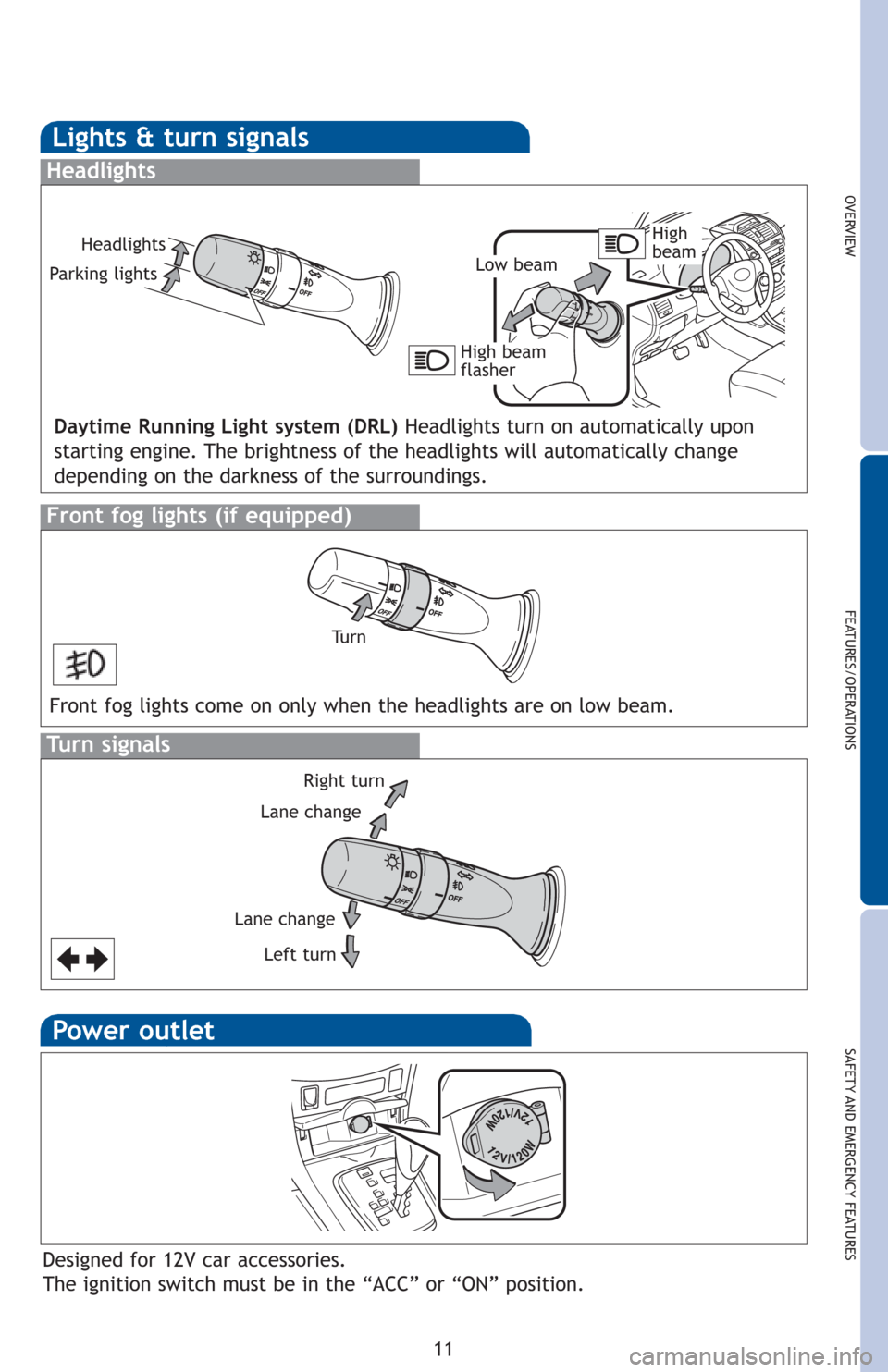

Lights & turn signals
Turn signals
Headlights
High beam
flasher
Low beam
Front fog lights (if equipped)
Daytime Running Light system (DRL) Headlights turn on automatically upon
starting engine. The brightness of the headlights will automatically change
depending on the darkness of the surroundings.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High
beamHeadlights
Parking lights
Tu r n
Power outlet
Designed for 12V car accessories.
The ignition switch must be in the “ACC” or “ON” position.

12
FEATURES/OPERATIONS
Audio
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Station/CD
track scan
Mode Preset buttons - functions in other
modes indicated above number
View CD text
Push to skip
up/down folder
and radio category
type
Push and turn to
adjust tone &
balance
Ty p e 2
Ty p e 1
Push to turn
ON/OFFPush and turn
to adjust tone
& balance
Seek station/
CD track select
Station/CD
track selectMode
Eject CDPreset buttons - functions in other
modes indicated above button
View CD text
Touch screen displayTy p e 3 *
Turn to tune
radio stations
manually or
select tracks
or files Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Display Audio
system
Premium
Display Audio
system
* Refer to the “Display Audio System Owner’s Manual” for instructions and more
information.Push to display
audio screen

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Radio
To preset stations Tune in the desired station and hold down a preset button
(from to or one of ) until you hear a beep. Push desired preset button
to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
“”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to turn the
audio system OFF.
vv
AUX port/USB port
Steering wheel switches (if equipped)
Volume control
CD Player
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
CD changer (Type 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Tu r n “ T U N E.
FILE” or “TUNE.
SCROLL.”
AUX portUSB/AUX port
Ty p e AVolume control
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
USB port (if equipped)
By connecting a USB-compatible portable audio device or USB memory to the USB
port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system while in USB mode.
Ty p e B

14
FEATURES/OPERATIONS
Air Conditioning/Heating
Airflow vent
Use “ ” or “ ” mode to reduce window fogging (system automatically
switches to fresh air mode).
Fan speed
Temperature selector
For quick cooling, turn to MAX A/C position and select recirculated air mode
(“ ” indicator ON).
Air Conditioning ON/OFF
Outside rearview mirror*/Rear window defogger
Recirculate cabin air (fresh air when OFF)
* If equipped

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Set/Decrease speedCancel
1
Resume2
Multi-information display
Push the display button to scroll through the following:
(1) Outside temperature
(2) Current gas mileage
(3) Average gas mileage*
(4) Miles left on remaining fuel
(5) Average vehicle speed from engine start*
(6) Running time from engine start*
* Push and hold display button to reset.
Display button

16
FEATURES/OPERATIONS
Bluetooth®technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in the
Owner’s Manual, for more information about phone connections and compatibility.
Telephone controls (Bluetooth®)
(if equipped)
Vehicles without moonroofVehicles with moonroof
Steering wheel telephone switches
Start call
End call
Voice command button
Volume control
Clock
Start call
End call
Voice command button
Volume control
Ty p e BTy p e A
Adjusts the hourAdjusts the minutes
Microphone
Microphone

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lock release lever
Angle
Length
Hold wheel, push lever down,
set angle and length, and
return lever.
Door locks-Power (if equipped)
Lock
Unlock
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltClose
Close
Recommended open position to
minimize wind noise.
Push once to open partway; again to
open completely.

18
FEATURES/OPERATIONS

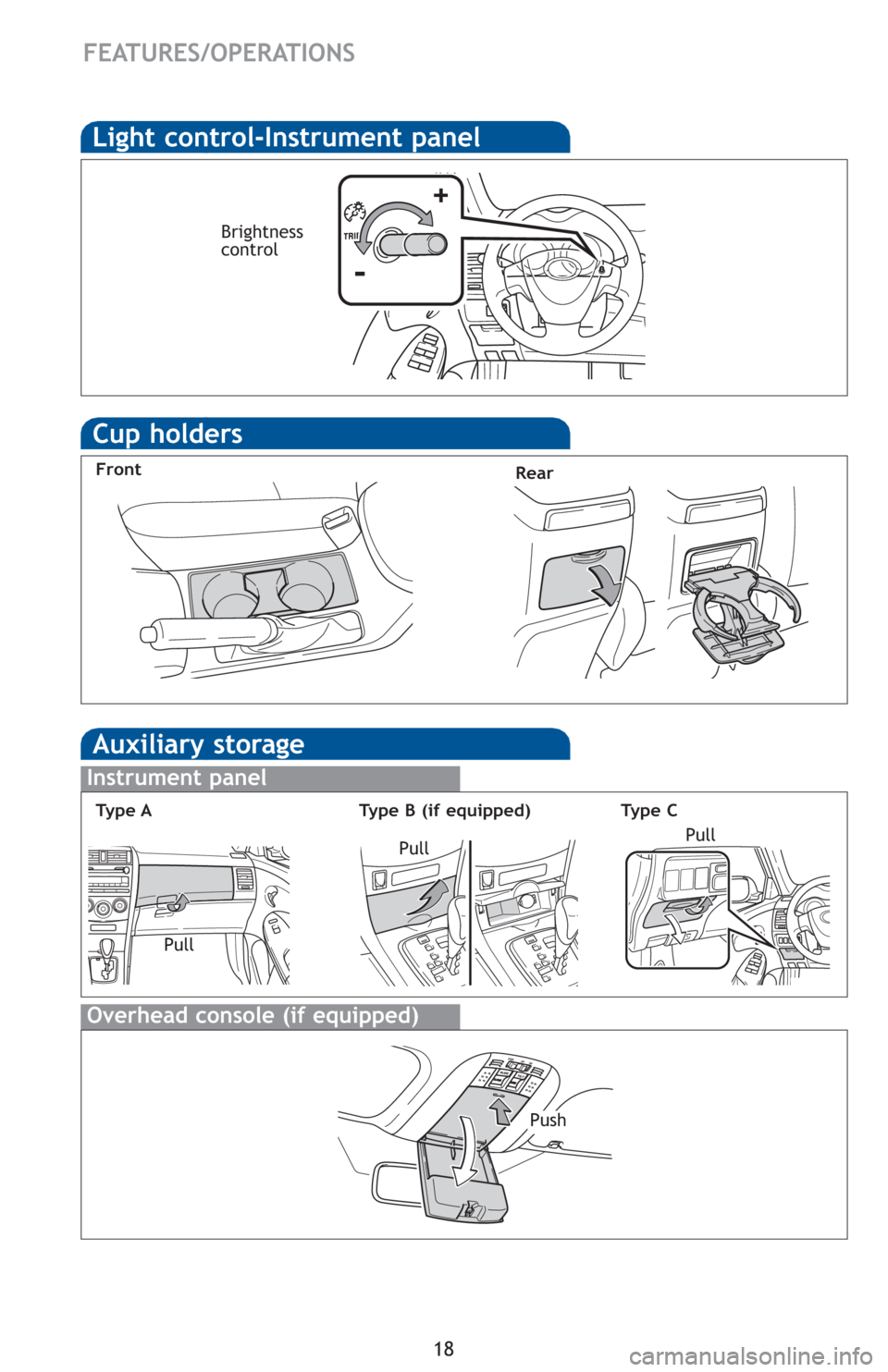

Cup holders
Front
Auxiliary storage
Instrument panel
Overhead console (if equipped)
Ty p e AType B (if equipped)Ty p e C
Rear
PullPull
PushPull
Light control-Instrument panel
Brightness
control
-
+
