display TOYOTA COROLLA 2012 10.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 14Audio 12-13Auto lock/unlock29Automatic Transmission 8Auxiliary storage 18Clock 16Cruise control 15Cup holders 18Door locks-Power 17Light control-Instrument panel 18Lights & turn signals 11Moonroof 17Multi-information display 15Parking brake 8Power outlet 11Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 10Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 17Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19Doors-Child safety locks 20Floor mat installation 23Seat belts 19Seat belts-Shoulder belt adjustment 19Spare tire & tools 21Star Safety SystemTM22-23Tire Pressure Monitoring (warning) System 20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
INDEX

4
OVERVIEW
Instrument cluster
Service indicators and reminders
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Odometer and two trip meters
Automatic Transmission shift range display (if equipped)
Multi-information display
Display button
Engine coolant temperature
Ty p e A
Ty p e B

12
FEATURES/OPERATIONS

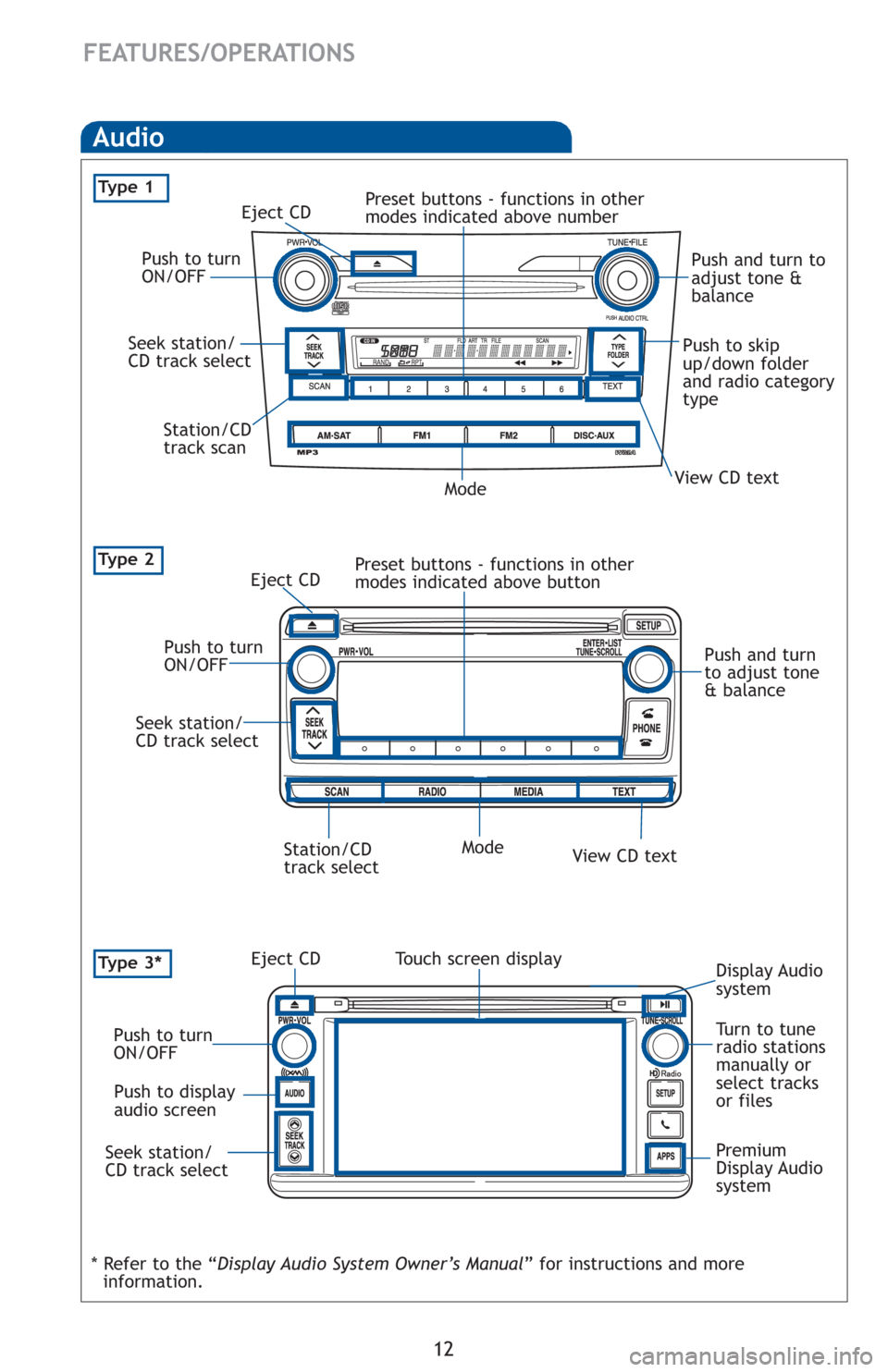

Audio
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Station/CD
track scan
Mode Preset buttons - functions in other
modes indicated above number
View CD text
Push to skip
up/down folder
and radio category
type
Push and turn to
adjust tone &
balance
Ty p e 2
Ty p e 1
Push to turn
ON/OFFPush and turn
to adjust tone
& balance
Seek station/
CD track select
Station/CD
track selectMode
Eject CDPreset buttons - functions in other
modes indicated above button
View CD text
Touch screen displayTy p e 3 *
Turn to tune
radio stations
manually or
select tracks
or files Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Display Audio
system
Premium
Display Audio
system
* Refer to the “Display Audio System Owner’s Manual” for instructions and more
information.Push to display
audio screen

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Set/Decrease speedCancel
1
Resume2
Multi-information display
Push the display button to scroll through the following:
(1) Outside temperature
(2) Current gas mileage
(3) Average gas mileage*
(4) Miles left on remaining fuel
(5) Average vehicle speed from engine start*
(6) Running time from engine start*
* Push and hold display button to reset.
Display button
