window TOYOTA COROLLA 2012 10.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
Engine maintenance 7Fuel tank door release and cap 6Hood release 7Indicator symbols 5Instrument cluster 4Instrument panel 2-3
Keyless entry16
Air Conditioning/Heating 14Audio 12-13Auto lock/unlock29Automatic Transmission 8Auxiliary storage 18Clock 16Cruise control 15Cup holders 18Door locks-Power 17Light control-Instrument panel 18Lights & turn signals 11Moonroof 17Multi-information display 15Parking brake 8Power outlet 11Seat adjustments-Front 9Seat adjustments-Rear 9Seats-Head restraints 10Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel 17Windows-Power 10
Windshield wipers & washers 10
Child comfort guide 19Doors-Child safety locks 20Floor mat installation 23Seat belts 19Seat belts-Shoulder belt adjustment 19Spare tire & tools 21Star Safety SystemTM22-23Tire Pressure Monitoring (warning) System 20
Trunk-Internal release 20
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
INDEX

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Outside rearview mirror*/Rear window defogger button
Front passenger seat belt reminder light
“AIR BAG ON” and “AIR BAG OFF” indicator
Engine immobilizer indicator
USB*/AUX port
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
* If equipped
NOTE:For vehicles equipped with Entune
TM, please consult the “Navigation System
With Entune Quick Reference Guide” or www.toyota.com/entune.
Automatic Air Conditioning system
Manual Air Conditioning system

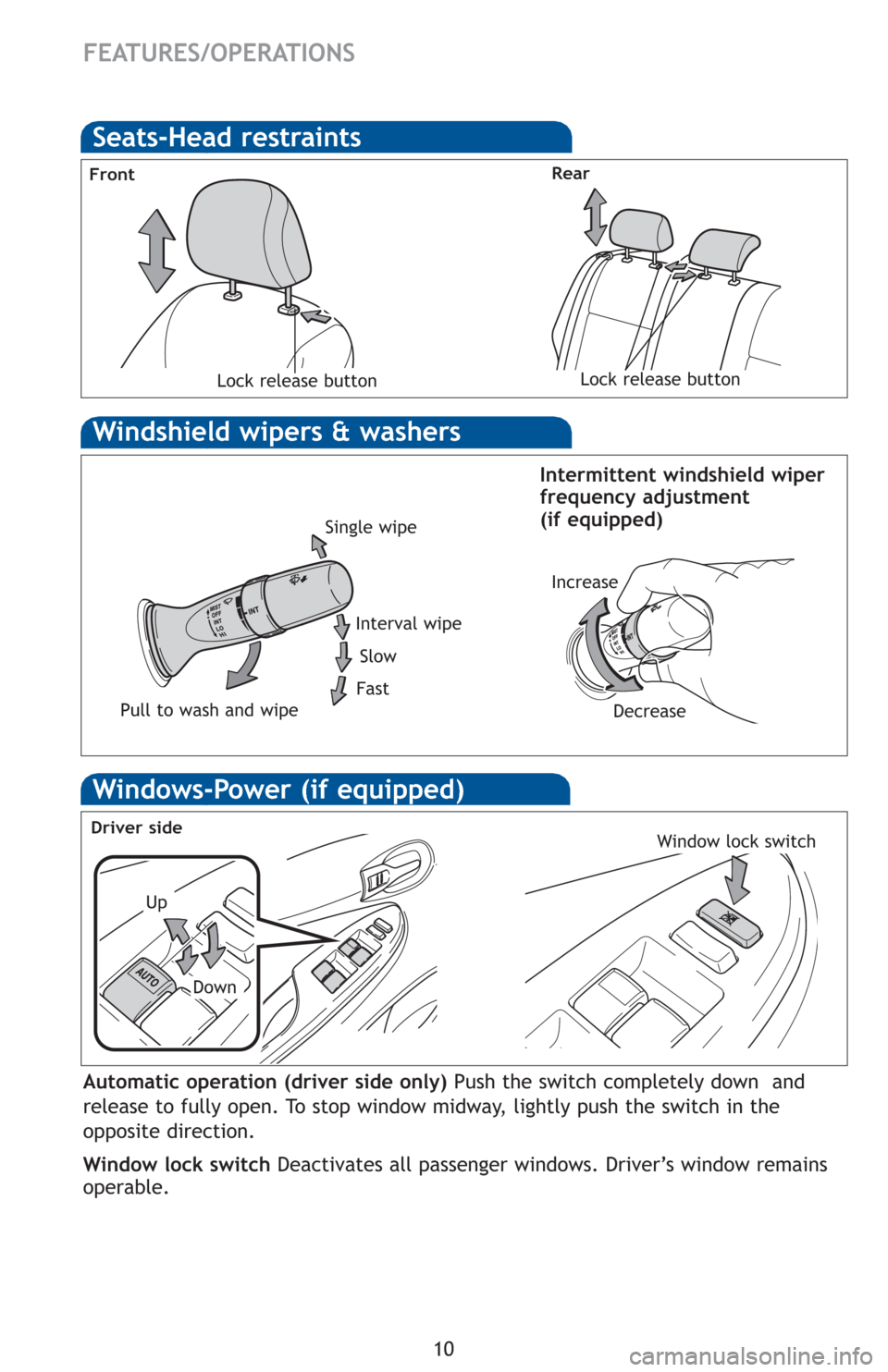

10
FEATURES/OPERATIONS
Seats-Head restraints
FrontRear
Lock release buttonLock release button
Windshield wipers & washers
Interval wipe Single wipe
Slow
Fast
Pull to wash and wipe
Windows-Power (if equipped)
Up
Down
Driver sideWindow lock switch
Automatic operation (driver side only) Push the switch completely down and
release to fully open. To stop window midway, lightly push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable. Intermittent windshield wiper
frequency adjustment
(if equipped)
Increase
Decrease

14
FEATURES/OPERATIONS
Air Conditioning/Heating
Airflow vent
Use “ ” or “ ” mode to reduce window fogging (system automatically
switches to fresh air mode).
Fan speed
Temperature selector
For quick cooling, turn to MAX A/C position and select recirculated air mode
(“ ” indicator ON).
Air Conditioning ON/OFF
Outside rearview mirror*/Rear window defogger
Recirculate cabin air (fresh air when OFF)
* If equipped
