TOYOTA COROLLA 2013 11.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

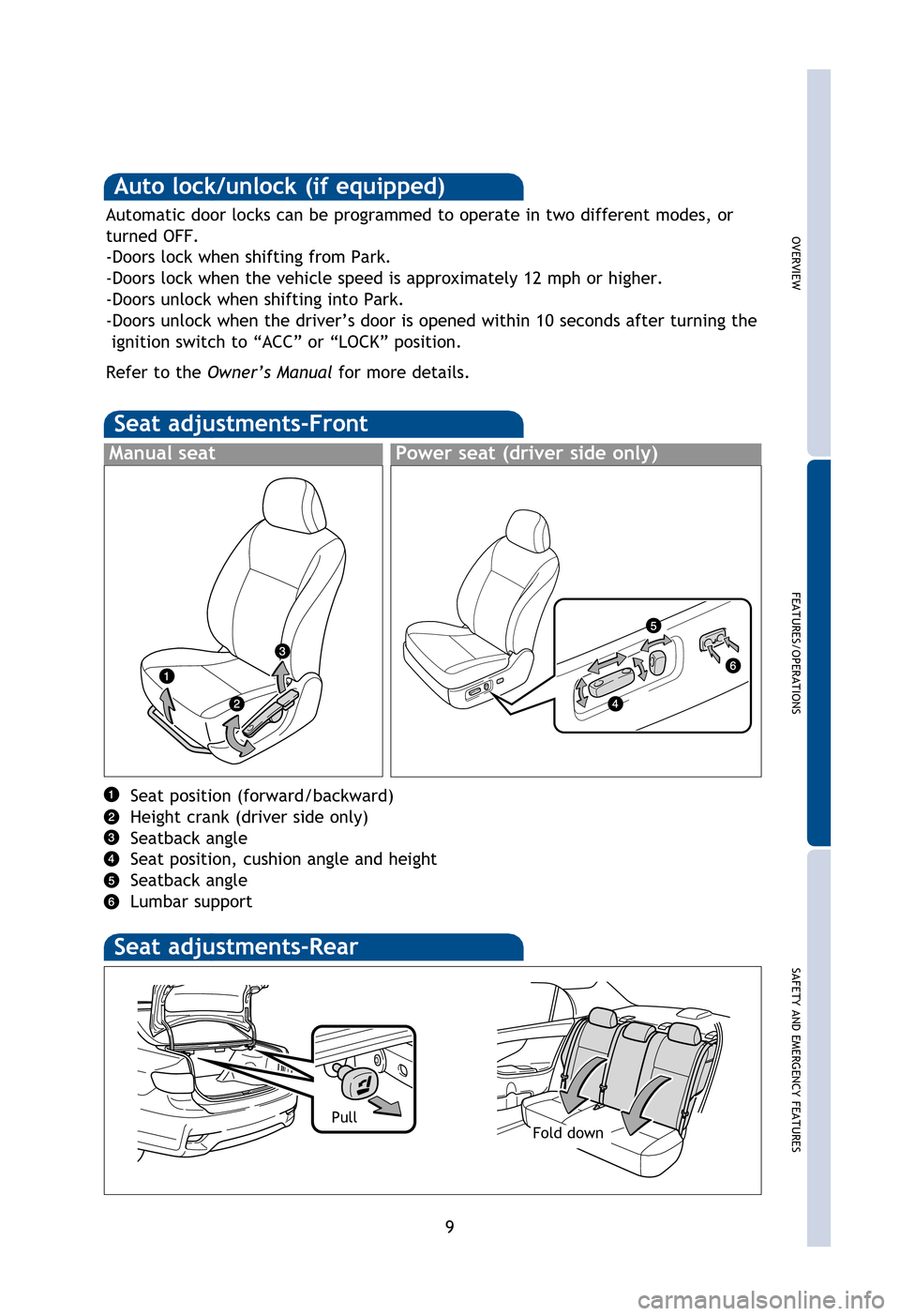

9
Auto lock/unlock (if equipped)
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
ignition switch to “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
Seat adjustments-Rear
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seat position, cushion angle and height
Seatback angle
Lumbar support
Fold down
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
Shift the shift lever to “S” position from “D” position.

+: Upshift (push and release)

-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Multi-mode type
Pull
Seat adjustments-Front
Manual seatPower seat (driver side only)“D”
126742_Text.indd 97/3/12 11:05 PM

10
Lights & turn signals
Turn signals
Headlights
Front fog lights (if equipped)
Daytime Running Light system (DRL) Headlights turn on automatically upon
starting engine. The brightness of the headlights will automatically change
depending on the darkness of the surroundings.
Front fog lights come on only when the headlights are on low beam.
Parking lights
FEATURES/OPERATIONS
Seats-Head restraints
Front Rear
Lock release buttonLock release button
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Windows-Power (if equipped)
Up
Down
Driver sideWindow lock switch
Automatic operation (driver side only) Push the switch completely down and
release to fully open. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable. Intermittent windshield wiper
frequency adjustment
(if equipped)
Power outlet
Designed for 12V car accessories. The ignition switch must be in the “ACC” or
“ON” position.
Increase
Decrease
126742_Text.indd 107/3/12 11:05 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
Lights & turn signals
Turn signals
Headlights
High beam
flasher
Low beam
Front fog lights (if equipped)
Daytime Running Light system (DRL) Headlights turn on automatically upon
starting engine. The brightness of the headlights will automatically change
depending on the darkness of the surroundings.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn
High
beamHeadlights
Parking lights
Turn
Window lock switch
Automatic operation (driver side only) Push the switch completely down and
release to fully open. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable. Intermittent windshield wiper
frequency adjustment
(if equipped)
Power outlet
Designed for 12V car accessories. The ignition switch must be in the “ACC” or
“ON” position.
126742_Text.indd 117/3/12 11:05 PM

12
Radio
To preset stations Tune in the desired station and hold down a preset button
(from
to or one of ) until you hear a beep. Push desired preset button
to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to turn the
audio system OFF.
AUX port/USB port
Steering wheel switches (if equipped)
FEATURES/OPERATIONS
AudioCD player
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
To select a file (MP3/WMA only) Turn “TUNE .
FILE” or “TUNE .
SCROLL.”
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Station/CD
track scan Mode
Preset buttons - functions in other
modes indicated above number
View CD text
Push to skip up/
down folder and
radio category
type
Push and turn
to adjust tone &
balance
Type 2
Type 1
Push to turn
ON/OFFPush and turn
to adjust tone
& balance
Seek station/
CD track select
Station/CD
track select Mode
Eject CD
Preset buttons - functions in other
modes indicated above button
View CD text
Touch screen displayType 3*
AUX port
Type A
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
USB port (if equipped)
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system while in USB mode.
Turn to tune
radio stations
manually or
select tracks
or files
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Display Audio
system
(if equipped)
Premium
Display Audio
system
* Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information. Push to display
audio screen
126742_Text.indd 127/3/12 11:05 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Radio
To preset stations Tune in the desired station and hold down a preset button
(from
to or one of ) until you hear a beep. Push desired preset button
to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to turn the
audio system OFF.
vv
AUX port/USB port
Steering wheel switches (if equipped)
Volume control
CD player
To scan tracks on a disc Push “SCAN.” Push again to hold selection.
To select a file (MP3/WMA only) Turn “TUNE .
FILE” or “TUNE .
SCROLL.”
Push to skip up/
down folder and
radio category
type Push and turn
to adjust tone &
balance
Push and turn
to adjust tone
& balance
AUX portUSB/AUX port
Type AVolume control
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
USB port (if equipped)
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system while in USB mode.
Type B
Turn to tune
radio stations
manually or
select tracks
or files Display Audio
system
(if equipped)
Premium
Display Audio
system
* Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
126742_Text.indd 137/3/12 11:05 PM

14
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
Multi-Information Display
Push the display button to scroll through the following:
(1) Outside temperature
(2) Current gas mileage
(3) Average gas mileage*
(4) Miles left on remaining fuel
(5) Average vehicle speed from engine start*
(6) Running time from engine start*
* Push and hold display button to reset.
FEATURES/OPERATIONS
Air Conditioning/Heating
Airflow vent
Use “
” or “” mode to reduce window fogging (system automatically
switches to fresh air mode).
Fan speed
Temperature selector
For quick cooling, turn to MAX A/C position and select recirculated air mode
(“
” indicator ON).
Air Conditioning ON/OFF
Outside rearview mirror */Rear window defogger
Recirculate cabin air (fresh air when OFF)
* If equipped
126742_Text.indd 147/3/12 11:05 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Set/Decrease speedCancel
1
Resume2
Multi-Information Display
Push the display button to scroll through the following:
(1) Outside temperature
(2) Current gas mileage
(3) Average gas mileage*
(4) Miles left on remaining fuel
(5) Average vehicle speed from engine start*
(6) Running time from engine start*
* Push and hold display button to reset.
Display button
Airflow vent
Use “
” or “” mode to reduce window fogging (system automatically
switches to fresh air mode).
Fan speed
Temperature selector
For quick cooling, turn to MAX A/C position and select recirculated air mode
(“
” indicator ON).
Air Conditioning ON/OFF
Outside rearview mirror */Rear window defogger
Recirculate cabin air (fresh air when OFF)
126742_Text.indd 157/3/12 11:05 PM

16
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Door locks-Power (if equipped)
Moonroof (if equipped)
Sliding operation
FEATURES/OPERATIONS
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in the
Owner’s Manual , for more information about phone connections and compatibility.
For vehicles with a Display Audio system, refer to the “Display Audio System
Owner’s Manual. ”
Telephone controls (Bluetooth®)
(if equipped)
Vehicles without moonroofVehicles with moonroof
Steering wheel telephone switches
Volume control
Clock
Push once to open partway; again to
open completely.
Type BType A
Adjusts the hourAdjusts the minutes
Microphone
Microphone
Audio unit
End call
Start call
Volume control
126742_Text.indd 167/3/12 11:05 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

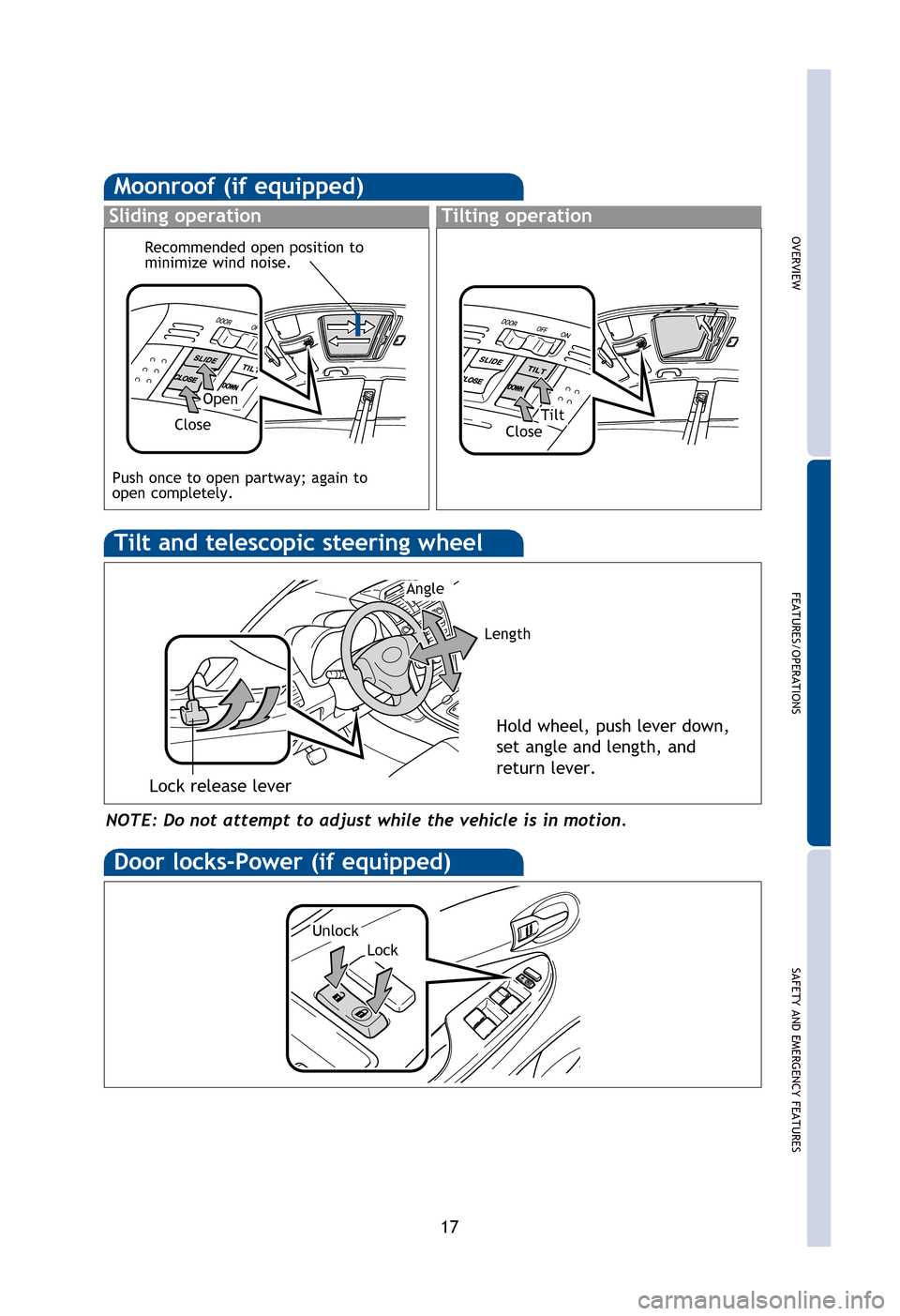

17
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Lock release lever
Angle
Length
Hold wheel, push lever down,
set angle and length, and
return lever.
Door locks-Power (if equipped)
Lock
Unlock
Moonroof (if equipped)
Sliding operationTilting operation
OpenTiltCloseClose
Recommended open position to
minimize wind noise.
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-4 in the
Owner’s Manual , for more information about phone connections and compatibility.
For vehicles with a Display Audio system, refer to the “Display Audio System
Owner’s Manual. ”
Push once to open partway; again to
open completely.
Adjusts the minutes
Microphone
End call
Start call
126742_Text.indd 177/3/12 11:05 PM

18
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Seat belts
Seat belts-Shoulder belt adjustment
Child comfort guide

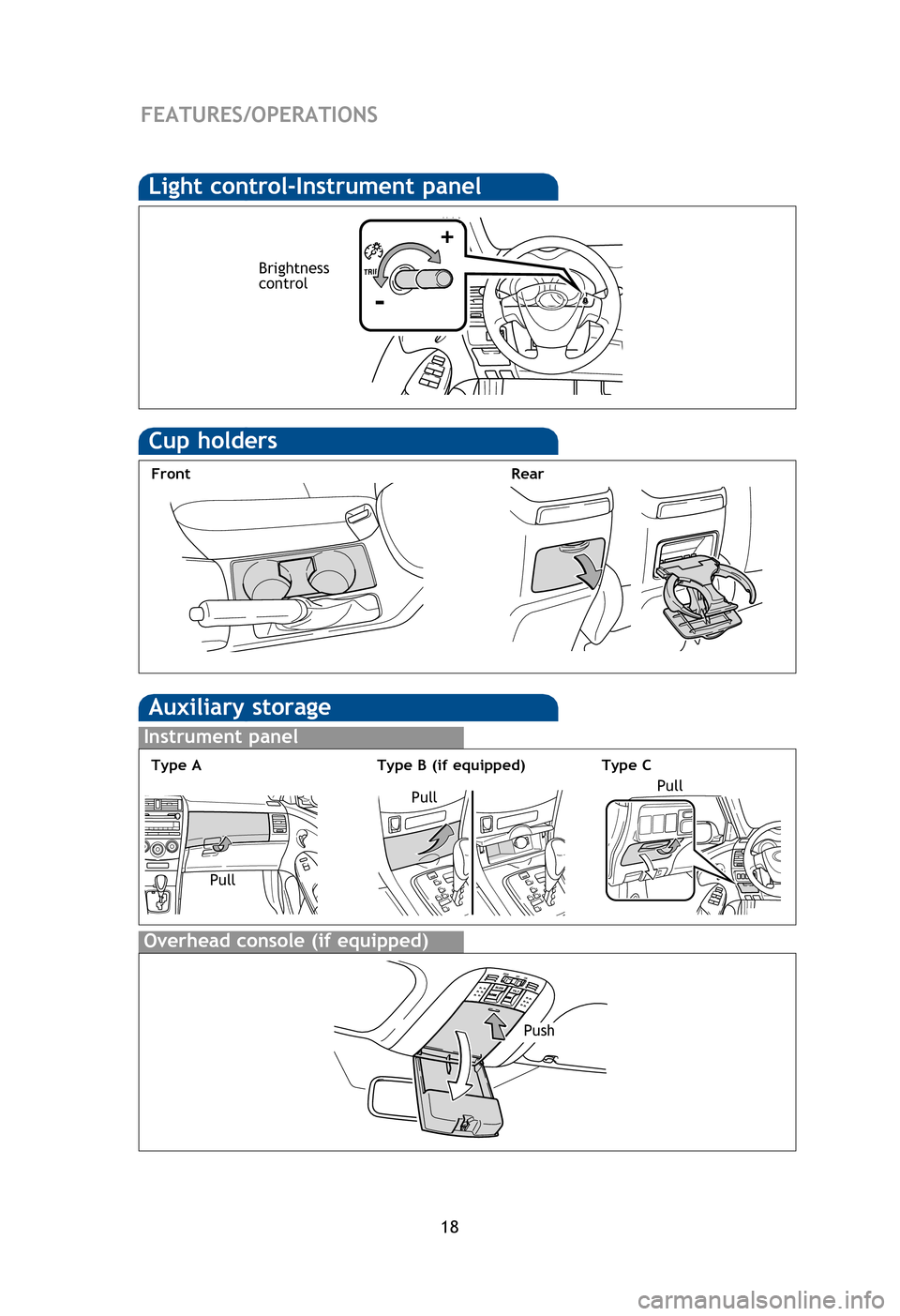

SAFETY AND EMERGENCY FEATURESFEATURES/OPERATIONS
Cup holders
Front
Auxiliary storage
Instrument panel
Overhead console (if equipped)
Type AType B (if equipped) Type C
Rear
Pull Pull
PushPull
Light control-Instrument panel
Brightness
control
-
+
126742_Text.indd 187/3/12 11:06 PM
