fog light TOYOTA COROLLA 2013 11.G Quick Reference Guide

2
Outside rearview mirror*/Rear window defogger button
Front passenger seat belt reminder light
“AIR BAG ON” and “AIR BAG OFF” indicator
Engine immobilizer indicator
USB*/AUX port
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
* If equipped
NOTE: For vehicles equipped with Entune
TM, please consult the “Navigation System
With Entune Quick Reference Guide” or www.toyota.com/entune.
OVERVIEW
Instrument panel
Steering wheel audio controls*
Voice command button*
Telephone controls*
Ignition switch
Cruise control*
VSC/TRAC OFF switch
Power outside rearview mirror controls
Auxiliary storage
Headlight, turn signal and front fog light* controls
Wiper and washer controls
Clock
Emergency flasher button
Audio system
Air Conditioning controls
Steering wheel controls
Type A
Type B
126742_Text.indd 27/3/12 11:04 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Outside rearview mirror*/Rear window defogger button
Front passenger seat belt reminder light
“AIR BAG ON” and “AIR BAG OFF” indicator
Engine immobilizer indicator
USB*/AUX port
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
* If equipped
NOTE: For vehicles equipped with Entune
TM, please consult the “Navigation System
With Entune Quick Reference Guide” or www.toyota.com/entune.
Automatic Air Conditioning system
Steering wheel audio controls*
Voice command button*
Telephone controls*
Ignition switch
Cruise control*
VSC/TRAC OFF switch
Power outside rearview mirror controls
Auxiliary storage
Headlight, turn signal and front fog light* controls
Wiper and washer controls
Clock
Emergency flasher button
Audio system
Air Conditioning controls
Manual Air Conditioning system
126742_Text.indd 37/3/12 11:04 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
Indicator symbols
Charging system warning1
Brake system warning1
PASSENGER AIR BAG ON and PASSENGER AIR BAG OFF indicator1
Anti-lock Brake System warning1
Headlight high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control/Cruise control SET indicator
Low Tire Pressure Warning1
Open door warning
SRS Airbag warning1
Driver seat belt reminder (on the instrument cluster)
(alarm will sound if speed is over 12 mph)Front passenger seat belt reminder (on the center panel)
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Low fuel level warning
Front fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual .
Low engine oil pressure warning1
Vehicle Stability Control OFF indicator1
Maintenance/Service required indicator1
Electric power steering warning1
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Traction Control OFF indicator1
126742_Text.indd 57/3/12 11:05 PM

10
Lights & turn signals
Turn signals
Headlights
Front fog lights (if equipped)
Daytime Running Light system (DRL) Headlights turn on automatically upon
starting engine. The brightness of the headlights will automatically change
depending on the darkness of the surroundings.
Front fog lights come on only when the headlights are on low beam.
Parking lights

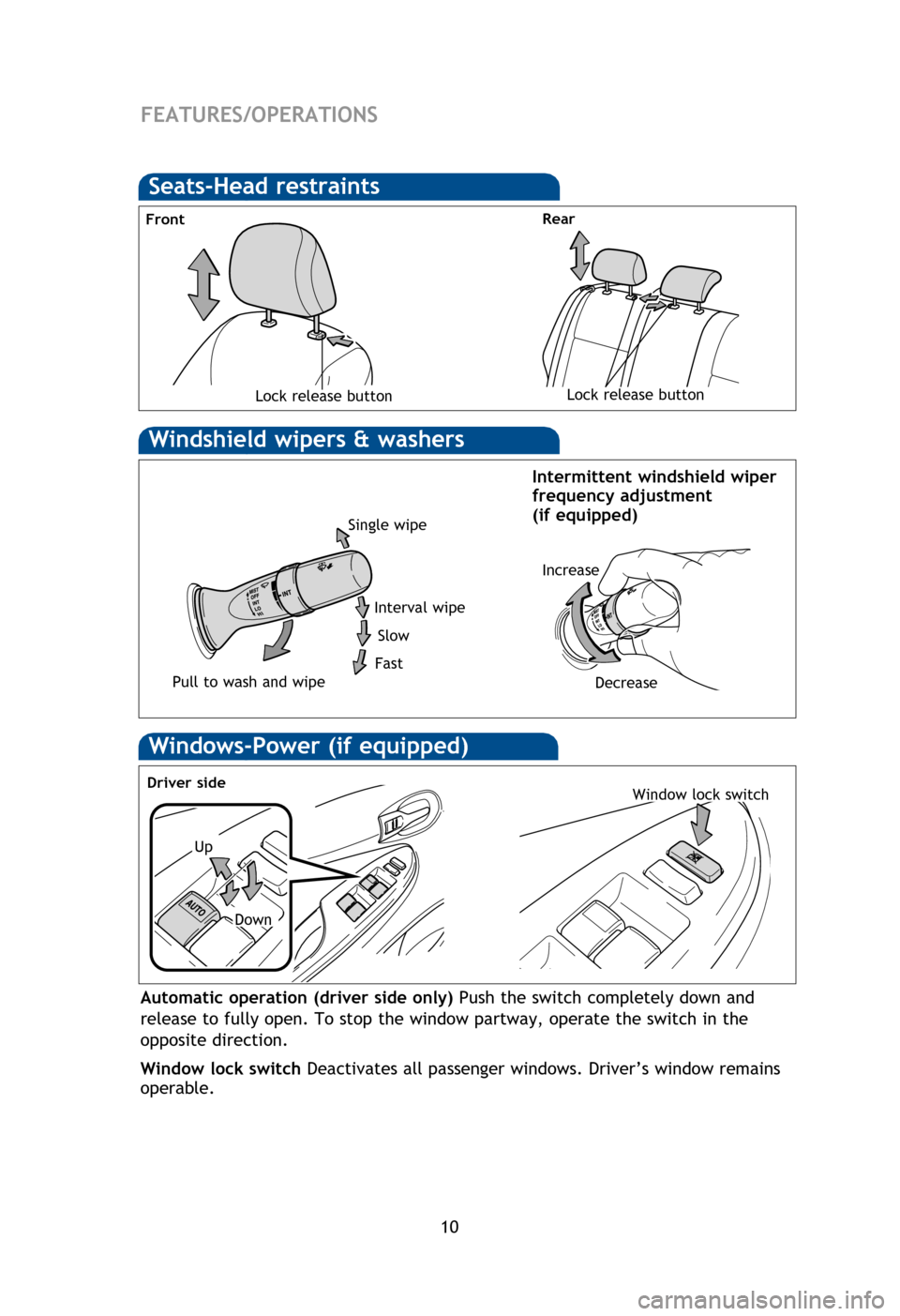

FEATURES/OPERATIONS
Seats-Head restraints
Front Rear
Lock release buttonLock release button
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Windows-Power (if equipped)
Up
Down
Driver sideWindow lock switch
Automatic operation (driver side only) Push the switch completely down and
release to fully open. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable. Intermittent windshield wiper
frequency adjustment
(if equipped)
Power outlet
Designed for 12V car accessories. The ignition switch must be in the “ACC” or
“ON” position.
Increase
Decrease
126742_Text.indd 107/3/12 11:05 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

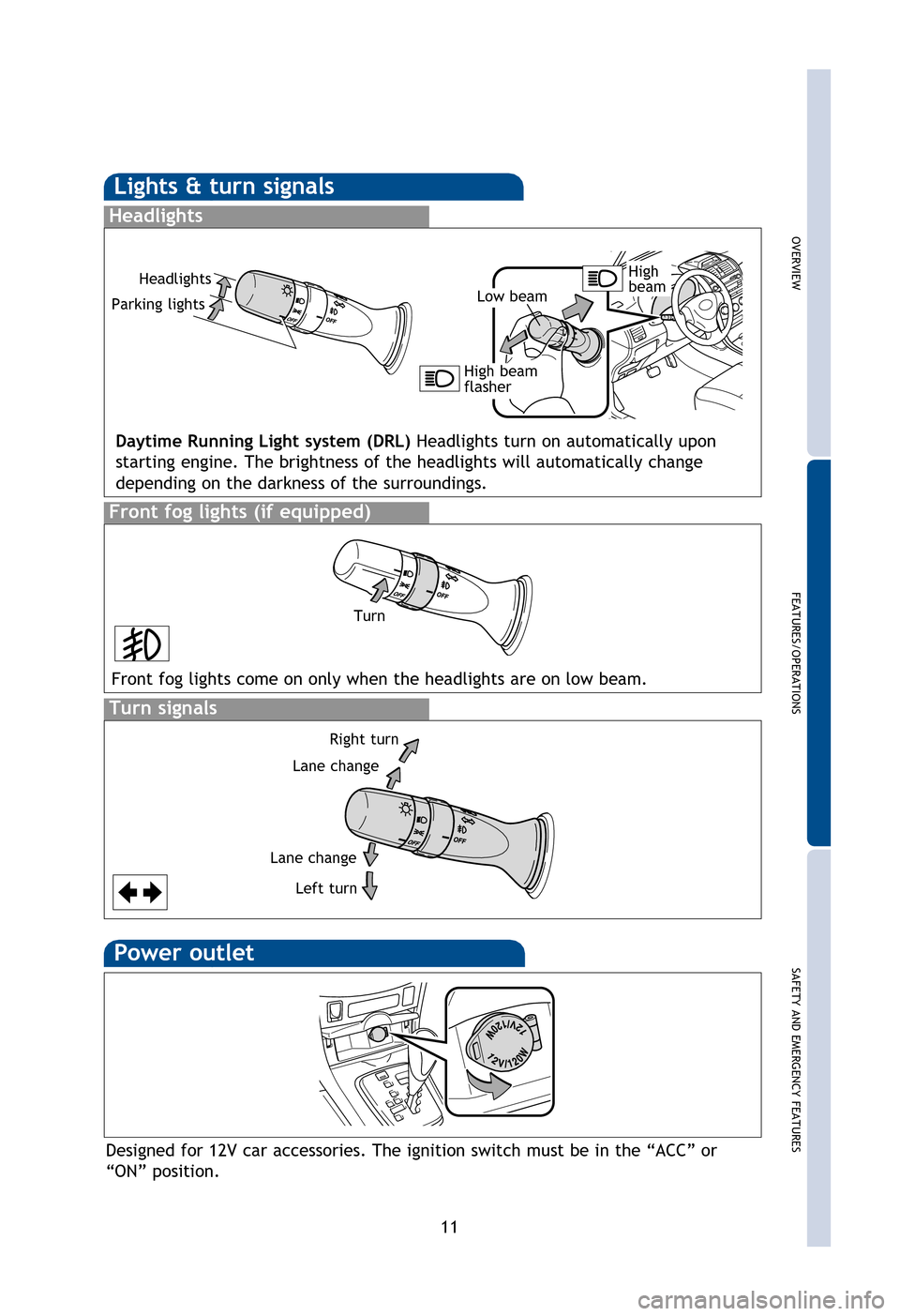

Lights & turn signals
Turn signals
Headlights
High beam
flasher
Low beam
Front fog lights (if equipped)
Daytime Running Light system (DRL) Headlights turn on automatically upon
starting engine. The brightness of the headlights will automatically change
depending on the darkness of the surroundings.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn
High
beamHeadlights
Parking lights
Turn
Window lock switch
Automatic operation (driver side only) Push the switch completely down and
release to fully open. To stop the window partway, operate the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable. Intermittent windshield wiper
frequency adjustment
(if equipped)
Power outlet
Designed for 12V car accessories. The ignition switch must be in the “ACC” or
“ON” position.
126742_Text.indd 117/3/12 11:05 PM
