91
3
Operation of
each component
COROLLA_TMMMS_TMMC_U (OM12F00U)3-1. Key information
Keys .................................... 92
3-2. Opening, closing and
locking the doors
Doors .................................. 97
Trunk ................................. 106
Smart key system ............. 111
3-3. Adjusting the seats
Front seats ........................ 120
Rear seats......................... 122
Head restraints.................. 124
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .................. 127
Inside rear view mirror ...... 129
Outside rear view
mirrors ............................. 131
3-5. Opening and closing
the windows
Power windows ................. 133
Moon roof .......................... 137
Page 92 of 612
![TOYOTA COROLLA 2014 11.G Owners Manual 92
COROLLA_TMMMS_TMMC_U (OM12F00U)
3-1. Key information

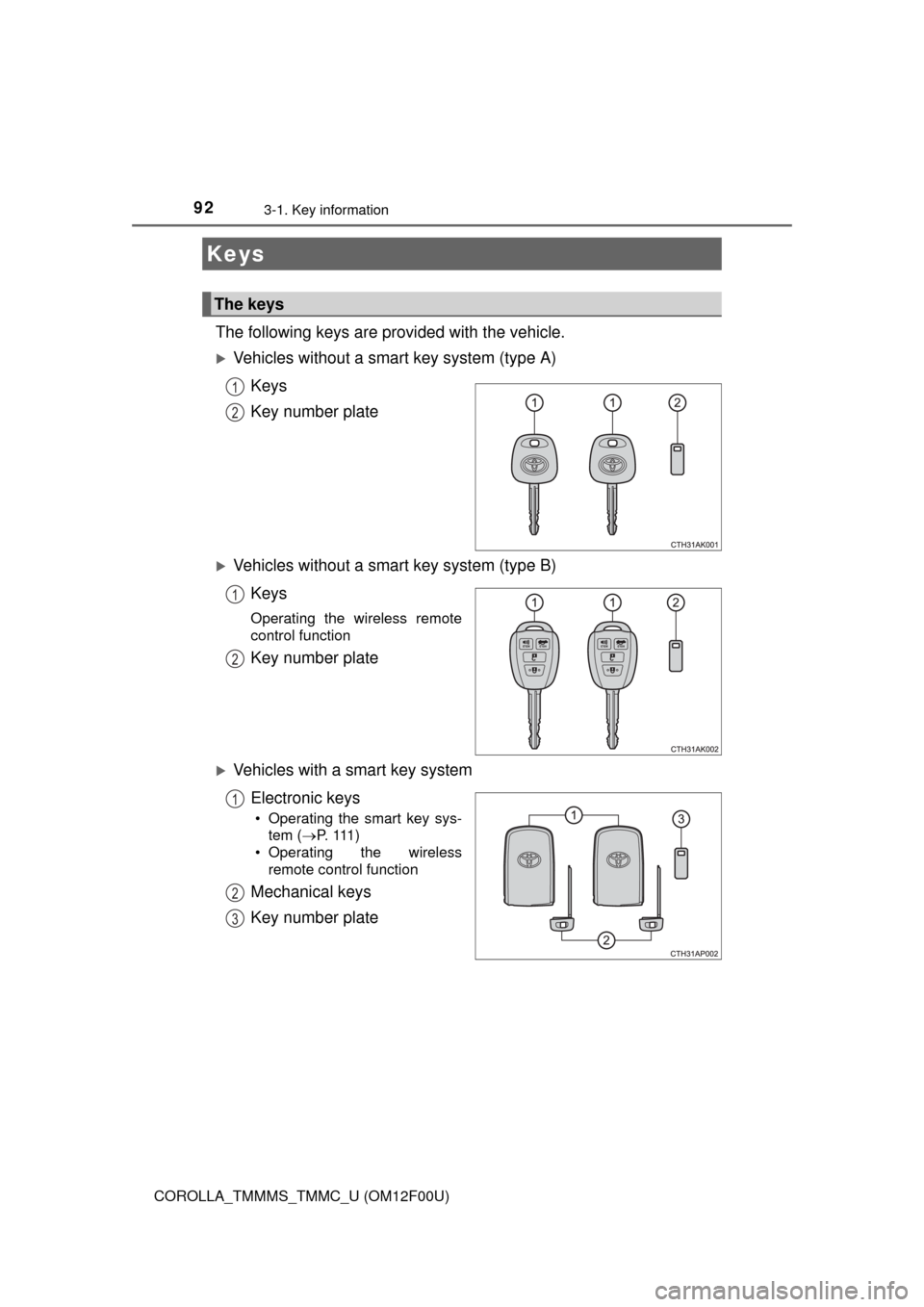

The following keys are provided with the vehicle.
Vehicles without a smart key system (type A)
Keys
Key number plate
Vehicles without a sm TOYOTA COROLLA 2014 11.G Owners Manual 92
COROLLA_TMMMS_TMMC_U (OM12F00U)
3-1. Key information
The following keys are provided with the vehicle.
Vehicles without a smart key system (type A)
Keys
Key number plate
Vehicles without a sm](/img/14/6336/w960_6336-91.png)
92
COROLLA_TMMMS_TMMC_U (OM12F00U)
3-1. Key information
The following keys are provided with the vehicle.
Vehicles without a smart key system (type A)
Keys
Key number plate
Vehicles without a smart key system (type B)
Keys
Operating the wireless remote
control function
Key number plate
Vehicles with a smart key system
Electronic keys
• Operating the smart key sys-
tem (P. 111 )
• Operating the wireless
remote control function
Mechanical keys
Key number plate
Keys
The keys
1
2
1
2
1
2
3
Page 93 of 612
![TOYOTA COROLLA 2014 11.G Owners Manual 933-1. Key information
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)
Vehicles without a smart key system
Locks all the doors (P. 9 7 )
Unlocks all the doors
(P. 97)
Pressing TOYOTA COROLLA 2014 11.G Owners Manual 933-1. Key information
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)
Vehicles without a smart key system
Locks all the doors (P. 9 7 )
Unlocks all the doors
(P. 97)
Pressing](/img/14/6336/w960_6336-92.png)
933-1. Key information
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)
Vehicles without a smart key system
Locks all the doors (P. 9 7 )
Unlocks all the doors
(P. 97)
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Sounds the alarm (P. 9 4 )
Opens the trunk (P. 107)
Vehicles with a smart key system
Locks all the doors (P. 9 8 )
Unlocks all the doors
(P. 98)
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Opens the trunk (P. 107)
Sounds the alarm (P. 9 4 )
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. (P. 529)

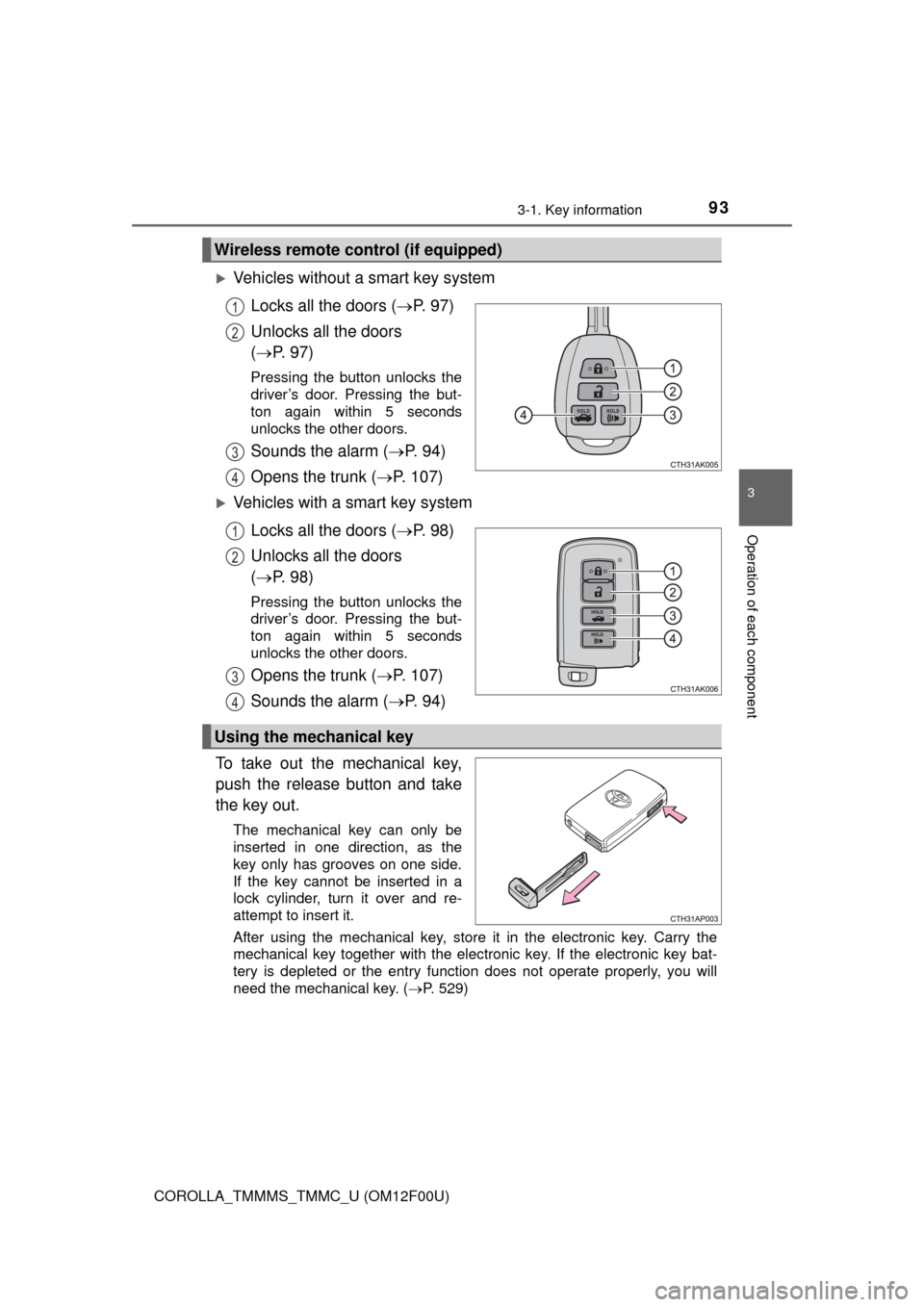

Wireless remote control (if equipped)
1
2
3
4
1
2
3
4
Using the mechanical key
Page 94 of 612
![TOYOTA COROLLA 2014 11.G Owners Manual 943-1. Key information
COROLLA_TMMMS_TMMC_U (OM12F00U)

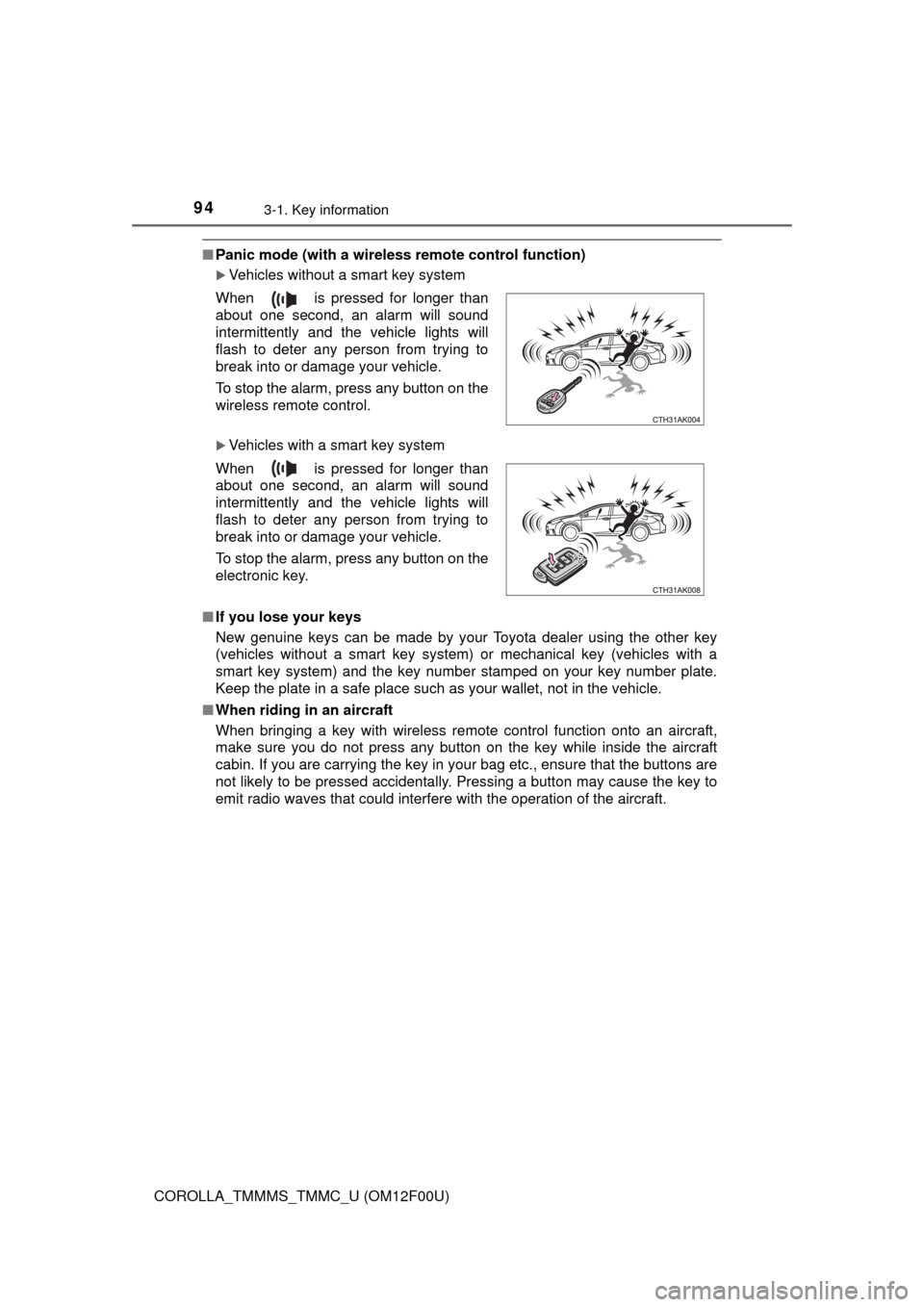

■Panic mode (with a wireless remote control function)
Vehicles without a smart key system
Vehicles with a smart key system
■If you lose TOYOTA COROLLA 2014 11.G Owners Manual 943-1. Key information
COROLLA_TMMMS_TMMC_U (OM12F00U)
■Panic mode (with a wireless remote control function)
Vehicles without a smart key system
Vehicles with a smart key system
■If you lose](/img/14/6336/w960_6336-93.png)
943-1. Key information
COROLLA_TMMMS_TMMC_U (OM12F00U)
■Panic mode (with a wireless remote control function)
Vehicles without a smart key system
Vehicles with a smart key system
■If you lose your keys
New genuine keys can be made by your Toyota dealer using the other key
(vehicles without a smart key system) or mechanical key (vehicles with a
smart key system) and the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any button on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft. When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
Page 95 of 612
![TOYOTA COROLLA 2014 11.G Owners Manual 953-1. Key information
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)■Electronic key battery depletion (vehicles with a smart key system)
●The standard battery life is 1 to 2 years. TOYOTA COROLLA 2014 11.G Owners Manual 953-1. Key information
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)■Electronic key battery depletion (vehicles with a smart key system)
●The standard battery life is 1 to 2 years.](/img/14/6336/w960_6336-94.png)
953-1. Key information
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)■Electronic key battery depletion (vehicles with a smart key system)
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (P. 498, 509)
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (P. 464)
• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers
■Replacing the battery
P. 464
■Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■If a wrong key is used (vehicles with a smart key system)
The key cylinder rotates freely to isolate inside mechanism.
■Certification for the wireless remote control
For the U.S.A.
FCC ID: HYQ23AAH FCC ID: HYQ12BEL
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For Canada
NOTE:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
Page 96 of 612
![TOYOTA COROLLA 2014 11.G Owners Manual 963-1. Key information
COROLLA_TMMMS_TMMC_U (OM12F00U)
NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatur TOYOTA COROLLA 2014 11.G Owners Manual 963-1. Key information
COROLLA_TMMMS_TMMC_U (OM12F00U)
NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatur](/img/14/6336/w960_6336-95.png)
963-1. Key information
COROLLA_TMMMS_TMMC_U (OM12F00U)
NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for long periods of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).
●Vehicles with a smart key system: Do not place the keys near objects that
produce magnetic fields, such as TVs, audio systems and induction cook-
ers, or medical electrical equipment, such as low-frequency therapy equip-
ment.
■Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.
■In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.
■When an electronic key is lost (vehicles with a smart key system)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer immediately with all remaining electronic
keys that was provided with your vehicle.
Page 97 of 612
![TOYOTA COROLLA 2014 11.G Owners Manual 97
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)
3-2. Opening, closing and locking the doors

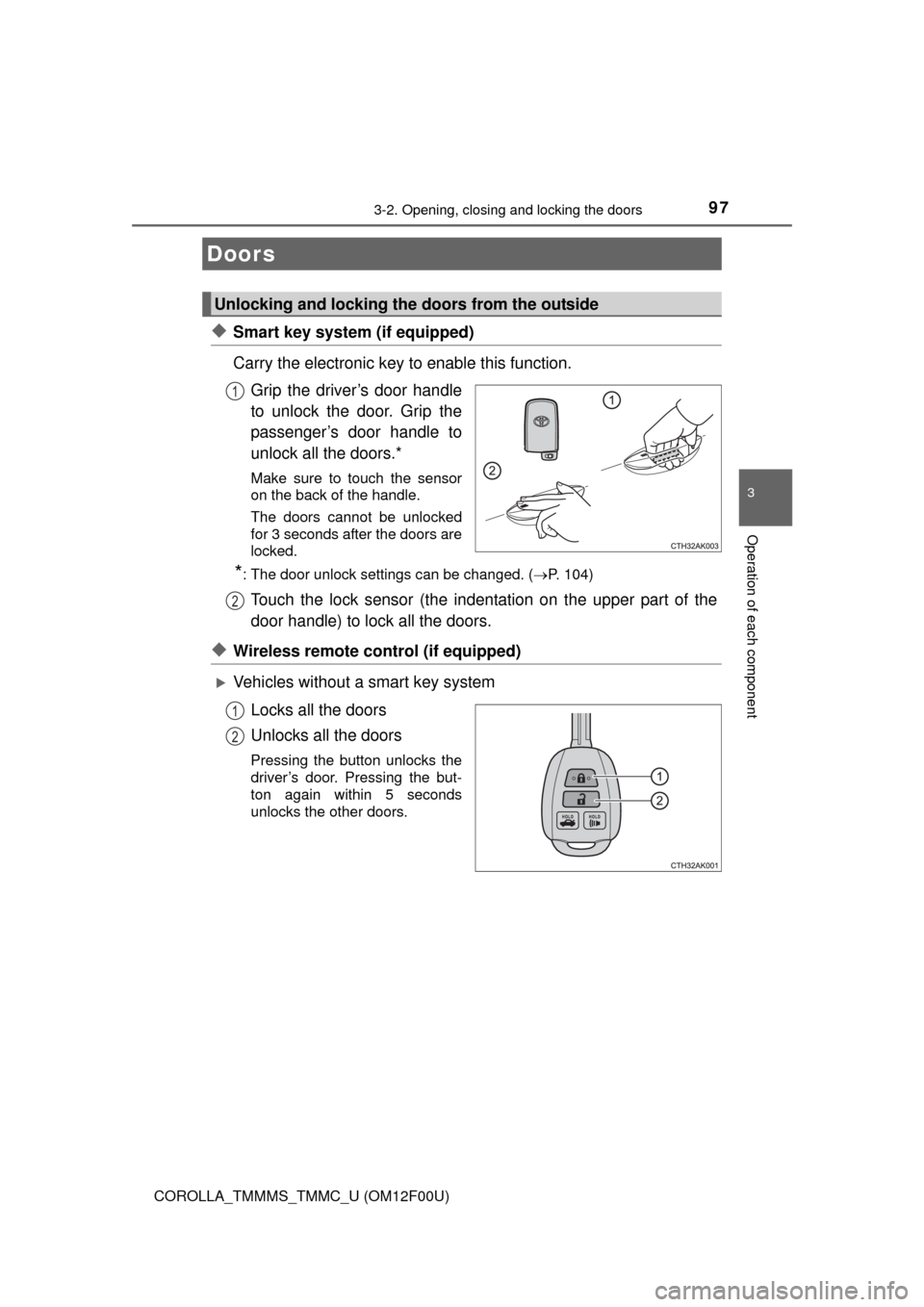

◆Smart key system (if equipped)
Carry the electronic key to enable this function.
Grip th TOYOTA COROLLA 2014 11.G Owners Manual 97
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)
3-2. Opening, closing and locking the doors
◆Smart key system (if equipped)
Carry the electronic key to enable this function.
Grip th](/img/14/6336/w960_6336-96.png)
97
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)
3-2. Opening, closing and locking the doors
◆Smart key system (if equipped)
Carry the electronic key to enable this function.
Grip the driver’s door handle
to unlock the door. Grip the
passenger’s door handle to
unlock all the doors.*
Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
*: The door unlock settings can be changed. (P. 104)
Touch the lock sensor (the indentation on the upper part of the
door handle) to lock all the doors.
◆Wireless remote control (if equipped)
Vehicles without a smart key system
Locks all the doors
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
Doors
Unlocking and locking the doors from the outside
1
2
1
2
Page 98 of 612
![TOYOTA COROLLA 2014 11.G Owners Manual 983-2. Opening, closing and locking the doors
COROLLA_TMMMS_TMMC_U (OM12F00U)

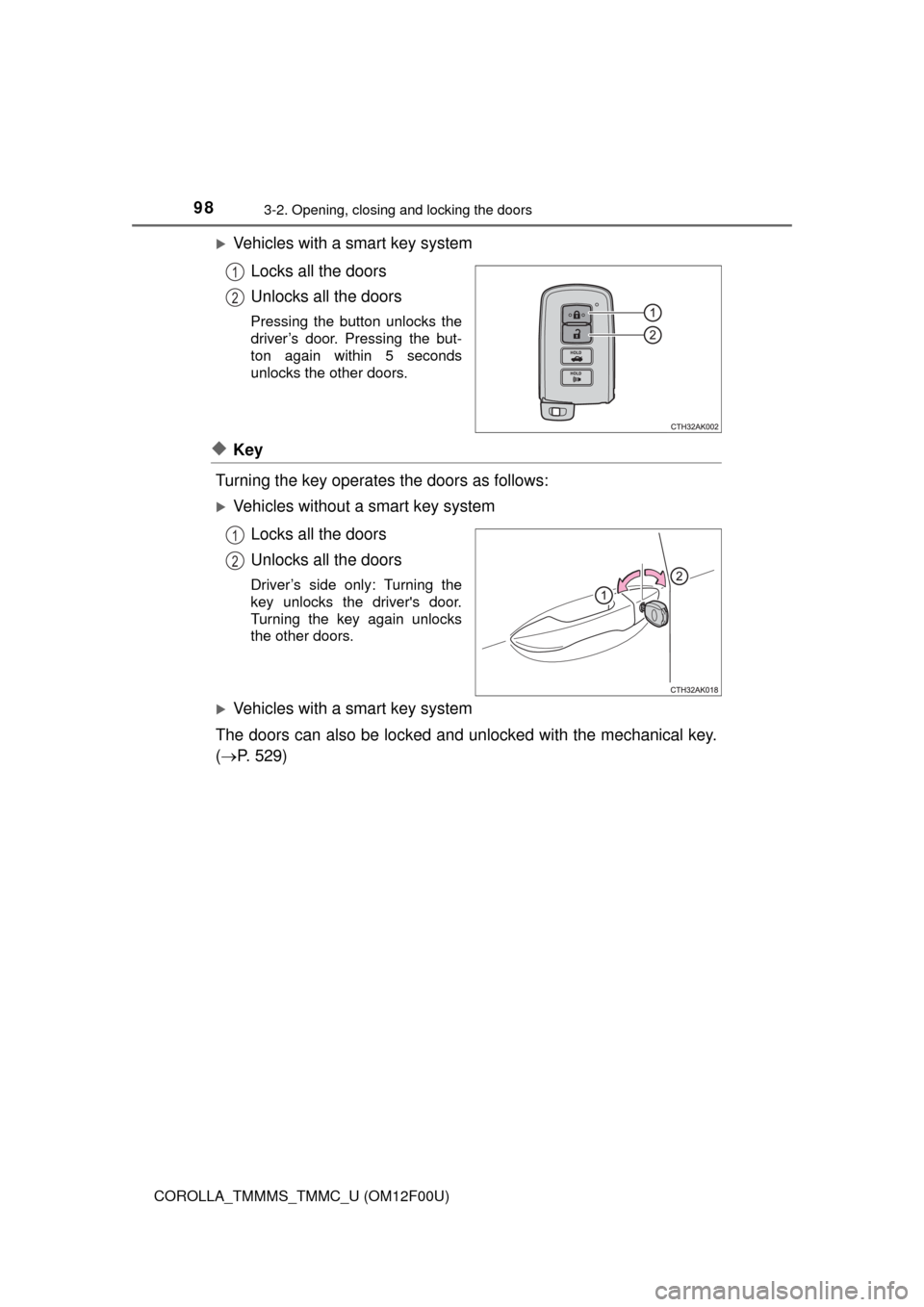

Vehicles with a smart key system
Locks all the doors
Unlocks all the doors
Pressing the button unlocks the
driver’s d TOYOTA COROLLA 2014 11.G Owners Manual 983-2. Opening, closing and locking the doors
COROLLA_TMMMS_TMMC_U (OM12F00U)
Vehicles with a smart key system
Locks all the doors
Unlocks all the doors
Pressing the button unlocks the
driver’s d](/img/14/6336/w960_6336-97.png)
983-2. Opening, closing and locking the doors
COROLLA_TMMMS_TMMC_U (OM12F00U)
Vehicles with a smart key system
Locks all the doors
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.
◆Key
Turning the key operates the doors as follows:
Vehicles without a smart key system
Locks all the doors
Unlocks all the doors
Driver’s side only: Turning the
key unlocks the driver's door.
Turning the key again unlocks
the other doors.
Vehicles with a smart key system
The doors can also be locked and unlocked with the mechanical key.
(P. 529)
1
2
1
2
Page 99 of 612
![TOYOTA COROLLA 2014 11.G Owners Manual 993-2. Opening, closing and locking the doors
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the d TOYOTA COROLLA 2014 11.G Owners Manual 993-2. Opening, closing and locking the doors
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the d](/img/14/6336/w960_6336-98.png)
993-2. Opening, closing and locking the doors
3
Operation of each component
COROLLA_TMMMS_TMMC_U (OM12F00U)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

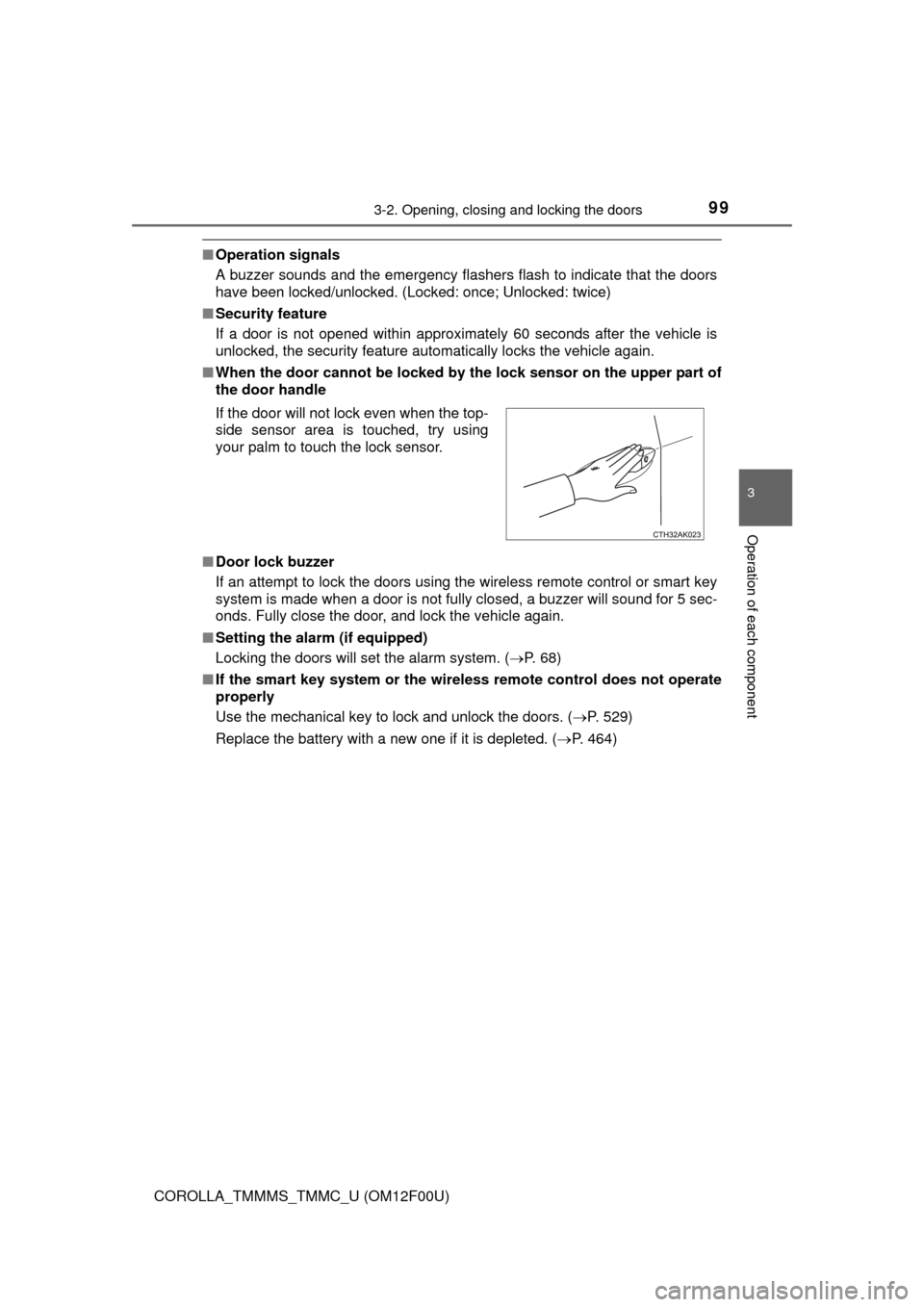

■When the door cannot be locked by the lock sensor on the upper part of
the door handle
■Door lock buzzer
If an attempt to lock the doors using the wireless remote control or smart key
system is made when a door is not fully closed, a buzzer will sound for 5 sec-
onds. Fully close the door, and lock the vehicle again.
■Setting the alarm (if equipped)
Locking the doors will set the alarm system. (P. 68)
■If the smart key system or the wireless remote control does not operate
properly
Use the mechanical key to lock and unlock the doors. (P. 529)
Replace the battery with a new one if it is depleted. (P. 464) If the door will not lock even when the top-
side sensor area is touched, try using
your palm to touch the lock sensor.
Page 100 of 612
![TOYOTA COROLLA 2014 11.G Owners Manual 1003-2. Opening, closing and locking the doors
COROLLA_TMMMS_TMMC_U (OM12F00U)
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
Th TOYOTA COROLLA 2014 11.G Owners Manual 1003-2. Opening, closing and locking the doors
COROLLA_TMMMS_TMMC_U (OM12F00U)
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
Th](/img/14/6336/w960_6336-99.png)

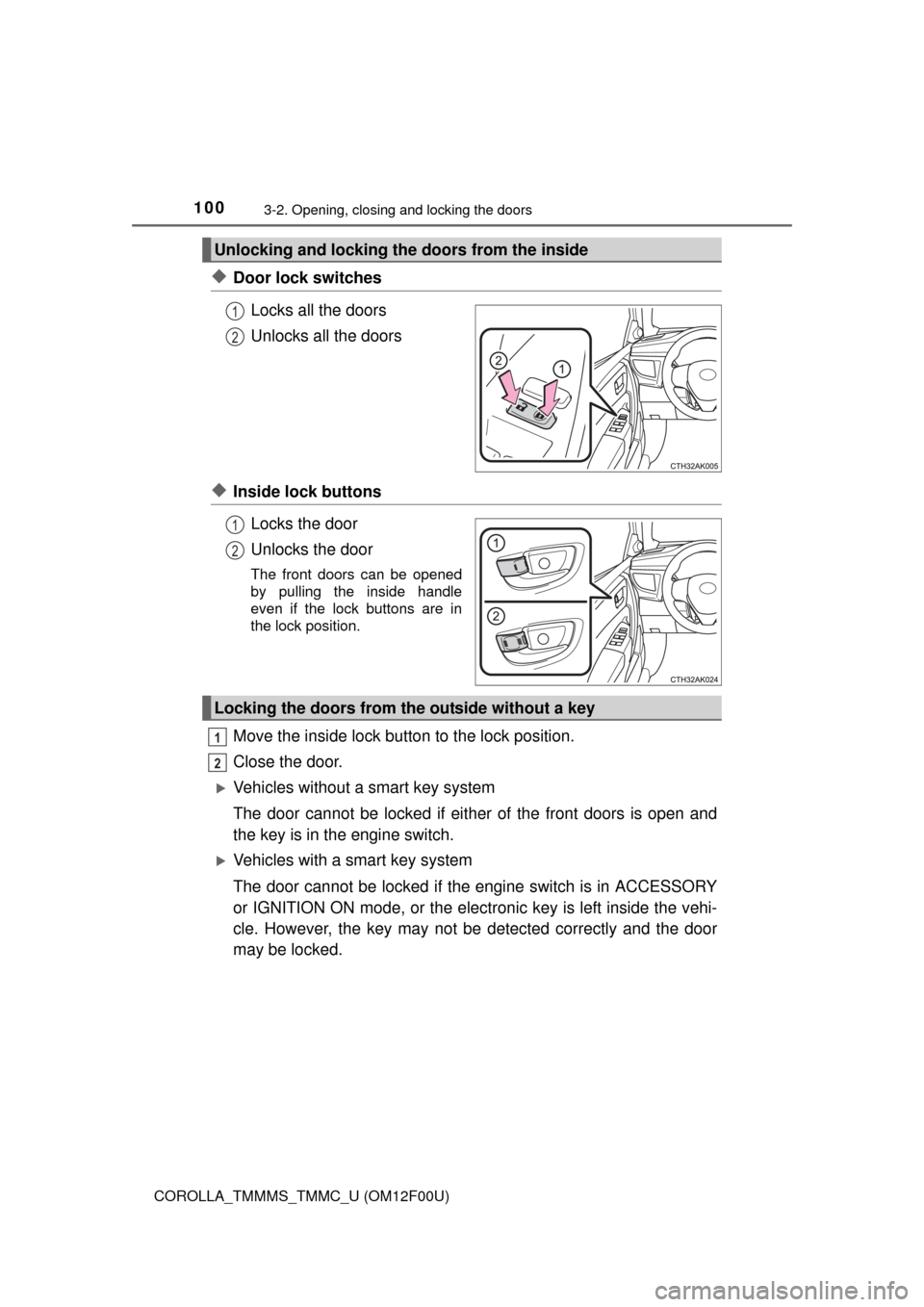

1003-2. Opening, closing and locking the doors
COROLLA_TMMMS_TMMC_U (OM12F00U)
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door.
Vehicles without a smart key system
The door cannot be locked if either of the front doors is open and
the key is in the engine switch.
Vehicles with a smart key system
The door cannot be locked if the engine switch is in ACCESSORY
or IGNITION ON mode, or the electronic key is left inside the vehi-
cle. However, the key may not be detected correctly and the door
may be locked.
Unlocking and locking the doors from the inside
1
2
1
2
Locking the doors from the outside without a key
1
2
