TOYOTA COROLLA 2015 11.G Manual PDF

71
Instrument cluster2
COROLLA_TMMMS_TMMC_U (OM12F00U)2. Instrument cluster
Warning lights and indicators .......................... 72
Gauges and meters (drive monitor display) ...... 77
Gauges and meters (multi-information
display) ............................. 82
Eco Driving Indicator ........... 89

72
COROLLA_TMMMS_TMMC_U (OM12F00U)
2. Instrument cluster
Vehicles with a drive monitor display
Vehicles with a multi-information display
The units used on the meters and some indicators may differ depending on
the target region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights a nd indicators illuminated.

732. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12F00U)

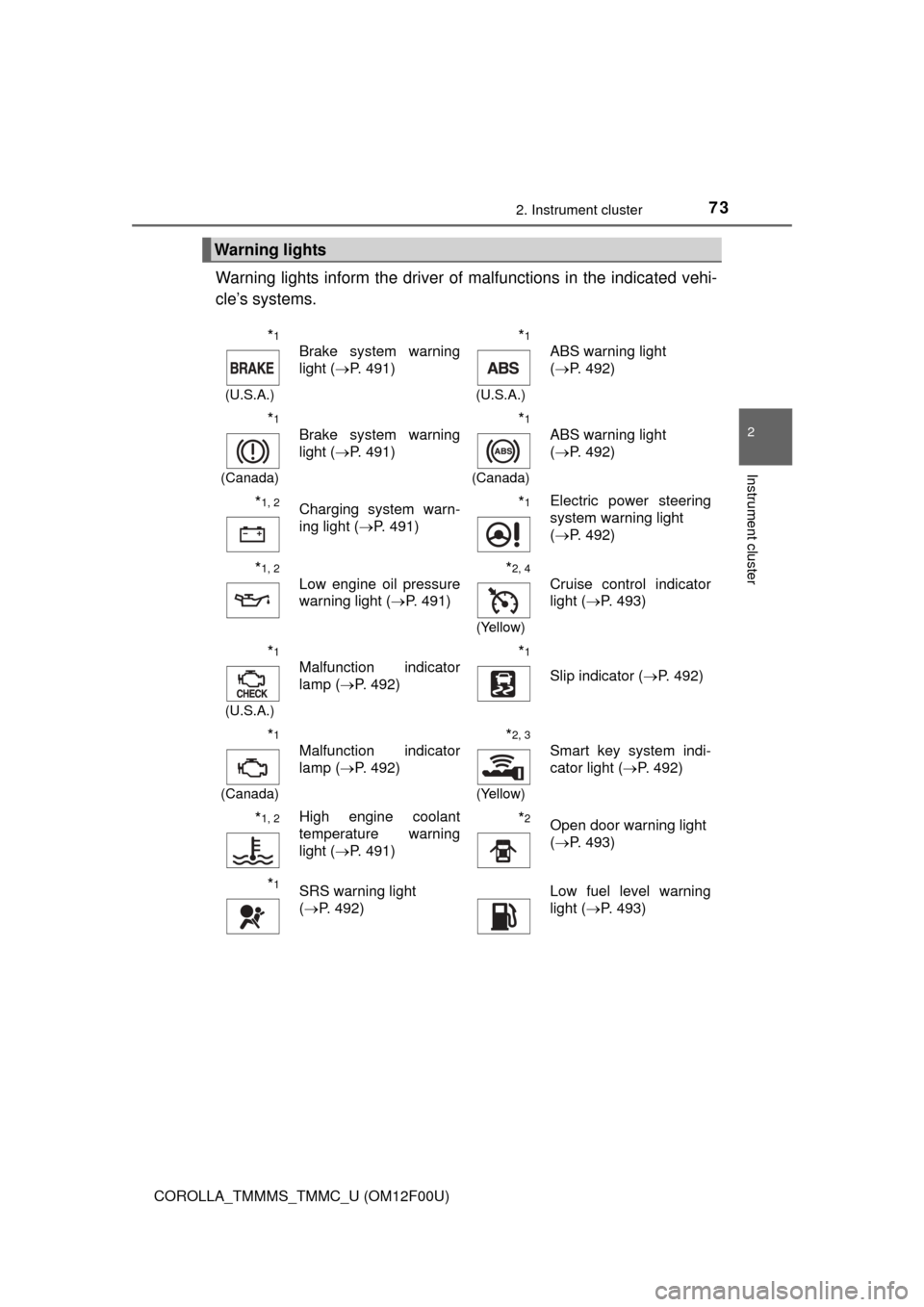

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 491)*1
(U.S.A.)
ABS warning light
(P. 492)
*1
(Canada)
Brake system warning
light ( P. 491)*1
(Canada)
ABS warning light
(P. 492)
*1, 2Charging system warn-
ing light ( P. 491)*1Electric power steering
system warning light
(P. 492)
*1, 2
Low engine oil pressure
warning light ( P. 491)*2, 4
(Yellow)
Cruise control indicator
light ( P. 493)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 492)*1
Slip indicator ( P. 492)
*1
(Canada)
Malfunction indicator
lamp (P. 492)*2, 3
(Yellow)
Smart key system indi-
cator light ( P. 492)
*1, 2High engine coolant
temperature warning
light (P. 491)*2Open door warning light
(P. 493)
*1SRS warning light
(P. 492)Low fuel level warning
light ( P. 493)

742. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12F00U)
*1: Vehicles without a smart key system: These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
Vehicles with a smart key system:
These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: The light flashes in yellow to indicate a malfunction. The light flashesquickly in green to indicate that the steering lock has not been released.
*4: The light comes on in yellow to indicate a malfunction.
Seat belt reminder light
(P. 493)*2Low windshield washer
fluid warning light
(P. 493)
*1
(U.S.A.)
Maintenance required
reminder light ( P. 494)*1, 2
Tire pressure warning
light (P. 493)
*1, 2Master warning light
(P. 493)

752. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12F00U)

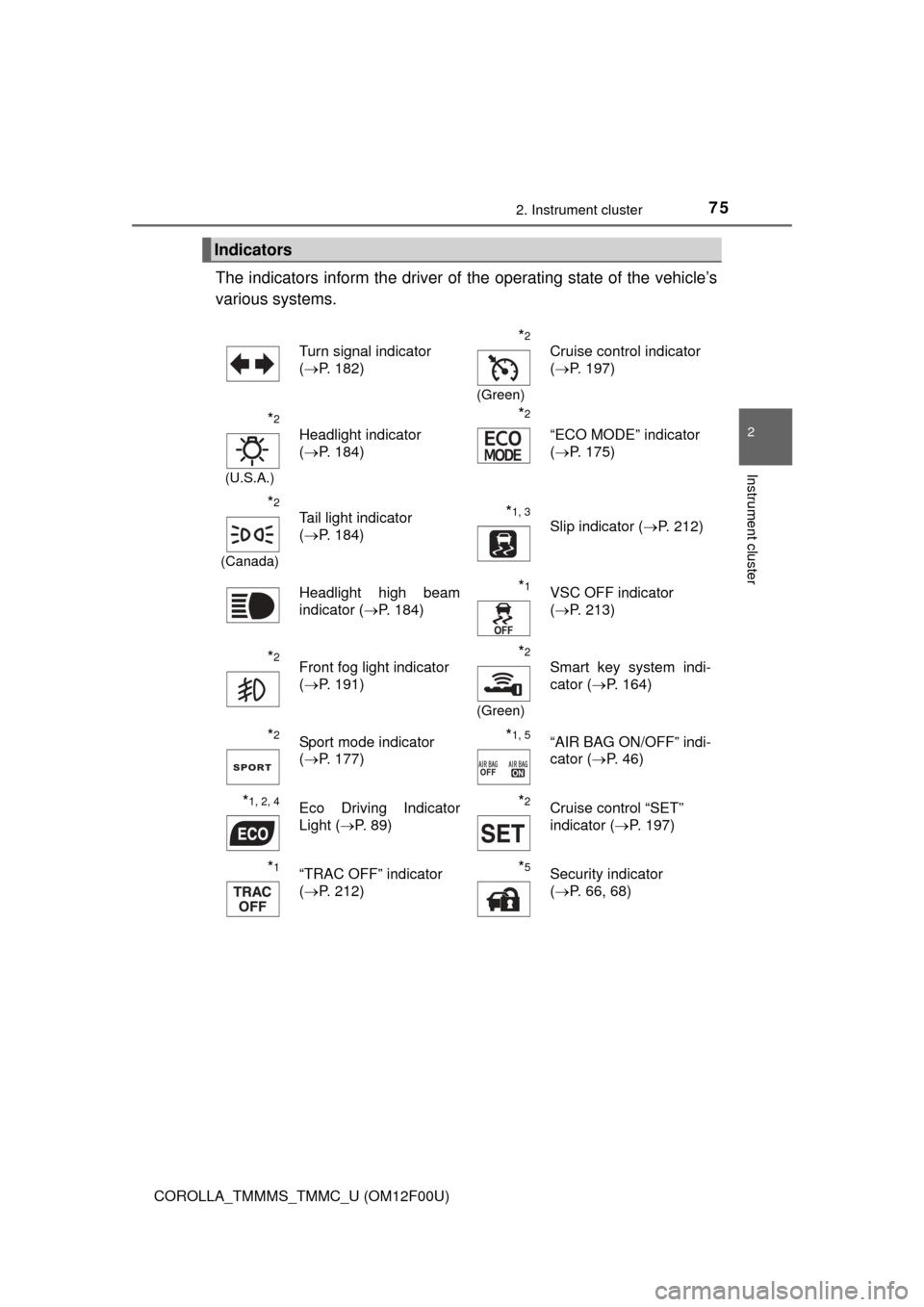

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 182)*2
(Green)
Cruise control indicator
(P. 197)
*2
(U.S.A.)
Headlight indicator
(P. 184)
*2
“ECO MODE” indicator
(P. 175)
*2
(Canada)
Tail light indicator
(P. 184) *1, 3 Slip indicator ( P. 212)
Headlight high beam
indicator ( P. 184)
*1VSC OFF indicator
(P. 213)
*2Front fog light indicator
(P. 191)*2
(Green)
Smart key system indi-
cator ( P. 164)
*2Sport mode indicator
(P. 177)*1, 5“AIR BAG ON/OFF” indi-
cator ( P. 46)
*1, 2, 4Eco Driving Indicator
Light (P. 89)*2Cruise control “SET”
indicator ( P. 197)
*1“TRAC OFF” indicator
(P. 212)*5Security indicator
(P. 66, 68)

762. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12F00U)
*1: Vehicles without a smart key system: These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction
in a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
Vehicles with a smart key system:
These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do not turn
off. Have the vehicle inspected by your Toyota dealer.
*2: If equipped
*3: The light flashes to indicate that the system is operating.
*4: The light does not turn on when the system is disabled.
*5: This light illuminates on the center panel.
CAUTION
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

772. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12F00U)

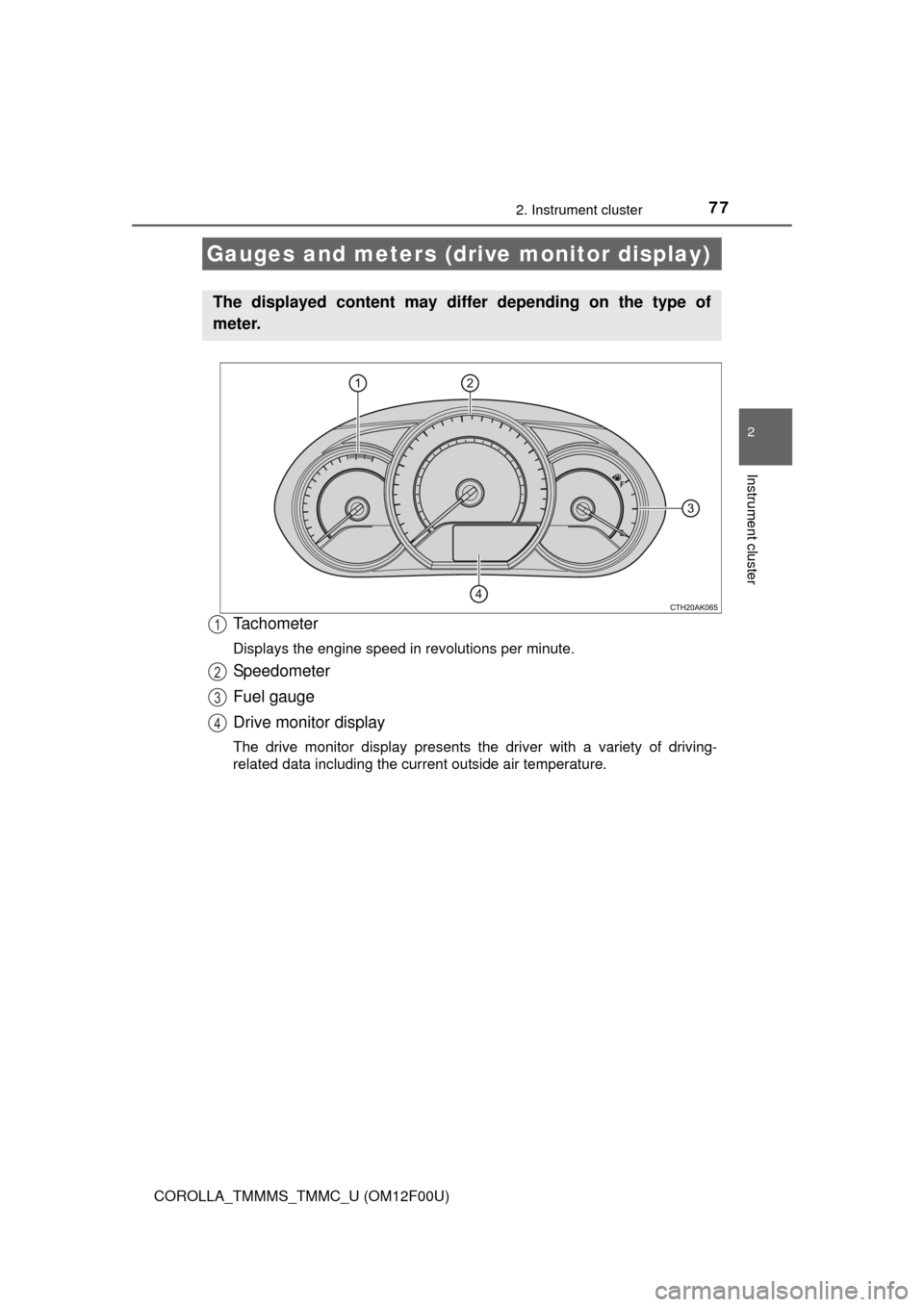

Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Fuel gauge
Drive monitor display
The drive monitor display presents the driver with a variety of driving-
related data including the current outside air temperature.
Gauges and meters (drive monitor display)
The displayed content may differ depending on the type of
meter.
1
2
3
4

782. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12F00U)
Engine coolant temperature
gauge
Displays the engine coolant tem-
perature.
Eco Driving Indicator Zone Dis-
play
* ( P. 9 0 )
Outside temperature display
(  P. 404)
Shift position and gear position indicator
* (  P. 172, 174, 176)
Trip information ( P. 7 9 )
*: Except vehicles with a manual transmission
When the tail lights are on, the br ightness of the instrument panel
lights can be adjusted. (On vehicles with an automatic light control
system, the instrument panel lights can be adjusted when the sur-
rounding area is dark and the tail lights are on.)
The brightness of the clock li ght can be adjusted regardless of
whether the tail lights are on or off.
Brighter
Darker
Drive monitor display
1
2
3
Instrument panel light control
4
5
1
2

792. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12F00U)■
Switching the display
Items displayed can be
switched by pressing the
“DISP” switch.
■Odometer
Displays the total distance the vehicle has been driven.
Except vehicles with a manual transmission: Press and hold the “DISP”
switch to change the display to the Eco Driving Indicator Light customi-
zation screen. (
P. 80)
■
Tr i p m e t e r A*/trip meter B*
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
■Current fuel consumption
Displays the current rate of fuel consumption.
Use the displayed current fuel consumption as a reference.
■
Average fuel consumption*
Displays the average fuel consum ption since the function was
reset.
• Use the displayed average fuel consumption as a reference.
• Except vehicles with a manual transmission: While the average fuel consumption is being displayed, the Eco Driving Indicator Zone Display
is displayed.
Trip information

802. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM12F00U)■
Driving range
Displays the estimated maximum distance that can be driven with
the quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
• When only a small amount of fuel is added to the tank, the display may
not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled with-
out turning the engine switch off, the display may not be updated.
■
Average vehicle speed
Displays the average vehicle speed since the engine was last
started.
*: Press and hold the “DISP” switch to reset.

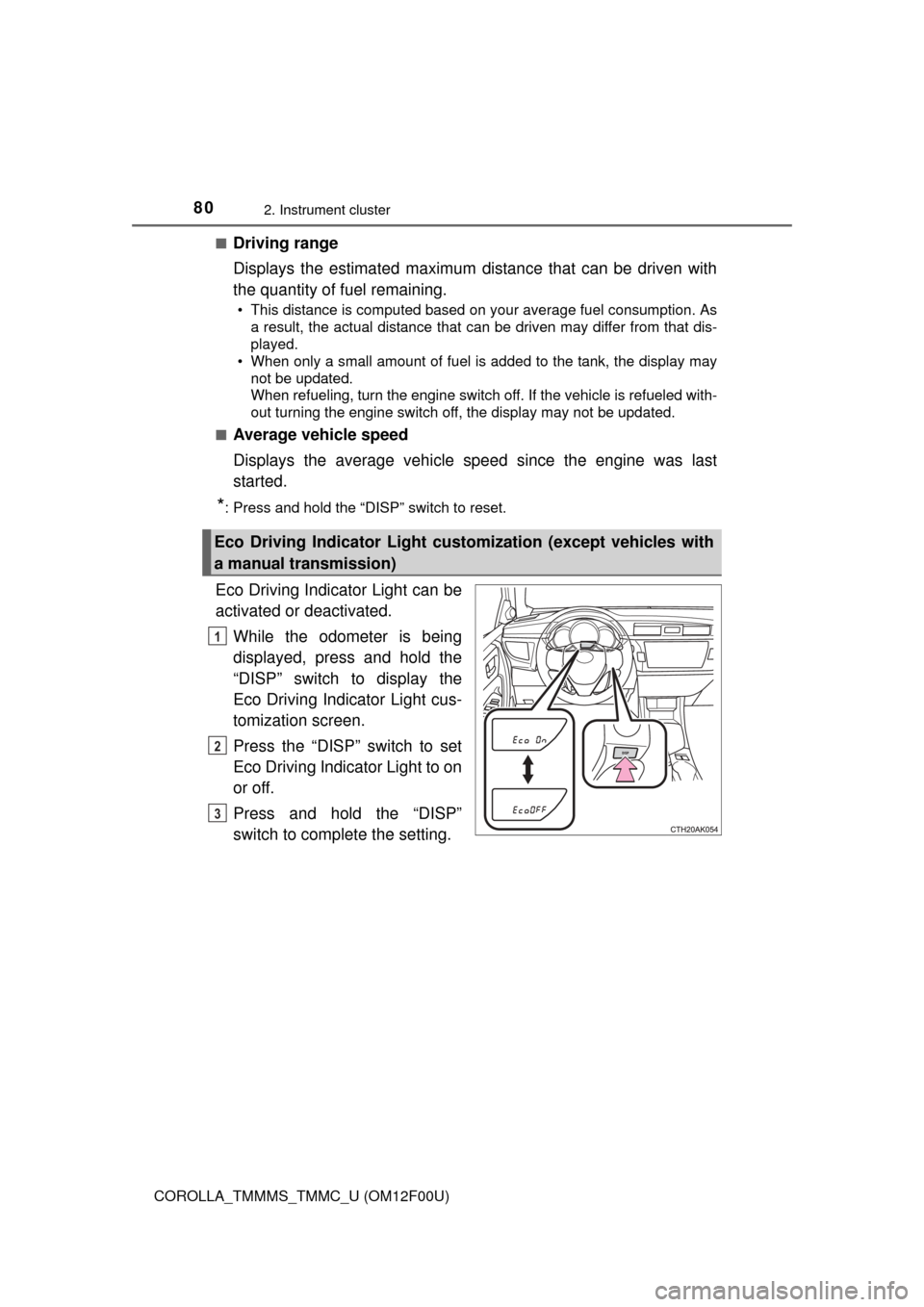

Eco Driving Indicator Light can be
activated or deactivated.
While the odometer is being
displayed, press and hold the
“DISP” switch to display the
Eco Driving Indicator Light cus-
tomization screen.
Press the “DISP” switch to set
Eco Driving Indicator Light to on
or off.
Press and hold the “DISP”
switch to complete the setting.
Eco Driving Indicator Light cu stomization (except vehicles with
a manual transmission)
1
2
3
