1-1. For safe use
Before driving ...................... 24
For safety drive ................... 26
Seat belts ............................ 28
SRS airbags ........................ 34
Front passenger occupant classification system ......... 46
Safety information for children ........................ 52
Child restraint systems ........ 53
Installing child restraints ...... 57
Exhaust gas precautions ..... 65
1-2. Theft deterrent system Engine immobilizer system............................... 66
Alarm ................................... 68
2. Instrument cluster Warning lights and indicators........................... 72
Gauges and meters (drive monitor display)....... 77
Gauges and meters (multi-information
display).............................. 82
Eco Driving Indicator ........... 89 3-1. Key information
Keys..................................... 92
3-2. Opening, closing and locking the doors
Doors ................................... 97
Trunk ................................. 106
Smart key system .............. 111
3-3. Adjusting the seats Front seats......................... 120
Rear seats ......................... 122
Head restraints .................. 124
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 127
Inside rear view mirror ....... 129
Outside rear view mirrors ............................. 131
3-5. Opening and closing the windows
Power windows.................. 133
Moon roof .......................... 137
1For safety and security
2Instrument cluster
3Operation of each
component

11
COROLLA_TMMMS_TMMC_U (OM12F00U)The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
CAUTION
■
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regard ing children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.

21Pictorial index
COROLLA_TMMMS_TMMC_U (OM12F00U)Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 137
Interior light/personal lights
*2 . . . . . . . . . . . . . . . . . . . P. 396, 397
Microphone
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 258
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 406
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 403
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 403
Auto anti-glare inside rear view mirror
*1/
compass
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 129, 407
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 129
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
7
8

381-1. For safe use
COROLLA_TMMMS_TMMC_U (OM12F00U)

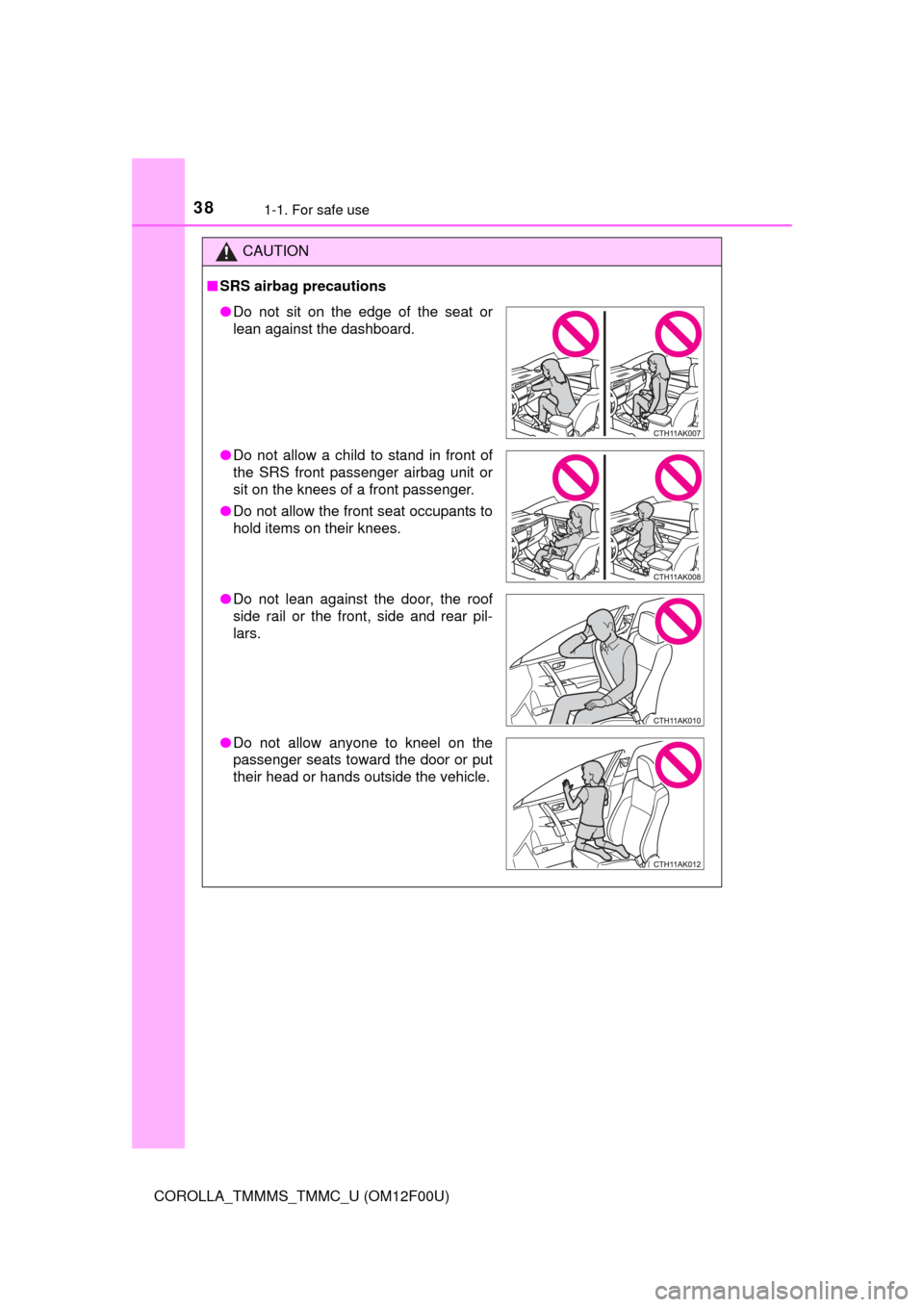

CAUTION
■SRS airbag precautions
● Do not sit on the edge of the seat or
lean against the dashboard.
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants to
hold items on their knees.
● Do not lean against the door, the roof
side rail or the front, side and rear pil-
lars.
● Do not allow anyone to kneel on the
passenger seats toward the door or put
their head or hands outside the vehicle.

391-1. For safe use
1
For safety and security
COROLLA_TMMMS_TMMC_U (OM12F00U)

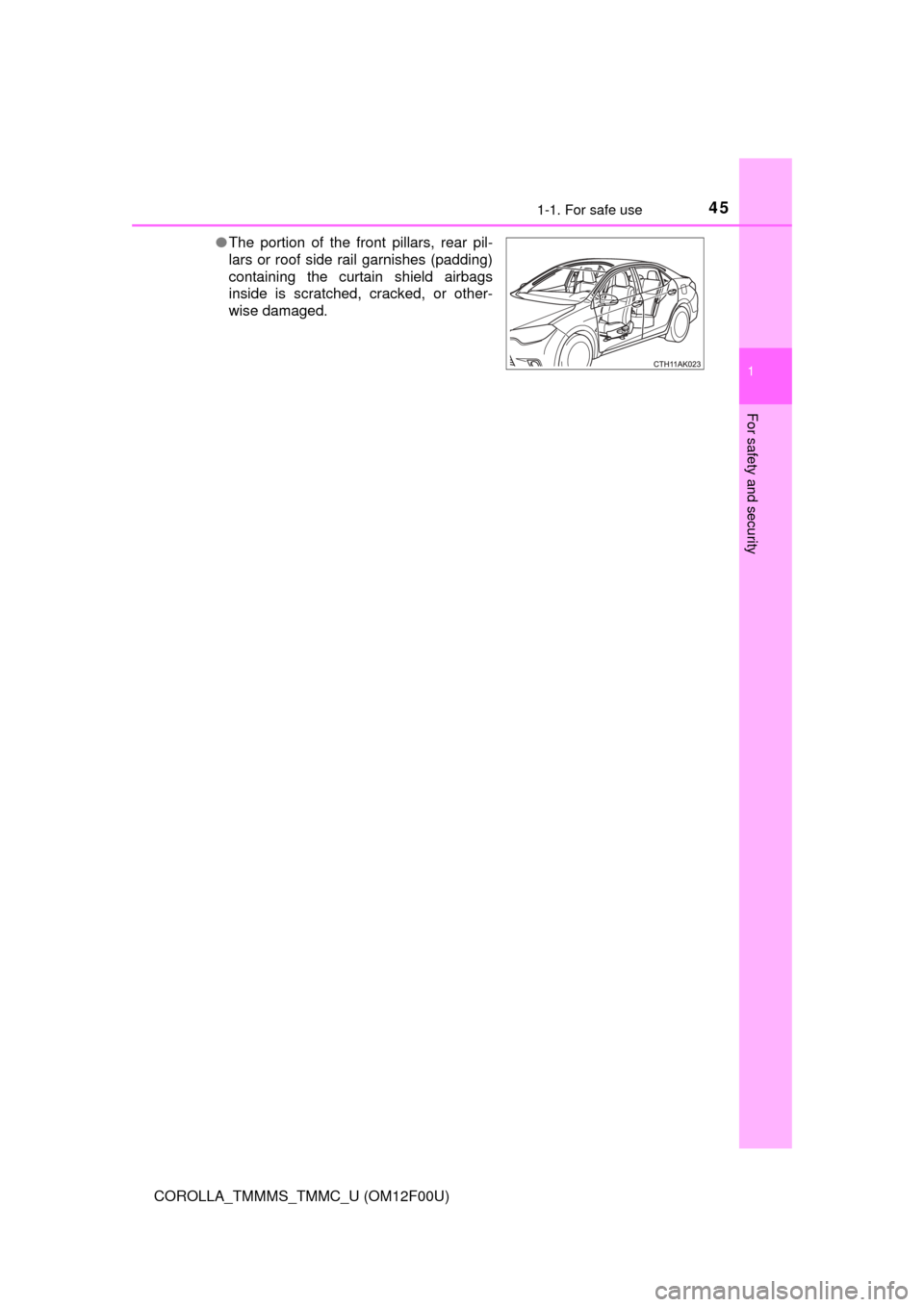

CAUTION
■SRS airbag precautions
● Do not attach anything to or lean any-
