TOYOTA COROLLA 2017 11.G Navigation Manual

101
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U
AUDIO SYSTEM
31Select the repeat button to change on/
off.
1Select the random button to change
on/off.
1Select the repeat button to change on/
off.
1Select the random button to change
on/off.
PLAYING AN AUDIO CD
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
PLAYING AN MP3/WMA/AAC
DISC
REPEATING
The file currently being listened to can
be repeated.
RANDOM ORDER
Files can be automatically and ran-
domly selected.

102
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U

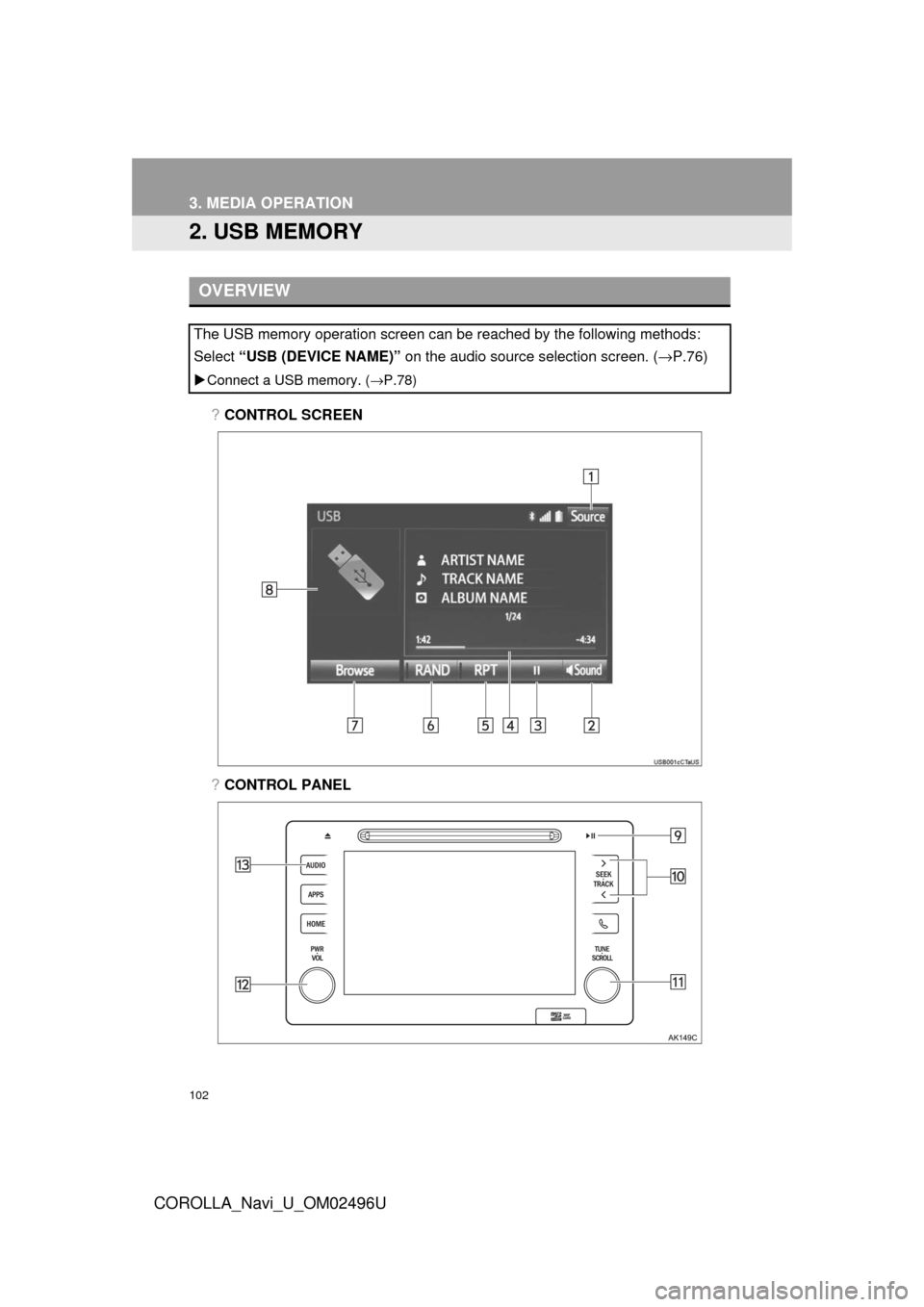

2. USB MEMORY
?CONTROL SCREEN
?CONTROL PANEL
OVERVIEW
The USB memory operation screen can be reached by the following methods:
Select “USB (DEVICE NAME)” on the audio source selection screen. ( →P.76)
Connect a USB memory. ( →P.78)

103
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U
AUDIO SYSTEM
3

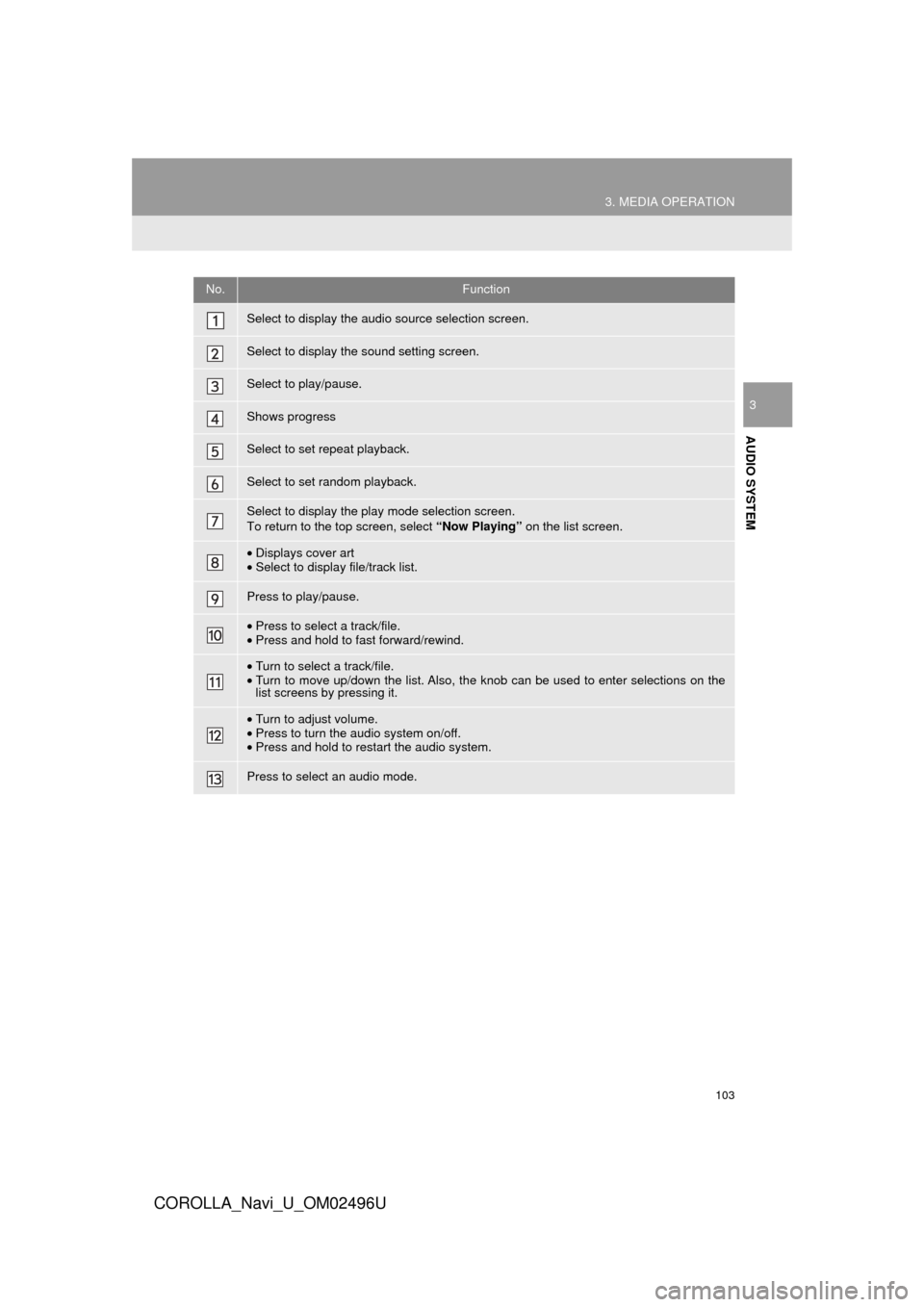

No.Function
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
•Displays cover art
• Select to display file/track list.
Press to play/pause.
•Press to select a track/file.
• Press and hold to fast forward/rewind.
•Turn to select a track/file.
• Turn to move up/down the list. Also, the knob can be used to enter selections on the
list screens by pressing it.
•Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.
Press to select an audio mode.

104
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U
WARNING
?Do not operate the player’s controls or connect the USB memory while driving.
NOTICE
?Do not leave your portable player in the car. In particular, high temperatures inside the
vehicle may damage the portable player.
?Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
?Do not insert foreign objects into the port as this may damage the portable player or its
terminal.
INFORMATION
?If tag information exists, the file/folder names will be changed to track/album names.

105
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U
AUDIO SYSTEM
31Select the repeat button to change on/
off.
1Select the random button to change
on/off.
PLAYING A USB AUDIO
REPEATING
The file/track currently being listened
to can be repeated.
RANDOM ORDER
Files/tracks can be automatically and
randomly selected.

106
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U
3. iPod
?CONTROL SCREEN
OVERVIEW
The iPod operation screen can be reached by the following methods:
Select “iPod (DEVICE NAME)” on the audio source selection screen. ( →P.76)
Connect an iPod. ( →P.78)
When the iPod connected to the system includes iPod video, the system can only
output the sound by selecting the browse screen.

107
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U
AUDIO SYSTEM
3
?CONTROL PANEL

108
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U
No.Function
•Displays cover art
• Select to display a track list.
Select to display the audio source selection screen.
Select to display the sound setting screen.
Select to play/pause.
Shows progress
Select to set repeat playback.
Select to set random playback.
Select to display the play mode selection screen.
To return to the top screen, select “Now Playing” on the list screen.
Press to play/pause.
•Press to select a track.
• Press and hold to fast forward/rewind.
•Turn to select a track.
• Turn to move up/down the list. Also, the k nob can be used to enter selections on the
list screens by pressing it.
• Turn to adjust volume.
• Press to turn the audio system on/off.
• Press and hold to restart the audio system.
Press to select an audio mode.

109
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U
AUDIO SYSTEM
3
WARNING
?Do not operate the player’s controls or connect the iPod while driving.
NOTICE
?Do not leave your portable player in the car. In particular, high temperatures inside the
vehicle may damage the portable player.
?Do not push down on or apply unnecessary pressure to the portable player while it is con-
nected as this may damage the portable player or its terminal.
?Do not insert foreign objects into the port as this may damage the portable player or its
terminal.
INFORMATION
?When an iPod is connected using a genuine iPod cable, the iPod starts charging its bat-
tery.
?Depending on the iPod, the video sound may not be able to be heard.
?Depending on the iPod and the songs in the iPod, iPod cover art may be displayed. This
function can be changed to on/off. (→P.121) It may take time to display iPod cover art,
and the iPod may not be operated while the cover art display is in process.
?When an iPod is connected and the audio source is changed to iPod mode, the iPod will
resume playing from the same point it was last used.
?Depending on the iPod that is connected to the system, certain functions may not be
available.
?Files/tracks selected by operating a connected iPod may not be recognized or displayed
properly.
?If an iPhone is connected via Bluetooth® and USB at the same time, system operation
may become unstable. For known phone compatibility information, refer to
http://www.toyota.com/entune/
.

110
3. MEDIA OPERATION
COROLLA_Navi_U_OM02496U
1Select the repeat button to change on/
off.
1Select the shuffle button to change on/
off.
iPod AUDIO
REPEATING
The track currently being listened to
can be repeated.
RANDOM ORDER
Tracks can be automatically and ran-
domly selected.
