COROLLA_TMMMS_TMMC_U (OM02494U)The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.
Page 12 of 612
12
COROLLA_TMMMS_TMMC_U (OM02494U)
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
Reading this manual
123
Page 13 of 612
13
COROLLA_TMMMS_TMMC_U (OM02494U)■
Searching by name
• Alphabetical index .......P. 599
■Searching by installation
position
• Pictorial index ................P. 14
■Searching by symptom or
sound
• What to do if...
(Troubleshooting) ........P. 594
■Searching by title
• Table of contents .............P. 2
How to search
Page 14 of 612
14
COROLLA_TMMMS_TMMC_U (OM02494U)
Pictorial index
Pictorial index
■

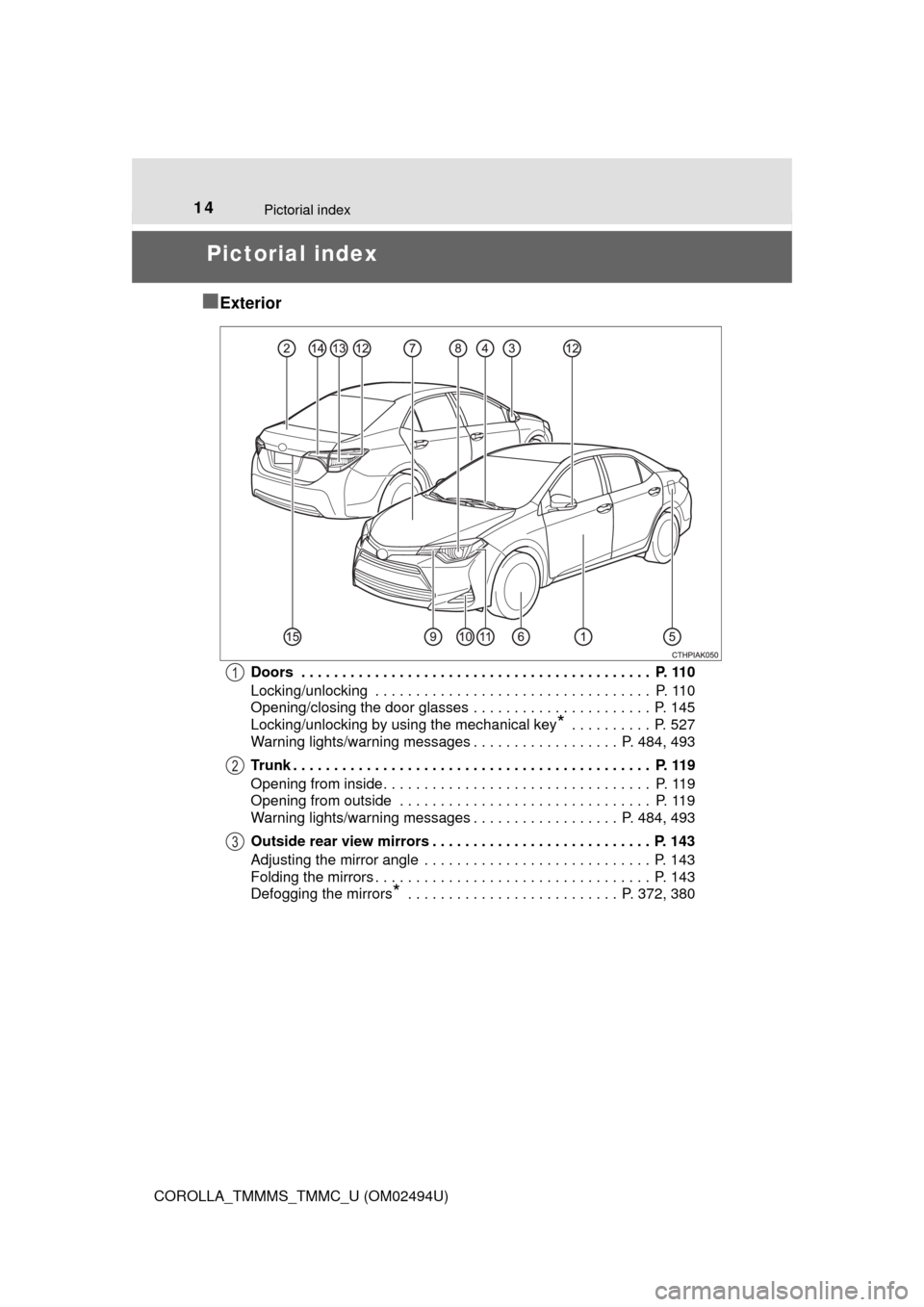

Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 145
Locking/unlocking by using the mechanical key
* . . . . . . . . . . P. 527
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 484, 493
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 119
Opening from inside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 119
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 119
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 484, 493
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Defogging the mirrors
* . . . . . . . . . . . . . . . . . . . . . . . . . . P. 372, 380
1
2
3
Page 15 of 612
15Pictorial index
COROLLA_TMMMS_TMMC_U (OM02494U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 268
To prevent freezing (windshield wiper de-icer)
* . . . . . . . . . . . P. 380
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 206
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 550
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 268
Checking/rotation/tire pressure warning system
*. . . . . . . . P. 444
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 513
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 544
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 535
Headlights/daytime running lights
*. . . . . . . . . . . . . . . . . . . P. 195
Front turn signal/parking lights . . . . . . . . . . . . . . . . . . . . . . P. 195
Daytime running lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Turn signal lights
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Stop/tail lights/rear side marker lights . . . . . . . . . . . . . . . . P. 195
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . P. 183, 186, 191
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 465, Watts: P. 551)
*: If equipped
8
9
10
11
12
13
14
15
Page 16 of 612
16Pictorial index
COROLLA_TMMMS_TMMC_U (OM02494U)

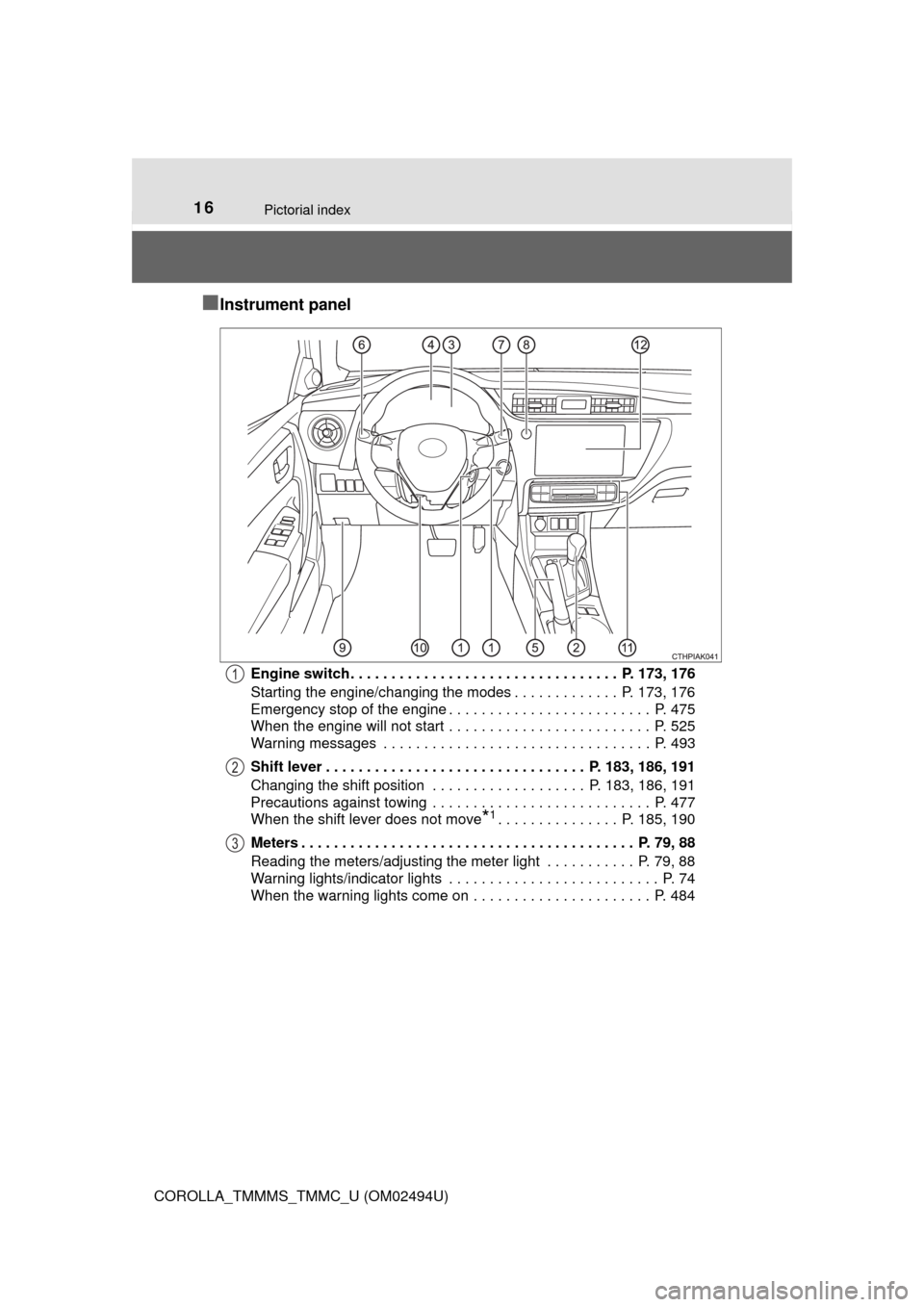

■Instrument panel
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173, 176
Starting the engine/changing the modes . . . . . . . . . . . . . P. 173, 176
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 475
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 525
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183, 186, 191
Changing the shift position . . . . . . . . . . . . . . . . . . . P. 183, 186, 191
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 477
When the shift lever does not move
*1. . . . . . . . . . . . . . . P. 185, 190
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 79, 88
Reading the meters/adjusting the meter light . . . . . . . . . . . P. 79, 88
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 74
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 484
1
2
3
Page 17 of 612
17Pictorial index
COROLLA_TMMMS_TMMC_U (OM02494U)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . P. 79, 88
When the warning messages are displayed . . . . . . . . . . . . . . P. 493
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 194
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 269
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 493
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Headlights/front parking lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 195
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 204
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 443
Warning messages
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 501
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 474
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Tilt and telescopic steering control lever . . . . . . . . . . . . . . P. 139
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 370, 377
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 370, 377
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 372, 380
Entune Audio
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 277
Entune Audio Plus
*1, 2
Entune Premium Audio
*1, 2
*1: If equipped
*2: For vehicles with Entune Premium Audio or Entune Audio Plus, refer to
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
4
5
6
7
8
9
10
11
12
Page 18 of 612
18Pictorial index
COROLLA_TMMMS_TMMC_U (OM02494U)
■Switches

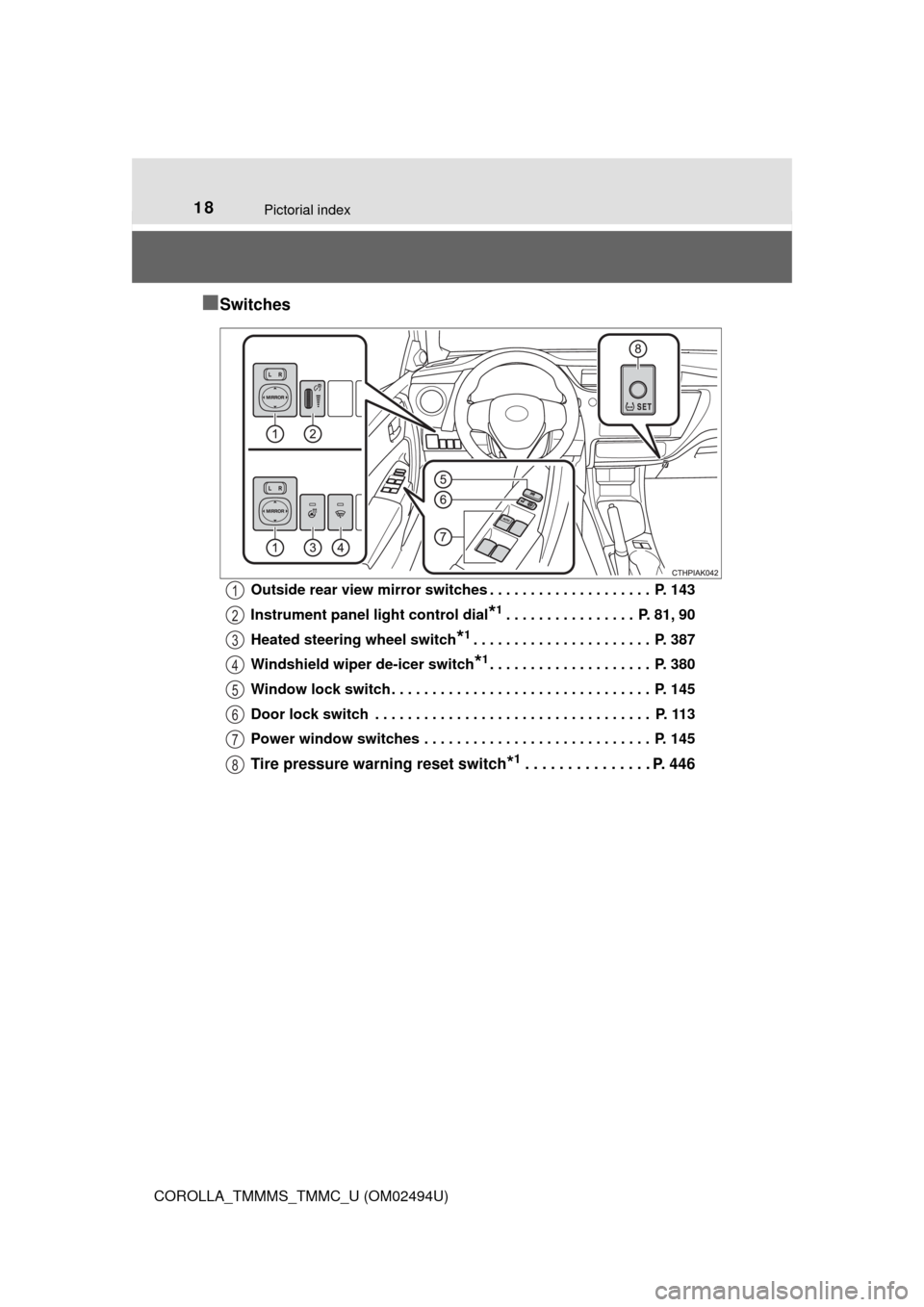

Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 143
Instrument panel light control dial
*1. . . . . . . . . . . . . . . . P. 81, 90
Heated steering wheel switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 387
Windshield wiper de-icer switch
*1. . . . . . . . . . . . . . . . . . . . P. 380
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 145
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 113
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 145
Tire pressure warning reset switch*1. . . . . . . . . . . . . . . P. 446
1
2
3
4
5
6
7
8
Page 19 of 612
19Pictorial index

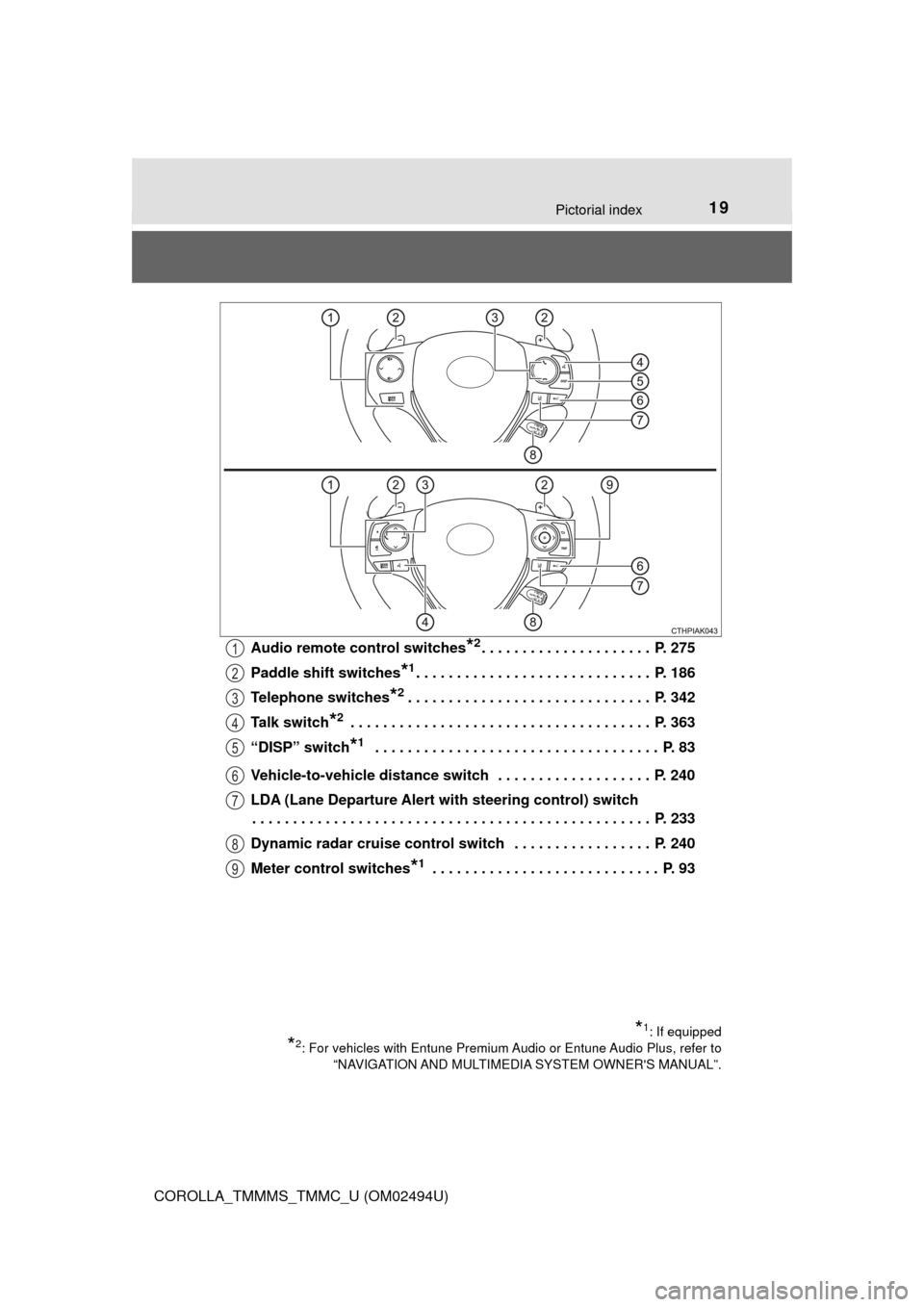

COROLLA_TMMMS_TMMC_U (OM02494U)Audio remote control switches
*2. . . . . . . . . . . . . . . . . . . . . P. 275
Paddle shift switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
Telephone switches
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 342
Talk switch
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 363
“DISP” switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 83
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 240
LDA (Lane Departure Alert with steering control) switch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Dynamic radar cruise control switch . . . . . . . . . . . . . . . . . P. 240
Meter control switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 93
*1: If equipped
*2: For vehicles with Entune Premium Audio or Entune Audio Plus, refer to
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
1
2
3
4
5
6
7
8
9
Page 20 of 612
20Pictorial index

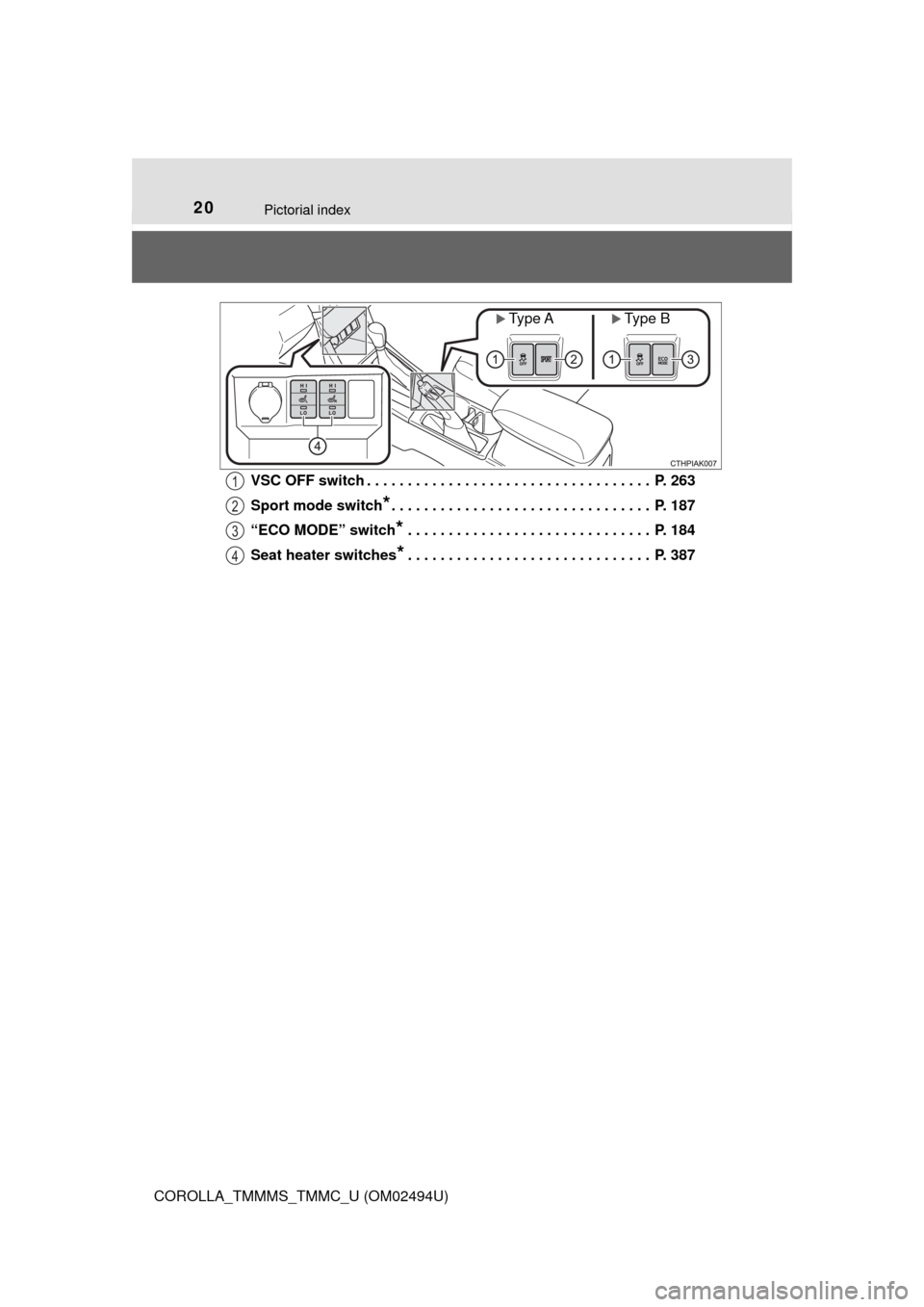

COROLLA_TMMMS_TMMC_U (OM02494U)VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 263
Sport mode switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 187
“ECO MODE” switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Seat heater switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 387
Type AType B
1
2
3
4
