TOYOTA COROLLA 2017 11.G Manual PDF 711-2. Theft deterrent system
1
For safety and security
COROLLA_TMMMS_TMMC_U (OM02494U)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the

Page 72 of 612

TOYOTA COROLLA 2017 11.G Manual PDF 721-2. Theft deterrent system
COROLLA_TMMMS_TMMC_U (OM02494U)

Page 73 of 612

TOYOTA COROLLA 2017 11.G Manual PDF 73
Instrument cluster2
COROLLA_TMMMS_TMMC_U (OM02494U)2. Instrument cluster
Warning lights and
indicators .......................... 74

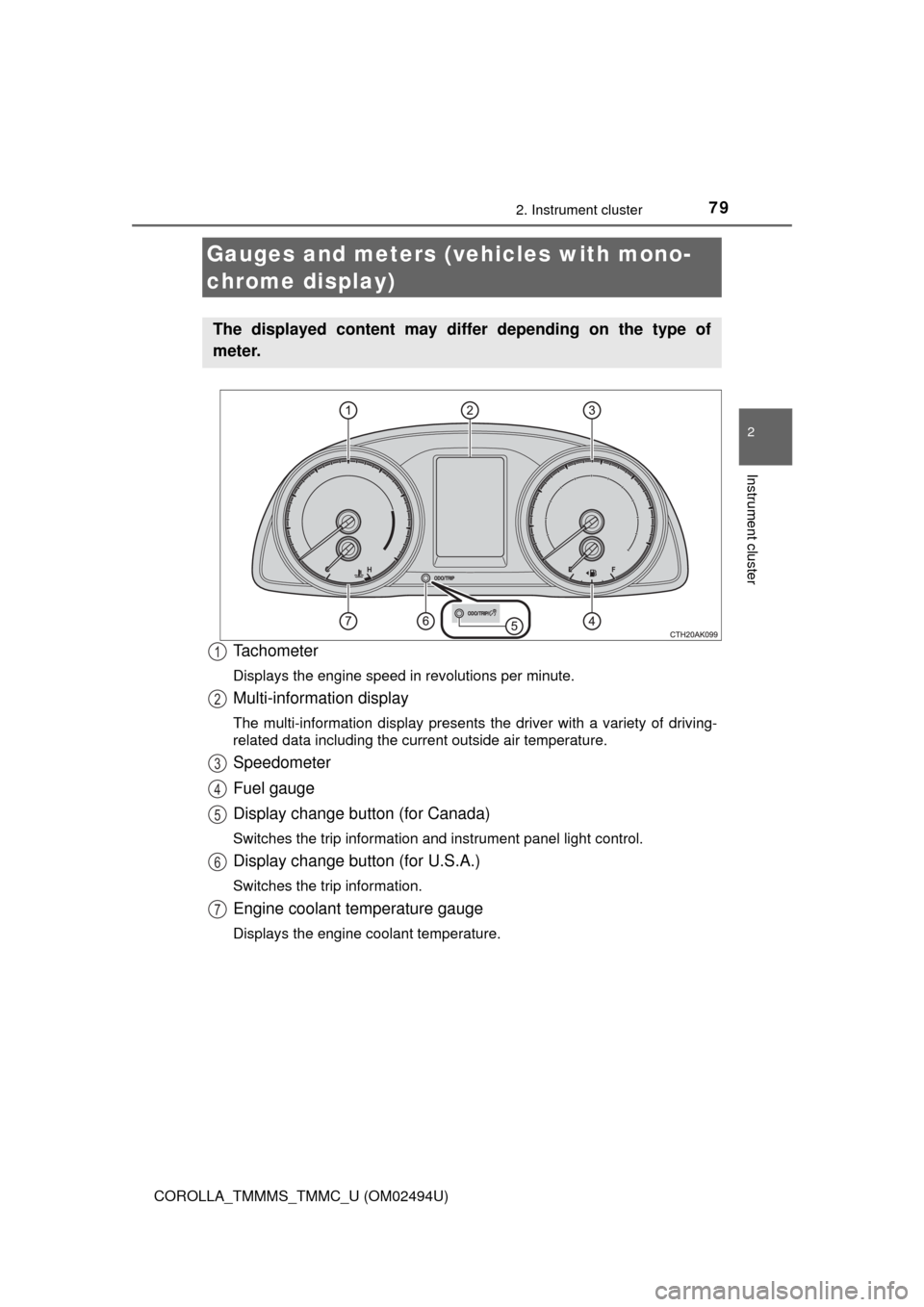

Gauges and meters
(vehicles with
monochrome display) .......

Page 74 of 612

TOYOTA COROLLA 2017 11.G Manual PDF 74
COROLLA_TMMMS_TMMC_U (OM02494U)
2. Instrument cluster
Vehicles with monochrome display
Vehicles with color display

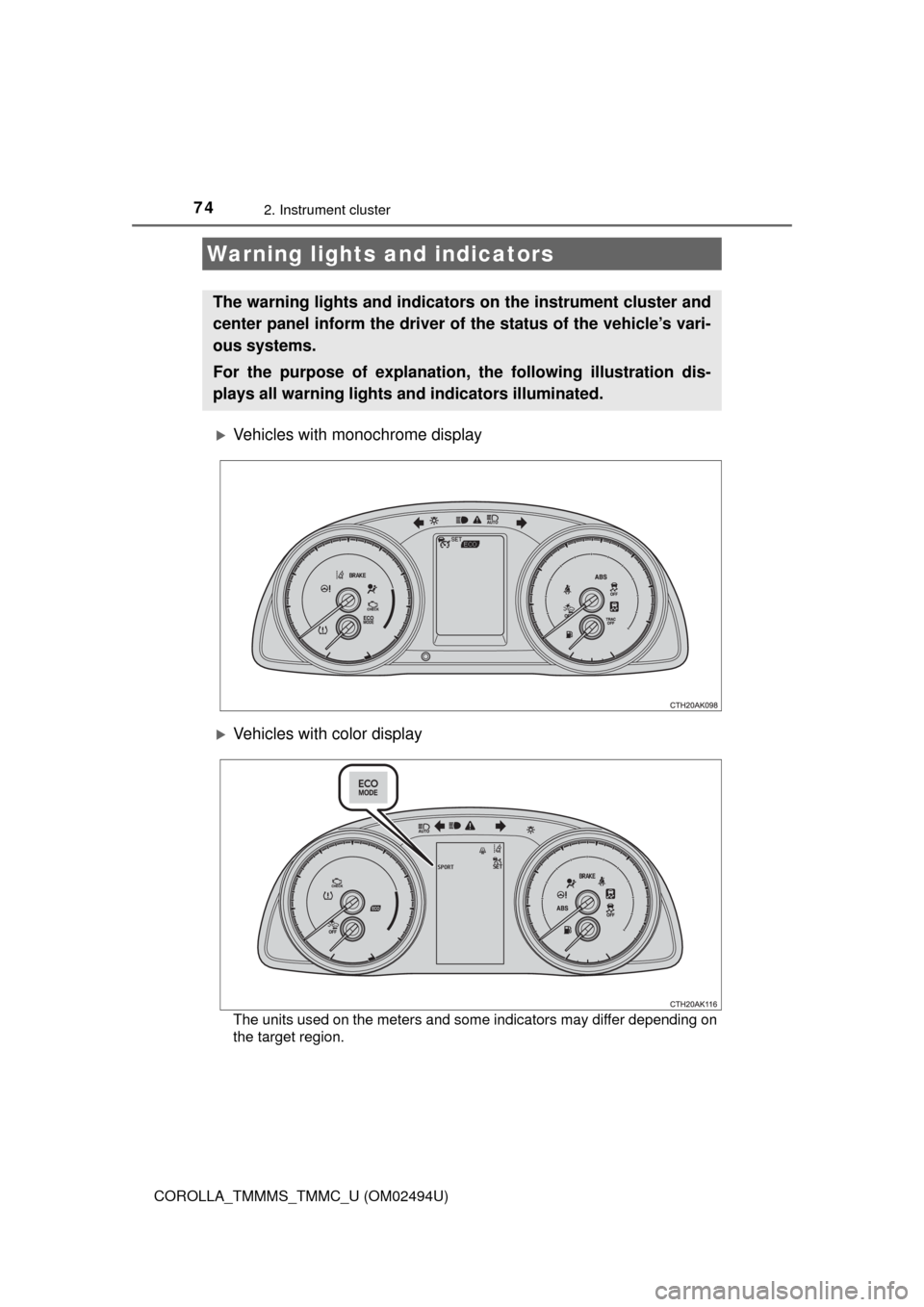

The units used on the meters and some indicators may differ depending on
the

Page 75 of 612

TOYOTA COROLLA 2017 11.G Manual PDF 752. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM02494U)

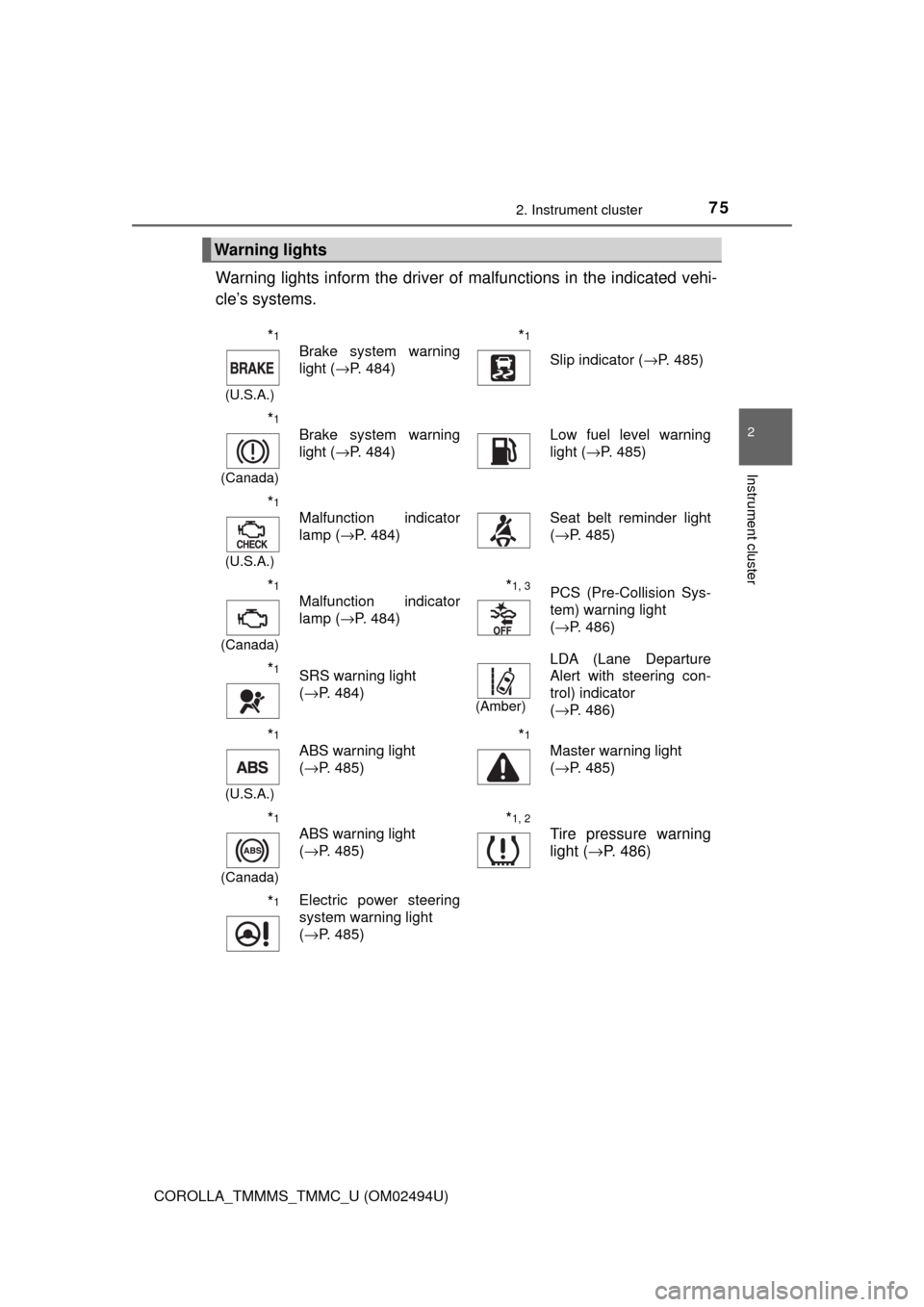

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake s

Page 76 of 612

TOYOTA COROLLA 2017 11.G Manual PDF 762. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM02494U)
*1: These lights turn on when the engine switch is turned to the “ON” position
(vehicles without a smart key system) or the engine switch is

Page 77 of 612

TOYOTA COROLLA 2017 11.G Manual PDF 772. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM02494U)

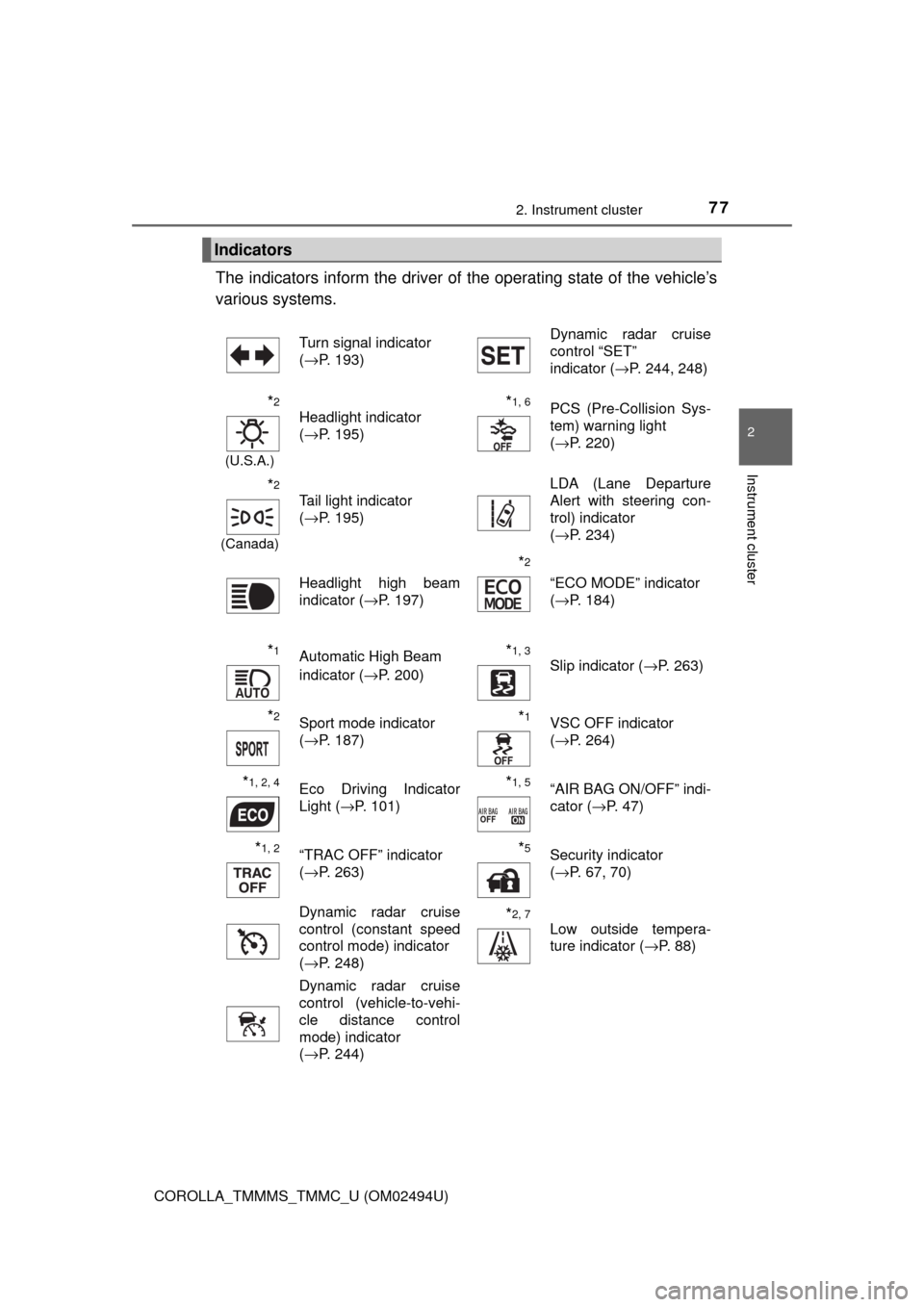

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicat

Page 78 of 612

TOYOTA COROLLA 2017 11.G Manual PDF 782. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM02494U)
*1: These lights, except those shown on the multi-information display, turn on
when the engine switch is turned to the “ON” position (vehicl

Page 79 of 612

TOYOTA COROLLA 2017 11.G Manual PDF 792. Instrument cluster
2
Instrument cluster
COROLLA_TMMMS_TMMC_U (OM02494U)
Tachometer
Displays the engine speed in revolutions per minute.

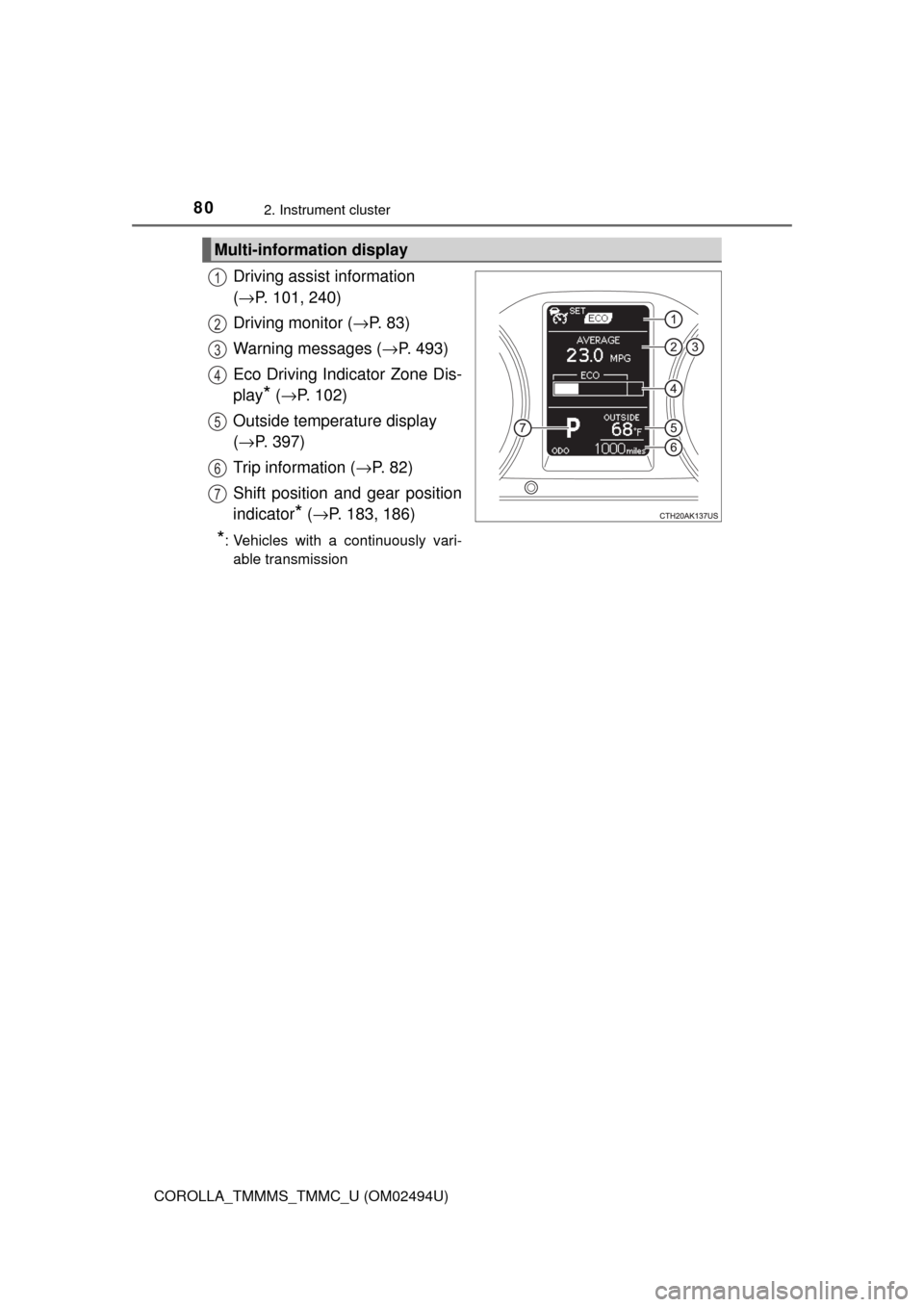

Multi-information display
The multi-information display pre

Page 80 of 612

TOYOTA COROLLA 2017 11.G Manual PDF 802. Instrument cluster
COROLLA_TMMMS_TMMC_U (OM02494U)
Driving assist information
(→P. 101, 240)
Driving monitor (→P. 83)
Warning messages (→P. 493)
Eco Driving Indicator Zone Dis-
play
* (→
