OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1,2 6-7
Light control-Instrument cluster 9
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 16
Audio 18
Auto lock/unlock1,2 11
Auxiliary storage 20
Clock 14
Continuously variable transmission 10
Cup holders-Adjust size 20
Multi-Information Display (MID)1 15
Lights1 & turn signals 13
Manual transmission 10
Moon roof 15
Parking brake 11
Power outlet 14
Rear view monitor system 20
Seat adjustments-Front 12
Seat heaters 17
Seats-Folding rear 12
Seats-Head restraints 12
Sport drive mode 11
Steering wheel switches &
telephone controls (Bluetooth®) 19
Tilt & telescopic steering wheel 11
TRAC/VSC OFF switch 21
USB/AUX Port 14
Windows-Power 15
Windshield wipers & washers 13
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 32
Dynamic Radar
Cruise Control (DRCC) 29-31
Lane Departure Alert with Steering
Assist function (LDA w/SA) 26-28
Pre-Collision System with Pedestrian
Detection function (PCS w/PD) 23-25
Quick overview-
Toyota Safety Sense™ P (TSS-P) 22
Sensors 22
BLUETOOTH® DEVICE PAIRING SECTION 38-47
Doors-Child safety locks 33
Floor mat installation 37
Seat belts 33
Seat belts-Shoulder belt anchor 33
Spare tire & tools 35
Star Safety SystemTM 36-37
Tire Pressure Monitoring
(warning) System (TPMS) 34
Trunk-Internal release 34
106535_2017_Corolla_QRG_D7_1_R1.indd 19/29/16 8:41 AM

2
OVERVIEW
Instrument panel
1 If equipped.2 For vehicles with Entune™ Premium Audio or Entune™ Audio Plus, refer to
“Navigation And Multimedia System Owner’s Manual.”
Steering wheel controls
with monochrome MID(L, LE, LE Eco, XLE grades)
Audio control switches2Telephone switches2Voice command switch2
Dynamic Radar Cruise Control (DRCC)switch
Meters/Multi-Information Display (MID)
Outside rear view mirror switches
Instrument cluster light control dial1
Tilt and telescopicsteering control lever
Dynamic RadarCruise Control (DRCC)Vehicle-to-vehicle distance switch
“DISP” switch1
Lane Departure Alert with Steering Assist (LDA w/SA) switch
Headlights, turn signals andAutomatic High Beam (AHB) controls
106535_2017_Corolla_QRG_D7_1_R1.indd 29/29/16 8:50 AM

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Steering wheel controls
with color MID(SE, XSE grades)
Type A
Type B
Audio control switches2Meter control switches1Paddle shift switches1
Voice command switch2
Dynamic Radar Cruise Control (DRCC)switch
Key ignition
Windshield wiper and washer switch
Emergency flasher switch
Entune™ Audio1
Entune™ Audio Plus1,2
Entune™ Premium Audio1,2
Air conditioning system
Tire pressure monitor(warning) system (TPMS)reset switch
Seat heater switches1
Shift lever
Parking brake
VSC OFF switch
VSC OFF switch
“SPORT” mode switch1
“ECO MODE” switch1
“ENGINE START STOP” button (Smart Key)1
Telephone switches2
Dynamic Radar Cruise Control (DRCC)Vehicle-to-vehicle distance switch
Lane Departure Alert with Steering Assist (LDA w/SA) switch
106535_2017_Corolla_QRG_D7_1_R1.indd 39/29/16 8:51 AM

14
FEATURES & OPERATIONS
USB port By connecting a USB-compatible portable audio device or USB memory to the USB port, you can listen to music from the portable audio device or USB memory through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
The engine switch must be in the “ACC” or “ON” position for use.
Adjusts the hourRound off minutesAdjusts the minutes
Power outlet
USB/AUX port
Clock
106535_2017_Corolla_QRG_D7_1_R1.indd 149/29/16 10:27 AM

18
FEATURES & OPERATIONS
ENTUNE™ AUDIO
ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP
ENTUNE™ PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE
Bluetooth® hands-free system
AUDIO ButtonAccess to audio functions
HOME SCREEN - the home screen offers a two panel and a three panel layout. Information and layout will vary depending on selected set up.
SETUP ButtonPress this button to customize the function settings
APPS Button Access to connected navigation app
CAR Button Fuel consumption screen
HOME Button Access to Home screen
Push to turnON/OFF
Turn to tune radio stations manually or select tracks or files
Seek station/CD track select
Eject CD
Push to pause or resume playing
Touch screen display
1 Refer to the “Navigation System Owner’s Manual” and “2017 Entune™ Audio Quick Reference Guide.”
NOTE: Concentrating on the road should always be your first priority while driving. Do not use the Entune system if it will distract you.
Audio
Map card insert1
Access to navigation system1
106535_2017_Corolla_QRG_D7_1_R1.indd 189/29/16 10:28 AM

19
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to Section 5 in the Owner’s Manual, for more information about phone
connections and compatibility.
NOTE: Concentrating on the road should always be your first priority while driving. Do not
use the hands-free phone system if it will distract you.
Vehicles with moon roofVehicles without moon roof
MicrophoneMicrophone
Steering wheel switches
& telephone controls (Bluetooth®)
Type B
Type A
End call
End call
Voice command switch
Voice command switch
Start call
Start call
Volume
Volume
“>>” Use to search within the selected audio medium (radio, CD, etc.).
“>>” Use to search within theselected audio medium (radio, CD, etc.).
“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio OFF.
“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio OFF.
106535_2017_Corolla_QRG_D7_2_R2.indd 199/29/16 11:06 PM

26
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it off.
Note: The system will continue in the last state it was in (ON or OFF) when the
engine is started again.
Refer to a Toyota Owner’s Manual for additional information on LDA operation,
settings adjustments, limitations, and precautions before attempting to use it.
LDA in TSS-P uses an in-vehicle camera designed to detect visible white and
yellow lane markers in front of the vehicle and the vehicle’s position on the road.
If the system determines that the vehicle is starting to unintentionally deviate from
its lane, the system alerts the driver with an audio and visual alert. When the alerts
occur, the driver must check the surrounding road situation and carefully operate
the steering wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 MPH or higher on
relatively straight roadways.
In addition to the alert function, LDA w/SA also features a steering assist
function. When enabled, if the system determines that the vehicle is on a path
to unintentionally depart from its lane, the system may provide small corrective
steering inputs to the steering wheel for a short period of time to help keep the
vehicle in its lane.
Lane Departure Alert with
Steering Assist function (LDA w/SA)
TOYOTA SAFETY SENSE™
106535_2017_Corolla_QRG_D7_1_R1.indd 269/29/16 10:54 AM

39
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all Android mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.2

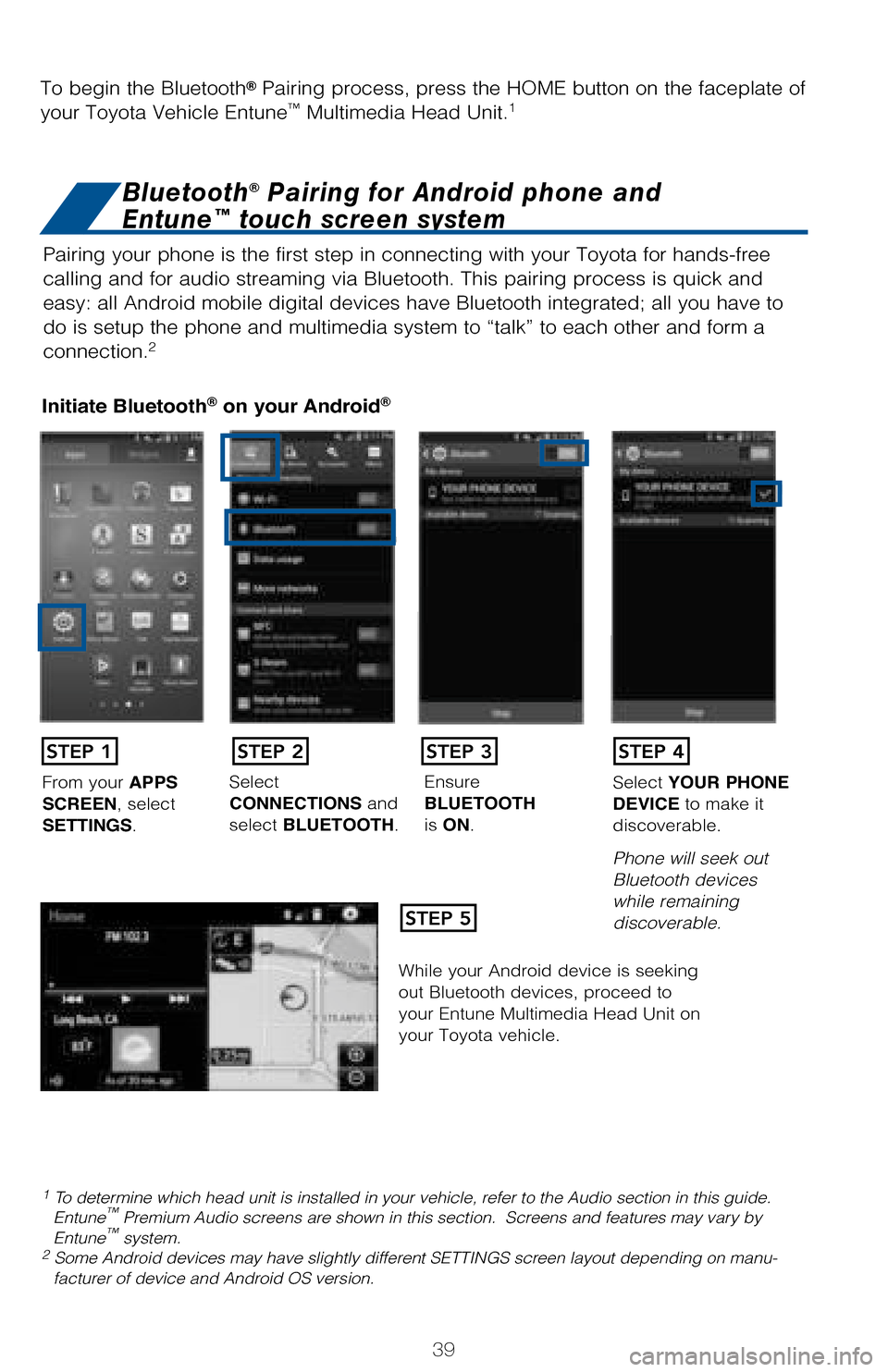

Initiate Bluetooth® on your Android®
STEP 1
STEP 5
STEP 2STEP 3STEP 4
From your APPS SCREEN, select SETTINGS.
Select CONNECTIONS and select BLUETOOTH.
Ensure BLUETOOTH is ON.
Select YOUR PHONE DEVICE to make it discoverable.
Phone will seek out Bluetooth devices while remaining discoverable.
While your Android device is seeking out Bluetooth devices, proceed to your Entune Multimedia Head Unit on your Toyota vehicle.
1 To determine which head unit is installed in your vehicle, refer to the Audio section in this guide. Entune™ Premium Audio screens are shown in this section. Screens and features may vary by Entune™ system. 2 Some Android devices may have slightly different SETTINGS screen layout depending on manu-facturer of device and Android OS version.
To begin the Bluetooth® Pairing process, press the HOME button on the faceplate of
your Toyota Vehicle Entune™ Multimedia Head Unit.1
Bluetooth® Pairing for Android phone and
Entune™ touch screen system
106535_2017_Corolla_QRG_D7_1_R1.indd 399/29/16 11:24 AM

40

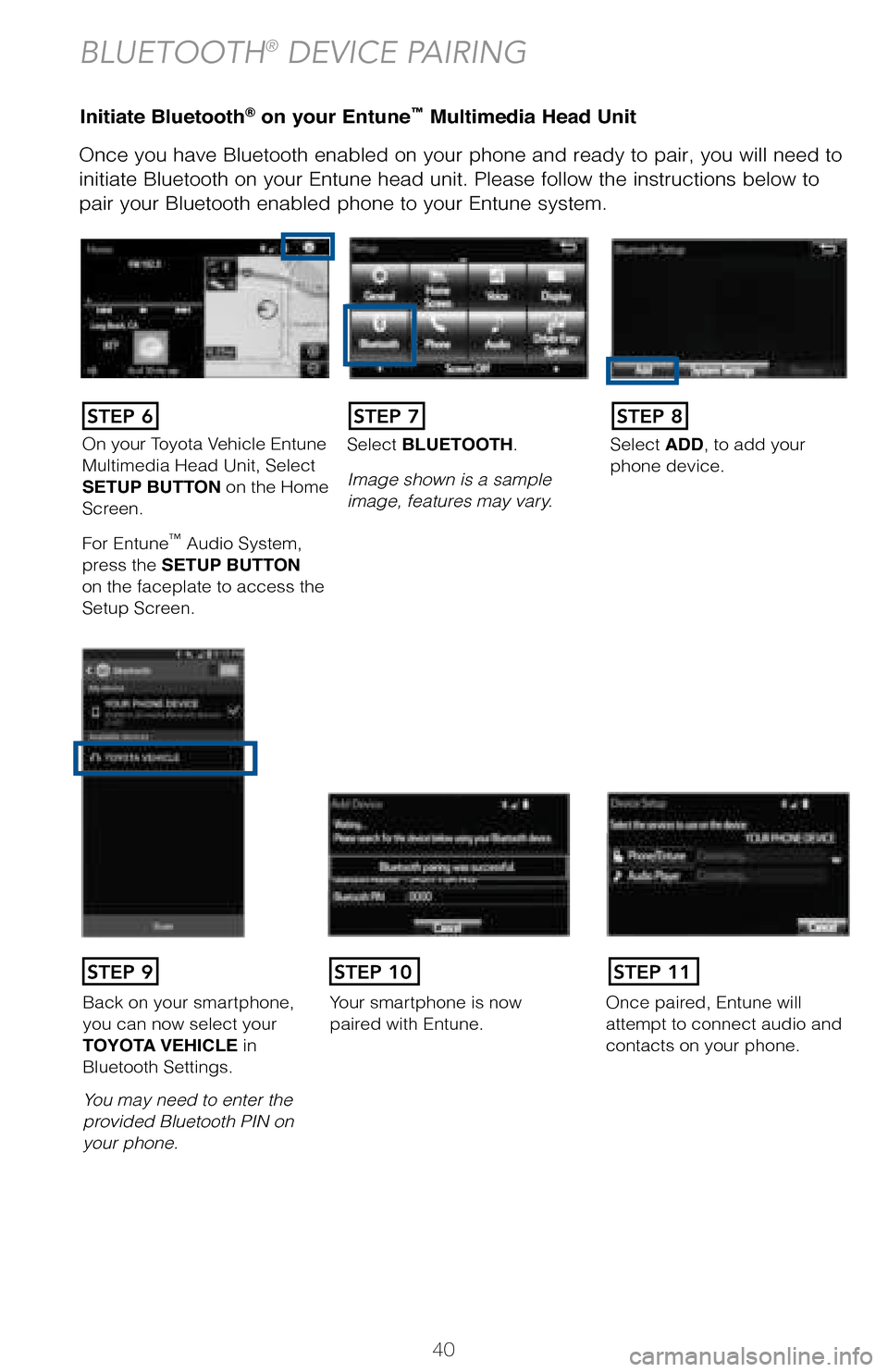

Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need to
initiate Bluetooth on your Entune head unit. Please follow the instructions below to
pair your Bluetooth enabled phone to your Entune system.
BLUETOOTH® DEVICE PAIRING
On your Toyota Vehicle Entune Multimedia Head Unit, Select SETUP BUTTON on the Home Screen.
For Entune™ Audio System, press the SETUP BUTTON on the faceplate to access the Setup Screen.
Select BLUETOOTH.
Image shown is a sample image, features may vary.
Select ADD, to add your phone device.
Back on your smartphone, you can now select your TOYOTA VEHICLE inBluetooth Settings.
You may need to enter the provided Bluetooth PIN on your phone.
Your smartphone is now paired with Entune.Once paired, Entune willattempt to connect audio and contacts on your phone.
STEP 6STEP 7STEP 8
STEP 9STEP 11STEP 10
106535_2017_Corolla_QRG_D7_1_R1.indd 409/29/16 11:25 AM

42
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all iPhone mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.

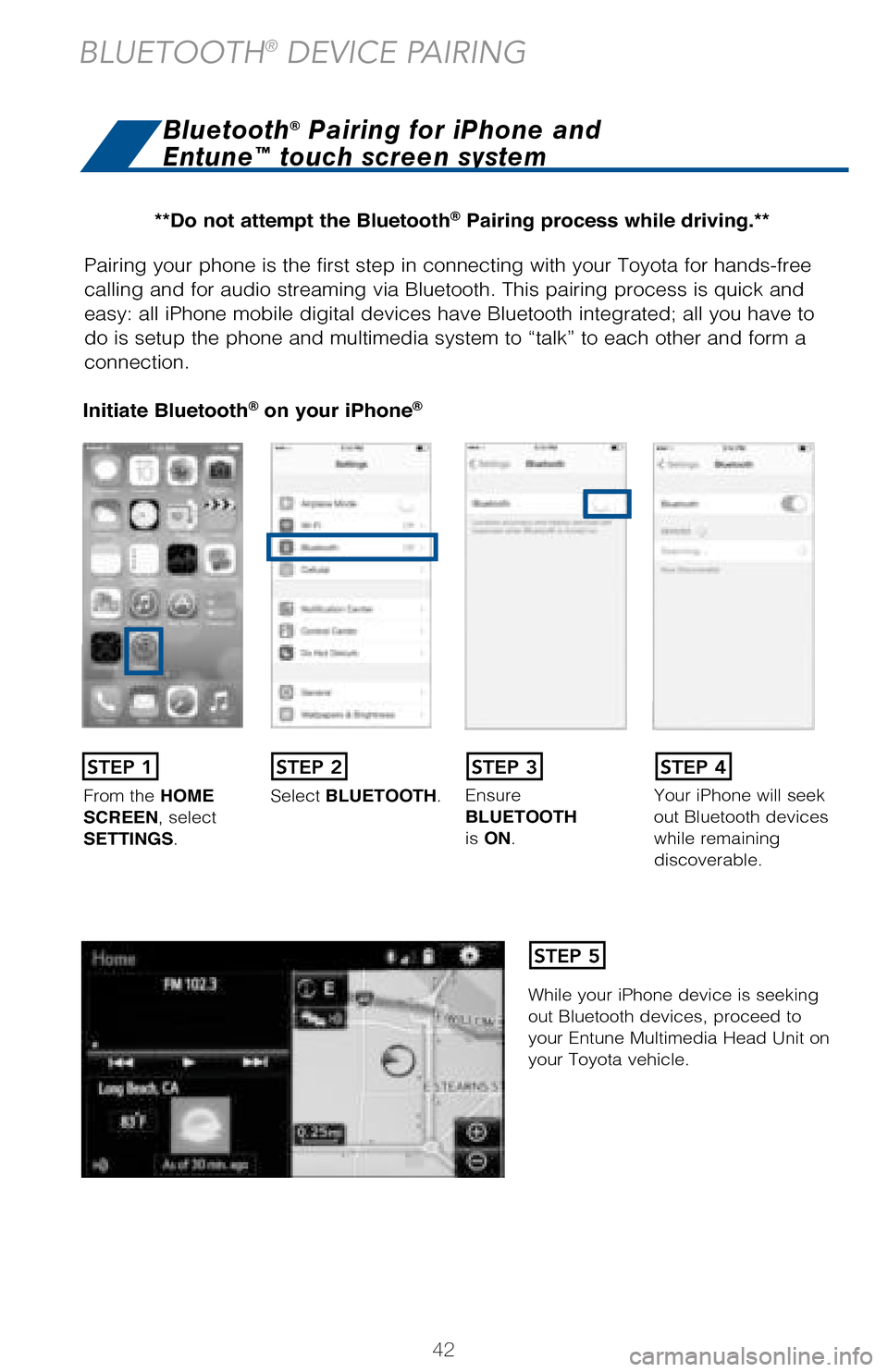

Initiate Bluetooth® on your iPhone®
From the HOME SCREEN, select SETTINGS.
Select BLUETOOTH.Ensure BLUETOOTH is ON.
Your iPhone will seek out Bluetooth devices while remaining discoverable.
While your iPhone device is seeking out Bluetooth devices, proceed to your Entune Multimedia Head Unit on your Toyota vehicle.
STEP 1STEP 2STEP 3STEP 4
STEP 5
Bluetooth® Pairing for iPhone and
Entune™ touch screen system
BLUETOOTH® DEVICE PAIRING
**Do not attempt the Bluetooth® Pairing process while driving.**
