OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 16
Audio 18
Auto lock/unlock1,2 11
Auxiliary storage 20
Clock 14
Continuously variable transmission 10
Cup holders-Adjust size 20
Multi-Information Display (MID)1 15
Lights1 & turn signals 13
Manual transmission 10
Moon roof 15
Parking brake 11
Power outlet 14
Rear view monitor system 20
Seat adjustments-Front 12
Seat heaters 17
Seats-Folding rear 12
Seats-Head restraints 12
Sport drive mode 11
Steering wheel switches &
telephone controls (Bluetooth®) 19
Tilt & telescopic steering wheel 11
TRAC/VSC OFF switch 21
USB/AUX Port 14
Windows-Power 15
Windshield wipers & washers 13
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 32
Dynamic Radar
Cruise Control (DRCC) 29-31
Lane Departure Alert with Steering
Assist function (LDA w/SA) 26-28
Pre-Collision System with Pedestrian
Detection function (PCS w/PD) 23-25
Quick overview-
Toyota Safety Sense™ P (TSS-P) 22
Sensors 22
BLUETOOTH® DEVICE PAIRING SECTION 38-47
Doors-Child safety locks 33
Floor mat installation 37
Seat belts 33
Seat belts-Shoulder belt anchor 33
Spare tire & tools 35
Star Safety SystemTM 36-37
Tire Pressure Monitoring
(warning) System (TPMS) 34
Trunk-Internal release 34
106535_2017_Corolla_QRG_D7_1_R1.indd 19/29/16 8:41 AM

2
OVERVIEW
Instrument panel
1 If equipped.2 For vehicles with Entune™ Premium Audio or Entune™ Audio Plus, refer to
“Navigation And Multimedia System Owner’s Manual.”
Steering wheel controls
with monochrome MID(L, LE, LE Eco, XLE grades)
Audio control switches2Telephone switches2Voice command switch2
Dynamic Radar Cruise Control (DRCC)switch
Meters/Multi-Information Display (MID)
Outside rear view mirror switches
Instrument cluster light control dial1
Tilt and telescopicsteering control lever
Dynamic RadarCruise Control (DRCC)Vehicle-to-vehicle distance switch
“DISP” switch1
Lane Departure Alert with Steering Assist (LDA w/SA) switch
Headlights, turn signals andAutomatic High Beam (AHB) controls
106535_2017_Corolla_QRG_D7_1_R1.indd 29/29/16 8:50 AM

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Steering wheel controls
with color MID(SE, XSE grades)
Type A
Type B
Audio control switches2Meter control switches1Paddle shift switches1
Voice command switch2
Dynamic Radar Cruise Control (DRCC)switch
Key ignition
Windshield wiper and washer switch
Emergency flasher switch
Entune™ Audio1
Entune™ Audio Plus1,2
Entune™ Premium Audio1,2
Air conditioning system
Tire pressure monitor(warning) system (TPMS)reset switch
Seat heater switches1
Shift lever
Parking brake
VSC OFF switch
VSC OFF switch
“SPORT” mode switch1
“ECO MODE” switch1
“ENGINE START STOP” button (Smart Key)1
Telephone switches2
Dynamic Radar Cruise Control (DRCC)Vehicle-to-vehicle distance switch
Lane Departure Alert with Steering Assist (LDA w/SA) switch
106535_2017_Corolla_QRG_D7_1_R1.indd 39/29/16 8:51 AM

5
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Master warning1
Low fuel level warning
Cruise control indicator1/Cruise control SET indicator
Turn signal indicator
Low Tire Pressure Warning1
Vehicle Stability Control (VSC) OFF indicator
Traction Control OFF indicator1,2
Malfunction/Check Engine indicator
Electric power steering system warning
ECO mode indicator2
Eco Driving Indicator1,2
SPORT mode indicator2
SRS airbag warning1
1 If indicator does not turn off within a few seconds of starting engine, there may be a malfunction.
Have vehicle inspected by your Toyota dealer.2 If equipped.
Headlight low2/high beam indicators
Pre-Collision System (PCS) warning light1
Lane Departure Alert (LDA) indicator
Slip indicator indicator1
Security indicator
Low outside temperature indicator2
Dynamic Radar Cruise Control (DRCC) indicator
106535_2017_Corolla_QRG_D7_1_R1.indd 59/29/16 9:26 AM

22
Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear view mirror
and a millimeter-wave radar mounted in the front grill. These sensors support the
driver assist systems.
Camera sensorRadar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic situations, in
certain conditions. TSS-P is designed to help support the driver’s awareness,
decision making and vehicle operation contributing to a safe driving experience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Lane Departure Alert with Steering Assist function (LDA w/SA) LDA w/SA is designed to provide notification when the system detects an unintended lane departure.
The Steering Assist function is designed to provide small corrective steering inputs to the steering wheel for a short period of time to help keep the vehicle in its lane.
Automatic High Beams (AHB)AHB is designed to detect the headlights of oncoming vehicles and the tail lights of preceding vehicles and switch between high beams and low beams as appropriate.
Pre-Collision System with Pedestrian Detection function (PCS w/PD)PCS w/PD is designed to provide alert, mitigation, and/or avoidance support in certain conditions, when the system detects a potential collision with a preceding vehicle is likely to occur.
Advanced millimeter-wave radar sensor system is designed
to work with the camera sensor to help recognize a preceding
pedestrian, and provide an alert, mitigation and/or avoidance
support in certain conditions.
Dynamic Radar Cruise Control (DRCC) DRCC is designed to help maintain a pre-set distance to a preceding vehicle when the preceding vehicle is traveling at a lower speed.
106535_2017_Corolla_QRG_D7_1_R1.indd 229/29/16 10:46 AM

29
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES

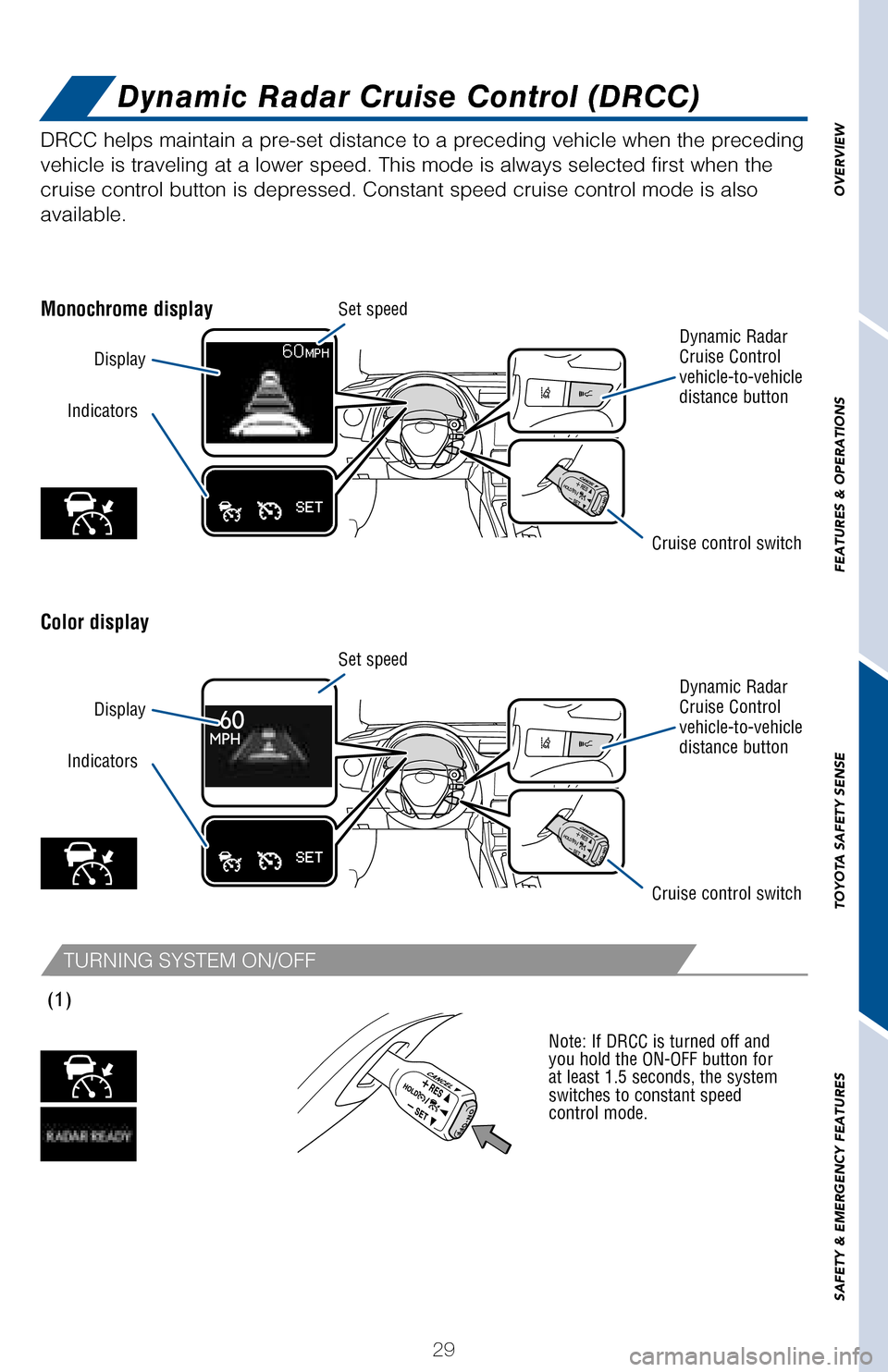

DRCC helps maintain a pre-set distance to a preceding vehicle when the preceding
