Page 3 of 52
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1,2 6-7
Light control-Instrument cluster 9
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 16
Audio 18
Auto lock/unlock1,2 11
Auxiliary storage 20
Clock 14
Continuously variable transmission 10
Cup holders-Adjust size 20
Multi-Information Display (MID)1 15
Lights1 & turn signals 13
Manual transmission 10
Moon roof 15
Parking brake 11
Power outlet 14
Rear view monitor system 20
Seat adjustments-Front 12
Seat heaters 17
Seats-Folding rear 12
Seats-Head restraints 12
Sport drive mode 11
Steering wheel switches &
telephone controls (Bluetooth®) 19
Tilt & telescopic steering wheel 11
TRAC/VSC OFF switch 21
USB/AUX Port 14
Windows-Power 15
Windshield wipers & washers 13
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 32
Dynamic Radar
Cruise Control (DRCC) 29-31
Lane Departure Alert with Steering
Assist function (LDA w/SA) 26-28
Pre-Collision System with Pedestrian
Detection function (PCS w/PD) 23-25
Quick overview-
Toyota Safety Sense™ P (TSS-P) 22
Sensors 22
BLUETOOTH® DEVICE PAIRING SECTION 38-47
Doors-Child safety locks 33
Floor mat installation 37
Seat belts 33
Seat belts-Shoulder belt anchor 33
Spare tire & tools 35
Star Safety SystemTM 36-37
Tire Pressure Monitoring
(warning) System (TPMS) 34
Trunk-Internal release 34
106535_2017_Corolla_QRG_D7_1_R1.indd 19/29/16 8:41 AM
Page 6 of 52
4
OVERVIEW
Instrument cluster
Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2-2, 2017 Owner’s
Manual.
Anti-lock Brake System warning
Automatic High Beam (AHB)indicator
Arrow direction indicatesfuel tank door position
Brake system warning1
“AIRBAG ON/OFF” indicator1
Service indicators and reminders
Monochrome display
Color display
Tachometer
Tachometer
Fuel gauge
Fuel gauge
Display change buttonEngine coolant temperature gauge
Engine coolant temperature gauge
Multi-Information Display
Multi-Information Display
Outside temperature displayOdometer/Trip meterShift position/gear position display
Speedometer
Speedometer
106535_2017_Corolla_QRG_D7_1_R1.indd 49/29/16 8:54 AM

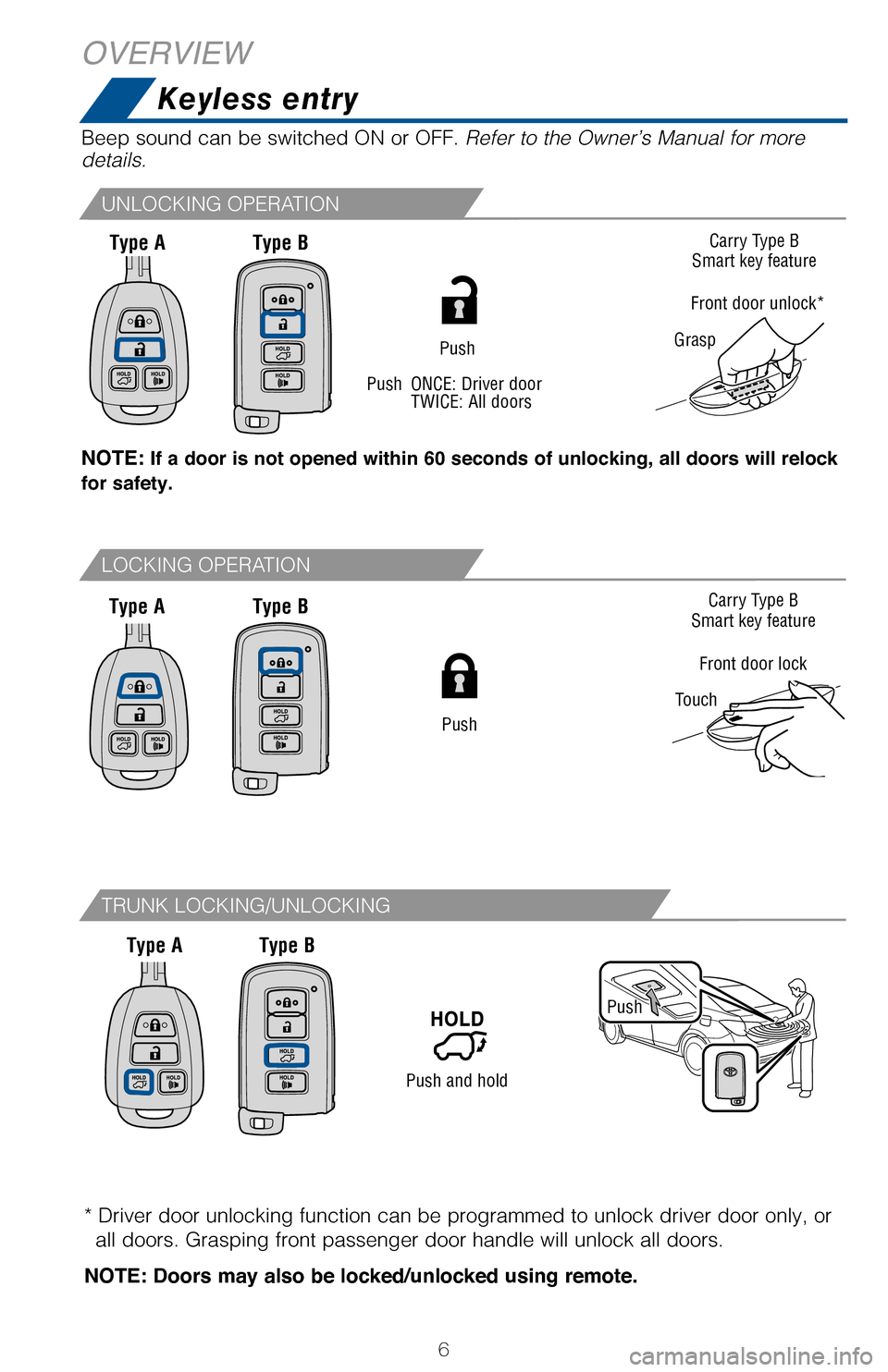

Page 8 of 52
6
OVERVIEW
Keyless entry
Type AType B
Type AType B
Type AType B
Push
Carry Type BSmart key feature
Front door lock
Touch
Carry Type BSmart key feature
Grasp
Front door unlock*
Push
Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for more details.
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Push and hold
LOCKING OPERATION
TRUNK LOCKING/UNLOCKING
UNLOCKING OPERATION
Push ONCE: Driver door TWICE: All doors
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping front passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Push
106535_2017_Corolla_QRG_D7_1_R1.indd 69/29/16 9:28 AM
Page 10 of 52
8
OVERVIEW
Pull up latch and raise hoodPull
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check Engine “”
indicator may illuminate.
Pull
Turn to close
StoreTurn to open
Insert rod to hold hood open
Fuel tank door release & cap
Hood release
106535_2017_Corolla_QRG_D7_1_R1.indd 89/29/16 9:31 AM
Page 13 of 52
11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Parking brake
Auto lock/unlock
For powerful acceleration and driving in mountainous regions.
(2) PushSetRelease
(1) Pull slightly
(3) Lower
Pull
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-(With Smart Key system) Doors lock when the vehicle speed goes above
approximately 12 mph.
Driver’s door linked door unlocking function
-(Without Smart Key system) Doors unlock when the engine switch is set from “ON”
to “ACC” or “LOCK” and driver’s door is opened.
-(With Smart Key system) Doors unlock when the engine switch is set to OFF and
driver’s door is opened.
Refer to the Owner’s Manual for more details.
Tilt & telescopic steering wheel
Sport drive mode (if equipped)
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release leverAngleLength
Hold wheel, push lever down, set
angle and length, and return lever.
106535_2017_Corolla_QRG_D7_1_R1.indd 119/29/16 9:32 AM

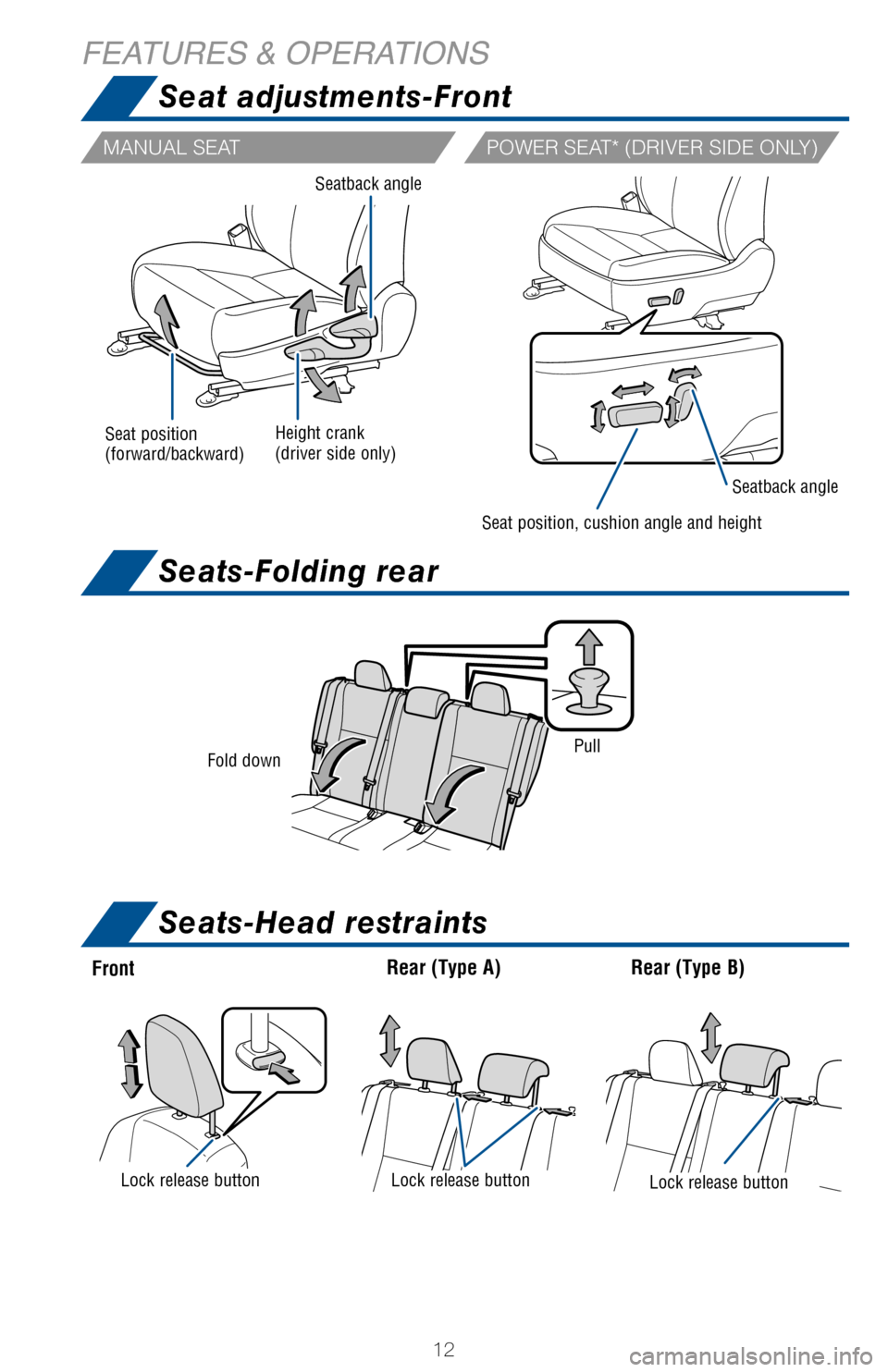

Page 14 of 52
12
FEATURES & OPERATIONS
Seat adjustments-Front
FrontRear (Type B)Rear (Type A)
Lock release buttonLock release buttonLock release button
Fold downPull
MANUAL SEATPOWER SEAT* (DRIVER SIDE ONLY)
Seats-Folding rear
Seats-Head restraints
Seat position (forward/backward)Height crank(driver side only)
Seatback angle
Seat position, cushion angle and height
Seatback angle
106535_2017_Corolla_QRG_D7_1_R1.indd 129/29/16 9:41 AM
Page 15 of 52
13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Type AType B
Daytime Running Light system (DRL)
Automatically turns on the headlights at a reduced intensity.
Automatic light cut off system
Automatically turns lights off after 30-second delay, or lock switch on remote may
be pushed after locking.
Interval wipe
Mist
Slow
Fast
Pull to wash and wipe
Intermittent windshield wiper frequency adjustment (if equipped)
Increase
Decrease
Lights & turn signals
HEADLIGHTS
TURN SIGNALS
Windshield wipers & washers
Right turn
Lane change*
Lane change*
Left turn
* Move lever partway and release; signal will flash three times
High beamHigh beam flasher
HeadlightsHeadlights
Parking lightsParking lights
DRL OFFDRL ON
AUTOAUTO
Low beam
106535_2017_Corolla_QRG_D7_1_R1.indd 139/29/16 9:42 AM
Page 16 of 52
14
FEATURES & OPERATIONS
USB port By connecting a USB-compatible portable audio device or USB memory to the USB port, you can listen to music from the portable audio device or USB memory through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a portable
audio device through the vehicle’s speaker system while in AUX mode.
The engine switch must be in the “ACC” or “ON” position for use.
Adjusts the hourRound off minutesAdjusts the minutes
Power outlet
USB/AUX port
Clock
106535_2017_Corolla_QRG_D7_1_R1.indd 149/29/16 10:27 AM
Page 17 of 52
15
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Moon roof (if equipped)
Multi-Information Display (MID)
OpenTiltCloseClose
Recommended open position to minimize wind noise.
Push once to open partway; again to open completely.
Monochrome or color display**
* Except vehicles with manual transmission. ** Location of features are different for color MID.
Windows-Power
Up
Down
Driver side
Window lock switch
Automatic operation (driver’s window only)
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains operable.
SLIDING OPERATIONTILTING OPERATION
ECO Driving Indicator Zone Display*
Driving monitor
Warning messages
Outside temperature display
Shift position and gear position indicator*
Trip informationindicator*
106535_2017_Corolla_QRG_D7_1_R1.indd 159/29/16 10:27 AM

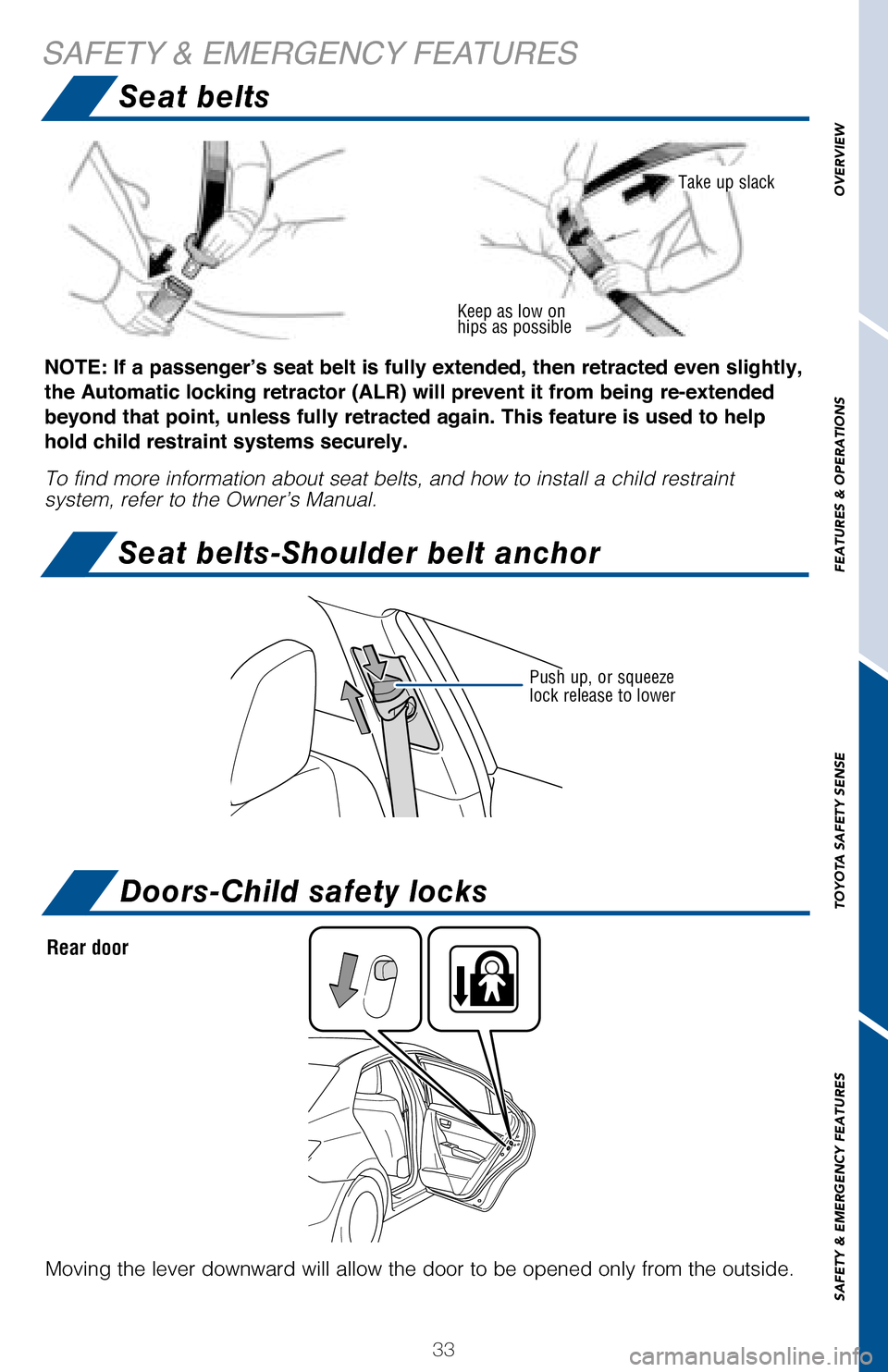

Page 35 of 52
33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Doors-Child safety locks
SAFETY & EMERGENCY FEATURES
Keep as low on hips as possible
Take up slack
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child restraint system, refer to the Owner’s Manual.
Moving the lever downward will allow the door to be opened only from the outside.
Push up, or squeeze lock release to lower
Seat belts-Shoulder belt anchor
Seat belts
Rear door
