radio TOYOTA COROLLA 2017 11.G Quick Reference Guide

7
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES

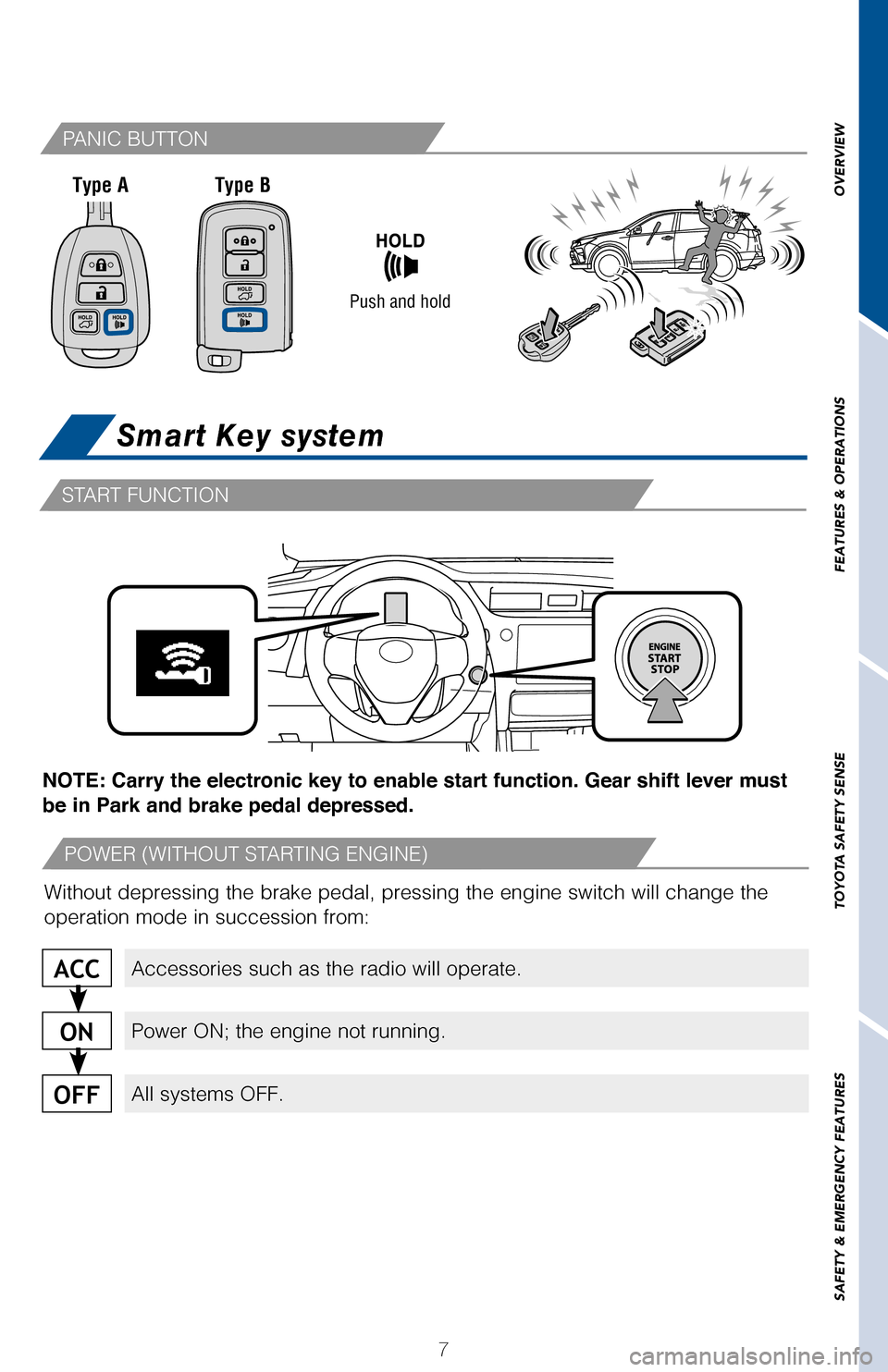

Smart Key system
Type A
Push and hold
PANIC BUTTON
Type B
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
NOTE: Carry the electronic key to enable start function. Gear shift lever must
be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the engine switch will change the
operation mode in succession from:
106535_2017_Corolla_QRG_D7_2_R2.indd 79/29/16 10:59 PM

18

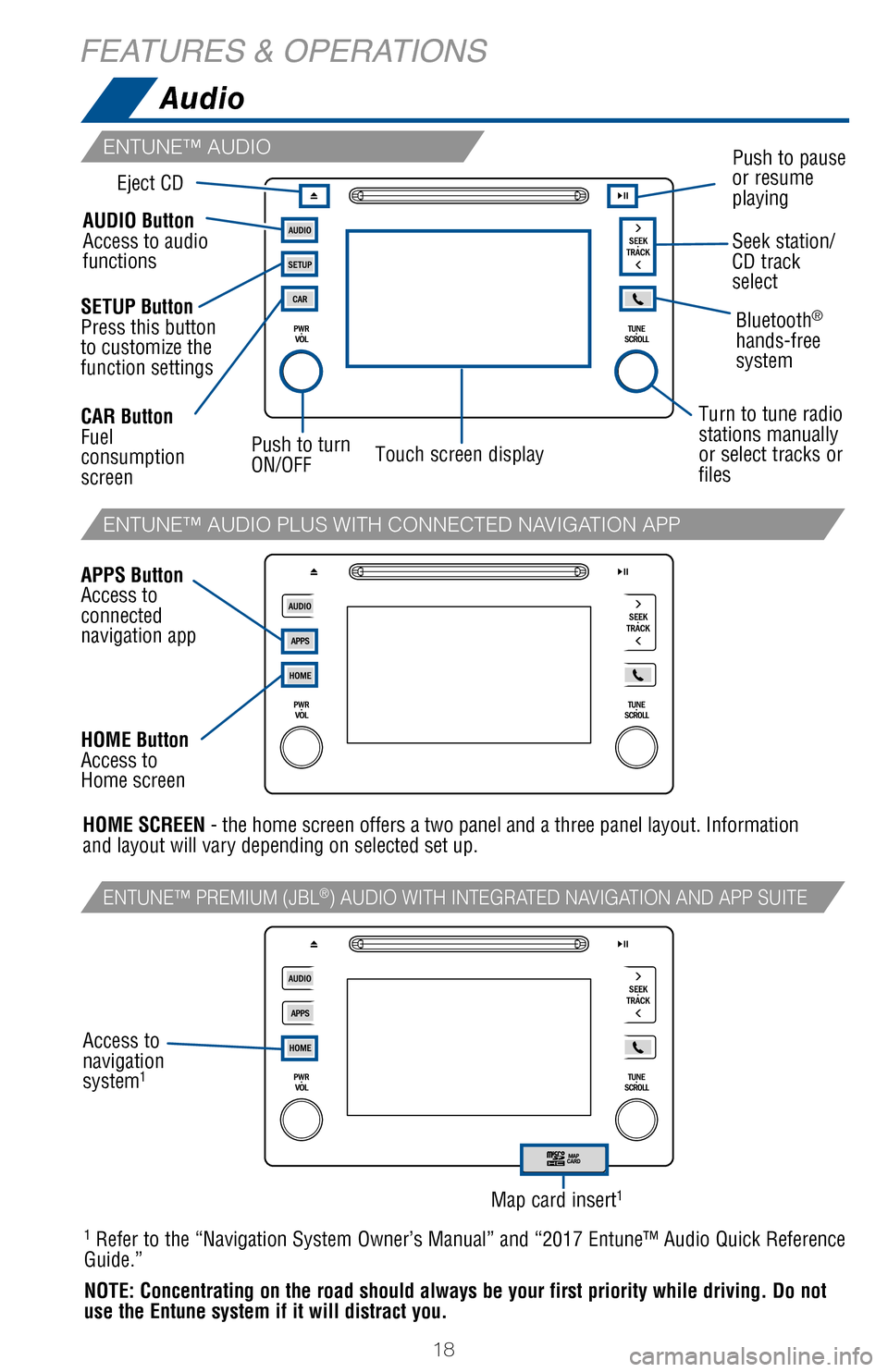

FEATURES & OPERATIONS
ENTUNE™ AUDIO
ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP
ENTUNE™ PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE
Bluetooth® hands-free system
AUDIO ButtonAccess to audio functions
HOME SCREEN - the home screen offers a two panel and a three panel layout. Information and layout will vary depending on selected set up.
SETUP ButtonPress this button to customize the function settings
APPS Button Access to connected navigation app
CAR Button Fuel consumption screen
HOME Button Access to Home screen
Push to turnON/OFF
Turn to tune radio stations manually or select tracks or files
Seek station/CD track select
Eject CD
Push to pause or resume playing
Touch screen display
1 Refer to the “Navigation System Owner’s Manual” and “2017 Entune™ Audio Quick Reference Guide.”
NOTE: Concentrating on the road should always be your first priority while driving. Do not use the Entune system if it will distract you.
Audio
Map card insert1
Access to navigation system1
106535_2017_Corolla_QRG_D7_1_R1.indd 189/29/16 10:28 AM

19
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to Section 5 in the Owner’s Manual, for more information about phone
connections and compatibility.
NOTE: Concentrating on the road should always be your first priority while driving. Do not
use the hands-free phone system if it will distract you.
Vehicles with moon roofVehicles without moon roof
MicrophoneMicrophone

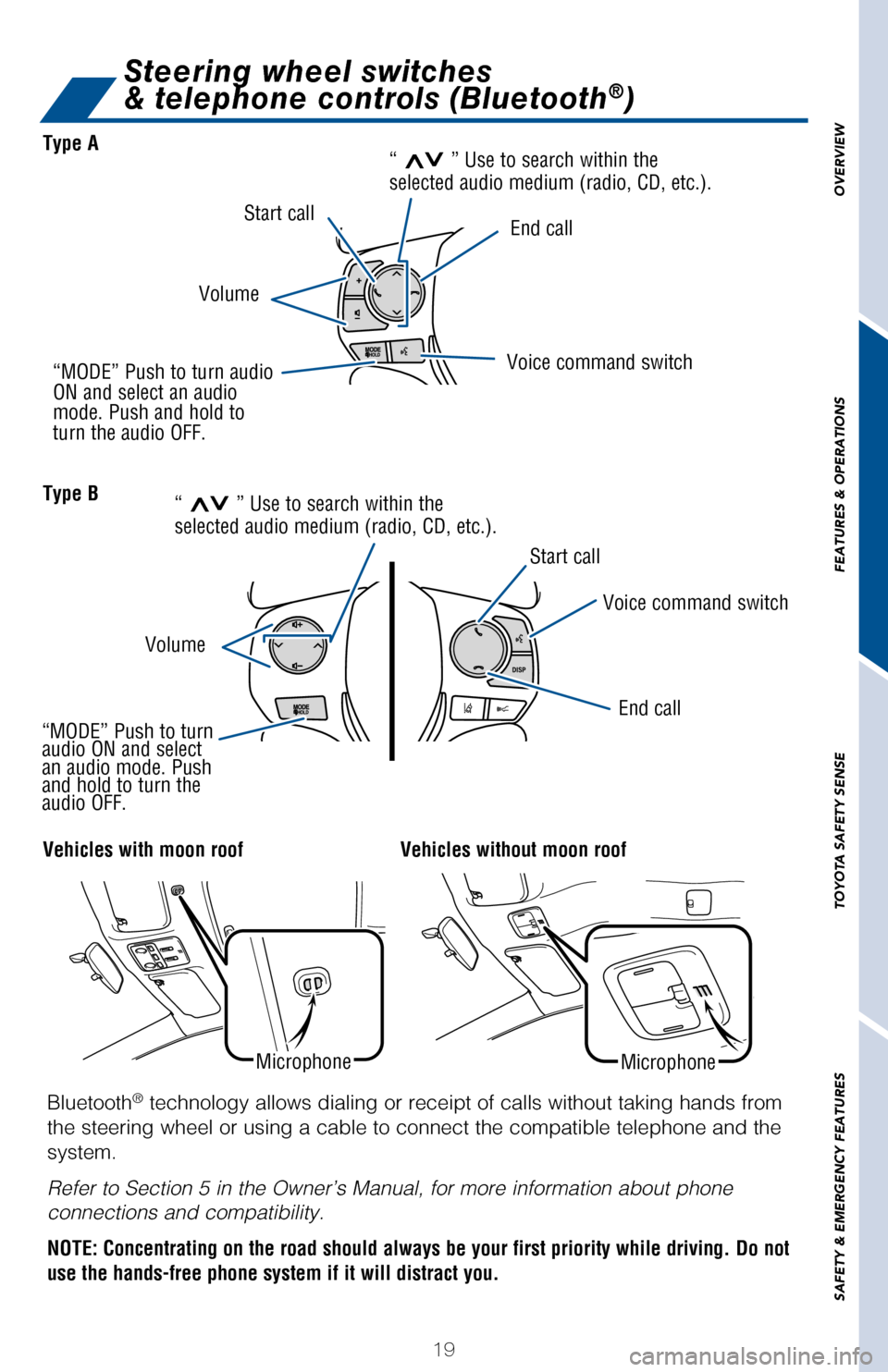

Steering wheel switches
& telephone controls (Bluetooth®)
Type B
Type A
End call
End call
Voice command switch
Voice command switch
Start call
Start call
Volume
Volume
“>>” Use to search within the selected audio medium (radio, CD, etc.).
“>>” Use to search within theselected audio medium (radio, CD, etc.).
“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio OFF.
“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn the audio OFF.
