TOYOTA COROLLA 2017 11.G Warranty And Maintenance Guide

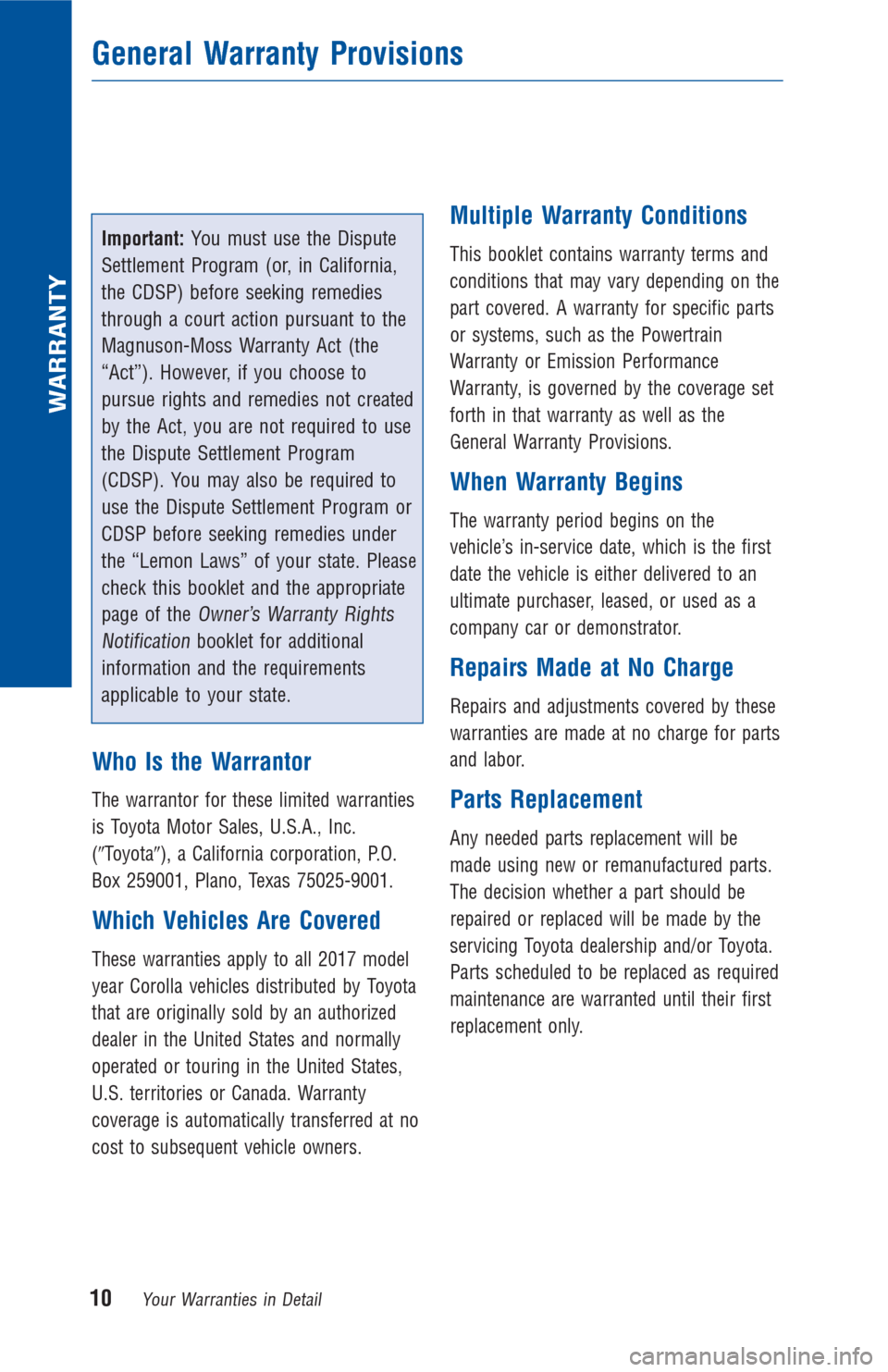

Important:You must use the Dispute
Settlement Program (or, in California,
the CDSP) before seeking remedies
through a court action pursuant to the
Magnuson-Moss Warranty Act (the
“Act”). However, if you choose to
pursue rights and remedies not created
by the Act, you are not required to use
the Dispute Settlement Program
(CDSP). You may also be required to
use the Dispute Settlement Program or
CDSP before seeking remedies under
the “Lemon Laws” of your state. Please
check this booklet and the appropriate
page of the
Owner’s Warranty Rights
Notification
booklet for additional
information and the requirements
applicable to your state.
Who Is the Warrantor
The warrantor for these limited warranties
is Toyota Motor Sales, U.S.A., Inc.
(Toyota), a California corporation, P.O.
Box 259001, Plano, Texas 75025-9001.
Which Vehicles Are Covered
These warranties apply to all 2017 model
year Corolla vehicles distributed by Toyota
that are originally sold by an authorized
dealer in the United States and normally
operated or touring in the United States,
U.S. territories or Canada. Warranty
coverage is automatically transferred at no
cost to subsequent vehicle owners.
Multiple Warranty Conditions
This booklet contains warranty terms and
conditions that may vary depending on the
part covered. A warranty for specific parts
or systems, such as the Powertrain
Warranty or Emission Performance
Warranty, is governed by the coverage set
forth in that warranty as well as the
General Warranty Provisions.
When Warranty Begins
The warranty period begins on the
vehicle’s in-service date, which is the first
date the vehicle is either delivered to an
ultimate purchaser, leased, or used as a
company car or demonstrator.
Repairs Made at No Charge
Repairs and adjustments covered by these
warranties are made at no charge for parts
and labor.
Parts Replacement
Any needed parts replacement will be
made using new or remanufactured parts.
The decision whether a part should be
repaired or replaced will be made by the
servicing Toyota dealership and/or Toyota.
Parts scheduled to be replaced as required
maintenance are warranted until their first
replacement only.
General Warranty Provisions
WARRANTY
Your Warranties in Detail10

Informal Dispute Settlement
Program
Toyota offers assistance through an
informal dispute settlement program called
theDispute Settlement Program. This
program is administered by an
independent third party:
National Center for Dispute Settlement
P.O. Box 688
Mt. Clemens, MI 48046
Further information about this program
can be found in this booklet and the
Owner’s Warranty Rights Notification
booklet.
California residents:Toyota offers you
assistance through an informal dispute
settlement program called the California
Dispute Settlement Program (CDSP). A
brochure about the program is found in
your glove box. For additional information,
call the Toyota Customer Experience
Center at (800) 331-4331. You may also
contact the CDSP directly at (888)
300-6237. Failure to use the CDSP may
affect your rights and remedies under
California’s “Lemon Laws.”
Limitations
The performance of necessary repairs and
adjustments is the exclusive remedy under
these warranties or any implied warranties.
Toyota does not authorize any person to
create for it any other obligation or liability
in connection with this vehicle.
Any implied warranty of merchantability
or fitness for a particular purpose is
limited to the duration of these written
warranties.Some states do not allow
restrictions on how long an implied
warranty lasts, so this limitation may not
apply to you.
Your Rights Under State Law
These warranties give you specific legal
rights. You may also have other rights that
vary from state to state.
General Warranty Provisions
WARRANTY
Your Warranties in Detail11

WARRANTY COVERAGE AT A GLANCE
Specific components may have longer coverage under terms of the Powertrain Warranty.
Also applies to Connecticut, Delaware, Maine, Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island, Vermont and Washington vehicles equipped with a California Certified
Emission Control System. Vehicles covered by this warranty are also covered by the Federal Emission Control Warranty.
General Warranty Provisions
WARRANTY
Your Warranties in Detail12

WHAT IS COVERED AND
HOW LONG
Basic Warranty
This warranty covers repairs and
adjustments needed to correct defects in
materials or workmanship of any part
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 36 months or
36,000 miles, whichever occurs first, with
the exception of wheel alignment and
wheel balancing, which are covered for
12 months or 12,000 miles, whichever
occurs first.
Powertrain Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any component listed
below and in the next column and
supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
Engine
Cylinder block and head and all internal
parts, timing gears and gaskets, timing
chain/belt and cover, flywheel, valve
covers, oil pan, oil pump, engine mounts,
turbocharger housing and all internal
parts, supercharger housing and all
internal parts, engine control computer,
water pump, fuel pump, seals and gaskets.Transmission and Transaxle
Case and all internal parts, torque
converter, clutch cover, transmission
mounts, transfer case and all internal
parts, engine control computer, seals and
gaskets.
Front-Wheel-Drive System
Final drive housing and all internal parts,
axle shafts, drive shafts, constant velocity
joints, front hub and bearings, seals and
gaskets.
Rear-Wheel-Drive System
Axle housing and all internal parts,
propeller shafts, U-joints, axle shafts, drive
shafts, bearings, supports, seals and
gaskets.
Restraint Systems Warranty
This warranty covers repairs needed to
correct defects in materials or
workmanship of any seatbelt or air bag
system supplied by Toyota, subject to the
exceptions indicated under “What Is Not
Covered” on pages 14-15.
Coverage is for 60 months or
60,000 miles, whichever occurs first.
For vehicles sold and registered in the
state of Kansas, the warranty for seatbelts
and related components is 10 years,
regardless of mileage.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail13

Corrosion Perforation Warranty
This warranty covers repair or replacement
of any original body panel that develops
perforation from corrosion (rust-through),
subject to the exceptions indicated under
“What Is Not Covered” on pages 14-15.
Coverage is for 60 months, regardless of
mileage.
For information on how to protect your
vehicle from corrosion, refer to sections
related to maintenance and care in the
Owner’s Manual.
Towing
When your vehicle is inoperable due to
failure of a warranted part, towing service
to the nearest authorized Toyota dealership
is covered.
WHAT IS NOT COVERED
This warranty does not cover damage or
failures resulting directly or indirectly from
any of the following:
•Fire, accidents or theft
•Abuse or negligence
•Misuse — for example, racing or
overloading
•Improper repairs
•Alteration or tampering, including
installation of non-Genuine Toyota
Accessories
•Lack of or improper maintenance,
including use of fluids and fuel other
than those specified in the
Owner’s
Manual
•Installation of non-Genuine Toyota Parts
•Airborne chemicals, tree sap, road
debris (including stone chips), rail dust,
salt, hail, floods, wind storms, lightning
and other environmental conditions
•Water contamination
This warranty also does not cover the
following:
Tires
Tires are covered by a separate warranty
provided by the tire manufacturer. See
page 29.
Normal Wear and Tear
Noise, vibration, cosmetic conditions and
other deterioration caused by normal wear
and tear.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail14

Maintenance Expense
Normal maintenance services such as:
•Engine tune-ups
•Replacement of fluids and filters
•Lubrication
•Cleaning and polishing
•Replacement of spark plugs and fuses
•Replacement of worn wiper blades,
brake pads/linings and clutch linings
Vehicles With Altered Odometer
Failure of a vehicle on which the odometer
has been altered so that actual vehicle
mileage cannot be readily determined.
Salvage or Total-Loss Vehicles
Any vehicle that has ever been issued a
“salvage” title or similar title under any
state’s law; or has ever been declared a
“total loss” or equivalent by a financial
institution or insurer, such as by payment
for a claim in lieu of repairs because the
cost of repairs exceeded the cash value of
the vehicle. This exclusion does not apply
to the emission control warranties.
Incidental Damages
Incidental or consequential damages
associated with a vehicle failure. Such
damages include but are not limited to
inconvenience; the cost of transportation,
telephone calls and lodging; the loss of
personal or commercial property; and the
loss of pay or revenue.
Disclaimer of Extra Expenses and
Damages
The performance of necessary repairs
and adjustments is the exclusive
remedy under this warranty or any
implied warranty. Toyota does not
authorize any person to create for it any
other obligation or liability in connection
with this vehicle. Toyota shall not be
liable for incidental or consequential
damages resulting from breach of this
written warranty or any implied
warranty. Any implied warranty of
merchantability or fitness for a
particular purpose is limited to the
duration of this written warranty, except
in states where this limitation is not
allowed.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail15

DISPUTE RESOLUTION
If a dispute arises regarding your warranty
coverage, please follow the steps
described under “If You Need Assistance”
on page 5. Please note that you must use
the Dispute Settlement Program (or, in
California, the CDSP) before seeking
remedies through a court action pursuant
to the Magnuson-Moss Warranty Act. You
may also be required to use the Dispute
Settlement Program or CDSP before
seeking remedies under the “Lemon Laws”
of your state. Please check the appropriate
page of the
Owner’s Warranty Rights
Notification
booklet (located in your glove
box) for the requirements applicable to
your state.
New Vehicle Limited Warranty
WARRANTY
Your Warranties in Detail16

WHAT IS COVERED AND
HOW LONG
Emission Defect Warranty
Toyota warrants that your vehicle:
•Was designed, built and equipped to
conform at the time of sale with
applicable federal emissions standards.
•Is free from defects in materials and
workmanship that may cause the
vehicle to fail to meet these standards.
Federal regulations require that this
warranty be in effect for two years or
24,000 miles from the vehicle’s in-service
date, whichever occurs first. However,
under the terms of the Basic Warranty,
Toyota provides coverage of three years or
36,000 miles, whichever occurs first.
Specific components may have longer
coverage under the terms of the
Powertrain Warranty. Additionally,
components marked “8/80” in the parts
list on pages 18–19 have coverage of
eight years or 80,000 miles, whichever
occurs first.
Emission Performance Warranty
Some states and localities have
established vehicle inspection and
maintenance (I/M) programs to encourage
proper vehicle maintenance. If an
EPA-approved I/M program is in force in
your area, you are eligible for Emission
Performance Warranty coverage.
Under the terms of the Emission
Performance Warranty and federal
regulations, Toyota will make all necessary
repairs if both of the following occur:
•Your vehicle fails to meet applicable
emissions standards as determined by
an EPA-approved emissions test.
•This failure results or will result in
some penalty to you — such as a fine
or denial of the right to use your
vehicle — under local, state or federal
law.
This warranty is in effect for two years or
24,000 miles from the vehicle’s in-service
date, whichever occurs first. Additionally,
components marked “8/80” in the parts
list on pages 18–19 have coverage of
eight years or 80,000 miles, whichever
occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail17

WHAT IS NOT COVERED
These warranty obligations do not apply to
failures or noncompliance caused by:
•The use of replacement parts not
certified in accordance with aftermarket
parts certification regulations.
•The use of replacement parts not
equivalent in quality or design to
original equipment parts.
Provisions under the “What Is Not
Covered” section of the New Vehicle
Limited Warranty also apply to this
warranty.
WARRANTY PARTS LIST
Air/Fuel Metering System
•Air/fuel ratio feedback control system
•Cold-start enrichment system
•Deceleration control system
•Electronic fuel injection system
components
–Airflow sensor
–Engine control module (8/80)
–Throttle body
–Other components
Air Induction System
•Intake manifold and intake air surge
tank
Catalyst System
•Catalytic converter and protector (8/80)
•Constricted fuel filler neck
•Exhaust manifold
•Exhaust pipe (manifold to catalyst
and/or catalyst to catalyst)
Evaporative Control System
•Charcoal canister
•Diaphragm valve
•Fuel filler cap
•Fuel tank
•Vapor liquid separator
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail18

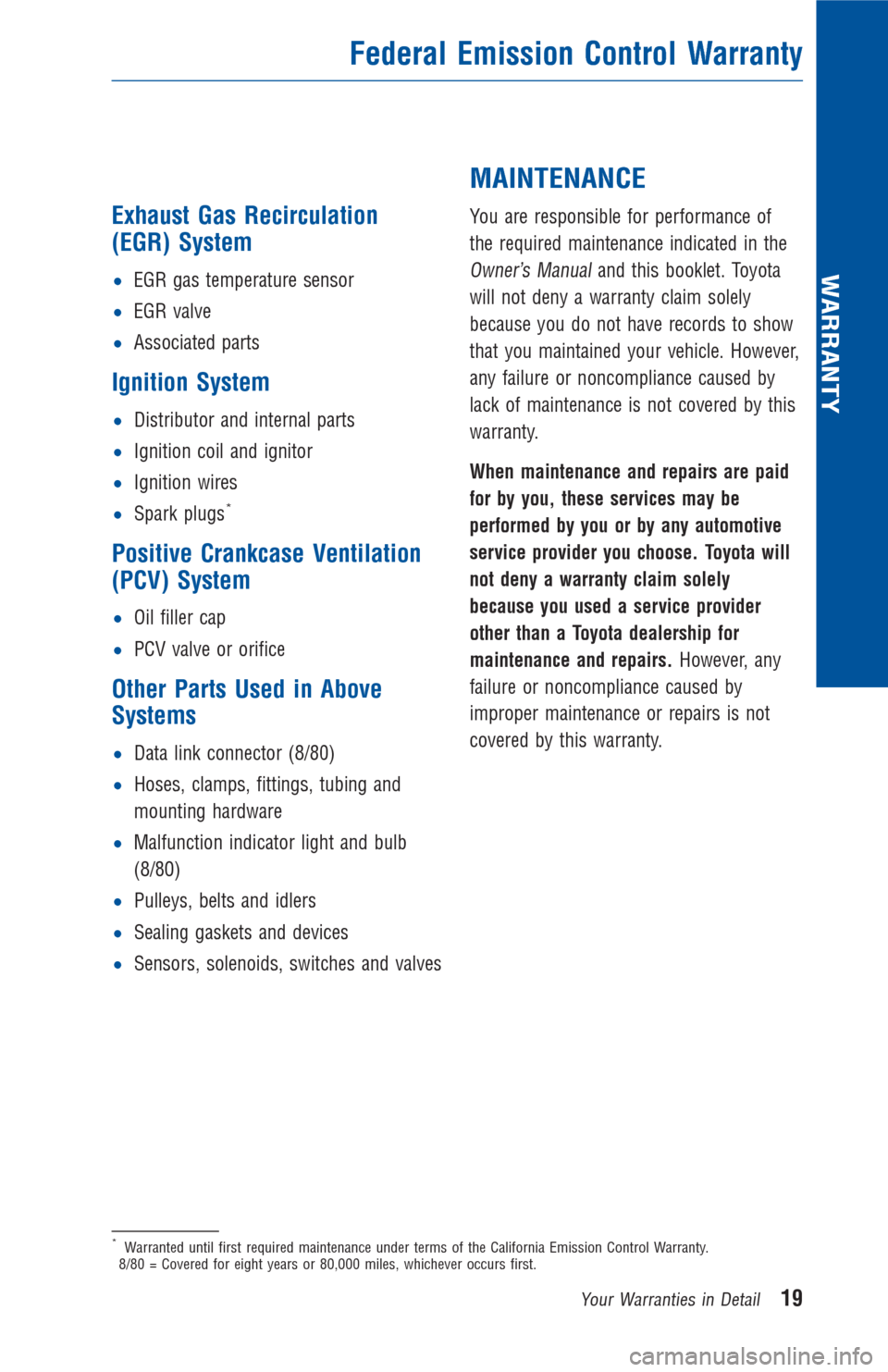

Exhaust Gas Recirculation
(EGR) System
•EGR gas temperature sensor
•EGR valve
•Associated parts
Ignition System
•Distributor and internal parts
•Ignition coil and ignitor
•Ignition wires
•Spark plugs*
Positive Crankcase Ventilation
(PCV) System
•Oil filler cap
•PCV valve or orifice
Other Parts Used in Above
Systems
•Data link connector (8/80)
•Hoses, clamps, fittings, tubing and
mounting hardware
•Malfunction indicator light and bulb
(8/80)
•Pulleys, belts and idlers
•Sealing gaskets and devices
•Sensors, solenoids, switches and valves
MAINTENANCE
You are responsible for performance of
the required maintenance indicated in the
Owner’s Manualand this booklet. Toyota
will not deny a warranty claim solely
because you do not have records to show
that you maintained your vehicle. However,
any failure or noncompliance caused by
lack of maintenance is not covered by this
warranty.
When maintenance and repairs are paid
for by you, these services may be
performed by you or by any automotive
service provider you choose. Toyota will
not deny a warranty claim solely
because you used a service provider
other than a Toyota dealership for
maintenance and repairs.However, any
failure or noncompliance caused by
improper maintenance or repairs is not
covered by this warranty.
*Warranted until first required maintenance under terms of the California Emission Control Warranty.
8/80 = Covered for eight years or 80,000 miles, whichever occurs first.
Federal Emission Control Warranty
WARRANTY
Your Warranties in Detail19
