TOYOTA COROLLA 2018 (in English) User Guide

11
COROLLA_TMMMS_TMMC_U (01999-02509)The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regard ing children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neut\
ral.
There is also a danger that children may injure themselves by playing with
the windows, the moon roof, or other features of the vehicle. In addition,
heat build-up or extremely cold temperatures inside the vehicle can be fatal
to children.

12
COROLLA_TMMMS_TMMC_U (01999-02509)
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
Reading this manual
123

13
COROLLA_TMMMS_TMMC_U (01999-02509)■
Searching by name
• Alphabetical index .......P. 595
■Searching by installation
position• Pictorial index ................P. 14
■Searching by symptom or
sound• What to do if... (Troubleshooting) ........P. 590
■Searching by title• Table of contents .............P. 2
How to search

14
COROLLA_TMMMS_TMMC_U (01999-02509)

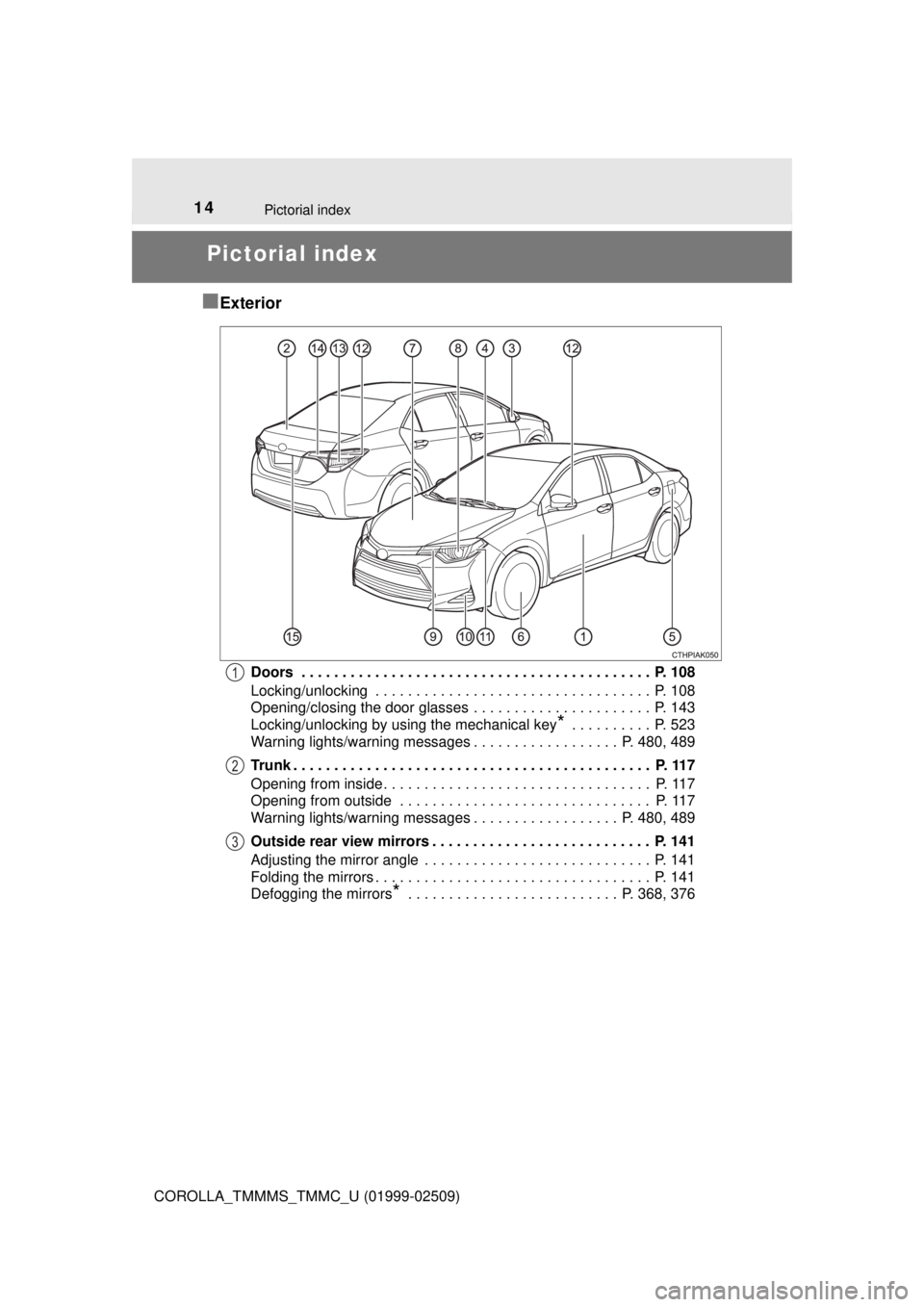

Pictorial index
Pictorial index
■
Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 108
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 108
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 143
Locking/unlocking by using the mechanical key
* . . . . . . . . . . P. 523
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 480, 489
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 117
Opening from inside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 117
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 117
Warning lights/warning messages . . . . . . . . . . . . . . . . . . P. 480, 489
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 141
Defogging the mirrors
* . . . . . . . . . . . . . . . . . . . . . . . . . . P. 368, 376
1
2
3

15Pictorial index
COROLLA_TMMMS_TMMC_U (01999-02509)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 263
To prevent freezing (windshield wiper de-icer)
* . . . . . . . . . . . P. 376
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 540
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 440
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 546
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 263
Checking/rotation/tire pressure warning system
*. . . . . . . . P. 440
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 509
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 540
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 531
Headlights/daytime running lights
*. . . . . . . . . . . . . . . . . . . P. 193
Front turn signal/parking lights . . . . . . . . . . . . . . . . . . . . . . P. 193
Daytime running lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Front side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Turn signal lights
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Stop/tail lights/rear side marker lights . . . . . . . . . . . . . . . . P. 193
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . P. 181, 184, 189
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 461, Watts: P. 547)
*: If equipped
8
9
10
11
12
13
14
15

16Pictorial index
COROLLA_TMMMS_TMMC_U (01999-02509)
■Instrument panel
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 171, 174
Starting the engine/changing the modes . . . . . . . . . . . . . P. 171, 174
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 471
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 521
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 489
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 181, 184, 189
Changing the shift position . . . . . . . . . . . . . . . . . . . P. 181, 184, 189
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 473
When the shift lever does not move
*1. . . . . . . . . . . . . . . P. 183, 188
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 77, 86
Reading the meters/adjusting the meter light . . . . . . . . . . . P. 77, 86
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . P. 72
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 480
1
2
3

17Pictorial index
COROLLA_TMMMS_TMMC_U (01999-02509)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . P. 77, 86
When the warning messages are displayed . . . . . . . . . . . . . . P. 489
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 264
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 489
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Headlights/front parking lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 202
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
Warning messages
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 497
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Tilt and telescopic steering control lever . . . . . . . . . . . . . . P. 137
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . P. 366, 373
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 366, 373
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 368, 376
Entune Audio
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 273
Entune Audio Plus
*1, 2
Entune Premium Audio
*1, 2
*1: If equipped
*2: For vehicles with an Entune Premium Audio or Entune Audio Plus, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
4
5
6
7
8
9
10
11
12

18Pictorial index
COROLLA_TMMMS_TMMC_U (01999-02509)
■Switches
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . P. 141
Instrument panel light control dial
*1. . . . . . . . . . . . . . . . P. 79, 88
Heated steering wheel switch
*1. . . . . . . . . . . . . . . . . . . . . . P. 383
Windshield wiper de-icer switch
*1. . . . . . . . . . . . . . . . . . . . P. 376
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 111
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Tire pressure warning reset switch*1. . . . . . . . . . . . . . . P. 442
1
2
3
4
5
6
7
8

19Pictorial index

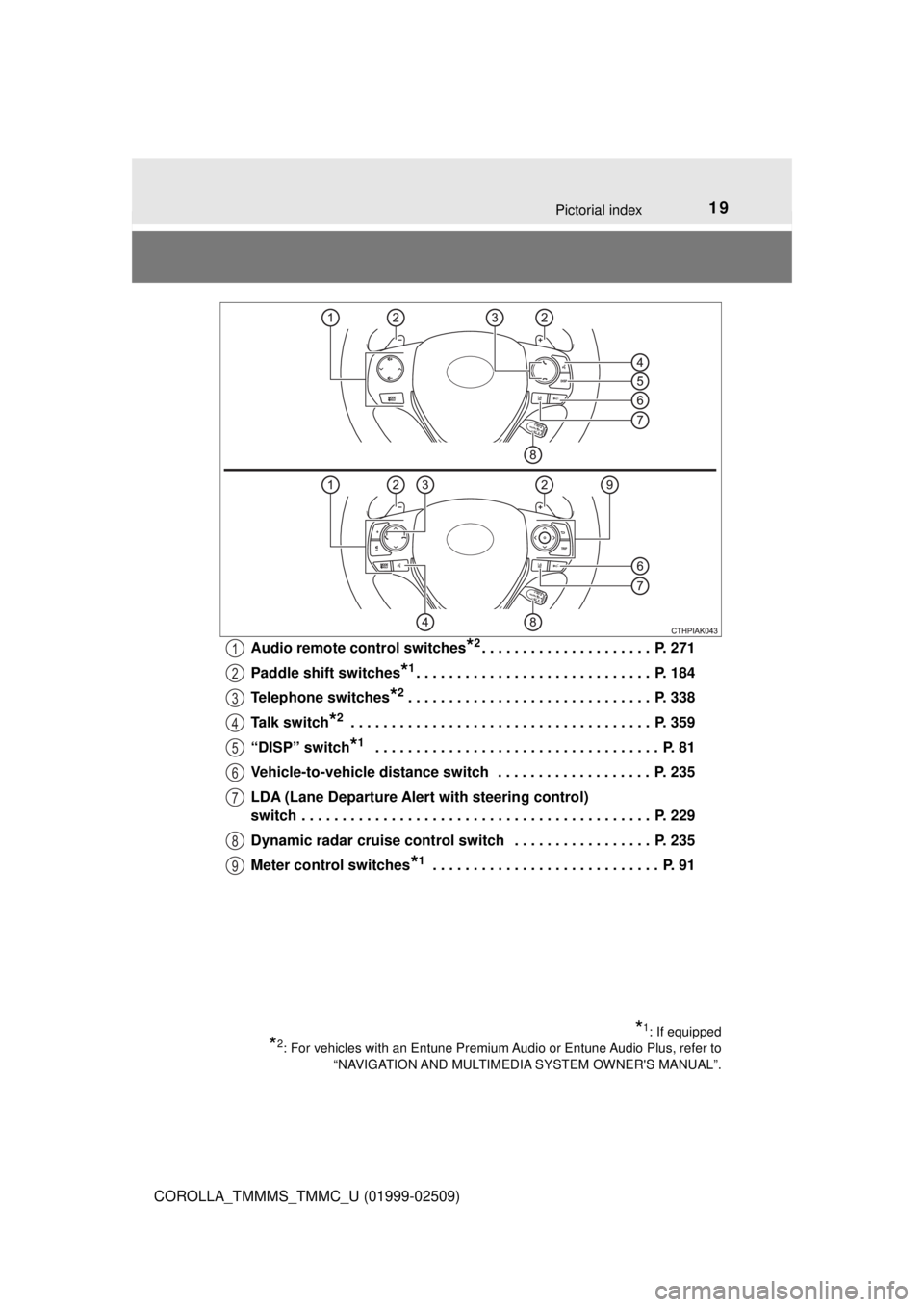

COROLLA_TMMMS_TMMC_U (01999-02509)Audio remote control switches
*2. . . . . . . . . . . . . . . . . . . . . P. 271
Paddle shift switches
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Telephone switches
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Talk switch
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 359
“DISP” switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 81
Vehicle-to-vehicle distance switch . . . . . . . . . . . . . . . . . . . P. 235
LDA (Lane Departure Alert with steering control)
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Dynamic radar cruise control switch . . . . . . . . . . . . . . . . . P. 235
Meter control switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 91
*1: If equipped
*2: For vehicles with an Entune Premium Audio or Entune Audio Plus, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL”.
1
2
3
4
5
6
7
8
9

20Pictorial index
COROLLA_TMMMS_TMMC_U (01999-02509)VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 258
Sport mode switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
“ECO MODE” switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 182

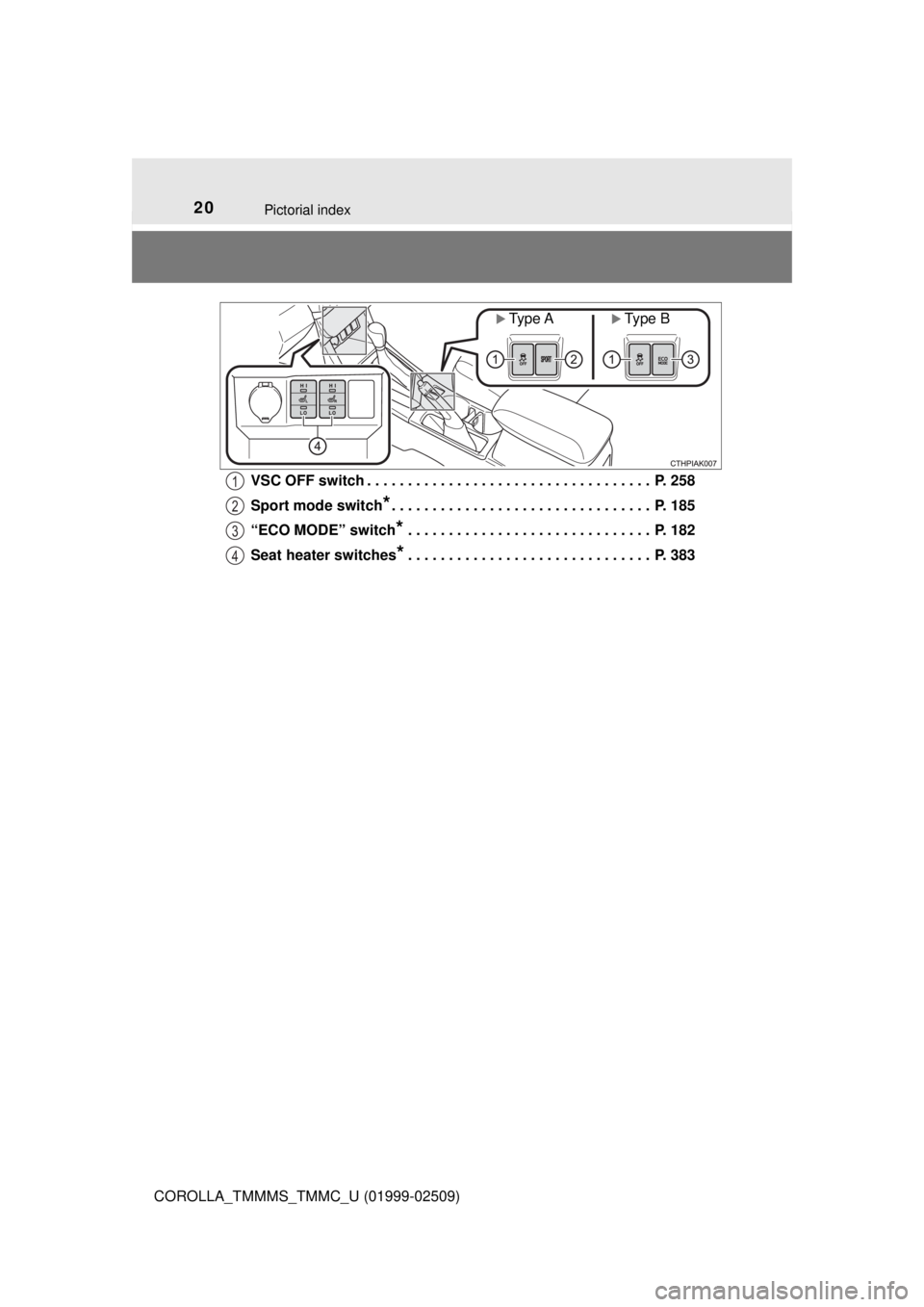

Seat heater switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 383
Type AType B
1
2
3
4
