TOYOTA COROLLA 2018 Owners Manual (in English)

3615-11. Using the voice command system
5
Audio system
COROLLA_TMMMS_TMMC_U (01999-02509)
Some recognizable voice commands and their actions are shown
below as examples.
Basic
Phone

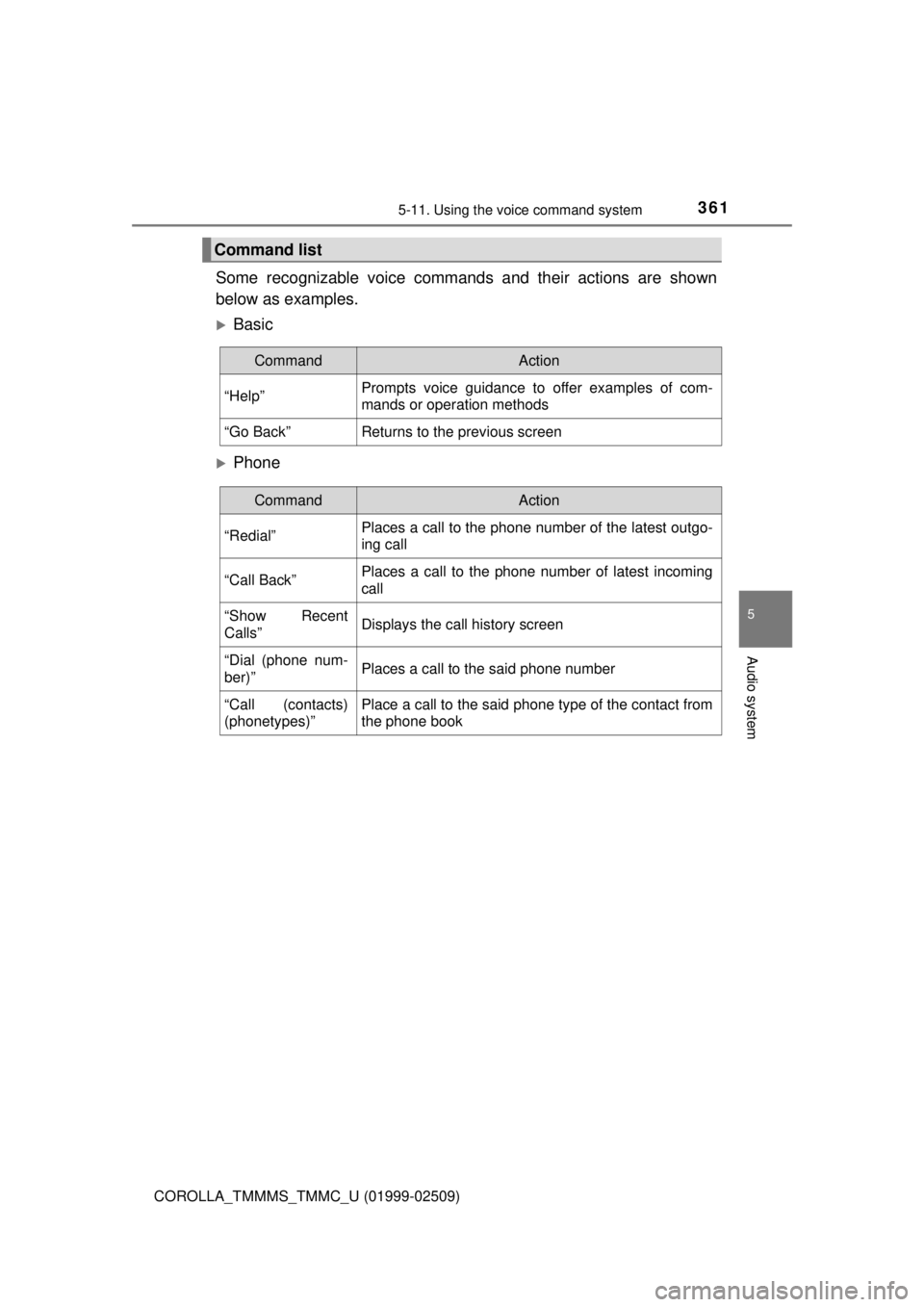

Command list
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent
Calls”Displays the call history screen
“Dial (phone num-
ber)”Places a call to the said phone number
“Call (contacts)
(phonetypes)”Place a call to the said phone type of the contact from
the phone book

3625-11. Using the voice command system
COROLLA_TMMMS_TMMC_U (01999-02509)
The Mobile Assistant feature will activate Apple’s Siri® Eyes Free
mode via the steering wheel switc hes. To operate the Mobile Assis-
tant, a compatible cellular phone must be registered and connected to
this system via Bluetooth
®. ( → P. 312)
Press and hold the off-hook on the steering wheel until you hear the
beeps.
The Mobile Assistant can be
used only when the following
screen is displayed.
To cancel the Mobile Assistant,
select “Cancel”, or press and hold
the off-hook on the steering wheel.
To restart the Mobile Assistant for
additional commands, press the
off-hook on the steering wheel.
• Mobile Assistant can only be restarted after the system responds to a
voice command.
• After some phone and music commands, the Mobile Assistant feature will
automatically end to complete the requested action.
■
Adjusting the Mobile Assistant volume
The volume of the Mobile Assistant can be adjusted using the
“PWR·VOL” knob or steering whee l volume switches. The Mobile
Assistant and phone call volumes are synchronized.
Mobile Assistant
1
Ty p e AType B
2

3635-11. Using the voice command system
5
Audio system
COROLLA_TMMMS_TMMC_U (01999-02509)
■ Notes about Mobile Assistant
●The available features and functions may vary based on the iOS version
installed on the connected device.
● Some Siri features are limited in Eyes Free mode. If you attempt to use an
unavailable function, Siri will inform you that the function is not avai\
lable.
● If Siri is not enabled on the cellular phone connected via Bluetooth
®, an
error message will be displayed on the screen.
● While a phone call is active, the Mobile Assistant cannot be used.
● If using the navigation feature of the cellular phone, ensure the active audio
source is Bluetooth
® audio or iPod in order to hear turn by turn direction
prompts.

3645-11. Using the voice command system
COROLLA_TMMMS_TMMC_U (01999-02509)

365
6Interior features
COROLLA_TMMMS_TMMC_U (01999-02509)6-1. Using the air
conditioning system
and defogger
Manual air conditioning system............................. 366
Automatic air conditioning system............................. 373
Heated steering wheel/ seat heaters .................... 382
6-2. Using the interior lights Interior lights list ................ 384
• Front interior light/personal lights............... 385
• Rear interior light .......... 386
6-3. Using the storage features
List of storage features ..... 387
• Glove box...................... 388
• Console box .................. 388
• Bottle holders ................ 389
• Cup holders .................. 390 6-4. Other interior features
Other interior features ....... 392
• Sun visors ..................... 392
• Vanity mirrors................ 392
• Clock ............................. 392
• Outside temperature display........................... 393
• Power outlet .................. 394
• Assist grips ................... 395
Garage door opener.......... 396
Compass ........................... 403

366
COROLLA_TMMMS_TMMC_U (01999-02509)
6-1. Using the air conditioning system and defogger
■Adjusting the temperature setting
Heater
To adjust the temperature setting, turn the dial clockwise to
increase the temperature.
Air conditioning system
To adjust the temperature setting, turn the dial clockwise
(warm) or counterclockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
■
Fan speed setting
To adjust the fan speed, turn the dial clockwise (increase) or
counterclockwise (decrease).
Turning the dial to “0” turns off the fan.
Manual air conditioning system∗
∗: If equipped
Air conditioning controls
HeaterAir conditioning system

3676-1. Using the air conditioning system and defogger
6
Interior features
COROLLA_TMMMS_TMMC_U (01999-02509)■
Changing airflow modes
To change the airflow mode, set
the dial to the desired
position.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and the windshield defogger operates.
Air flows to the windshield.
1
2
3
4
5

3686-1. Using the air conditioning system and defogger
COROLLA_TMMMS_TMMC_U (01999-02509)■
Switching between outside air
and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recir-
culated air mode (indicator on) each time is pressed.
■
Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Set the air outlet selector dial to the position.
Set the outside/recirculated air mode button to outside air mode if the
recirculated air mode is used. (It may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
Vehicles with the air conditioning system: If the dehumidification
function is not operating, pres s to operate the dehumidifica-
tion function.
■Defogging the rear window and outside rear view mirrors
Vehicles without outside rear view mirror defoggers
Defoggers are used to defog the rear window.
Press .
The defoggers will automatically turn off after a period of time.
Vehicles with outside re ar view mirror defoggers
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
Other functions

3696-1. Using the air conditioning system and defogger
6
Interior features
COROLLA_TMMMS_TMMC_U (01999-02509)■
Location of air outlets
The air outlets and air volume
changes according to the
selected airflow mode.
■Adjusting the position of and opening and closing the air out-
lets
Front center outlets
Direct air flow to the left or right,
up or down.
Air outlets

3706-1. Using the air conditioning system and defogger
COROLLA_TMMMS_TMMC_U (01999-02509)
Front side outlets
Direct air flow to the left or right,
up or down.
Open the vent
Close the vent
1
2
