TOYOTA COROLLA 2018 (in English) User Guide

9
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check Engine “
”
indicator may illuminate.
Engine maintenance
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Instrument panel light control
Brightness
control
Brighter
Darker
2018_Corolla_QRG_V4_ML_0801.indd 98/2/17 1:49 AM

10

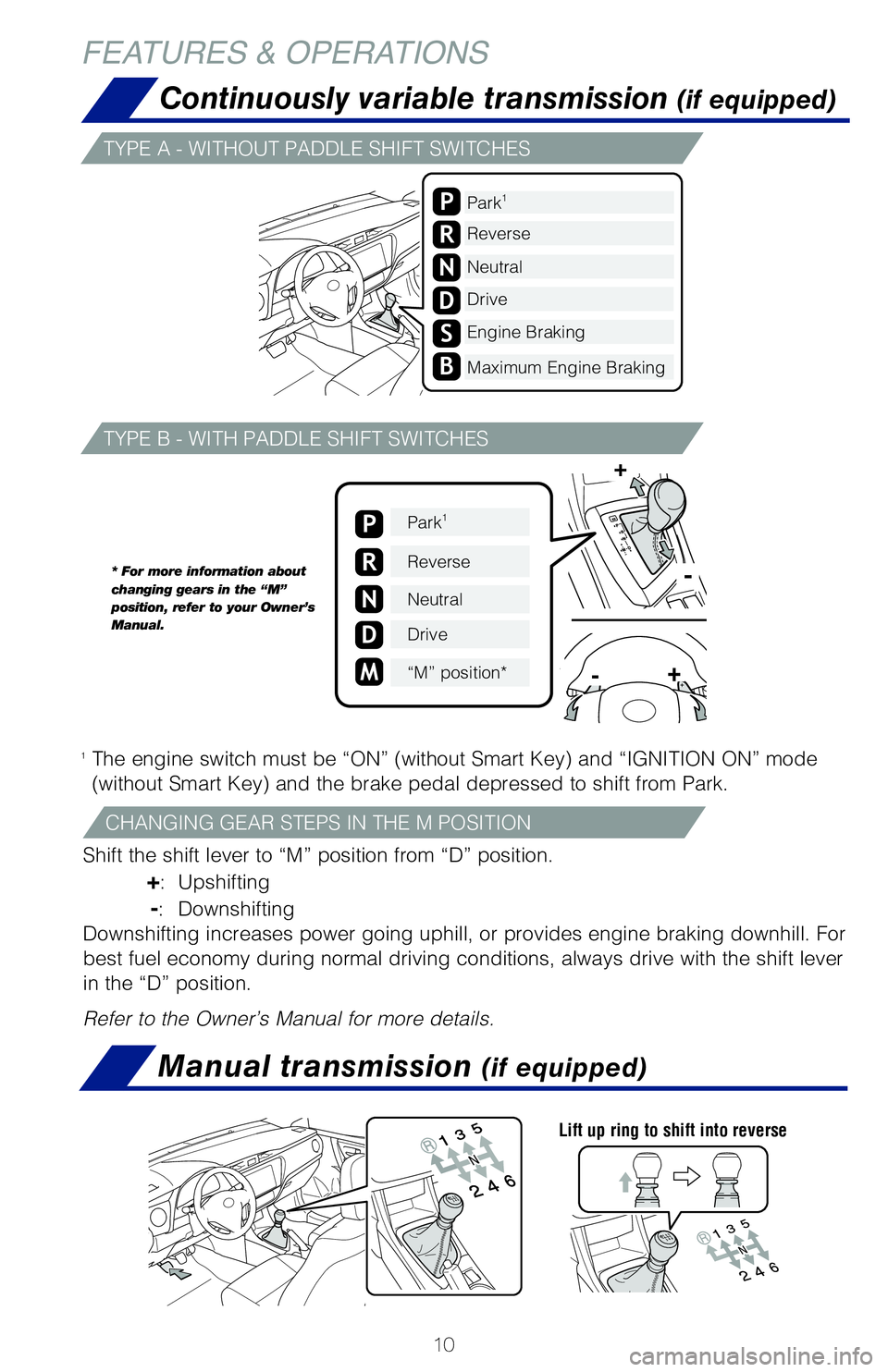

Manual transmission (if equipped)
Continuously variable transmission (if equipped)
CHANGING GEAR STEPS IN THE M POSITION
TYPE A - WITHOUT PADDLE SHIFT SWITCHES
TYPE B - WITH PADDLE SHIFT SWITCHES
Lift up ring to shift into reverse
Park1
Reverse
Neutral
Drive
Engine Braking
Maximum Engine Braking
S
B
P
R
N
D
1 The engine switch must be “ON” (without Smart Key) and “IGNI\
TION ON” mode (without Smart Key) and the brake pedal depressed to shift from Park.
For powerful acceleration and driving in mountainous regions.
Shift the shift lever to “M” position from “D” position.

+: Upshifting

-: Downshifting
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
Refer to the Owner’s Manual for more details.
Park1
Reverse
Neutral
Drive
“M” position*
P
R
N
D
M
+
+
-
-
* For more information about
changing gears in the “M”
position, refer to your Owner’s
Manual.
FEATURES & OPERATIONS
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-(With Smart Key system) Doors lock when the vehicle speed goes above \
approximately 12 mph.
Driver’s door linked door unlocking function
-(Without a Smart Key system) Doors unlock when the driver’s door i\
s opened within 45 seconds after turning the ignition switch to the “ACC” o\
r “LOCK” position.
-(With a Smart Key system) Doors unlock when the driver’s door is o\
pened within 45 seconds after turning the “ENGINE START STOP” switch to ACCESSO\
RY mode
or OFF.
Refer to the Owner’s Manual for more details.
NOTE: Do not attempt to adjust while the vehicle is in motion. Lock release lever
2018_Corolla_QRG_V4_ML_0801.indd 108/2/17 1:49 AM

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Manual transmission (if equipped)

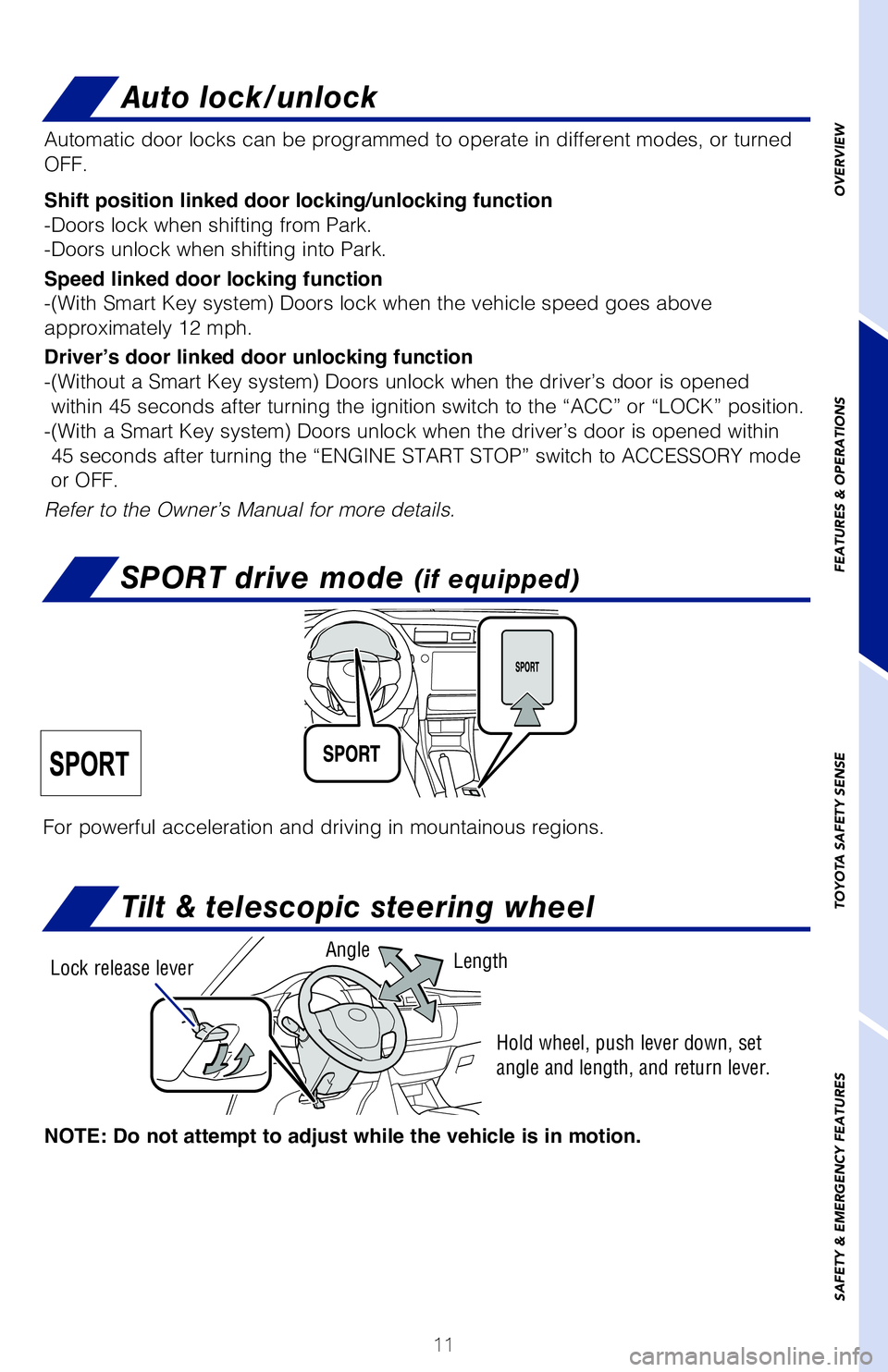

Continuously variable transmission (if equipped)Auto lock/unlock
1 The engine switch must be “ON” (without Smart Key) and “IGNI\
TION ON” mode
(without Smart Key) and the brake pedal depressed to shift from Park.
For powerful acceleration and driving in mountainous regions.
Shift the shift lever to “M” position from “D” position.

+: Upshifting

-: Downshifting
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
Refer to the Owner’s Manual for more details.
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-(With Smart Key system) Doors lock when the vehicle speed goes above \
approximately 12 mph.
Driver’s door linked door unlocking function
-(Without a Smart Key system) Doors unlock when the driver’s door i\
s opened within 45 seconds after turning the ignition switch to the “ACC” o\
r “LOCK” position.
-(With a Smart Key system) Doors unlock when the driver’s door is o\
pened within 45 seconds after turning the “ENGINE START STOP” switch to ACCESSO\
RY mode
or OFF.
Refer to the Owner’s Manual for more details.
Tilt & telescopic steering wheel
SPORT drive mode (if equipped)
NOTE: Do not attempt to adjust while the vehicle is in motion. Lock release lever
Angle
Length
Hold wheel, push lever down, set
angle and length, and return lever.
2018_Corolla_QRG_V4_ML_0801.indd 118/2/17 1:49 AM

12

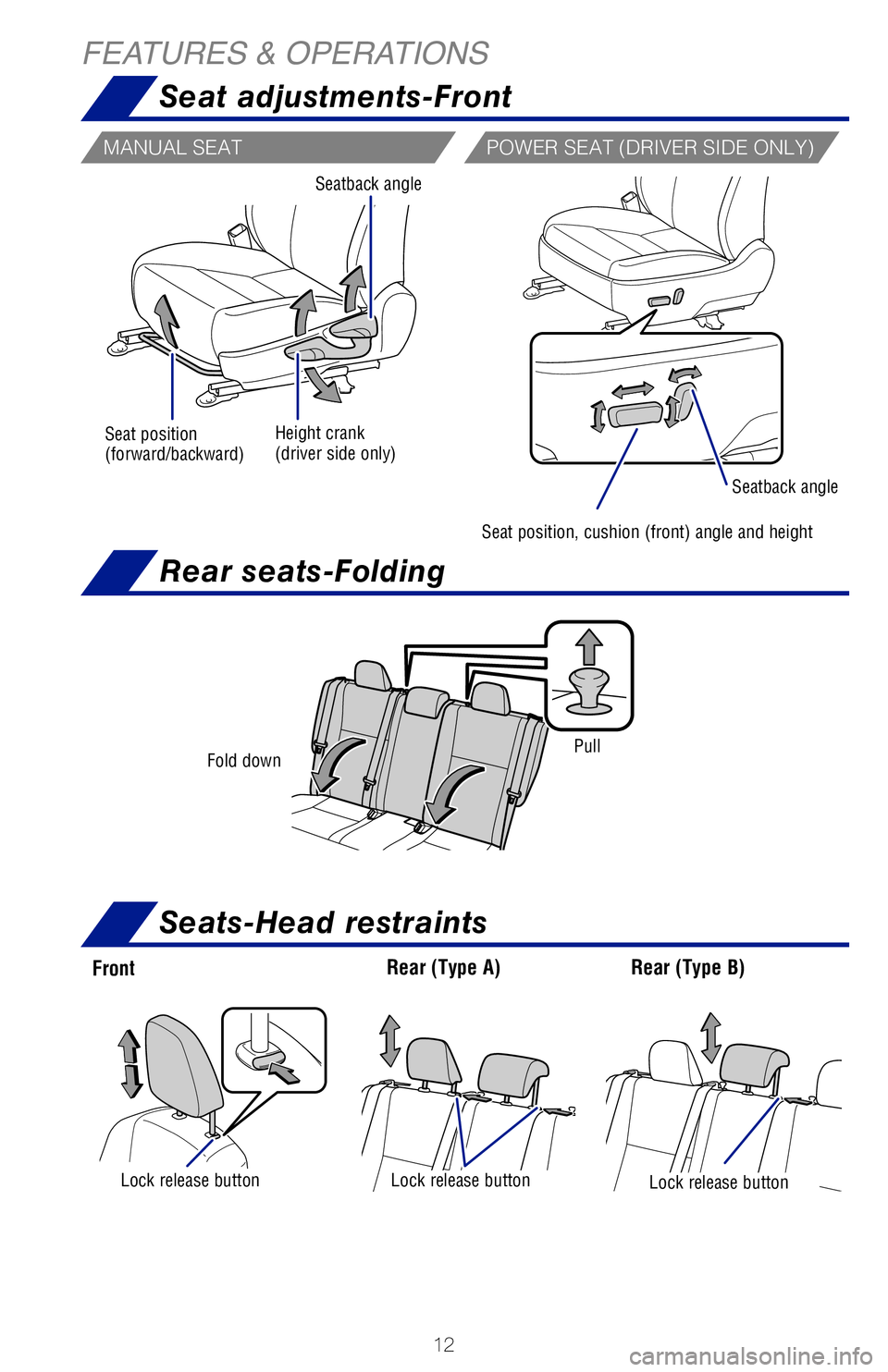

FEATURES & OPERATIONSSeat adjustments-Front
Front Rear (Type B)
Rear (Type A)
Lock release buttonLock release buttonLock release button
Fold down Pull
MANUAL SEAT
POWER SEAT (DRIVER SIDE ONLY)
-Daytime Running Light system (DRL) Automatically turns on the headlights at
a reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second delay, or lock switch on remote may be pushed after locking.
-Automatic High Beam (AHB) system Automatically switches between high and low beams as appropriate to provide the most light possible and enha\
nce
forward visibility. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’s Manual for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for detai\
ls.
Type A
Rear seats-Folding
Seats-Head restraints
HEADLIGHTS
TURN SIGNALS
* Move lever partway and release; signal will flash three times
Parking lights
Seat position
(forward/backward) Height crank
(driver side only) Seatback angle
Seat position, cushion (front) angle and height Seatback angle
2018_Corolla_QRG_V4_ML_0801.indd 128/2/17 1:49 AM

13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Rear (Type B)
Lock release button
POWER SEAT (DRIVER SIDE ONLY)
-Daytime Running Light system (DRL) Automatically turns on the headlights at
a reduced intensity.
-Automatic light cut off system Automatically turns lights off after 30-second delay, or lock switch on remote may be pushed after locking.
-Automatic High Beam (AHB) system Automatically switches between high and low beams as appropriate to provide the most light possible and enha\
nce
forward visibility. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’s Manual for more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for detai\
ls.

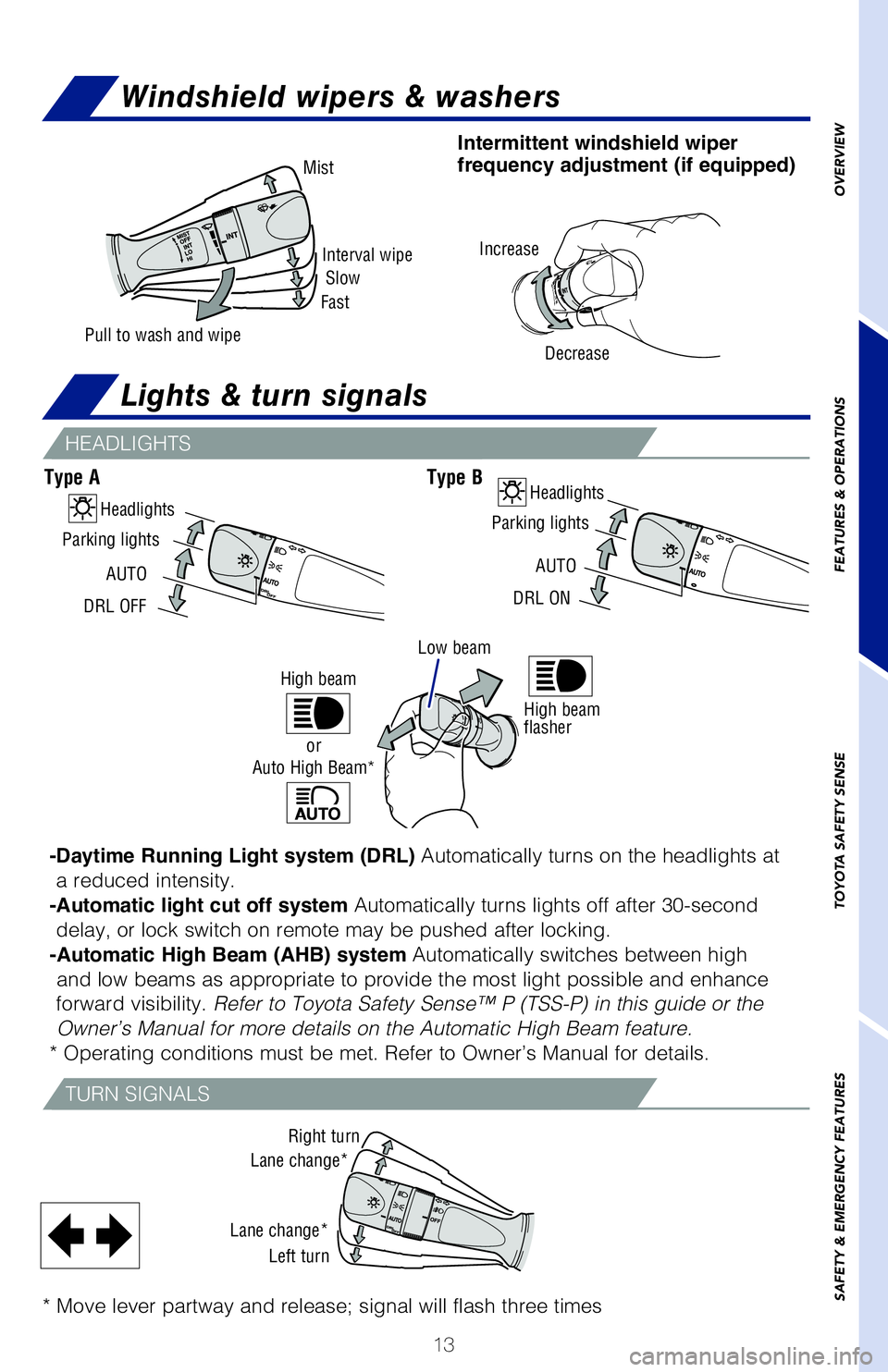

Type A Type BHeadlights
Parking lights
DRL ON AUTO
Interval wipe
Mist
Slow
Fast
Pull to wash and wipe
Intermittent windshield wiper
frequency adjustment (if equipped)
Increase
Decrease
Lights & turn signals
HEADLIGHTS
TURN SIGNALS
Windshield wipers & washers
Right turn
Lane change*
Lane change* Left turn
* Move lever partway and release; signal will flash three times
High beam
flasher
Headlights
Parking lights
DRL OFF AUTO
Low beam
High beam
Auto High Beam* or
Seat position, cushion (front) angle and height Seatback angle
2018_Corolla_QRG_V4_ML_0801.indd 138/2/17 1:49 AM

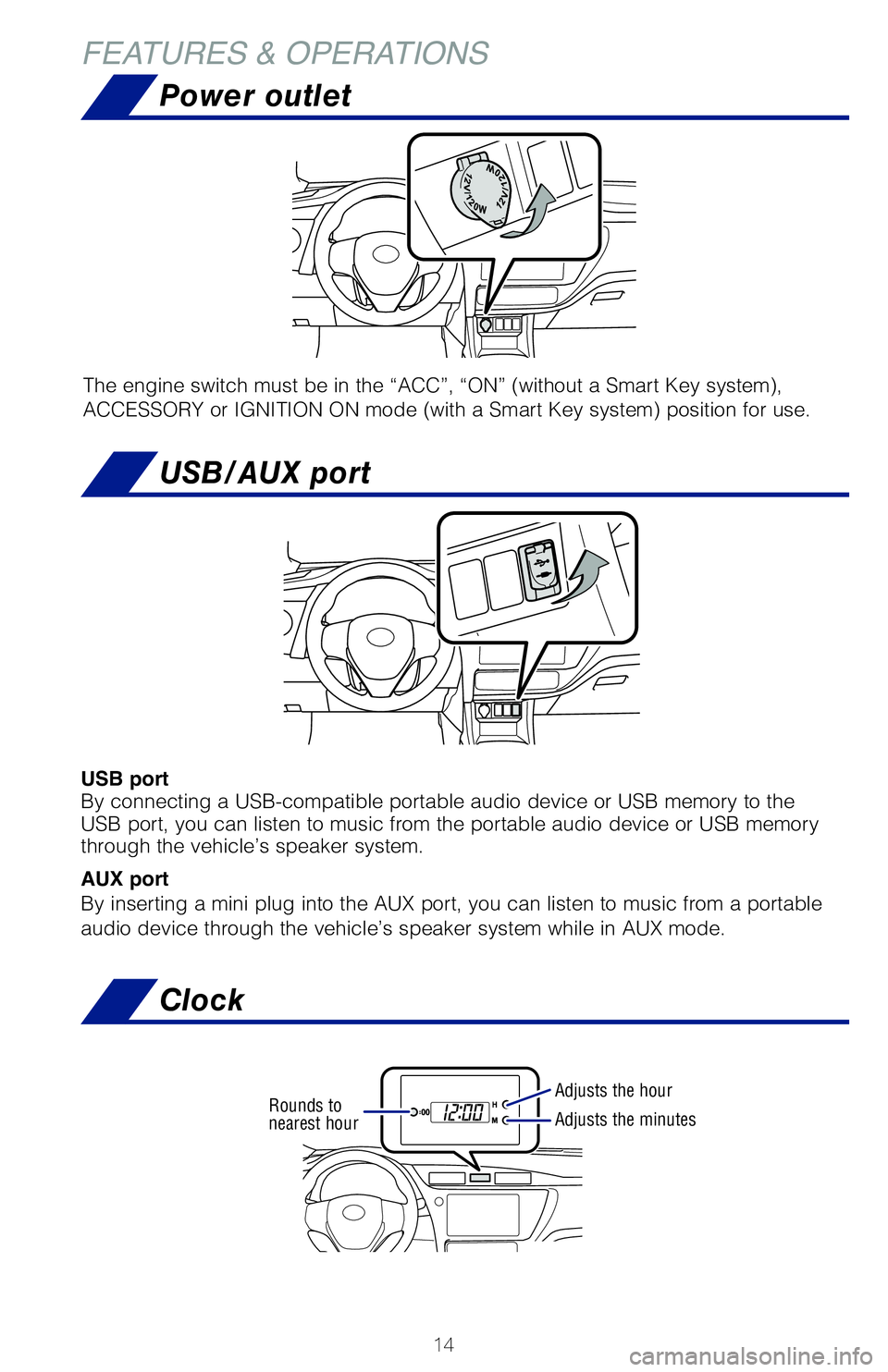

14
FEATURES & OPERATIONS
USB port
By connecting a USB-compatible portable audio device or USB memory to th\
e
USB port, you can listen to music from the portable audio device or USB \
memory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
The engine switch must be in the “ACC”, “ON” (without a Sma\
rt Key system),
ACCESSORY or IGNITION ON mode (with a Smart Key system) position for u\
se.
Adjusts the hourRounds to
nearest hourAdjusts the minutes
Recommended open position
to minimize wind noise.
Push once to open partway; again to open
completely.
Monochrome or color display**
* Except vehicles with manual transmission.
** Location of features are different for color MID.
Driver side
Automatic operation (driver’s window only)
Push the switch completely down or pull it completely up and release to \
fully open
or close. To stop the window partway, operate the switch in the opposite\
direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable. \
Power outlet
USB/AUX port
Clock
SLIDING OPERATION
2018_Corolla_QRG_V4_ML_0801.indd 148/2/17 1:49 AM

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

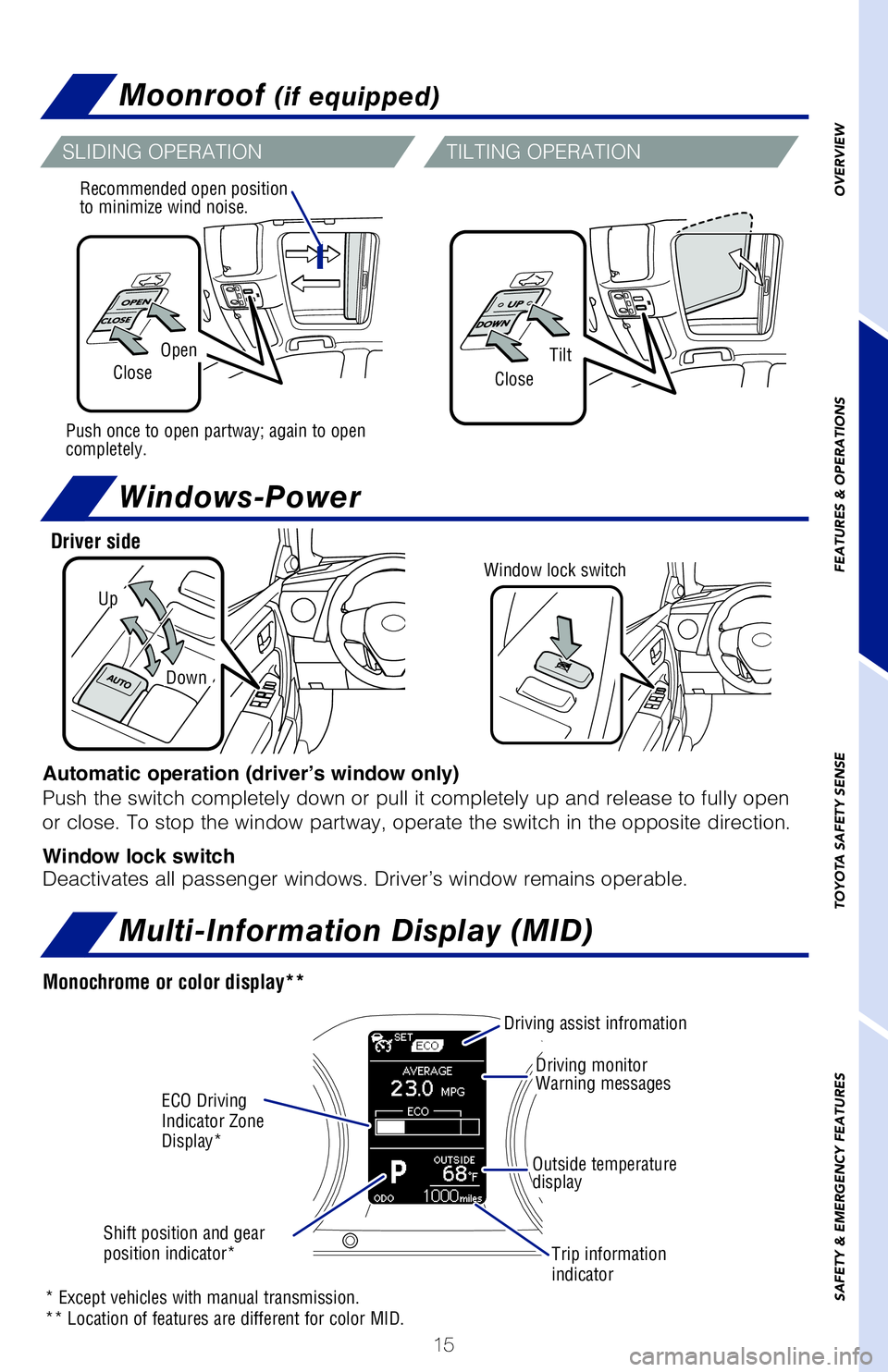

Moonroof (if equipped)
Multi-Information Display (MID)
USB port
By connecting a USB-compatible portable audio device or USB memory to the
USB port, you can listen to music from the portable audio device or USB mem\
ory
through the vehicle’s speaker system.
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a\
portable

audio device through the vehicle’s speaker system while in AUX mode. The engine switch must be in the “ACC”, “ON” (without a Smart \
Key system),
ACCESSORY or IGNITION ON mode (with a Smart Key system) position for use.
OpenTiltCloseClose
Recommended open position
to minimize wind noise.
Push once to open partway; again to open
completely.
Monochrome or color display**
* Except vehicles with manual transmission.
** Location of features are different for color MID.
Windows-Power
Up
Down
Driver side
Window lock switch
Automatic operation (driver’s window only)
Push the switch completely down or pull it completely up and release to full\
y open
or close. To stop the window partway, operate the switch in the opposite d\
irection.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
Clock
SLIDING OPERATION
TILTING OPERATION
ECO Driving
Indicator Zone
Display*
Driving monitor
Warning messages
Outside temperature
display
Driving assist infromation
Shift position and gear
position indicator* Trip information
indicator
2018_Corolla_QRG_V4_ML_0801.indd 158/2/17 1:49 AM

16
FEATURES & OPERATIONS

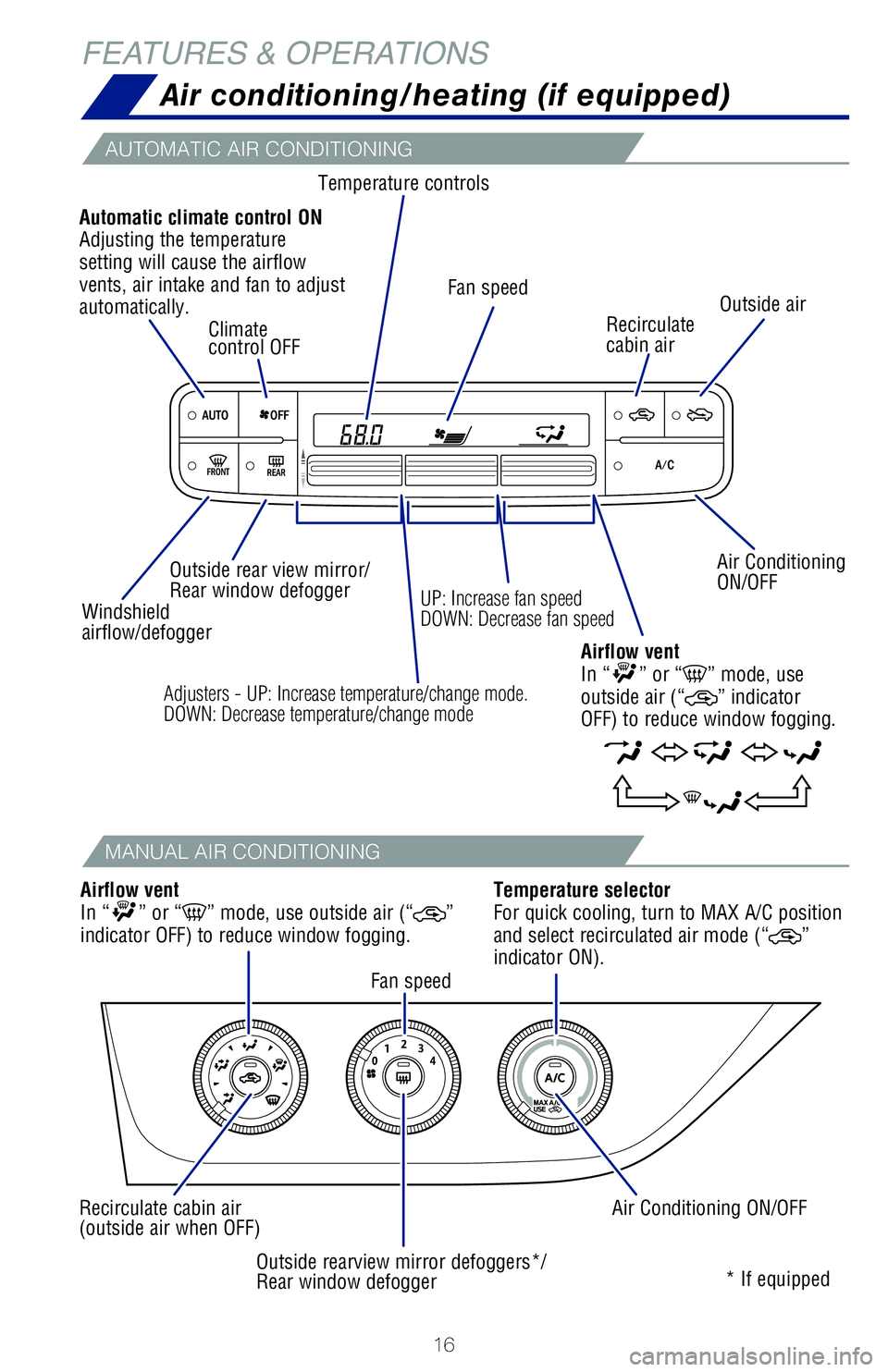

Air conditioning/heating (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Gentex Corporation.
AUTOMATIC AIR CONDITIONING
MANUAL AIR CONDITIONING
Air Conditioning
ON/OFF
Temperature controls
Recirculate
cabin airOutside air
Climate
control OFF
Outside rear view mirror/
Rear window defogger Fan speed
* If equipped
Windshield
airflow/defoggerUP: Increase fan speed
DOWN: Decrease fan speed
Automatic climate control ON
Adjusting the temperature
setting will cause the airflow
vents, air intake and fan to adjust
automatically.
Temperature selector
For quick cooling, turn to MAX A/C position
and select recirculated air mode (“
”
indicator ON).
Fan speed
Air Conditioning ON/OFF
Recirculate cabin air
(outside air when OFF)
Outside rearview mirror defoggers*/
Rear window defogger
Airflow vent
In “” or “” mode, use outside air (“”
indicator OFF) to reduce window fogging. Airflow vent
In “
” or “” mode, use
outside air (“” indicator
OFF) to reduce window fogging.Adjusters - UP: Increase temperature/change mode.
DOWN: Decrease temperature/change mode
2018_Corolla_QRG_V4_ML_0801.indd 168/2/17 1:49 AM

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

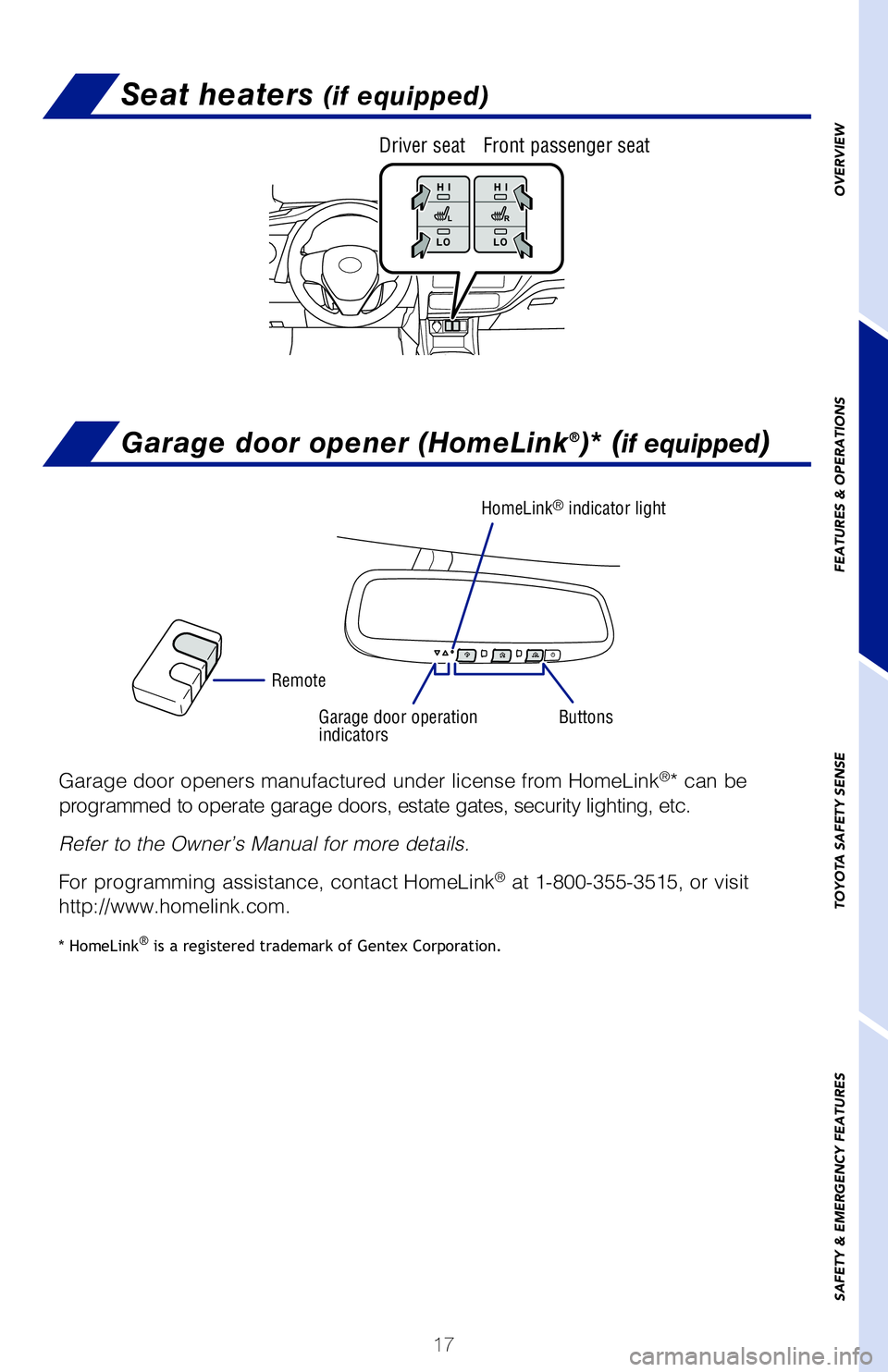

Seat heaters (if equipped)Air conditioning/heating (if equipped)
Driver seat Front passenger seat
Garage door opener (HomeLink®)* (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink® is a registered trademark of Gentex Corporation.
HomeLink® indicator light
Garage door operation
indicatorsButtons
Remote
Air Conditioning
ON/OFF Outside air
* If equipped
Temperature selector
For quick cooling, turn to MAX A/C position
and select recirculated air mode (“”
indicator ON).
Air Conditioning ON/OFF
Airflow vent
In “
” or “” mode, use
outside air (“” indicator
OFF) to reduce window fogging.
2018_Corolla_QRG_V4_ML_0801.indd 178/2/17 1:49 AM

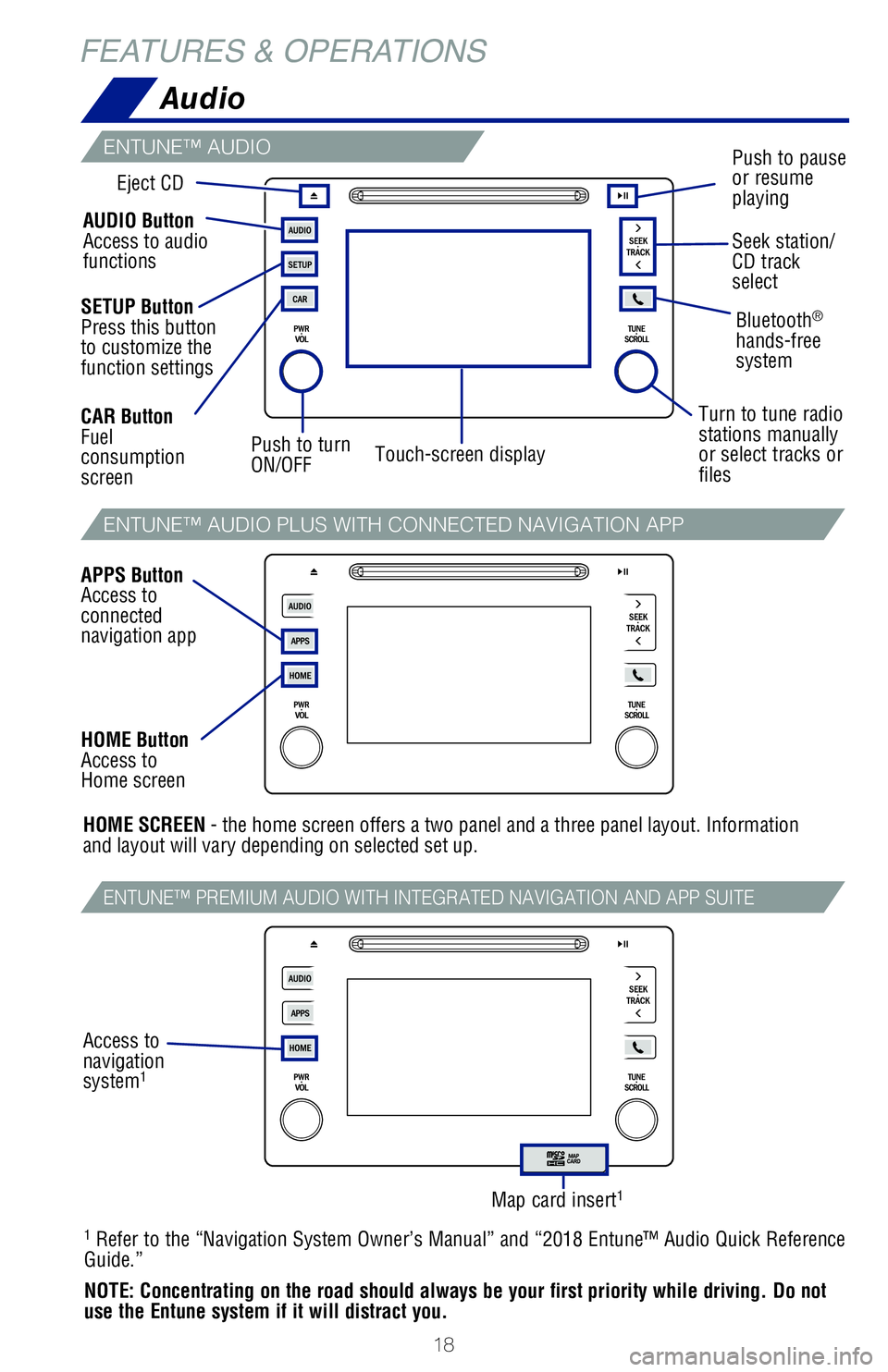

18
FEATURES & OPERATIONS
ENTUNE™ AUDIO
ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP
ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE
Bluetooth®
hands-free
system
AUDIO Button
Access to audio
functions
HOME SCREEN - the home screen offers a two panel and a three panel layout. Informat\
ion
and layout will vary depending on selected set up.
Bluetooth® technology allows dialing or receipt of calls without taking hands from\

the steering wheel or using a cable to connect the compatible telephone and\
the
system.
* Push and hold to access Mobile Assistant. Once you connect a compatible,
registered mobile phone, you can access Siri® Eyes Free using Mobile Assistant
access switch.
Refer to Section 5 in the Owner’s Manual, for more information about phone\

connections and compatibility.
NOTE: Concentrating on the road should always be your first priority while dr\
iving. Do not
use the hands-free phone system if it will distract you.
Vehicles with moonroof
SETUP Button
Press this button
to customize the
function settings
APPS Button
Access to
connected
navigation app CAR Button
Fuel
consumption
screen
HOME Button
Access to
Home screen Push to turn
ON/OFF
Turn to tune radio
stations manually
or select tracks or
filesSeek station/
CD track
select
Eject CD
Push to pause
or resume
playing
Touch-screen display
1 Refer to the “Navigation System Owner’s Manual” and “2018 Entune™\
Audio Quick Reference
Guide.”
NOTE: Concentrating on the road should always be your first priority while dr\
iving. Do not
use the Entune system if it will distract you.
Audio
Map card insert1
Access to
navigation
system
1
Type B
Type A
“MODE/HOLD” Push
to change an audio
mode.
Push and hold to turn
the audio mutes or
pauses.
2018_Corolla_QRG_V4_ML_0801.indd 188/2/17 1:49 AM
