TPMS reset TOYOTA COROLLA 2018 Owners Manual (in English)

3
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

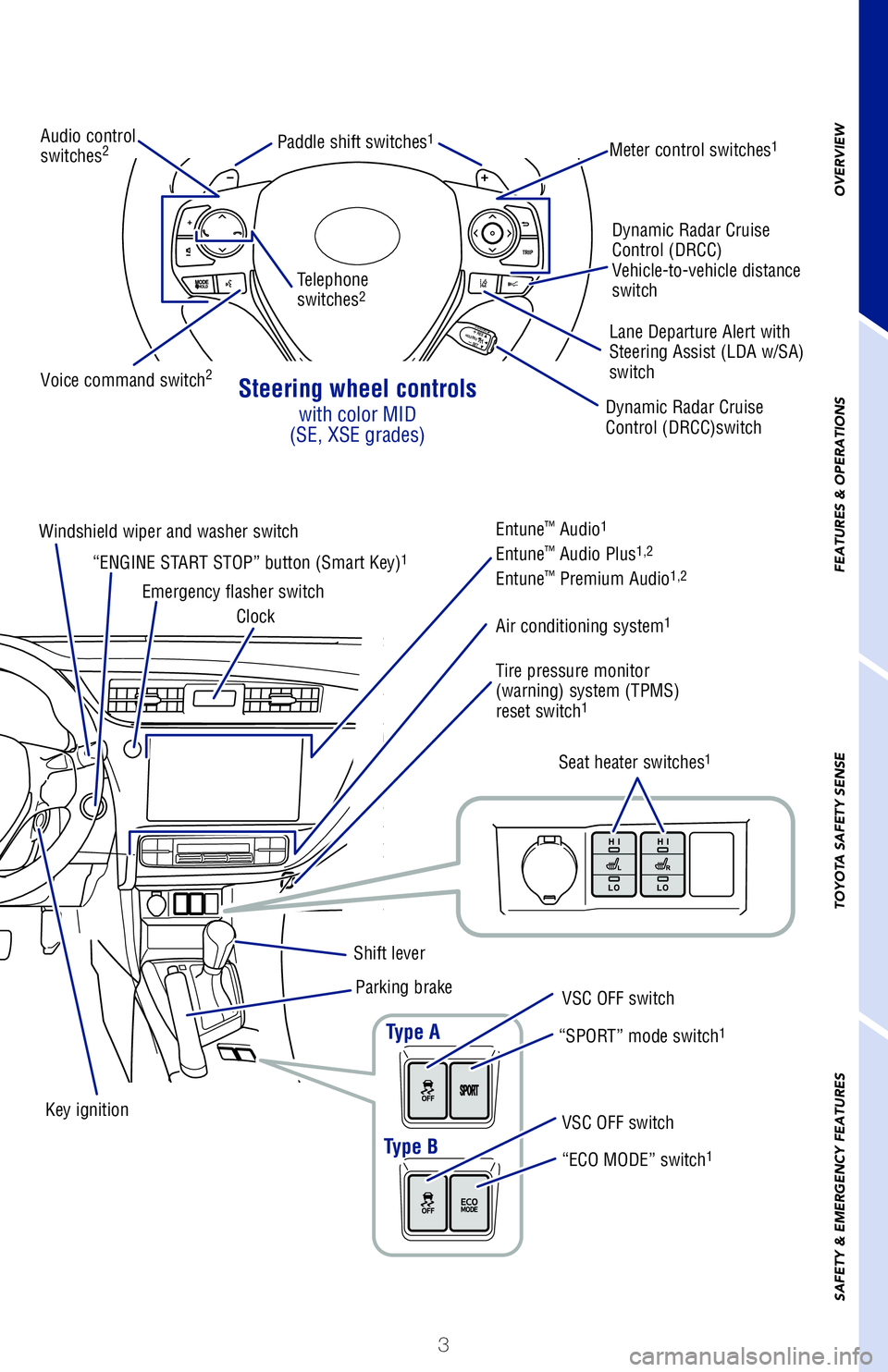

Steering wheel controls
with color MID
(SE, XSE grades)
Type A
Type B
Audio control
switches2Meter control switches1Paddle shift switches1Voice command switch2
Voice command switch2Dynamic Radar Cruise
Control (DRCC)switch
Dynamic Radar Cruise
Control (DRCC)switch
Key ignition
Meters/Multi-Information Display (MID)Windshield wiper and washer switch Emergency flasher switchClock Entune™ Audio1
Entune™ Audio Plus1,2
Entune™ Premium Audio1,2
Air conditioning system1
Tire pressure monitor
(warning) system (TPMS)
reset switch
1
Seat heater switches1
Shift lever
Parking brake
VSC OFF switch
VSC OFF switch
“SPORT” mode switch
1
“ECO MODE” switch1
“ENGINE START STOP” button (Smart Key)1
Tilt and telescopic
steering lock release lever
Telephone
switches2
Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle
distance switch
Dynamic Radar Cruise
Control (DRCC)
Vehicle-to-vehicle distance
switch
“DISP” switch1
Lane Departure Alert
with Steering Assist
(LDA w/SA) switch
Lane Departure Alert with
Steering Assist (LDA w/SA)
switch
2018_Corolla_QRG_V4_ML_0801.indd 38/2/17 1:49 AM

34
SAFETY & EMERGENCY FEATURES
TOOL LOCATION
TOOL LOCATION
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Remove the luggage floor cover.
Loosen the center fastener that secures the spare tire.
Trunk-Internal release

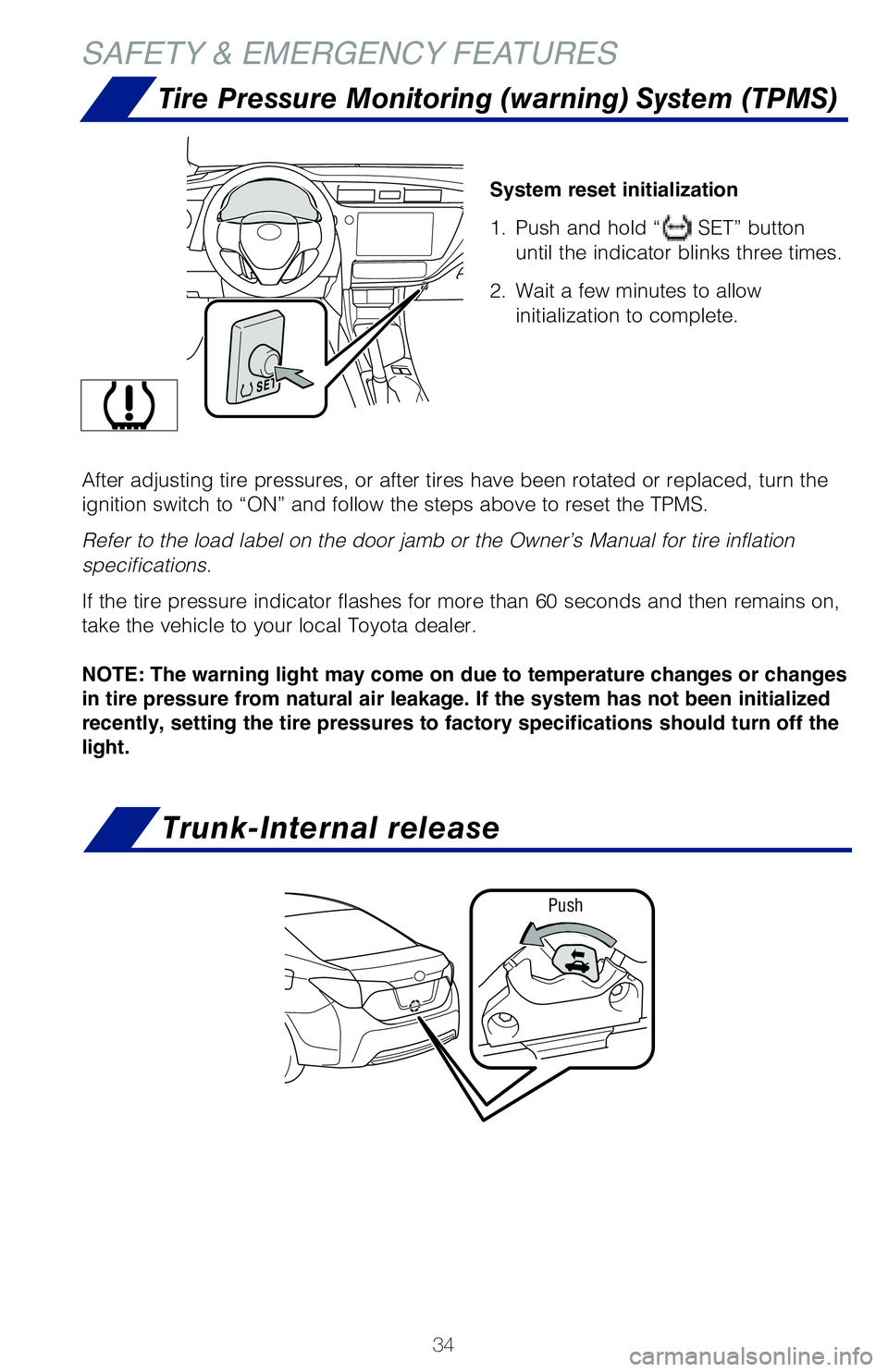

System reset initialization
1. Push and hold “
SET” button
until the indicator blinks three times.
2. Wait a few minutes to allow
initialization to complete.
Tire Pressure Monitoring (warning) System (TPMS)
After adjusting tire pressures, or after tires have been rotated or repl\
aced, turn the
ignition switch to “ON” and follow the steps above to reset the TP\
MS.
Refer to the load label on the door jamb or the Owner’s Manual for ti\
re inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
Push
Jack handle
2018_Corolla_QRG_V4_ML_0801.indd 348/2/17 1:49 AM

35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

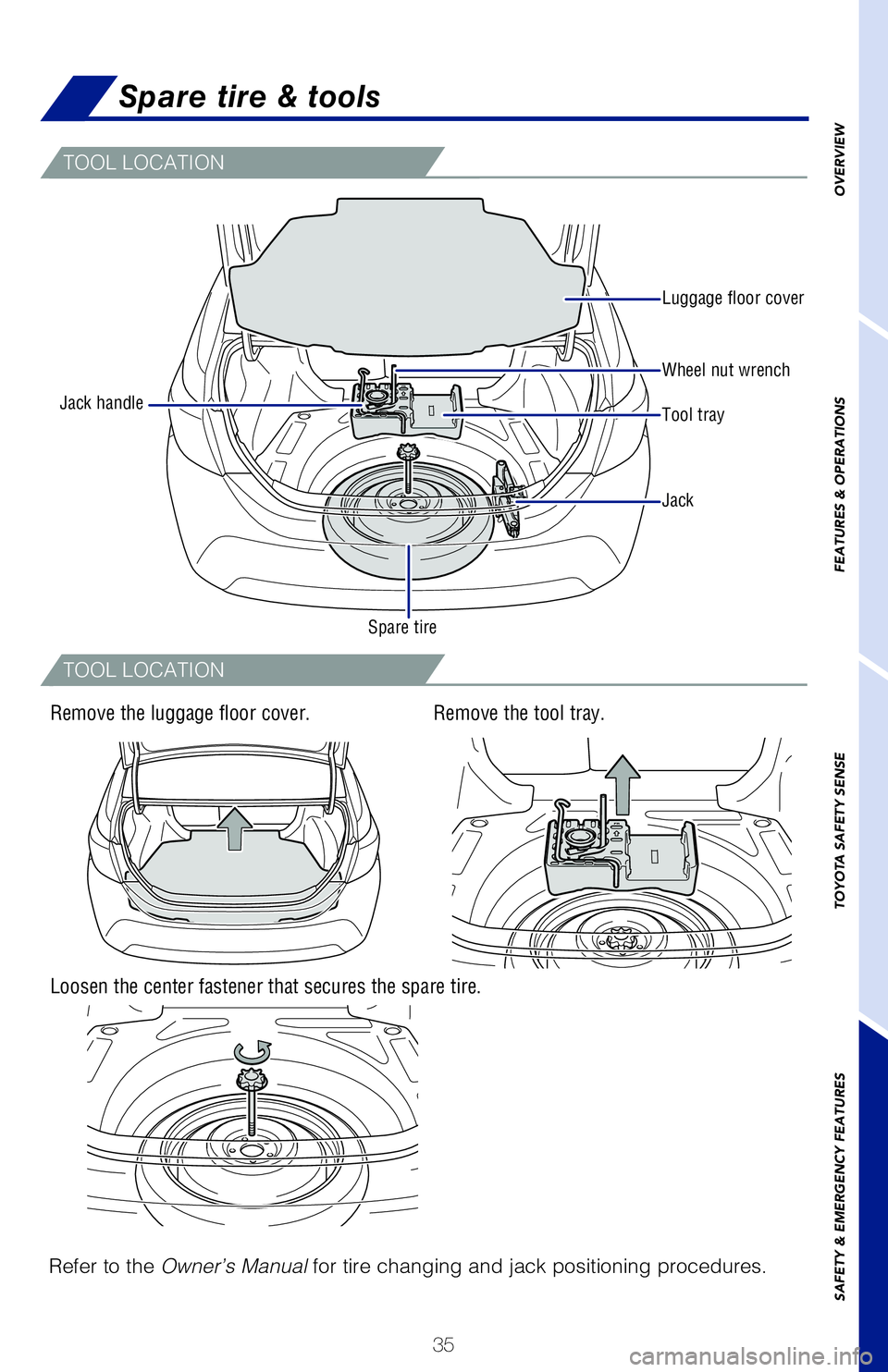

Spare tire & tools
TOOL LOCATION
TOOL LOCATION
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Remove the luggage floor cover.
Loosen the center fastener that secures the spare tire.
Remove the tool tray.
Trunk-Internal release
System reset initialization
1. Push and hold “
SET” button
until the indicator blinks three times.
2. Wait a few minutes to allow
initialization to complete.
Tire Pressure Monitoring (warning) System (TPMS)
After adjusting tire pressures, or after tires have been rotated or repl\
aced, turn the
ignition switch to “ON” and follow the steps above to reset the TP\
MS.
Refer to the load label on the door jamb or the Owner’s Manual for ti\
re inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then\
remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or changes
in tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the
light.
Luggage floor cover
Wheel nut wrench
Tool tray
Jack
Jack handle
Spare tire
2018_Corolla_QRG_V4_ML_0801.indd 358/2/17 1:49 AM
