.1-1. Basic functionButtons overview............ 12
Menu screen .................. 14
Status icon ..................... 16
“Setup” screen ............... 18
Information screen ......... 19
1-2. Navigation operation Operating the map screen..................................... 21
Guiding the route ........... 22
Registering home ........... 23

121-1. Basic function
COROLLA_COROLLA
HV(TMMMS)_Navi_(U)
1-1.Basic function
By touching the screen with your finger, you can control the
selected functions. ( P.27, 28)
Press to seek up or down for a radio station or to access a
desired track/file. ( P.122, 131, 133, 135)
Press to access the Bluetooth
® hands-free system. ( P.180)
When an Apple CarPlay connection is established, press to dis-
play the Phone app screen.
*1, 2
Press to display the Toyota Entune App Suite Connect screen.*2,
3
(  P.223)
Turn to change the radio station or skip to the next or previou s
track/file. ( P.122, 131, 133, 135)
Press to turn the audio/visual system on and off, and turn it t o
adjust the volume. Press and hold to restart the system. ( P.26,
117)
Entune Premium Audio: Press to display the map screen and
repeat a voice guidance. ( P. 6 8 )
Entune Audio Plus: If a turn-by-turn navigation application has
Buttons over view
Operations of each part
A
B
C
D
E
F
G

131-1. Basic function
COROLLA_COROLLA
HV(TMMMS)_Navi_(U)
1
Quick guide
been downloaded to a connected smart phone, the application
will be displayed and can be used.
*4
When an Apple CarPlay connection is established, press to dis-
play the Maps app screen.
*1, 2
Press to display the audio/visual system screen. ( P.116, 117)
Press to display the “Menu” screen. ( P. 1 4 )
Press to display the home screen. ( P. 2 9 )
*1: For details about Apple CarPlay: P. 5 2
*2: This function is not made available in some countries or areas.
*3: The Toyota Entune App Suite Connect screen may not be displaye d
when an Apple CarPlay connection is established.
*4: For details about a turn-by-turn navigation application, refer to
http://www.toyot a.com/Entune/
in the United States,
http://www.toy ota.ca/entune
in Canada, and
http://www.toyotapr.com/entune
in Puerto Rico.
H
I
J

141-1. Basic function
COROLLA_COROLLA
HV(TMMMS)_Navi_(U)
Press the “MENU” button to display the “Menu” screen.
Entune Audio Plus
Displays the clock. Select to display the clock settings screen.
( P. 5 7 )
Select to display the audio control screen. ( P.116)
Select to display the hands-free operation screen. ( P.180)
When an Apple CarPlay connection is established, select to dis-
play the Phone app screen.
*1 (  P.52)
Select to display the application screen.
*1 (  P.223)
When an Apple CarPlay connection is established and this button
displays “Apple CarPlay”, select to display the home screen of
Apple CarPlay.
*1 (  P. 5 2 )
Vehicles without DCM: Select to d isplay the fuel consumption or
energy monitor
*2 screen.*3
Vehicles with DCM: Select to display the information screen.
( P. 1 9 )
Select to display the “Setup” screen. ( P.18)
Select to adjust the contrast, brightness, etc. of the display.
( P. 3 3 )
*1: This function is not made available in some countries or areas .
*2: Vehicles with hybrid system
*3: Refer to the “OWNER’S MANUAL”.
Menu screen
Menu screen operation
A
B
C
D
E
F
G
H

151-1. Basic function
COROLLA_COROLLA
HV(TMMMS)_Navi_(U)
1
Quick guide
Entune Premium Audio Displays the clock. Select to display the clock settings screen.
( P. 5 7 )
Select to display the destination screen. ( P.79)
Select to display the audio control screen. ( P.116)
Select to display the hands-free operation screen. ( P.180)
When an Apple CarPlay connection is established, select to dis-
play the Phone app screen.
* (  P.52)
Select to display the application screen.
* (  P.223)
When an Apple CarPlay connection is established and this button
displays “Apple CarPlay”, select to display the home screen of
Apple CarPlay.
* (  P.52)
Select to display the information screen. ( P.19)
Select to display the “Setup” screen. ( P.18)
Select to adjust the contrast, brightness, etc. of the display.
( P. 3 3 )
*: This function is not made availa ble in some countries or areas.
A
B
C
D
E
F
G
H
I

161-1. Basic function
COROLLA_COROLLA
HV(TMMMS)_Navi_(U)
Weather alert display*1, 3
( P.166)
• Select to display important
weather information for the current
location or along the route.
Indicate during data commu-
nication performed via Data
Communication Module
(DCM)
*2
The reception level of Data
Communication Module
(DCM) display
*2 ( P. 1 6 )
The reception level of the
connected phone display
( P. 1 6 )
Remaining battery charge
display ( P. 1 7 )
Bluetooth
® phone connection condition display (
P. 1 7 )
Wi-Fi
® connection condition
display
*2, 3 (  P. 1 6 )
*1: Entune Premium Audio only
*2: Vehicles with DCM
*3: This function is not made avail-
able in some countries or areas.
●The number of status icons that
can be displayed differs depend-
ing on the displayed screen.
The level of reception does not
always correspond with the level
displayed on the cellular phone.
The level of reception may not
be displayed depending on the
phone you have.
When the cellular phone is out
of the service area or in a place
inaccessible by radio waves,
/ is displayed.
“Rm” is displayed when receiv-
ing in a roaming area. While
roaming, display “Rm” top-left
on the icon.
The receiving area may not be
displayed depending on the type
of Bluetooth
® phone you have.
While connected with cellular
phone

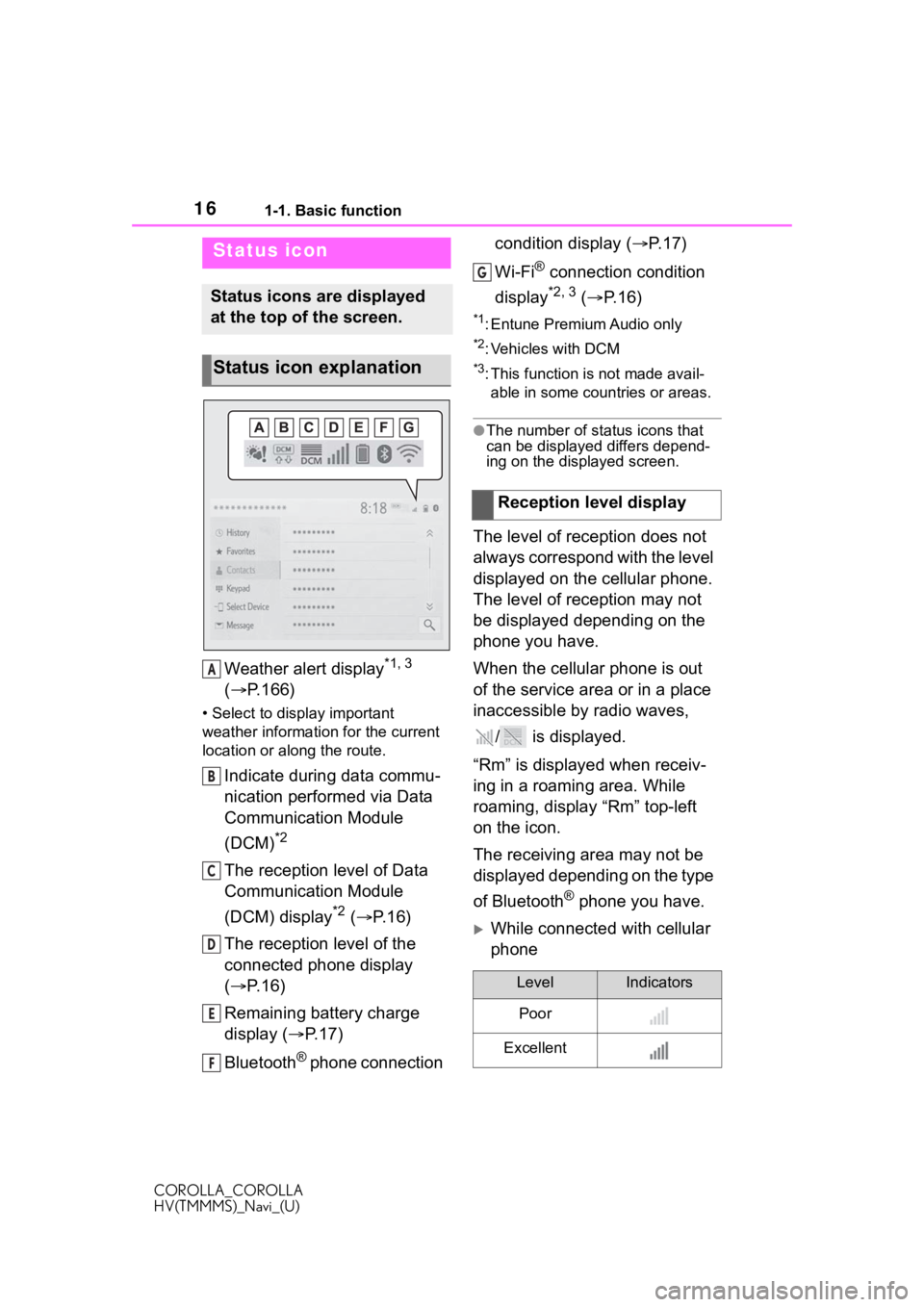

Status icon
Status icons are displayed
at the top of the screen.

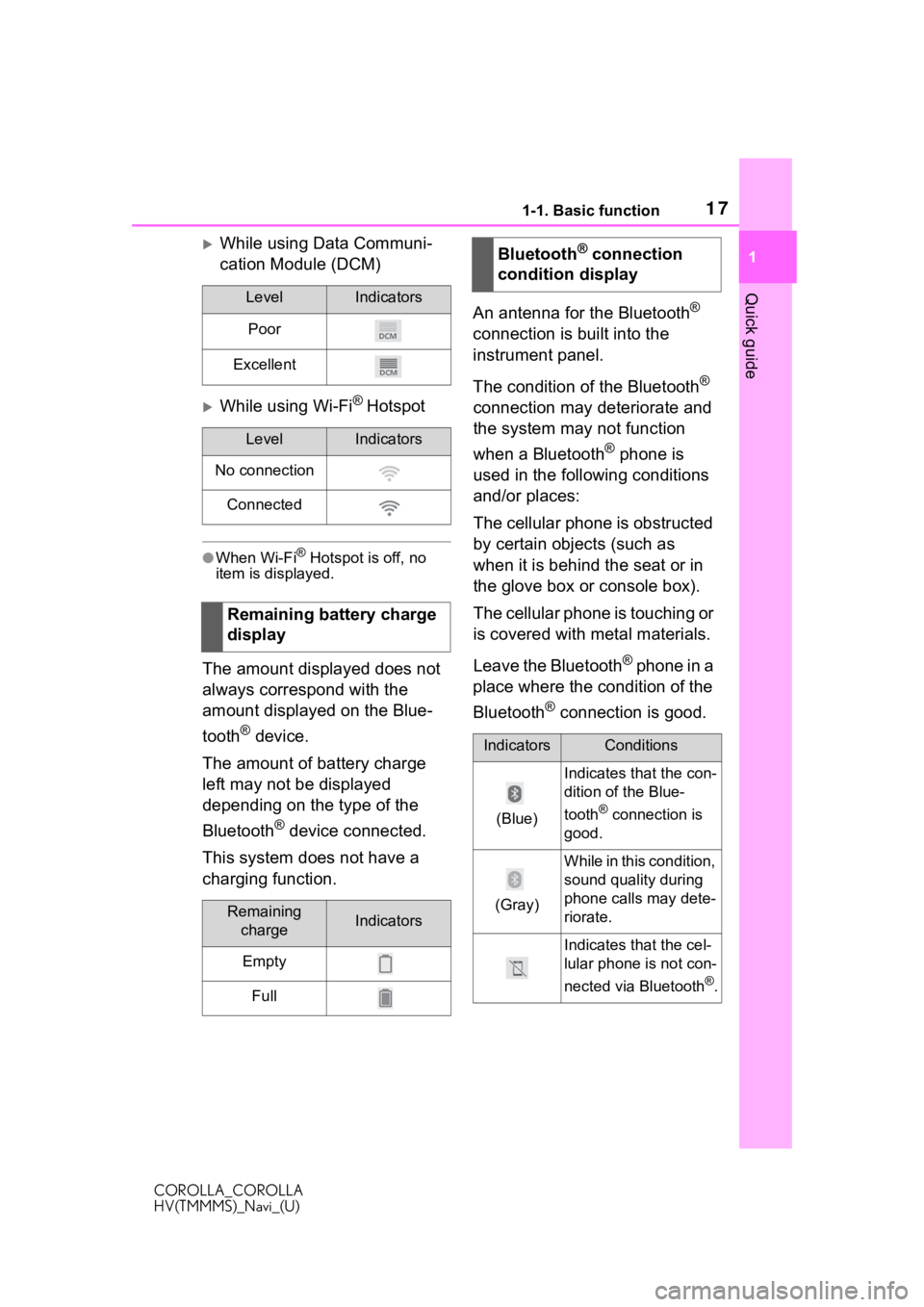

Status icon explanation
A
B
C
D
E
F
5HFHSWLRQOHYHOGLVSOD\
LevelIndicators
Poor
Excellent
G

171-1. Basic function
COROLLA_COROLLA
HV(TMMMS)_Navi_(U)
1
Quick guide
While using Data Communi-
cation Module (DCM)
While using Wi-Fi® Hotspot
●When Wi-Fi® Hotspot is off, no
item is displayed.
The amount displayed does not
always correspond with the
amount displayed on the Blue-
tooth
® device.
The amount of battery charge
left may not be displayed
depending on the type of the
Bluetooth
® device connected.
This system does not have a
charging function. An antenna for the Bluetooth
®
connection is built into the
instrument panel.
The condition of the Bluetooth
®
connection may deteriorate and
the system may not function
when a Bluetooth
® phone is
used in the following conditions
and/or places:
The cellular phone is obstructed
by certain objects (such as
when it is behind the seat or in
the glove box or console box).
The cellular phone is touching or
is covered with metal materials.
Leave the Bluetooth
® phone in a
place where the condition of the
Bluetooth
® connection is good.
LevelIndicators
Poor
Excellent
LevelIndicators
No connection
Connected
Remaining battery charge
display
Remaining chargeIndicators
Empty
Full
Bluetooth® connection
condition display
IndicatorsConditions
(Blue)
Indicates that the con-
dition of the Blue-
tooth
® connection is
good.
(Gray)
While in this condition,
sound quality during
phone calls may dete-
riorate.
Indicates that the cel-
lular phone is not con-
nected via Bluetooth
®.

181-1. Basic function
COROLLA_COROLLA
HV(TMMMS)_Navi_(U)
Press the “MENU” button, then
select “Setup” to display the
“Setup” screen. The items
shown on the “Setup” screen
can be set.
Entune Audio PlusSelect to change the selected
language, operation sound
settings, etc. ( P. 5 6 )
Select to set Bluetooth
®
device and Bluetooth
® sys-
tem settings. ( P. 4 0 )
Select to set audio settings.
( P.142)
Select to set the phone
sound, contacts, message
settings, etc. ( P.196)
Select to set the voice set- tings. (
P.60)
Select to set vehicle informa-
tion. ( P.61)
Select to set Wi-Fi
® connec-
tion settings.
*1, 2 (  P. 4 8 )
Select to set Toyota Entune
App Suite Connect settings.
*2
( P.228)
*1: Vehicles with DCM
*2: This function is not made avail-
able in some countries or areas.
Entune Premium Audio
Select to change the selected
language, operation sound
settings, etc. ( P.56)

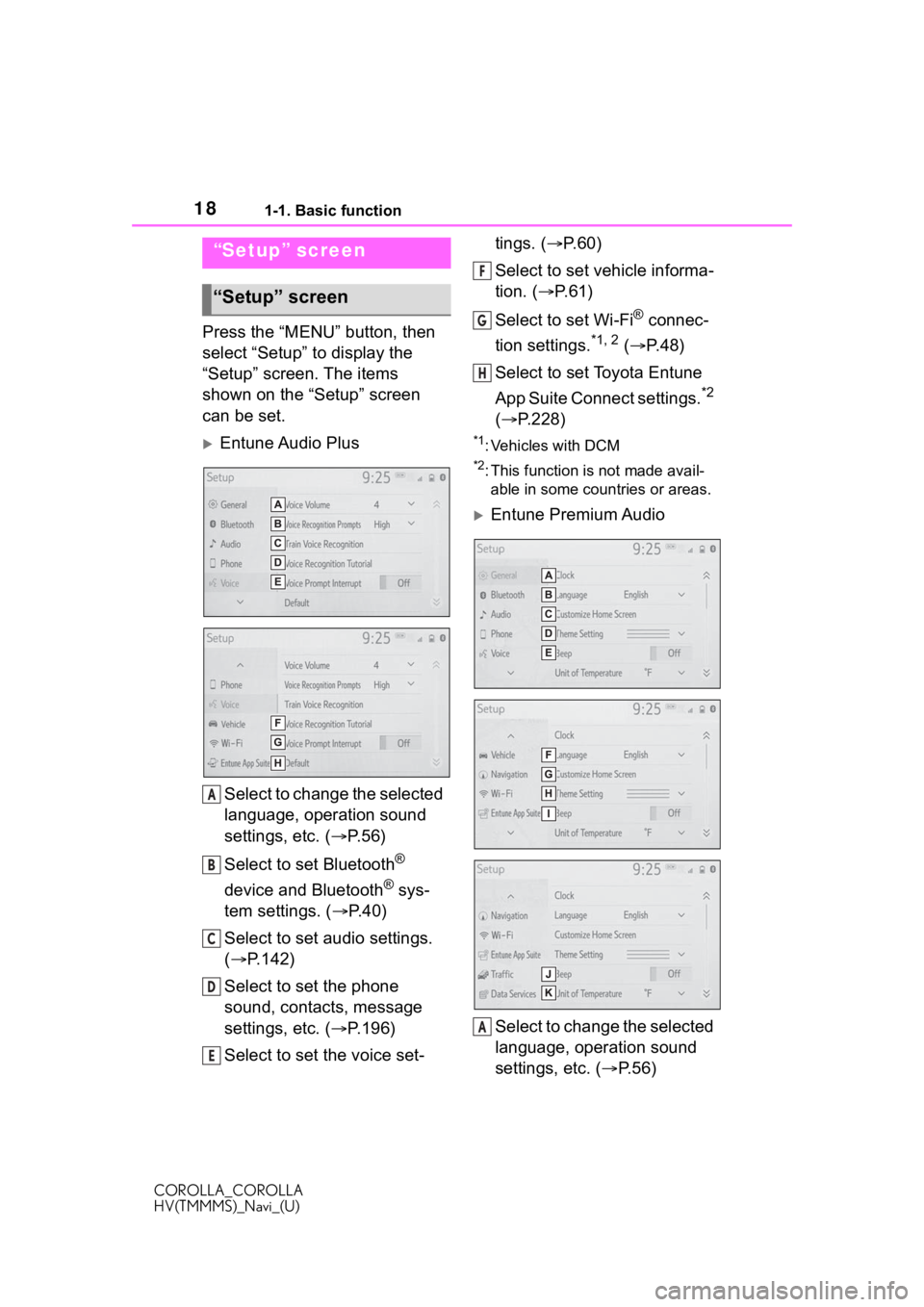

“Setup” screen
“Setup” screen
A
B
C
D
E
F
G
H
A

191-1. Basic function
COROLLA_COROLLA
HV(TMMMS)_Navi_(U)
1
Quick guide
Select to set Bluetooth®
device and Bluetooth
® sys-
tem settings. ( P. 4 0 )
Select to set audio settings.
( P.142)
Select to set the phone
sound, contacts, message
settings, etc. ( P.196)
Select to set the voice set-
tings. ( P.60)
Select to set vehicle informa-
tion such as vehicle customi-
zation. ( P.61)
Select to set memory points
(home, favorites entries,
areas to avoid), or naviga-
tion details. ( P. 9 7 )
Select to set Wi-Fi
® connec-
tion settings.
*1, 2 (  P.48)
Select to set Toyota Entune
App Suite Connect settings.
*2
( P.228)
Select to set traffic informa-
tion settings.
*2 (  P.105)
Select to set data services
settings.
*2 (  P.168)
*1: Vehicles with DCM
*2: This function is not made avail-
able in some countries or areas.
*: Entune Audio Plus with DCM/Entune Premium Audio only
Useful information, such as the
fuel consumption, weather, etc.,
is available on the information

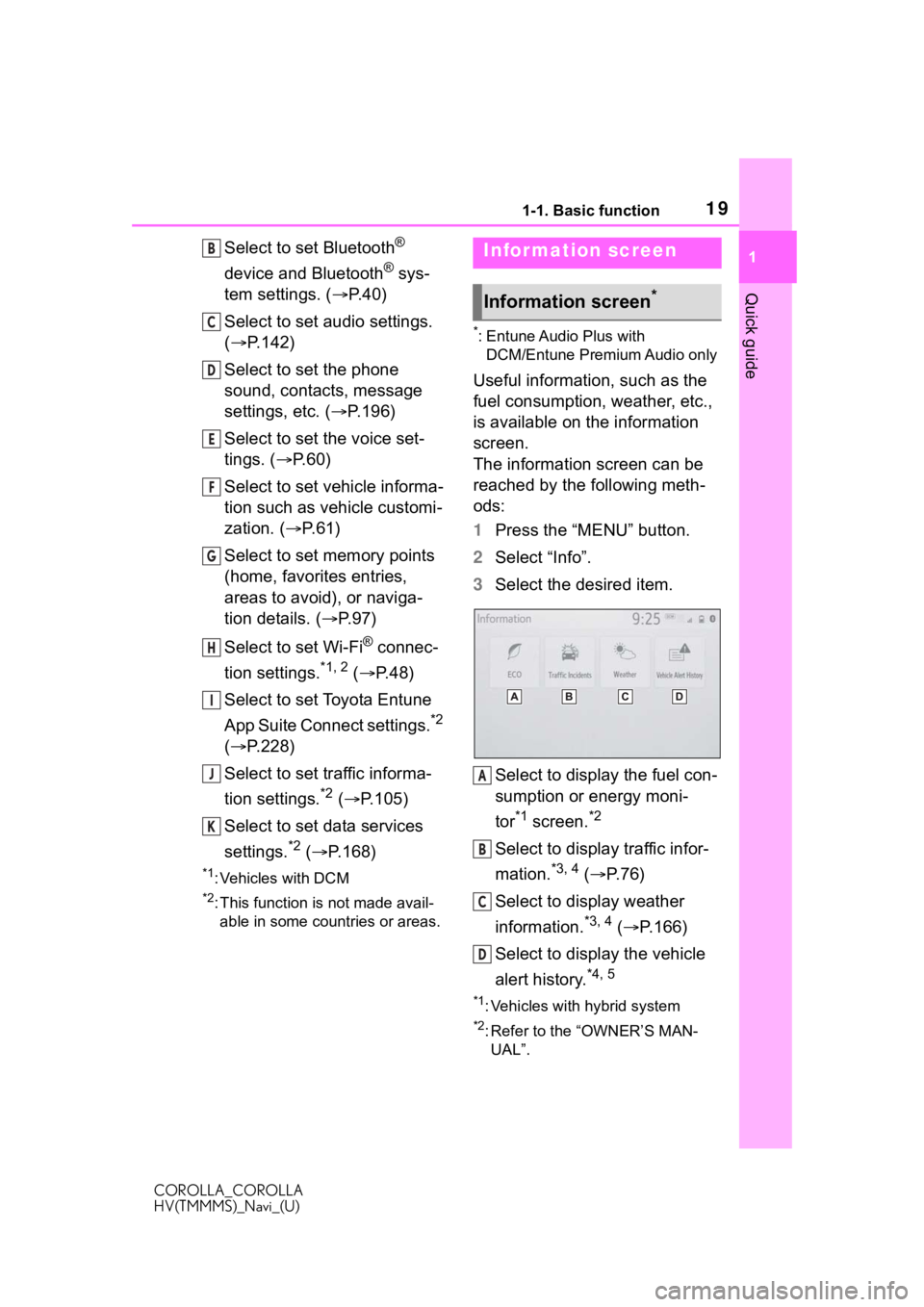

screen.
The information screen can be
reached by the following meth-
ods:
1 Press the “MENU” button.
2 Select “Info”.
3 Select the desired item.
Select to display the fuel con-
sumption or energy moni-
tor
*1 screen.*2
Select to display traffic infor-
mation.
*3, 4 ( P.76)
Select to display weather
information.
*3, 4 (  P.166)
Select to display the vehicle
alert history.
*4, 5
*1: Vehicles with hybrid system
*2: Refer to the “OWNER’S MAN- UAL”.
B
C
D
E
F
G
H
I
J
K
Infor mation screen
Information screen*
A
B
C
D

201-1. Basic function
COROLLA_COROLLA
HV(TMMMS)_Navi_(U)
*3: Entune Premium Audio only
*4: This function is not made avail-able in some countries or areas.
*5: Vehicles with DCM
