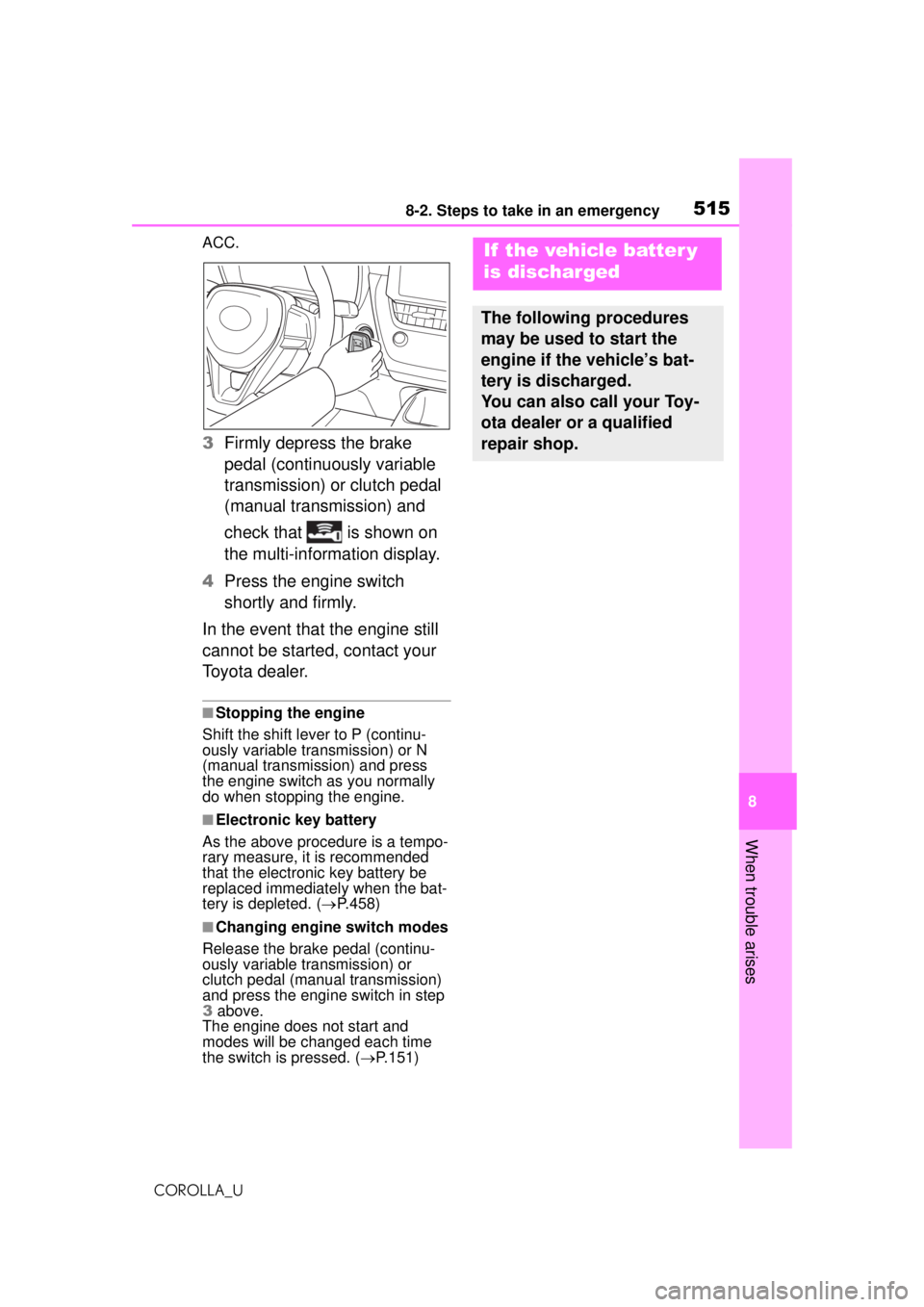

check engine TOYOTA COROLLA 2020 (in English) Workshop Manual

5158-2. Steps to take in an emergency
COROLLA_U
8
When trouble arises
ACC.
3 Firmly depress the brake
pedal (continuously variable
transmission) or clutch pedal
(manual transmission) and
check that is shown on
the multi-information display.
4 Press the engine switch
shortly and firmly.
In the event that the engine still
cannot be started, contact your
Toyota dealer.
■Stopping the engine
Shift the shift lever to P (continu-
ously variable transmission) or N
(manual transmission) and press
the engine switch as you normally
do when stopping the engine.
■Electronic key battery
As the above procedure is a tempo-
rary measure, it is recommended
that the electronic key battery be
replaced immediately when the bat-
tery is depleted. ( P.458)
■Changing engine switch modes
Release the brake pedal (continu-
ously variable transmission) or
clutch pedal (manual transmission)
and press the engine switch in step
3 above.
The engine does not start and
modes will be changed each time
the switch is pressed. ( P.151)
If the vehicle batter y
is discharged
The following procedures
may be used to start the
engine if the vehicle’s bat-
tery is discharged.
You can also call your Toy-
ota dealer or a qualified
repair shop.

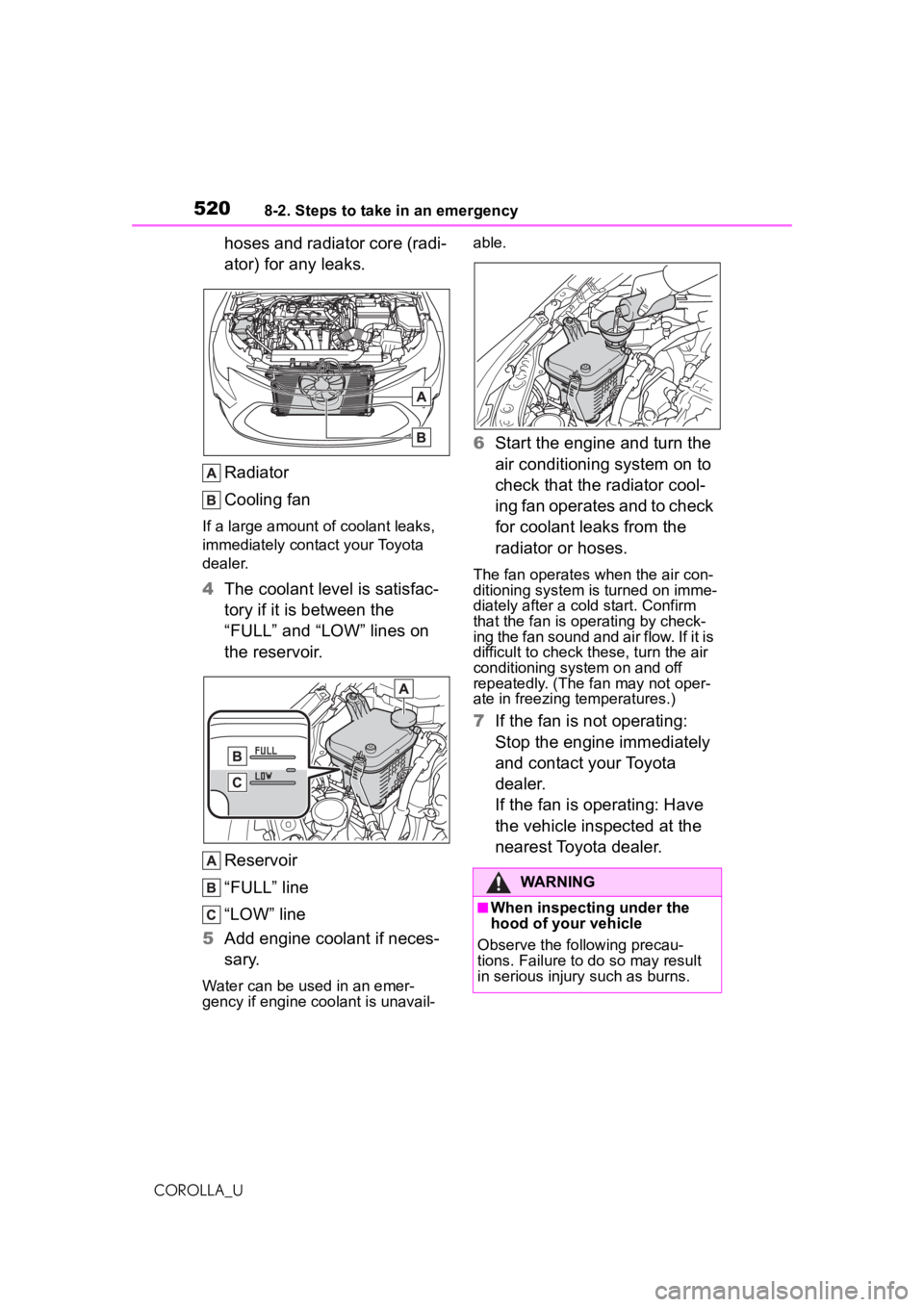

5208-2. Steps to take in an emergency
COROLLA_U
hoses and radiator core (radi-
ator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contact your Toyota
dealer.
4The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is unavail- able.
6
Start the engine and turn the
air conditioning system on to
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.
The fan operates when the air con-
ditioning system is turned on imme-
diately after a cold start. Confirm
that the fan is operating by check-
ing the fan sound and air flow. If it is
difficult to check these, turn the air
conditioning system on and off
repeatedly. (The fan may not oper-
ate in freezing temperatures.)
7If the fan is not operating:
Stop the engine immediately
and contact your Toyota
dealer.
If the fan is operating: Have
the vehicle inspected at the
nearest Toyota dealer.
WARNING
■When inspecting under the
hood of your vehicle
Observe the following precau-
tions. Failure to do so may result
in serious injury such as burns.

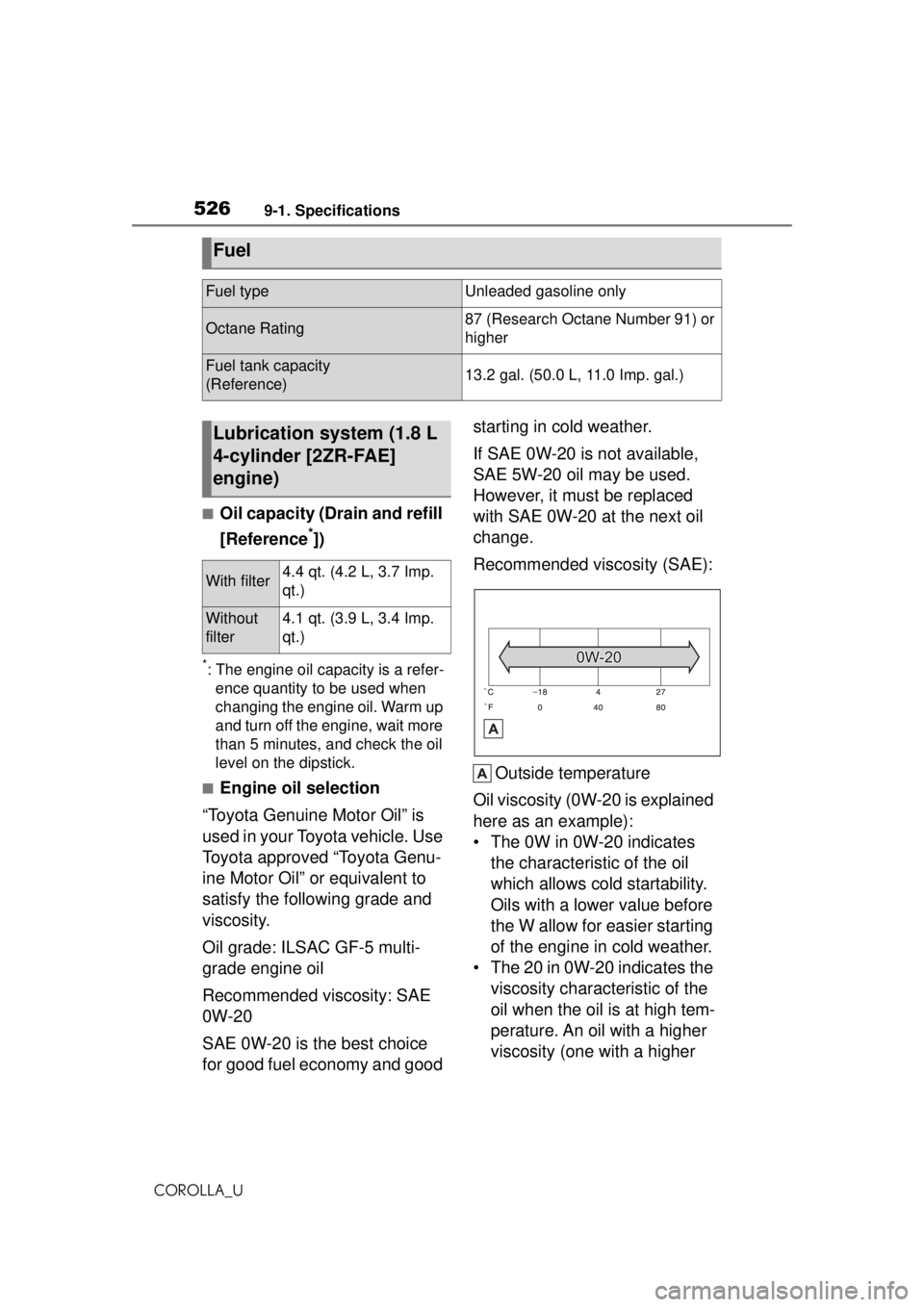

5269-1. Specifications
COROLLA_U
■Oil capacity (Drain and refill
[Reference
*])
*: The engine oil capacity is a refer-ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: ILSAC GF-5 multi-
grade engine oil
Recommended viscosity: SAE
0W-20
SAE 0W-20 is the best choice
for good fuel economy and good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Recommended viscosity (SAE):
Outside temperature
Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
viscosity (one with a higher
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or
higher
Fuel tank capacity
(Reference)13.2 gal. (50.0 L, 11.0 Imp. gal.)
Lubrication system (1.8 L
4-cylinder [2ZR-FAE]
engine)
With filter4.4 qt. (4.2 L, 3.7 Imp.
qt.)
Without
filter4.1 qt. (3.9 L, 3.4 Imp.
qt.)

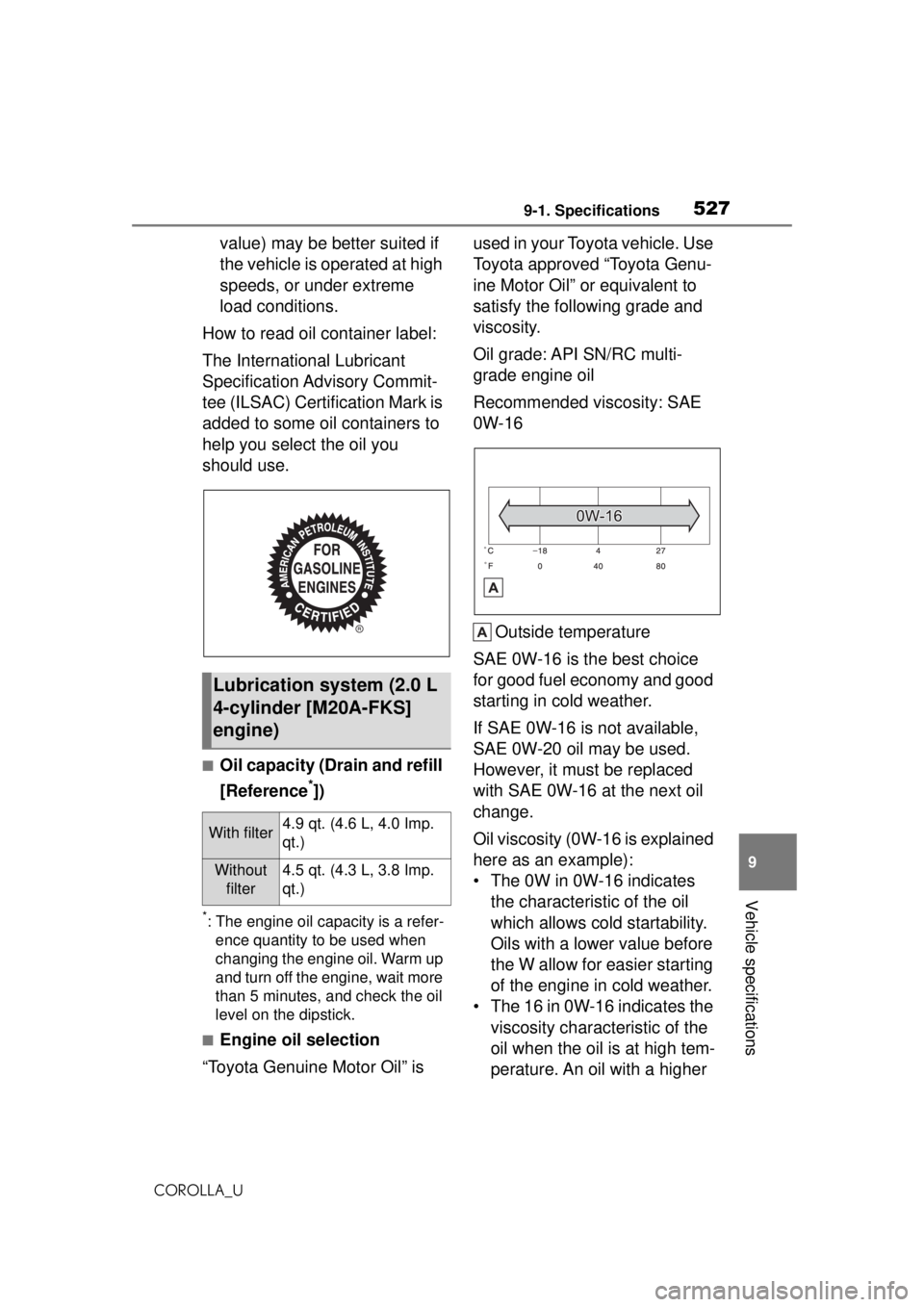

5279-1. Specifications
COROLLA_U
9
Vehicle specifications
value) may be better suited if
the vehicle is operated at high
speeds, or under extreme
load conditions.
How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you
should use.
■Oil capacity (Drain and refill
[Reference
*])
*: The engine oil capacity is a refer- ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 5 minutes, and check the oil
level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade: API SN/RC multi-
grade engine oil
Recommended viscosity: SAE
0W-16
Outside temperature
SAE 0W-16 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-16 is not available,
SAE 0W-20 oil may be used.
However, it must be replaced
with SAE 0W-16 at the next oil
change.
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.
• The 16 in 0W-16 indicates the viscosity characteristic of the
oil when the oil is at high tem-
perature. An oil with a higher
Lubrication system (2.0 L
4-cylinder [M20A-FKS]
engine)
With filter4.9 qt. (4.6 L, 4.0 Imp.
qt.)
Without filter4.5 qt. (4.3 L, 3.8 Imp.
qt.)

568What to do if... (Troubleshooting)
COROLLA_U
1-1.What to do if... (Troubleshooting)What to do if... (Troubleshooting)
 If you lose your keys or
mechanical keys, new genu-
ine keys or mechanical keys
can be made by your Toyota
dealer. ( P.513)
 If you lose your keys or elec-
tronic keys, the risk of vehicle
theft increases significantly.
Contact your Toyota dealer
immediately. ( P.513)
 Is the key battery weak or
depleted? ( P.458)
 Vehicles with a smart key sys-
tem: Is the engine switch in
ON?
When locking the doors, turn the
engine switch off. ( 
P.150)
Vehicles with a smart key sys-
tem: Is the electronic key left
inside the vehicle?
When locking the doors, make sure
that you have the electronic key on
your person.
The function may not operate
properly due to the condition
of the radio wave. ( P.99,
113)
 Is the child-protector lock set?
The rear door cannot be opened
from inside the vehicle when the
lock is set. Open the rear door from
outside and then unlock the
child-protector lock. ( 
P. 1 0 7)
Continuously variable trans-
mission: Is the shift lever in
P? ( P.147)
 Manual transmission: Do you
turn the key with the clutch
pedal depressed firmly?
( P.147)
 Is the steering wheel
unlocked? ( P.147)
 Is the battery discharged?
( P.515)
If you have a problem,
check the following before
contacting your Toyota
dealer.
The doors cannot be
locked, unlocked, opened
or closed
You lose your keys
The doors cannot be
locked or unlocked
The rear door cannot be
opened
If you think something is
wrong
The engine does not start
(vehicles without a smart
key system)

570What to do if... (Troubleshooting)
COROLLA_U
 The seat belt reminder light is
flashing
Are the driver and the passenger
wearing the seat belts? ( 
P.484)
The parking brake indicator is
on
Is the parking brake released?
(
P.163, 164)
Depending on the situation,
other types of warning buzzer
may also sound. ( P.481, 490)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the alarm
sounds. ( 
P. 6 9)
Do one of the following to deac-
tivate or stop the alarms:
Unlock the doors.
 Turn the engine switch to
ACC or ON, or start the
engine. (The alarm will be
deactivated or stopped after a
few seconds.)
 Is the electronic key left inside
the vehicle?
Check the message on the
multi-information display. ( 
P. 4 9 0)
When a warning light turns on
or a warning message is dis-
played, refer to P.481, 490.
 Vehicles with an emergency
tire puncture repair kit: Stop
the vehicle in a safe place and
repair the flat tire temporarily
with the emergency tire punc-
ture repair kit. ( P.493)
 Vehicles with a spare tire:
Stop the vehicle in a safe
place and replace the flat tire
with the spare tire. ( P.503)
 Try the procedure for when
the vehicle becomes stuck in
mud, dirt, or snow. ( P.521)
An alarm is activated and
the horn sounds (vehicles
with an alarm)
A warning buzzer sounds
when leaving the vehicle
(vehicles with a smart key
system)
A warning light turns on
or a warning message is
displayed
When a problem has
occurred
If you have a flat tire
The vehicle becomes
stuck

574Alphabetical Index
COROLLA_U
Outside rear view mirrors ..... 125
Rear door child-protectors.... 107
Side doors ............................ 103
Drive distance ........................... 90
Drive information ..................... 90
Drive-start control .................. 136
Driving Break-in tips ......................... 136
Correct driving posture ........... 23
Driving mode select switch... 249
Procedures ........................... 134
Winter drive tips ................... 255
Driving information display ..... 87
Driving range ............................ 88
Driving support system informa- tion display ............................. 89
Dynamic radar cruise control 223 Warning message ................ 231
Dynamic radar cruise control with full-speed range ........... 213Warning message ................ 222
E
Eco Driving Indicator ............... 88
Eco Driving Indicator Light ..... 88
EDR (Event data recorder)......... 8
Elapsed time ............................. 90
Electric Power Steering (EPS) ............................................... 251Warning light ........................ 484
Electronic key ........................... 96 Battery-saving function......... 112
If the electronic key does not operate properly ................. 513
Replacing the battery ........... 458
Emergency flashers ............... 472
Emergency tire puncture repair kit ........................................... 493
Emergency, in case of If a warning buzzer sounds .. 481
If a warning light turns on ..... 481 If a warning message is dis-
played .................................490
If the battery is discharged ...515
If the electronic key does not operate properly .................513
If the engine will not start...... 511
If the vehicle is trapped in rising water...................................474
If you have a flat tire .....493, 503
If you lose your keys.............513
If you think something is wrong ...........................................479
If your vehicle becomes stuck ...........................................521
If your vehicle has to be stopped in an emergency .................472
If your vehicle ne eds to be towed
...........................................475
If your vehicle overheats ......519
Enform App Suite button (Setup screen) ...................................266
Engine ACCESSORY mode .............151
Compartment........................436
Engine switch ...............147, 148
Fuel pump shut off system ...480
Hood .....................................434
How to start the engine 147, 148
Identification number ............525
If the engine will not start...... 511
If your vehicle has to be stopped in an emergency .................472
Ignition switch (engine switch) ...................................147, 148
Overheating ..........................519
Tachometer.......................77, 81
Engine coolant Capacity ...............................528
Checking ..............................440
Preparing and checking before winter ..................................255

5751-1. What to do if... (Troubleshooting)
COROLLA_U575Alphabetical Index
Engine coolant temperature gauge................................. 77, 81
Engine immobilizer system ..... 67
Engine oil Capacity ....................... 526, 527
Checking .............................. 437
Preparing and checking before winter.................................. 255
Warning light ........................ 482
Engine switch ................. 147, 148 Auto power off function ........ 151
Changing the engine switch modes ................................ 151
If your vehicle has to be stopped in an emergency................. 472
Enhanced VSC ........................ 251
Entering letters and num- bers/list screen operation ... 271Entering letters and numbers271
List screen ............................ 272
Entune Audio buttons overview ............................................... 261
EPS (Electric Power Steering) ............................................... 251Warning light ........................ 484
Establishing an Apple CarPlay connection ............................ 292
Event data record er (EDR)......... 8
F
Flat tire
Tire pressure warning system........................................... 447
Vehicles with a spare tire ..... 503
Vehicles without a spare tire 493
Floor mats ................................. 22
Fluid Brake .................................... 530
Clutch ................................... 530
Continuously variable transmis-sion..................................... 529
Washer ................................. 443 FM ............................................307
Front passenger occupant clas-
sification system ....................39
Front seats Adjustment ........................... 118
Cleaning ...............................424
Correct driving posture ...........23
Head restraints .....................121
Seat heaters .........................396
Front side marker lights Light switch...........................170
Replacing light bulbs ............466
Wattage ................................533
Front turn signal lights Replacing light bulbs ............465
Turn signal lever ...................162
Wattage ................................533
Front turn signal/parking lights Replacing light bulbs ............465
Fuel Capacity ...............................526
Fuel gauge .......................77, 81
Fuel pump shut off system ...480
Information ......... ..................535
Refueling ..............................178
Type......................................526
Warning light.........................484
Fuel consumption Average fuel economy ............88
Current fuel consumption .......88
Fuel economy ...........................88
Fuel filler door Refueling ..............................178
Fuel gauge...........................77, 81
Fuel pump shut off system ....480
Fuses .......................................461
G
Garage door open er ...............414
Gauges ................................77, 81
General button (Setup screen) .......................................266, 296

582Alphabetical Index
COROLLA_U
Vehicle-to-vehicle distance switch ......................... 214, 224
VSC OFF switch................... 251
Window lock switch .............. 129
Windshield wiper and washer switch ................................. 176
T
Tachometer ......................... 77, 81
Tail lights Light switch .......................... 170
Replacing light bulbs ............ 465
Talking on the Bluetooth
®
hands-free system ............... 354 Call screen operation ........... 354
Incoming call waiting ............ 355
Sending tones ...................... 354
Transmit volume setting ....... 355
Theft deterrent system Alarm ...................................... 69
Engine immobilizer system .... 67
Tire inflation pressure............ 453 Maintenance data................. 531
Warning light ........................ 485
Tire information ...................... 537 Glossary ............................... 541
Size ...................................... 539
Tire identification number ..... 539
Uniform Tire Quality Grading 540
Tire pressure warning system Function ............................... 447
Initializing ............................. 450
Installing tire pressure warning valves and transmitters ...... 449
Registering ID codes ............ 451
Warning light ........................ 485
Tires Chains .................................. 256
Checking .............................. 444
Emergency tire puncture repair kit........................................ 493
If you have a flat tire ..... 493, 503 Inflation pressure
..................453
Information ......... ..................537
Replacing .............................503
Rotating tires ........................446
Size ......................................531
Snow tires.............................255
Spare tire ..............................503
Tire pressure warning system ...........................................447
Warning light.........................485
Tools ................................494, 504
Top tether strap ........................58
Total load capacity .................524
Touch screen ..........................268 Touch screen gestures .........268
Touch screen operation ........268
To w i n g Dinghy towing .......................146
Emergency towing ................475
Towing eyelet........................477
Trailer towing ........................145
Toyota Entune .........................373
Toyota Entune App Suite Entering keyword ..................381
Toyota Entune App Suite Con- nect ........................................379
Toyota Entune App Suite Con- nect settings .........................383
Toyota Safety Sense 2.0 Automatic High Be am ...........173
Dynamic radar cruise control 223
Dynamic radar cruise control with full-speed range ..........213
LDA (Lane Departure Alert with steering control)..................205
LTA (Lane Tracing Assist) .....195
PCS (Pre-Collisio n System) .187
RSA (Road Sign Assist) ........233
TRAC (Traction Control) ........251
Traction Control (TRAC) ........251
Trailer towing ..........................145

584Alphabetical Index
COROLLA_U
Seat belt ....................... 484, 485
Warning lights ........................ 481 ABS ...................................... 483
Brake hold operated indicator........................................... 487
Brake Override System ........ 483
Brake system ....................... 481
Charging system .................. 482
Drive-Start Control ............... 483
Electric power steering ......... 484
High coolant temperature ..... 481
iMT indicator ......................... 487
LDA indicator ........................ 485
Low engine oil pressure ....... 482
Low fuel level ....................... 484
LTA indicator ......................... 485
Malfunction indicator lamp ... 482
Parking brake indicator ........ 486
Pre-collision system ............. 486
Seat belt reminder light 484, 485
Slip indicator......................... 486
SRS ...................................... 482
Tire pressure ........................ 485
Warning messages................. 490
Washer Checking .............................. 443
Preparing and checking before winter.................................. 255
Switch................................... 176
Washing and waxing .............. 422
Weight Cargo capacity ..................... 145
Load limits ............................ 145
Wheels ..................................... 455 Replacing ............................. 455
Size ...................................... 531
Wi-Fi
®...................................... 287
Connecting a device to the in-vehicle access point ....... 287
Operating hints ..................... 290
Wi-Fi
® button (Setup screen) 266
Wi-Fi® Hotspot ........................ 287 Window lock switch ...............129
Windows
Power windows ....................127
Rear window defogger .388, 392
Washer .................................176
Windshield wiper de-icer .......395
Windshield wipers ..................176
Winter driving tips ..................255
Wireless charger.....................405
Wireless remote control Battery-Saving Function ....... 112
Locking/Unlocking ..................98
Replacing the battery ...........458
For vehicles with Entune Audio Plus or Entune Pre-
mium Audio, refer to
“NAVIGATION AND MUL-
TIMEDIA SYSTEM
OWNER’S MANUAL” for
information regarding the
equipment listed below.
· Navigation system
· Audio/visual system
· Rear view monitor system
