COROLLA_U
Pictorial indexSearch by illustration
For safety
and securityMake sure to read through them
(Main topics: Child seat, theft deterrent system)
Vehicle status
information and
indicatorsReading driving-related information
(Main topics: Meters, multi-information display)
Before driving
Opening and closing the doors and windows,
adjustment before driving
(Main topics: Keys, doors, seats)
Driving
Operations and advice which are necessary for
driving
(Main topics: Starting engine, refueling)
Entune audioOperating the Entune Audio
(Main topics: Audio/visual, phone, Toyota Entune)
Interior featuresUsage of the interior features
(Main topics: Air conditioner, storage features)
Maintenance
and careCaring for your vehicle and maintenance
procedures
(Main topics: Interior and exterior, light bulbs)
When trouble
arisesWhat to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle
specificationsVehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
For ownersReporting safety defects for U.S. owners, and seat
belt and SRS airbag instructions for Canadian
owners
IndexSearch by symptom
Search alphabetically

2
COROLLA_UTABLE OF CONTENTS
For your information ........................
6
Reading this manual ...................... 10
How to search ................................ 11
Pictorial index ................................ 12
1-1. For safe use Before driving ........................ 22
For safe driving ..................... 23
Seat belts .............................. 25
SRS airbags .......................... 29
Front passenger occupant clas- sification system.................. 39
Exhaust gas precautions....... 44
1-2. Child safety Riding with children ............... 45
Child restraint systems .......... 46
1-3. Emergency assistance Safety Connect ..................... 61
1-4. Theft deterrent system Engine immobilizer system ... 67
Alarm ..................................... 69
2-1. Instrument cluster Warning lights and indicators............................................ 72
Gauges and meters (4.2-inch display)................................ 77
Gauges and meters (7-inch dis- play) .................................... 81
Multi-information display ....... 86
Fuel consumption information ............................................ 923-1. Key information
Keys ...................................... 96
3-2.
Opening, closing and locking
th

e doors
Doors ................................. 103
Trunk .................................. 108
Smart key system .............. 111
3-3. Adjusting the seats Front seats ......................... 118
Rear seats.......................... 119
Head restraints................... 121
3-4. Adjust
ing the steering wheel
and mirrors
Ste

ering wheel ...................123
Inside rear view mirror ....... 124
Outside rear view mirrors ... 125
3-5. Opening and closing the win- dows
Power windows .................. 127
Moon roof ........................... 130
4-1. Before driving Driving the vehicle.............. 134
Cargo and luggage ............ 142
Vehicle load limits .............. 145
Trailer towing...................... 145
Dinghy towing .................... 146
4-2. Driving procedures Engine (ignition) switch (vehicles without a smart key system)......................................... 147
Engine (ignition) switch (vehicles with a smart key system) . 148
Continuously variable transmis- sion (vehic les without paddle
shift switches)

..................153
1For safety and security
2Vehicle status information
and indicators
3Before driving
4Driving

5TABLE OF CONTENTS
COROLLA_U
1
2
3
4
5
6
7
8
9
10
Engine compartment .......... 436
Tires ................................... 444
Tire inflation pressure......... 453
Wheels ............................... 455
Air conditioning filter ........... 457
Wireless remote control/elec- tronic key battery.............. 458
Checking and replacing fuses ......................................... 461
Light bulbs .......................... 464
8-1. Essential information Emergency flashers ........... 472
If your vehicle has to be stopped in an emergency .............. 472
If the vehicle is trapped in rising water ................................ 474
8-2. Steps to take in an emergency If your vehicle needs to be towed......................................... 475
If you think something is wrong ......................................... 479
Fuel pump shut off system ......................................... 480
If a warning light turns on or a warning buzzer sounds .... 481
If a warning message is dis- played .............................. 490
If you have a flat tire (vehicles without spare tire) ............ 493
If you have a flat tire (vehicles with a spare tire) .............. 503
If the engine will not start ... 511
If you lose your keys .......... 513
If the electronic key does not operate properly ............... 513
If the vehicle battery is dis- charged ............................ 515
If your vehicle overheats .... 519If the vehicle becomes stuck
......................................... 521
9-1. Specifications Maintenance data (fuel, oil level, etc.) .................................. 524
Fuel information ................. 535
Tire information .................. 537
9-2. Customization Customizable features ....... 548
9-3. Initialization Items to initialize ................ 556
10-1. For owners Reporting safety defects for U.S. owners ............................. 558
Seat belt instructions for Cana- dian owners (in French) ... 558
SRS airbag instructions for Canadian owners (in French)......................................... 560
What to do if... (Troubleshooting) ......................................... 568
Alphabetical Index.............. 571
8When trouble arises
9Vehicle specifications
10For owners
Index

11
COROLLA_U
■Searching by name
 Alphabetical index:  P.571
■Searching by installation
position
 Pictorial index: P. 1 2
■Searching by symptom or
sound
 What to do if... (Troubleshoot-
ing):  P. 5 6 8
■Searching by title
 Table of contents: P. 2How to search

12Pictorial index
Pictorial index

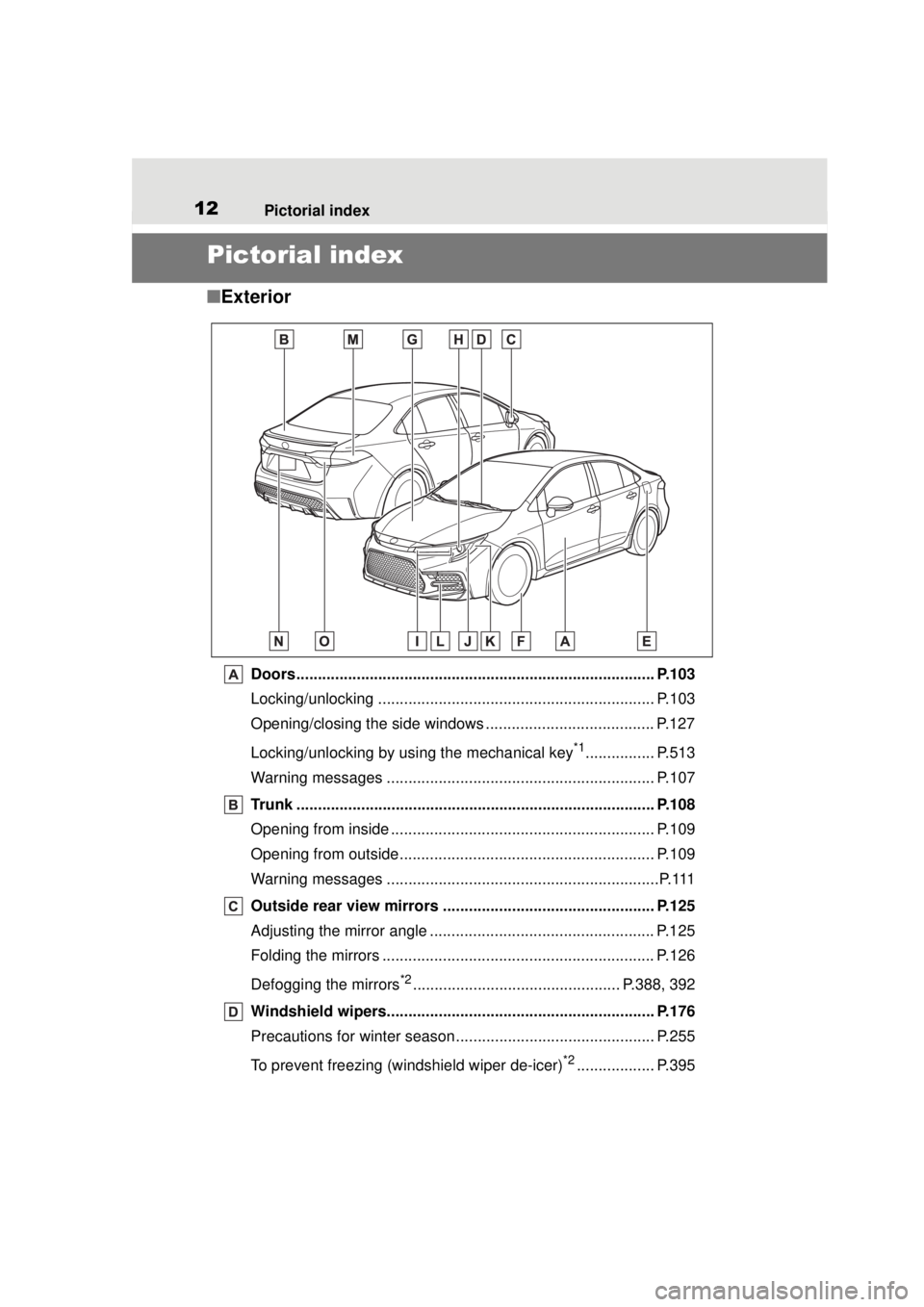

■Exterior
Doors................................................................................... P.103
Locking/unlocking ................................................................ P.103
Opening/closing the side windows ....................................... P.127
Locking/unlocking by using the mechanical key
*1................ P.513
Warning messages .............................................................. P.107
Trunk ................................................................................... P.108
Opening from inside ............................................................. P.109
Opening from outside........................................................... P.109
Warning messages ...............................................................P.111
Outside rear view mirrors ................................................. P.125
Adjusting the mirror angle .................................................... P.125
Folding the mirrors ............................................................... P.126
Defogging the mirrors
*2................................................ P.388, 392
Windshield wipers.............................................................. P.176
Precautions for winter season.... .......................................... P.255
To prevent freezing (windshield wiper de-icer)
*2.................. P.395

13Pictorial index
COROLLA_U
Fuel filler door .................................................................... P.178
Refueling method ................................................................. P.179
Fuel type/fuel tank capacity ................................................. P.526
Tires..................................................................................... P.444
Tire size/inflation pressure ................................................... P.531
Winter tires/tire chains ......................................................... P.255
Checking/rotation/tire pressure warning system
*2............... P.444
Coping with flat tires..................................................... P.493, 503
Hood .................................................................................... P.434
Opening ............................................................................... P.434
Engine oil ............................................................................. P.526
Coping with overheating ...................................................... P.519
Headlights/daytime running lights ................................... P.170
Turn signal lights/parking lights ....................................... P.170
Parking lights
*2................................................................... P.170
Front side marker lights .................................................... P.170
LED accent lights
*2............................................................ P.170
Stop lights/tail lights/rear side marker lights/turn signal lights
P. 1 7 0
License plate lights............................................................ P.170
Tail lights
*2.......................................................................... P.170
Back-up lights
Shifting the shift position to R .............................. P.153, 155, 160
*1: Vehicles with a smart key system
*2: If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P.464, Watts: P.533)

14Pictorial index
COROLLA_U
■ Instrument panel
Engine switch ............................................................. P.147, 148
Starting the engine/changing the positions
*1....................... P.147
Starting the engine/changing the modes
*2........................... P.148
Emergency stop of the engine ............................................. P.472
When the engine will not start .............................................. P.511
Warning messages .............................................................. P.490
Shift lever............................................................ P.153, 155, 160
Changing the shift position................................... P.153, 155, 160
Precautions for towing . ........................................................ P.475
When the shift lever does not move
*3.................................. P.154
Meters ............................................................................. P.77, 81
Reading the meters/adjusting the instrument panel light . P.77, 81
Warning lights/indicator lights ................................................ P.72
When a warning light turns on ............................................. P.481
Multi-information display ........... ......................................... P.86
Display ................................................................................... P.86

15Pictorial index
COROLLA_U
When a warning message is displayed ................................ P.490
Parking brake
*4................................................................... P.163
Applying/releasing................................................................ P.163
Precautions for winter season.... .......................................... P.256
Warning light/message.................. ............................... P.163, 481
Turn signal lever................................................................. P.162
Headlight switch ................................................................ P.170
Headlights/parking lights/tail lights/ side marker lights/daytime run-
ning lights/LED accent lights
*4............................................. P.170
Windshield wiper and washer switch............................... P.176
Usage................................................................................... P.176
Adding washer fluid .............................................................. P.443
Emergency flasher switch ................................................. P.472
Hood lock releas e lever .............................................. ....... P.434
Tilt and telescopic steering lo ck release lever ................ P.123
Air conditioning system ................................. ........... P.386, 391
Usage........................................................................... P.386, 391
Rear window defogger ................................................. P.388, 392
Entune Audio
*4................................................................... P.261
Entune Audio Plus
*4, 5
Entune Premium Audio*4, 5
*1
: Vehicles without a smart key system
*2: Vehicles with a smart key system
*3: Vehicles with a continuously variable transmission
*4: If equipped
*5: Refer to “NAVIGATION AND MU LTIMEDIA SYSTEM OWNER’S MAN-
UAL”.

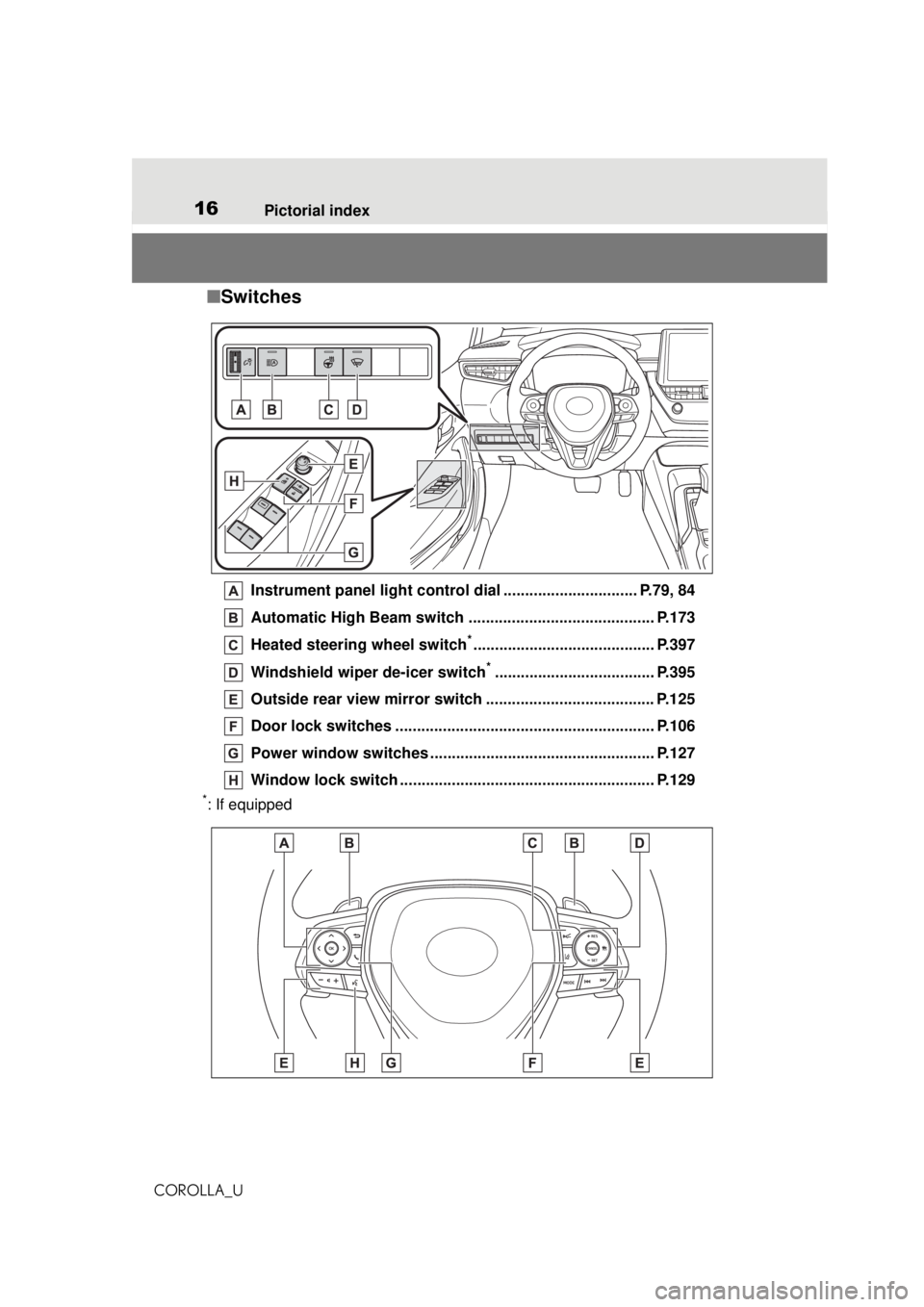

16Pictorial index
COROLLA_U
■ Switches
Instrument panel light control dial ............................... P.79, 84
Automatic High Beam switch ........................................... P.173
Heated steering wheel switch
*.......................................... P.397
Windshield wiper de-icer switch
*..................................... P.395
Outside rear view mirror switch ....................................... P.125
Door lock switches ............................................................ P.106
Power window switches ................................. ................... P.127
Window lock switch .... ................................................ ....... P.129
*: If equipped

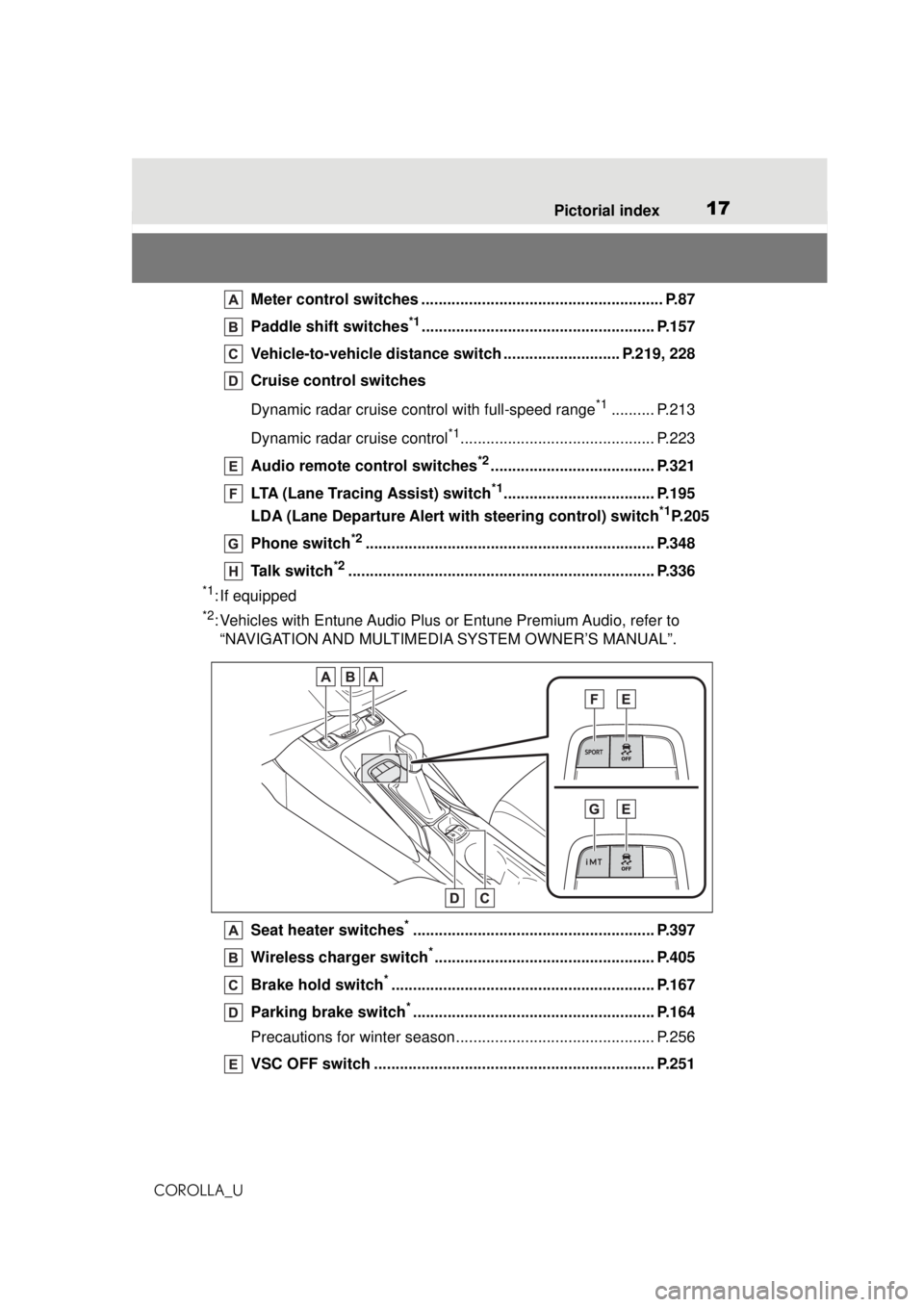

17Pictorial index
COROLLA_U
Meter control switches ............... ......................................... P.87
Paddle shift switches
*1...................................................... P.157
Vehicle-to-vehicle distance swit ch ........................... P.219, 228
Cruise control switches
Dynamic radar cruise control with full-speed range
*1.......... P.213
Dynamic radar cruise control
*1............................................. P.223
Audio remote control switches
*2...................................... P.321
LTA (Lane Tracing Assist) switch
*1................................... P.195
LDA (Lane Departure Alert with steering control) switch
*1P.205
Phone switch
*2................................................................... P.348
Talk switch
*2....................................................................... P.336
*1: If equipped
*2: Vehicles with Entune Audio Plus or Entune Premium Audio, refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
Seat heater switches
*........................................................ P.397
Wireless charger switch
*................................................... P.405
Brake hold switch
*............................................................. P.167
Parking brake switch
*........................................................ P.164
Precautions for winter season.... .......................................... P.256
VSC OFF switch ................................................................. P.251
